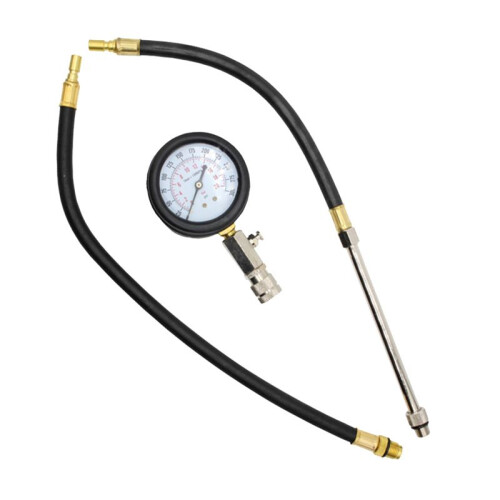

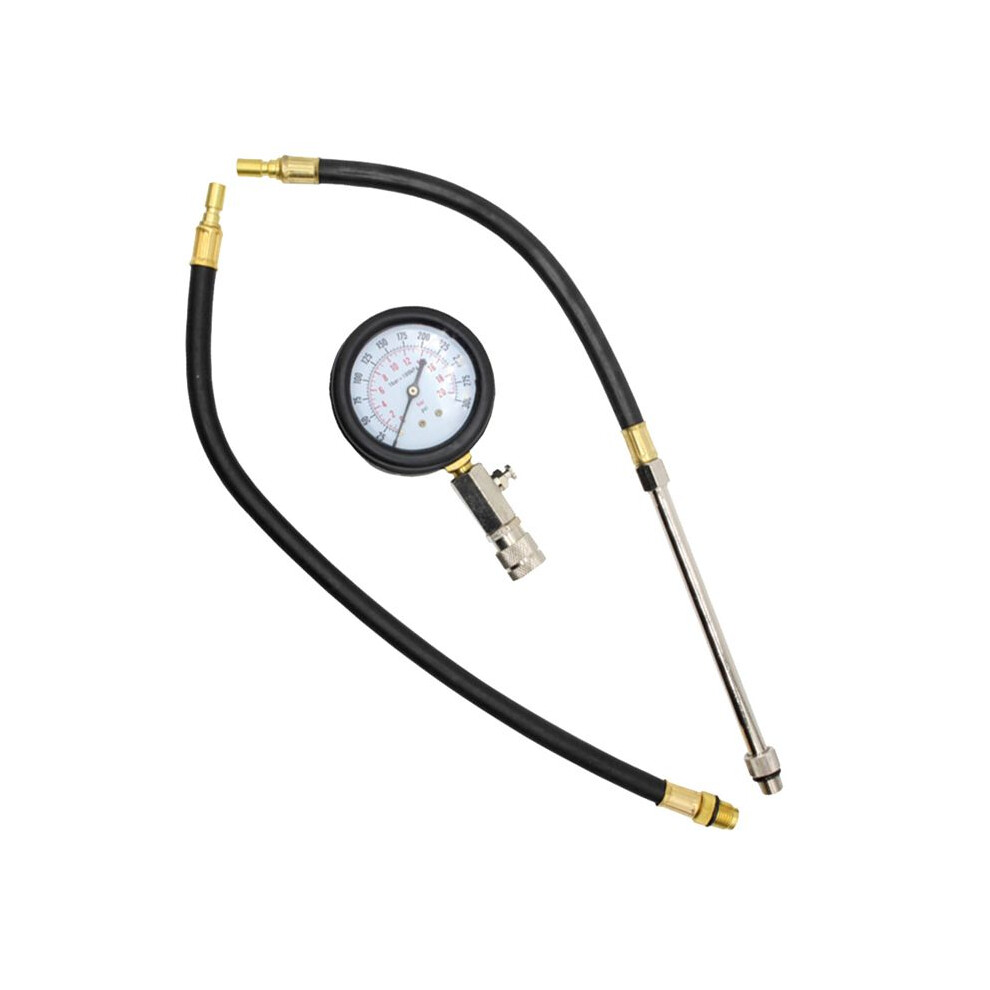

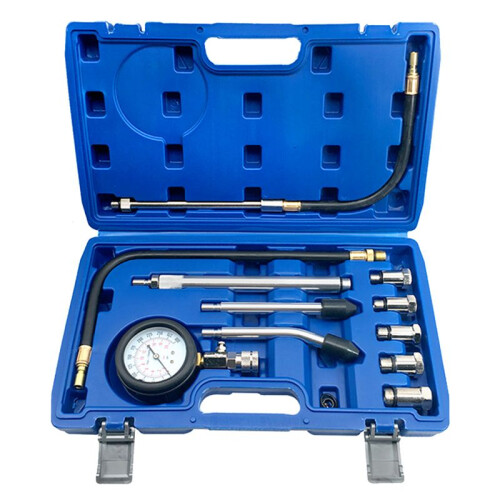

Automobile Compression Test Tool, Engine Cylinder Leakage Compression Test Pressure, Engine Cylinder Pressure Gauge

Automobile Compression Test Tool, Engine Cylinder Leakage Compression Test Pressure, Engine Cylinder Pressure Gauge Description

Function: The cylinder compression tester kit is used to quickly and accurately test the cylinder pressure of gasoline engines. Meter readings can help diagnose the following problems: stuck valve, carbon deposits, cracked cylinder or defective main gasket, poor or worn piston ring installation, burned or damaged piston.

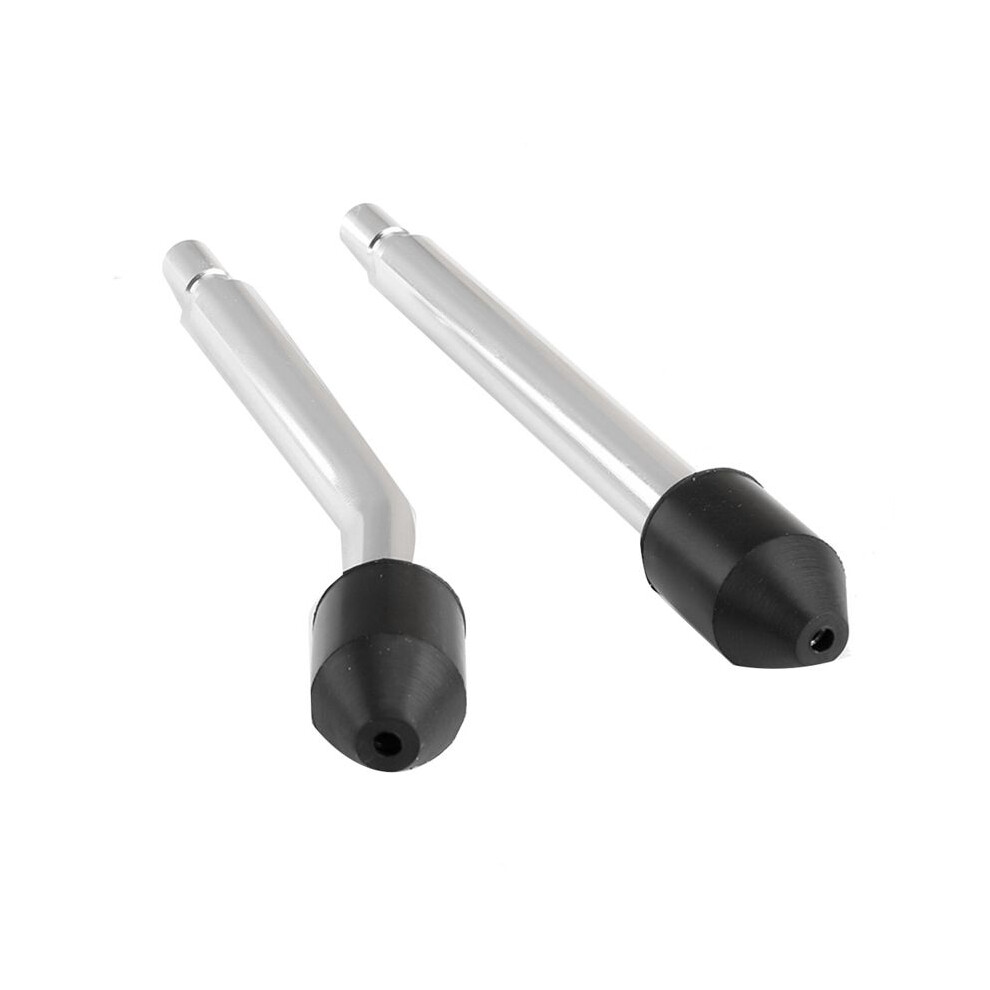

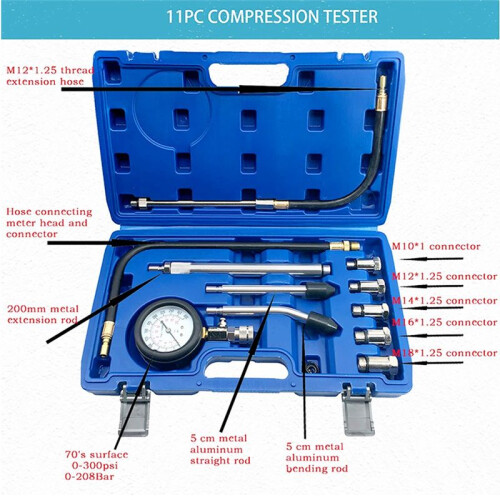

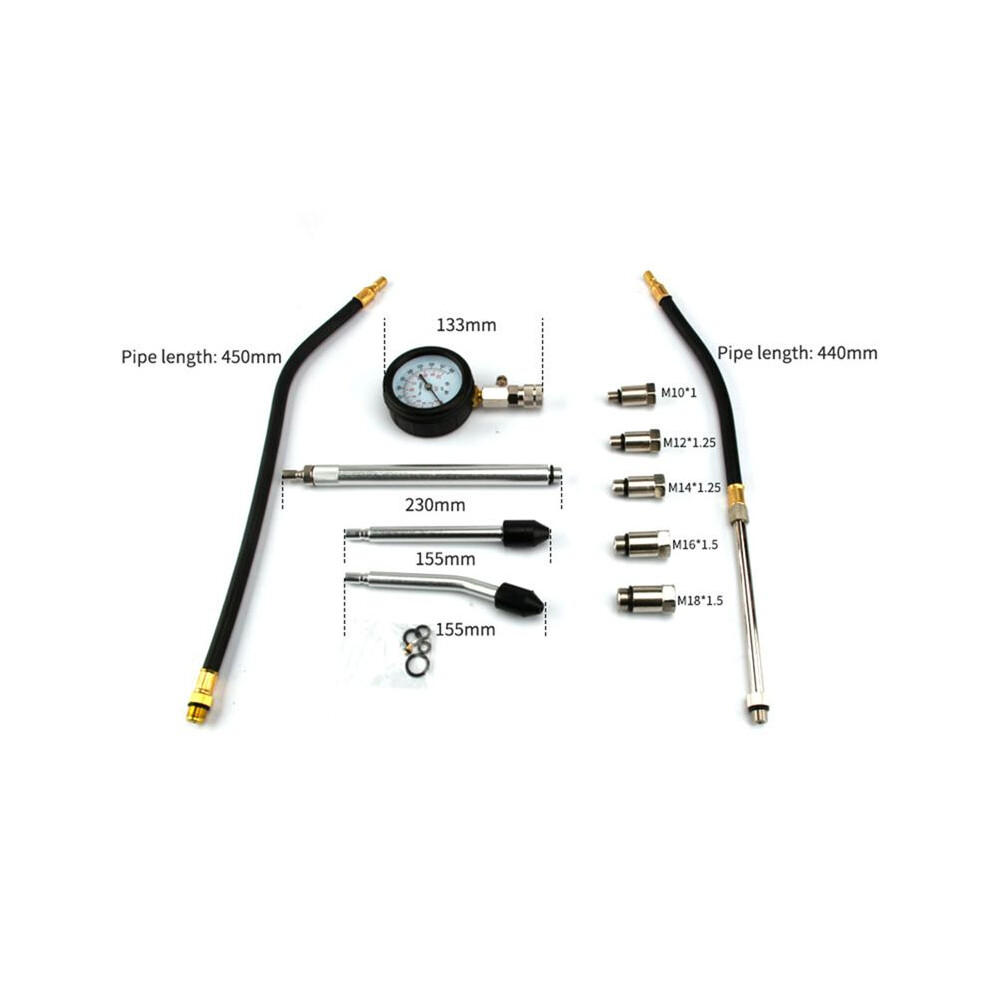

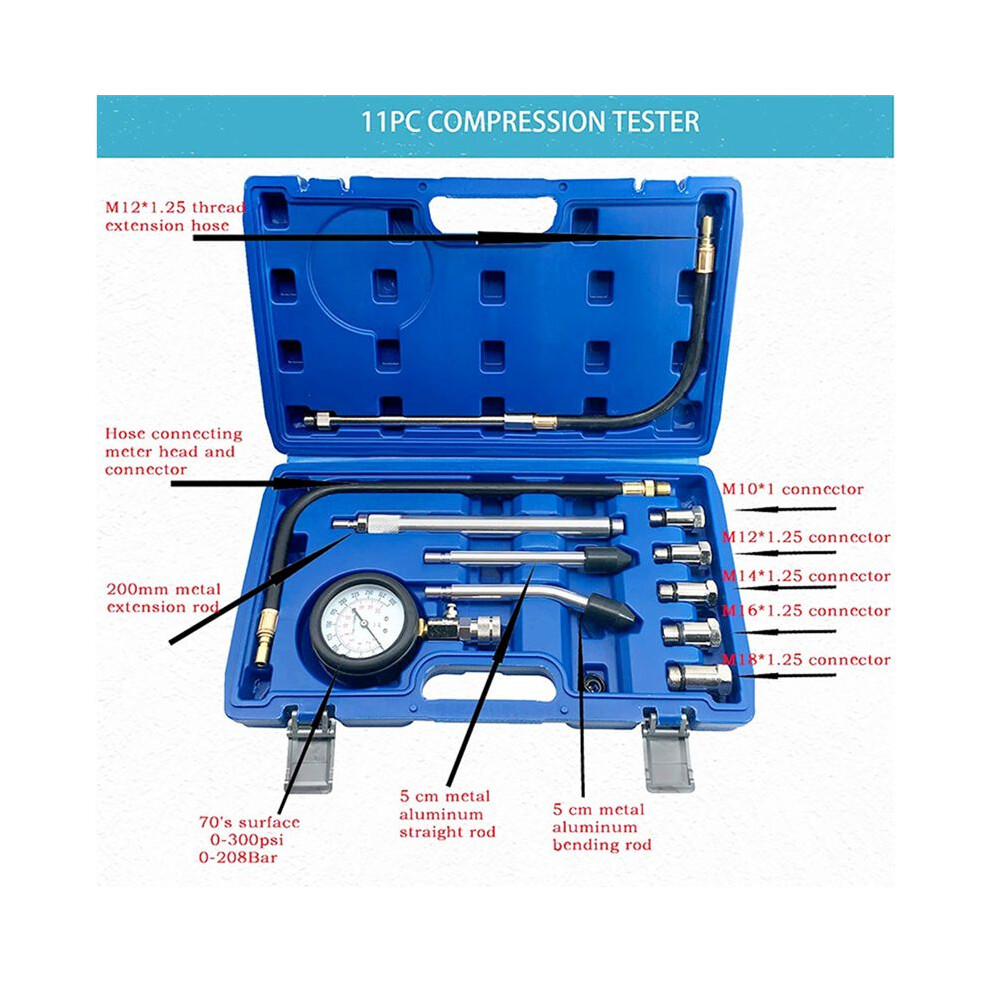

Application: Gasoline engine cylinder --- equipped with different sizes of rotating and push-in adapters, widely used in most types of gasoline gasoline gas engine cylinders and deep spark plugs, common in motorcycles, lawn mowers, cars, trucks, ATV and many more. Not suitable for crude oil engines.

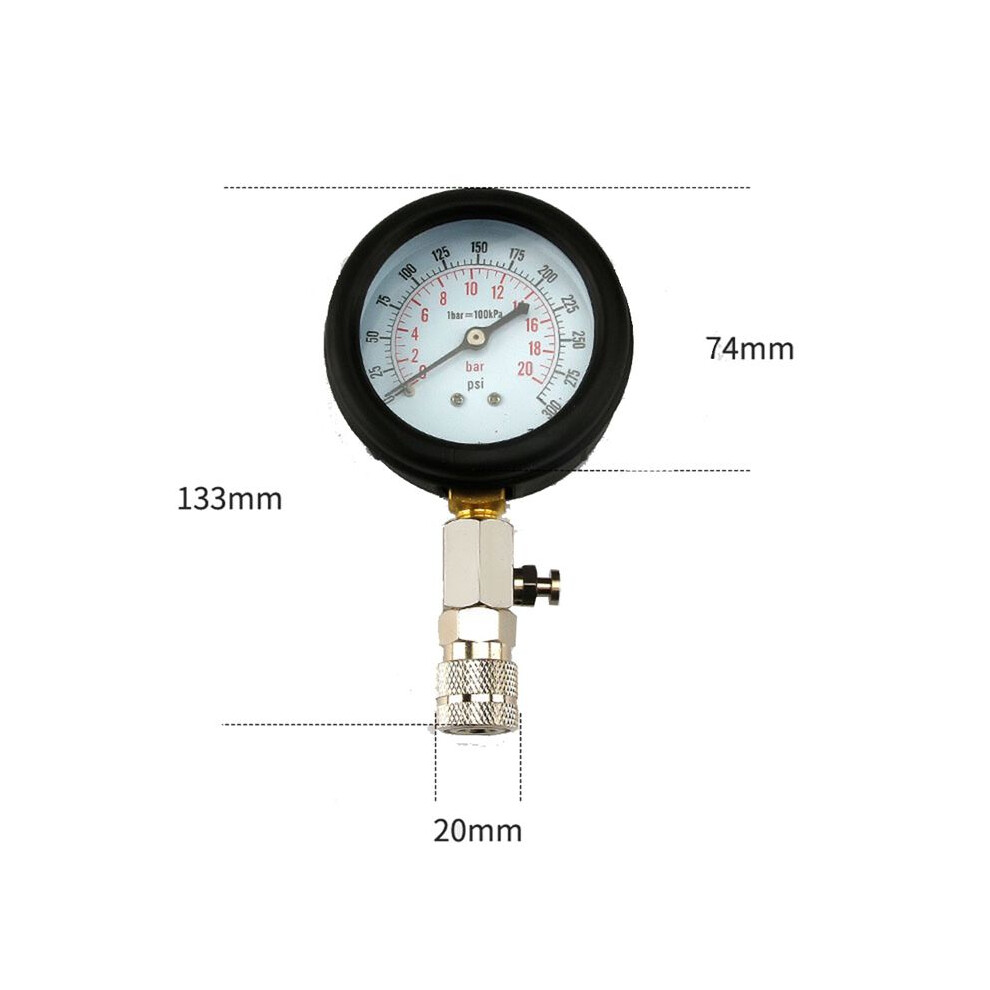

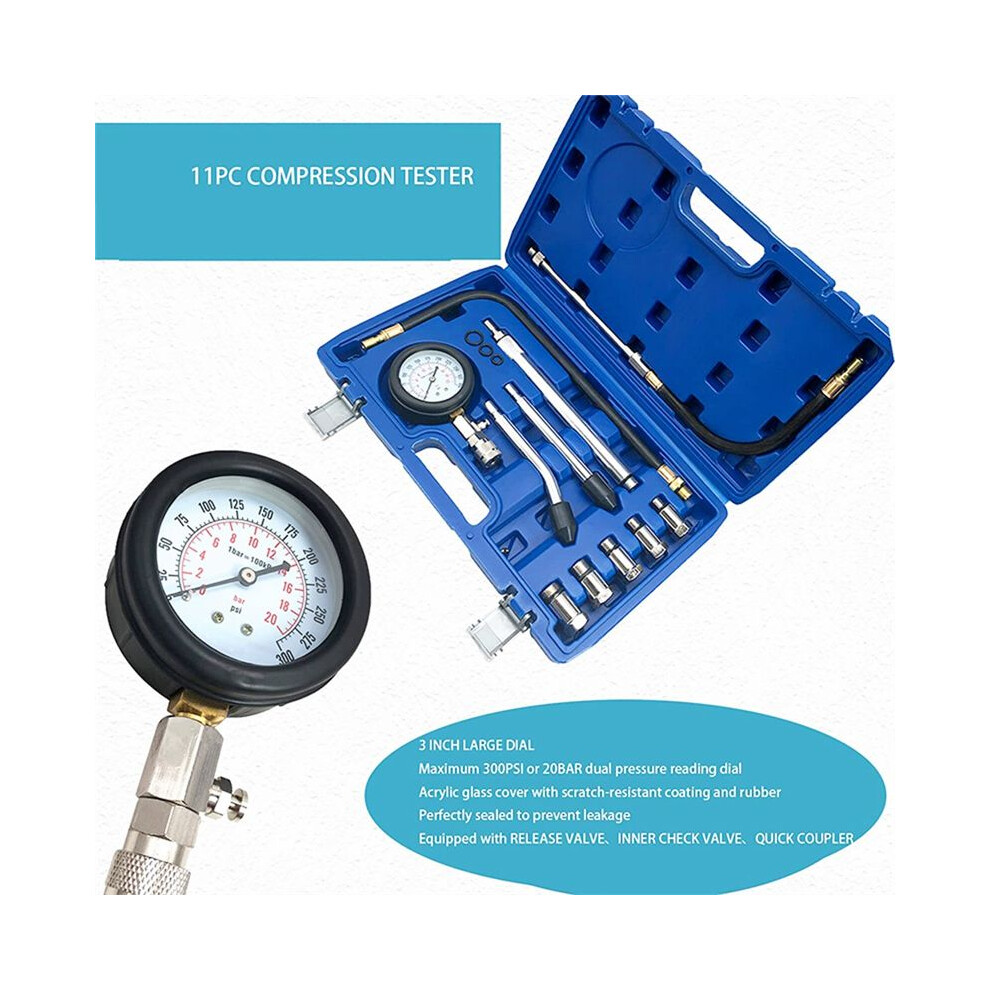

Stable quality tester: Maximum 300PSI or 20BAR dual pressure device, with easy-to-read large dial, acrylic glass meter cover with scratch-resistant coating and rubber protective cover with excellent shock absorption performance. The built-in one-way valve with pressure holding function ensures that the pressure gauge obtains the maximum pressure at the during the compression process.

Color: black+silver
Material: metal
1. Purpose: It is an instrument specially used to check the compression pressure of gas in the cylinder.
2. How to use:
(1) Start the engine and run it to normal operating temperature, turn off the engine and wait until the engine stops running, then remove all spark plugs;
(2) Fully open the throttle valve, and press the connector of the pressure gauge the hole;
(3) Use the motor to drive the engine to rotate at a speed of 100-150r/min for 3-5 seconds. At this , the pointer the instrument will gradually rise, and it will stop when it reaches a certain value, and the indicated value at this is the compression pressure of the cylinder;
(4) Press the button to reset the pointer to zero;
(5) Repeat the measurement 2 to 3 times according to the
