AXK1024 Thrust Needle Roller Bearing with AS1024 Washer 10

AXK1024 Thrust Needle Roller Bearing with AS1024 Washer 10 Description

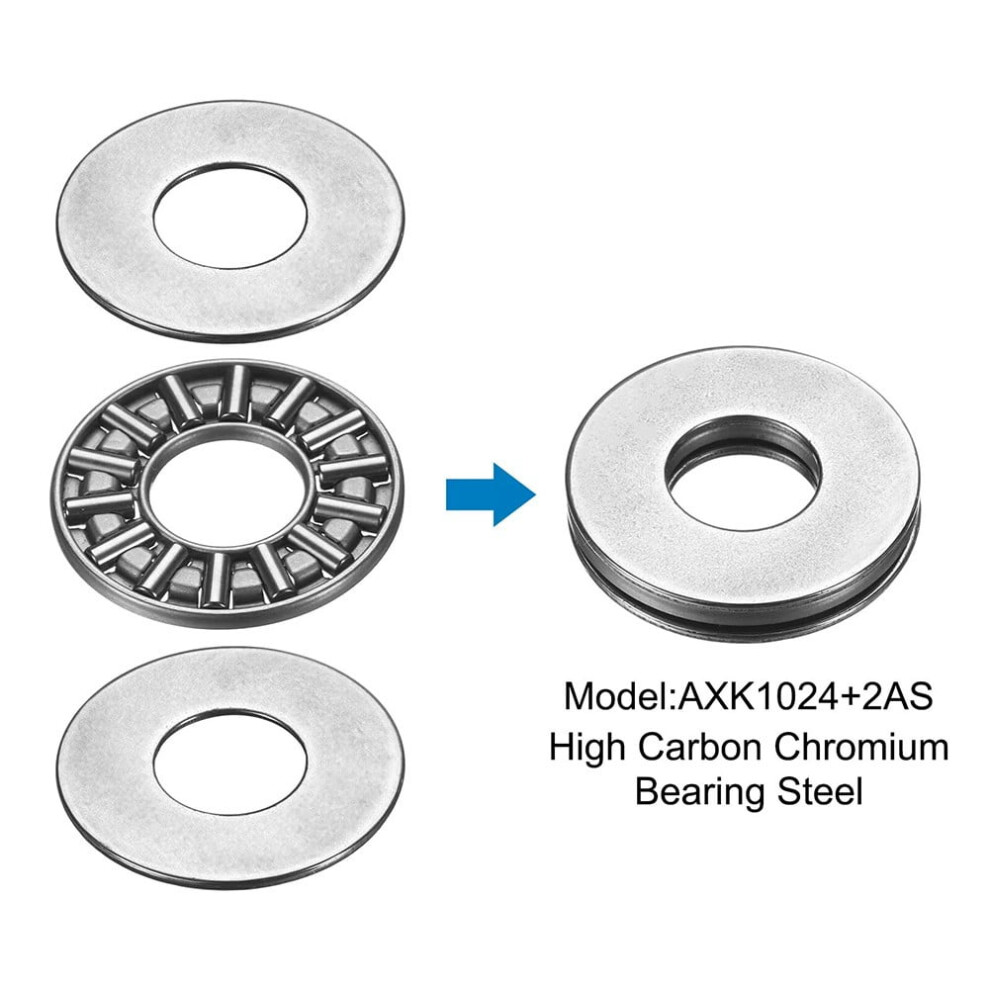

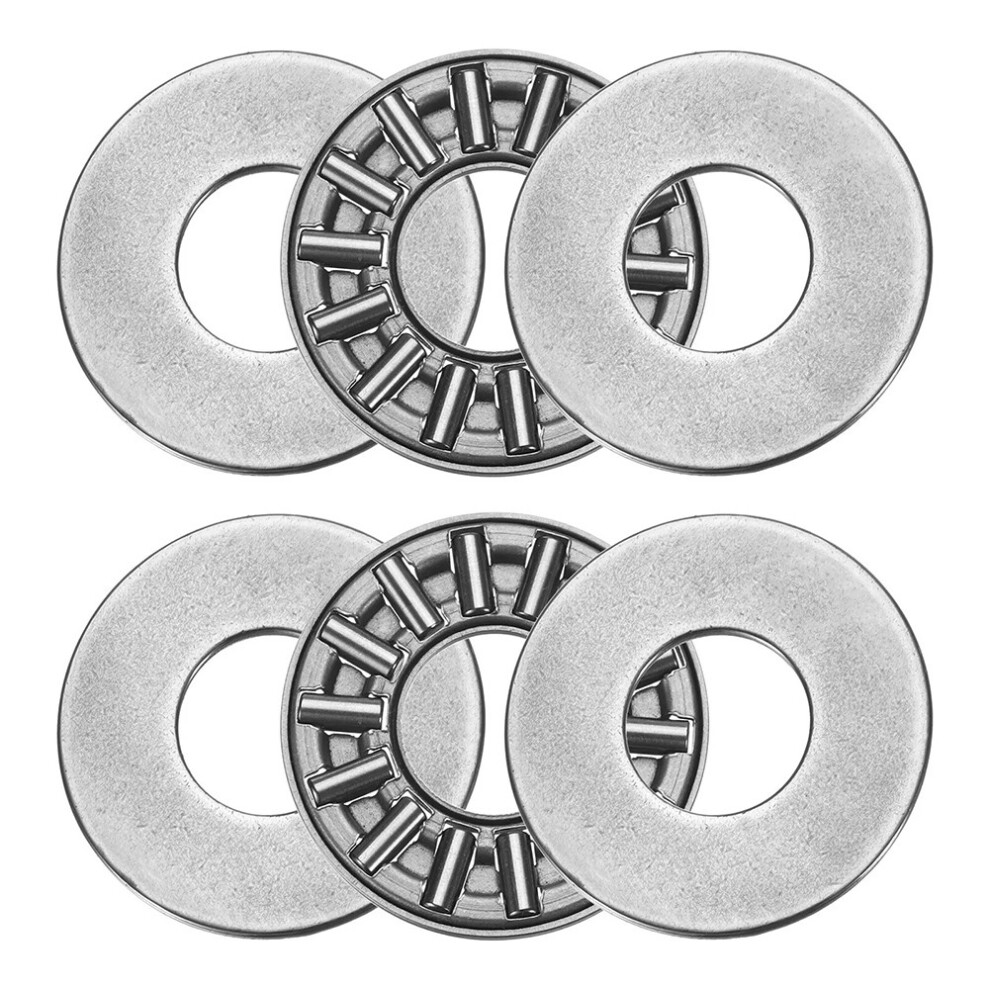

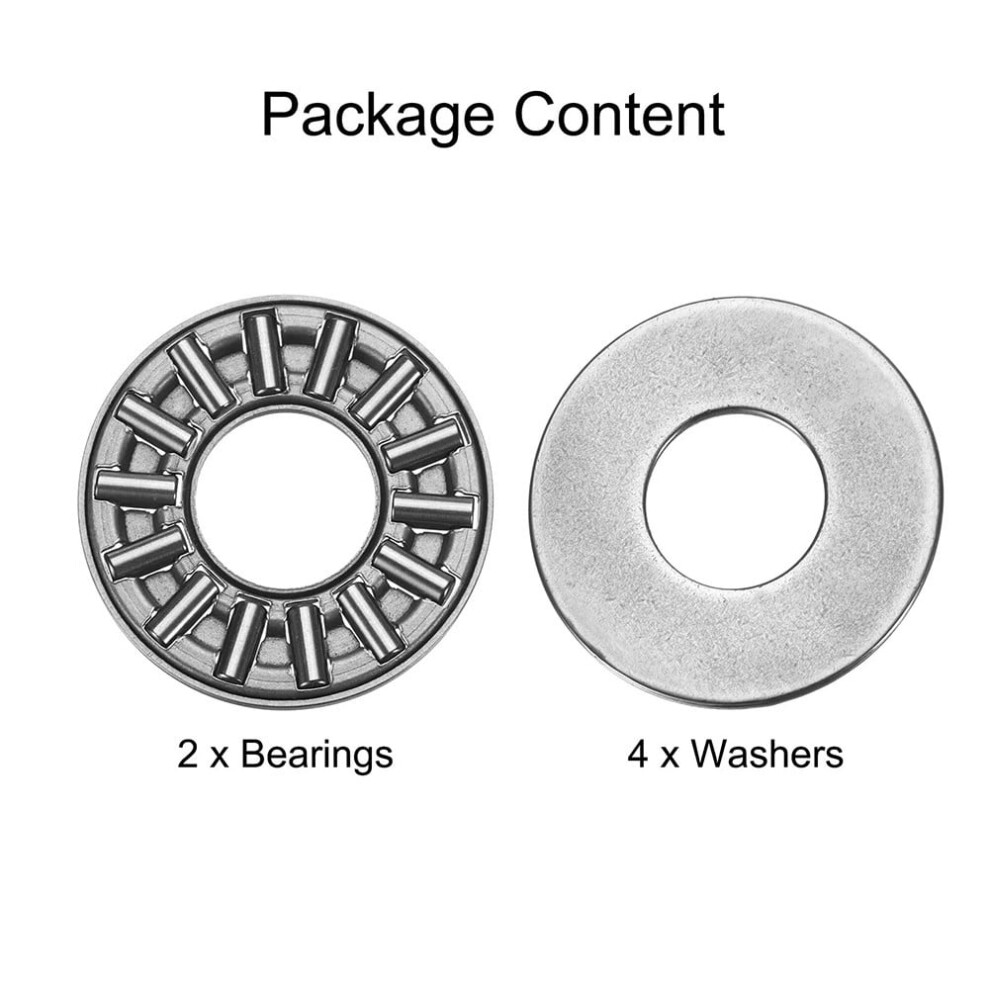

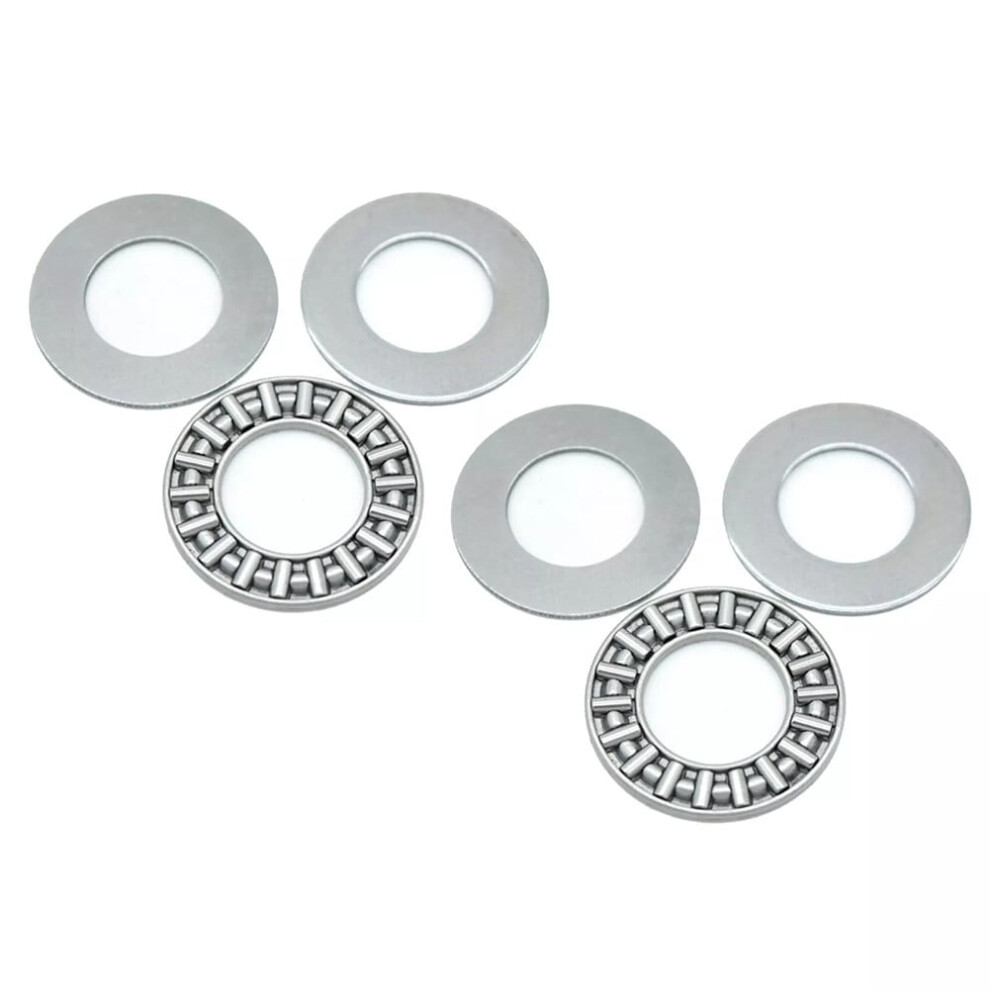

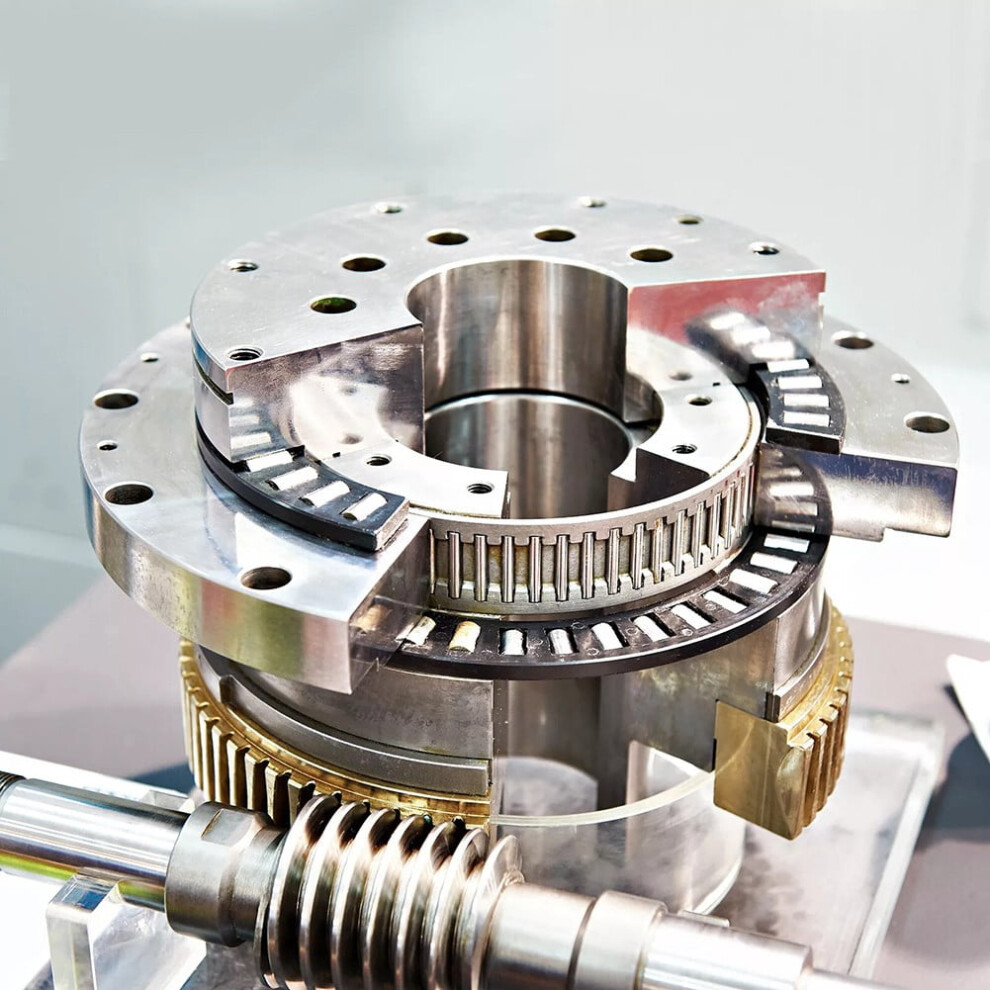

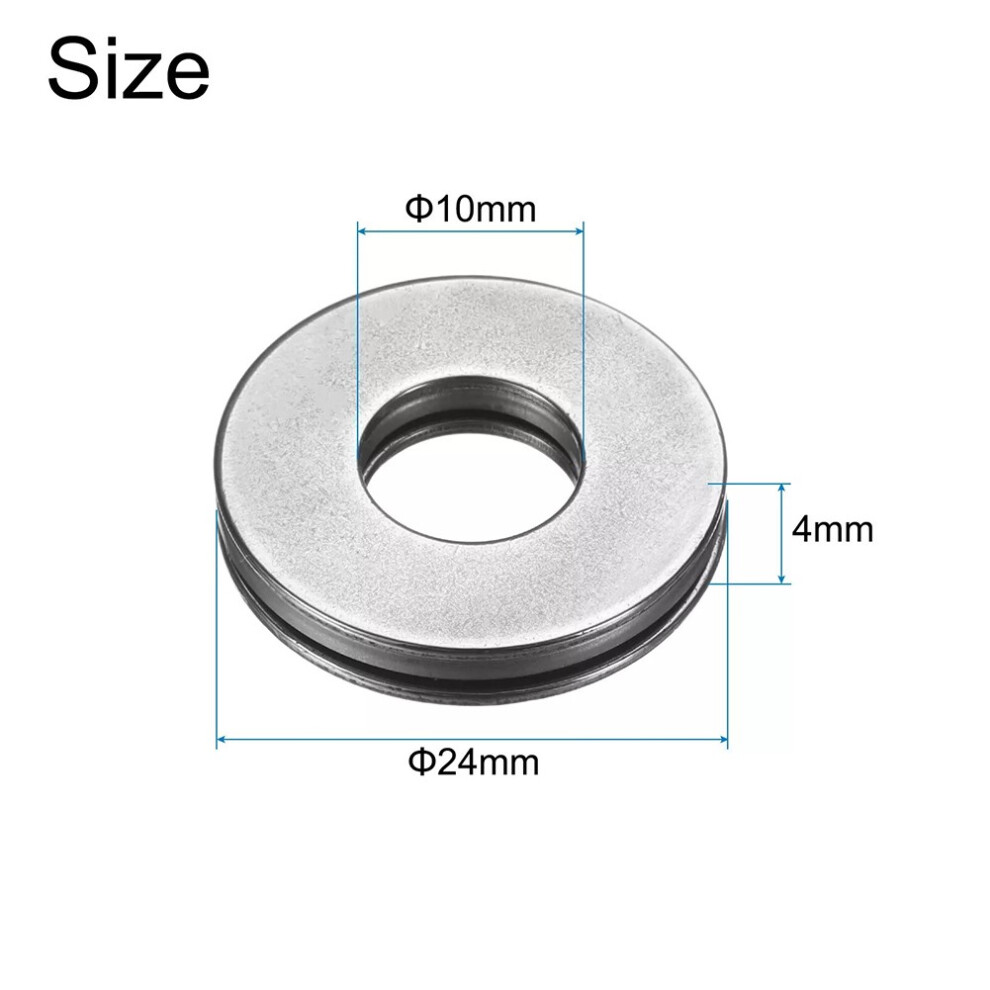

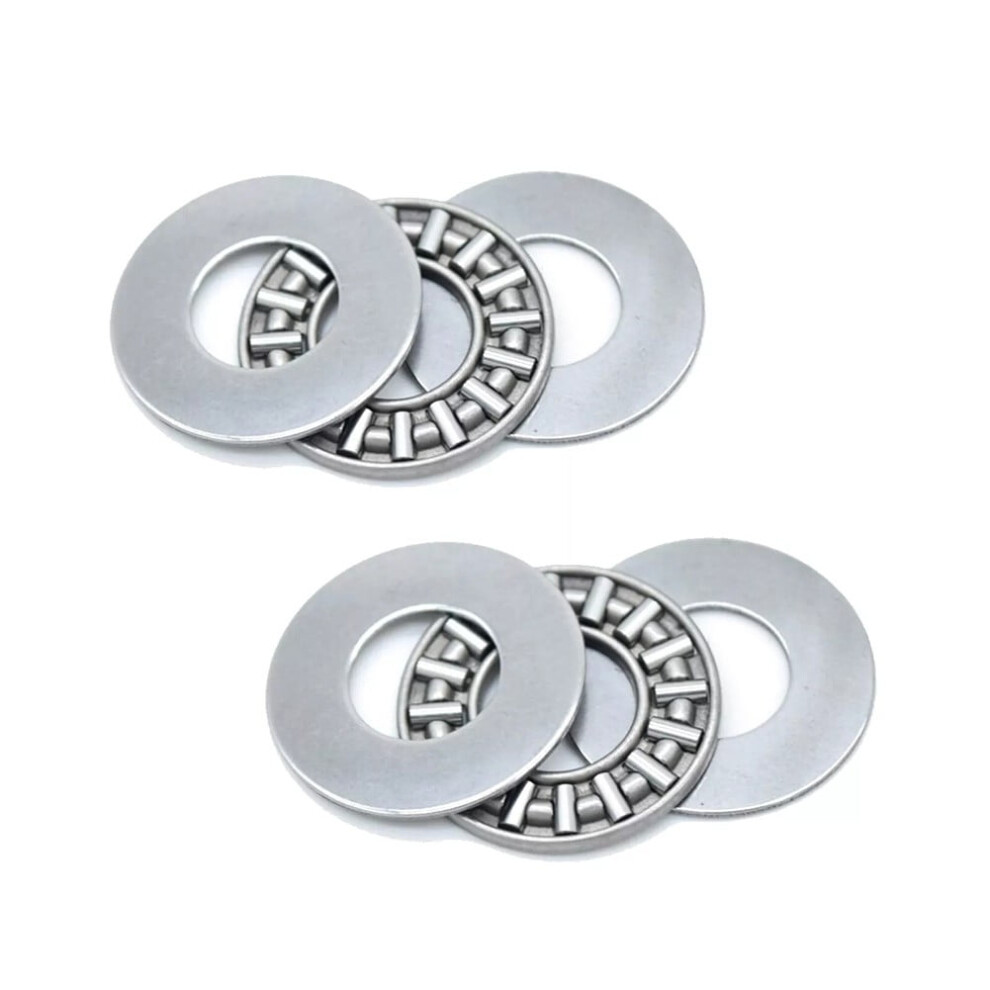

Features: *Compact Stiffness: Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces. *Hardened Polished Washers: Made of hardened spring steel, both faces of the washers are polished and can be used as raceways. *Heavy Load Accommodation: These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within a assembly. *Washer Combination: Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways. *Versatile Applications: Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others. Specifications: Part Name: Needle Roller Thrust Bearings Bearing Model: AXK1024 Bearing Washer Model: AS1024 Material: Bearing steel Bore Diameter (d): 10mm Outside Diameter (D): 24mm Bearing Thickness : 2mm Washer Thickness (T2): 1mm (Approx.) Size: As shown in the picture Color: Sliver Package Content: 2 x Bearings 4 x Bearing Washers Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
