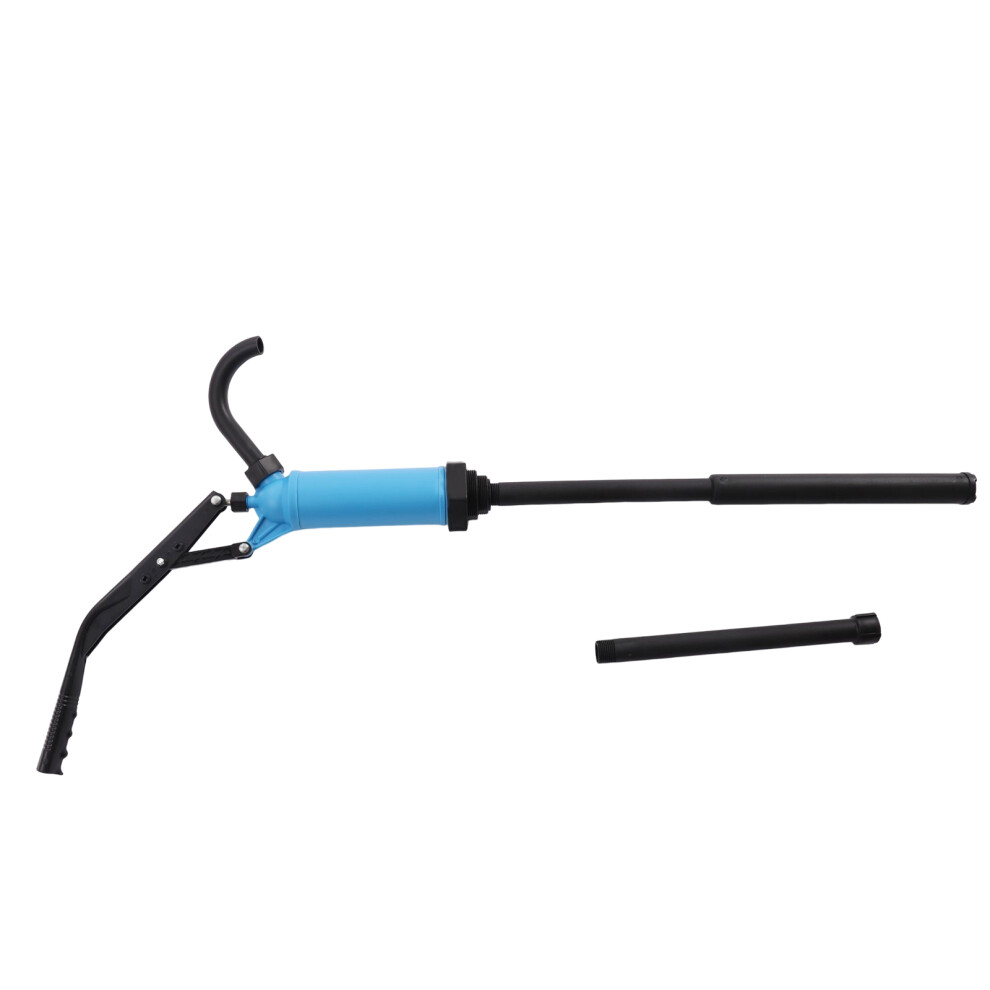

Barrel Pump Plastic Lever Acting Drum Hand Pump

Barrel Pump Plastic Lever Acting Drum Hand Pump Description

Application

The product is suitable for pumping gasoline, kerosene, diesel, water, alcohol, and some neutral and non-strong acid and alkali liquids. It is suitable for gas stations, construction sites, chemical plants, etc.

Specification

Pressing Handle Material: ABS

Pressure Rod Material: 201Stainless Steel

Inlet and Outlet Pipes, Body, Piston Material: PP

Style: Hand-pressed Model

Color: Blue, Black

Head: 2m/6.56ft

Fits Drums Capacity: 5-55 gallon

Pressing Speed: 55 times/min

Single Oil Volume: 310-320ml/10.48-10.82 ounces

Flow Rate: 16-18L/min (4.22-4.75Gal/min)

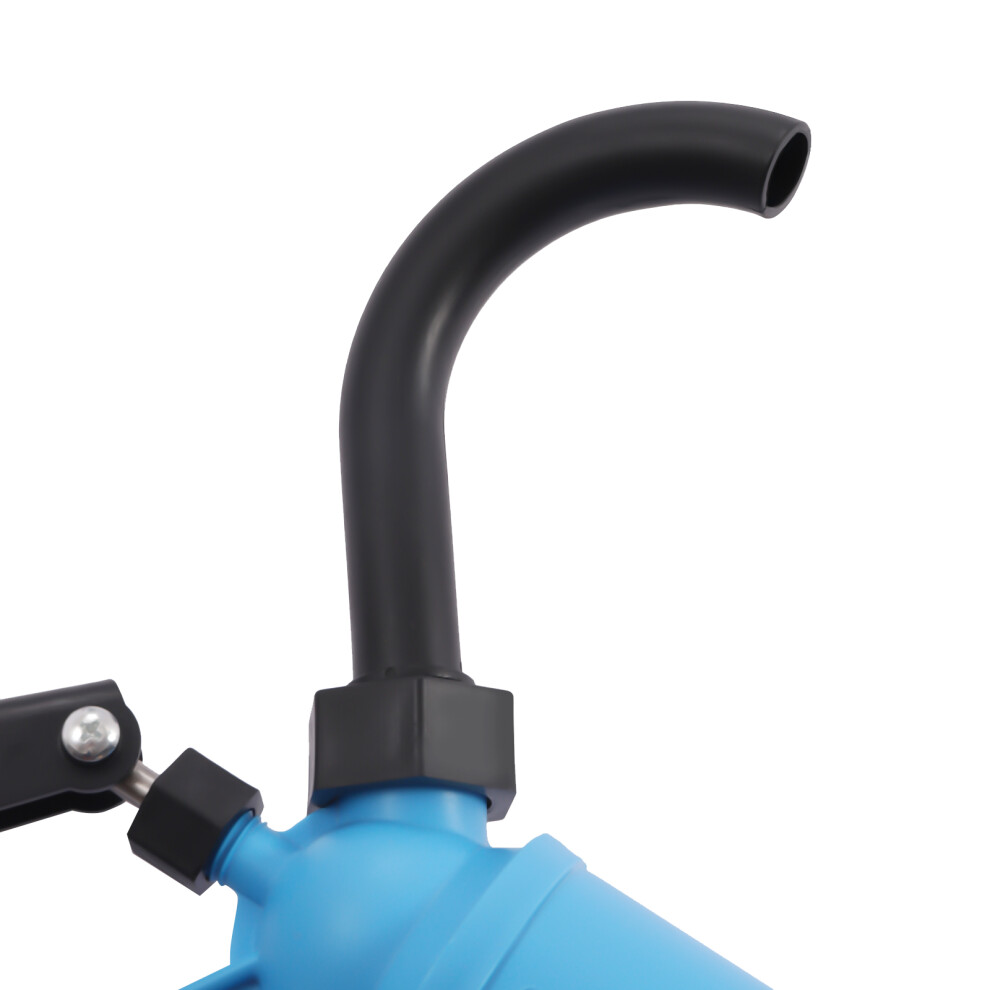

Outlet Diameter: 22mm/0.86in

Inlet Diameter: 37mm/1.45in

Scope of Application: Weak Acid and Alkali Liquids and Oils

Gross Weight: 1.1kg/2.42lbs

Net Weight: 1kg/2.2lbs

Package Size: 42x14x8cm/16.53x5.51x3.14in

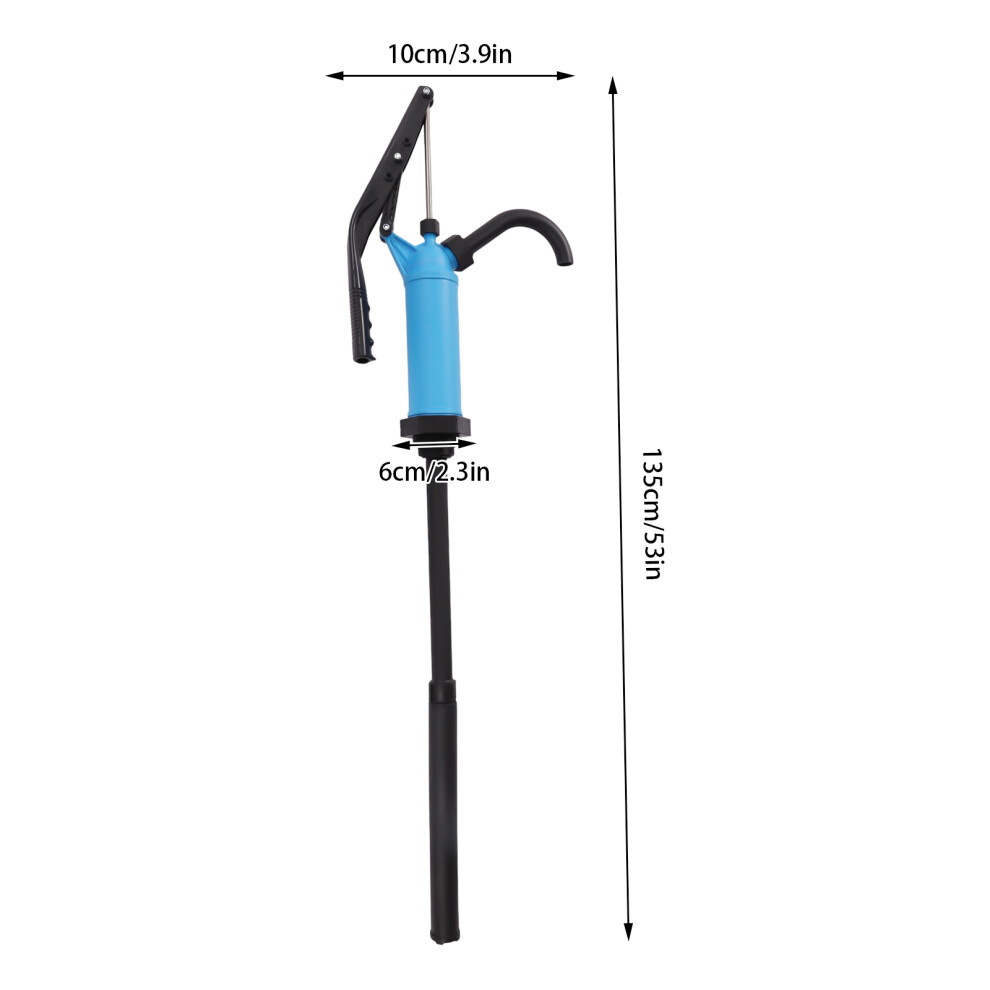

Product Size: 135x10x6cm/53x3.9x2.3in

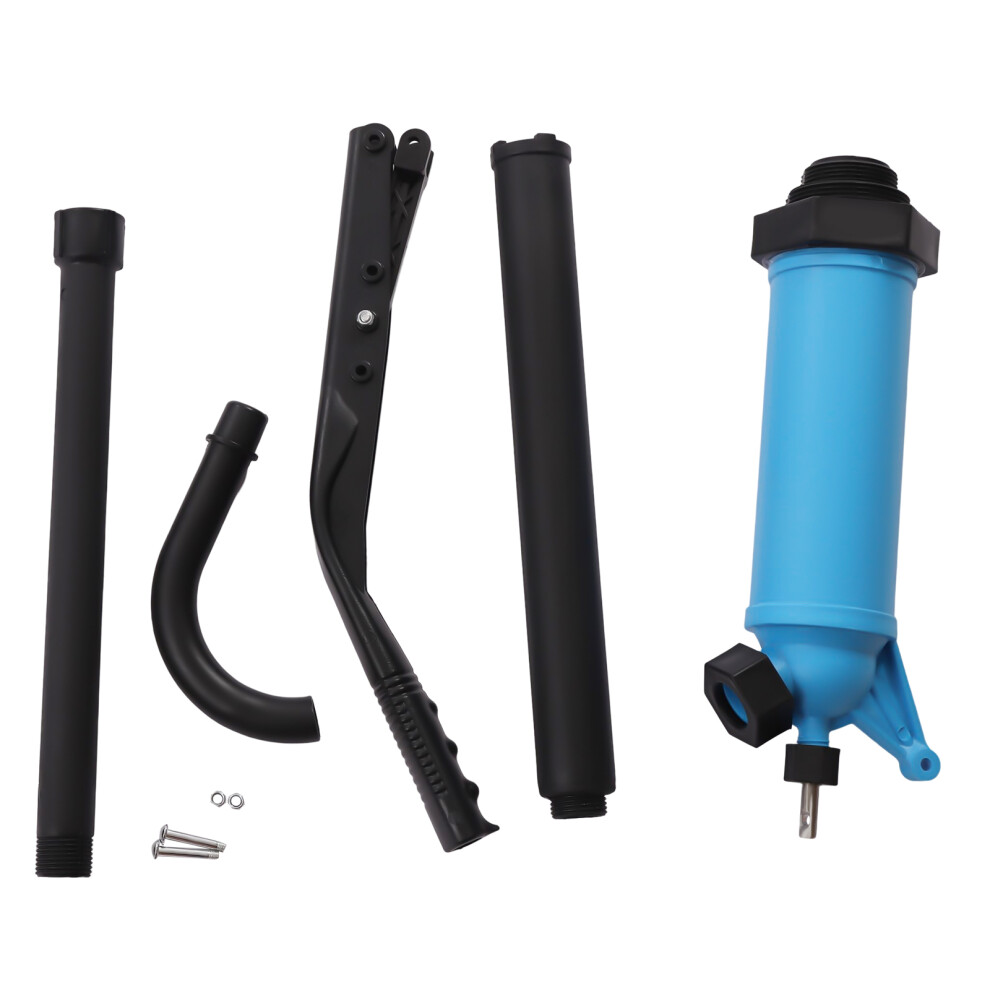

Package Included

1xLever-type Drum Pump Main Body

1x Pressure Rod

2xPipes

1xU-shape Oil Outlet Tube

1xEnglish Manual

Notes

1. When using, please keep the handshaking at a uniform speed of 1 turn per second, do not shake the handle at a high frequency. High-frequency hand shaking will not improve the flow rate but will cause damage to the handle.

2. This product cannot be used to extract viscous and easily condensed and crystallized liquids. The PP material cannot be used to extract toluene, butanone, glacial acetic acid, sulfuric acid, hydrochloric acid, hydrogen peroxide, etc. For other chemical liquids, please search whether PP (polypropylene) reacts with the pumped liquid.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
