(Basic Kits) For GEPRC RX As TX JR-Bay Modification Kit Receiver FPV Long Range Drone DIY Part

(Basic Kits) For GEPRC RX As TX JR-Bay Modification Kit Receiver FPV Long Range Drone DIY Part Description

Features:

Compatible with a wide range of controllers featuring a JR bay

Eye-catching multi-color 3D printed shell for a bold look

Handles 2-6S input, with 5V@1A output for steady power

Three connection options for receivers, giving you flexibility

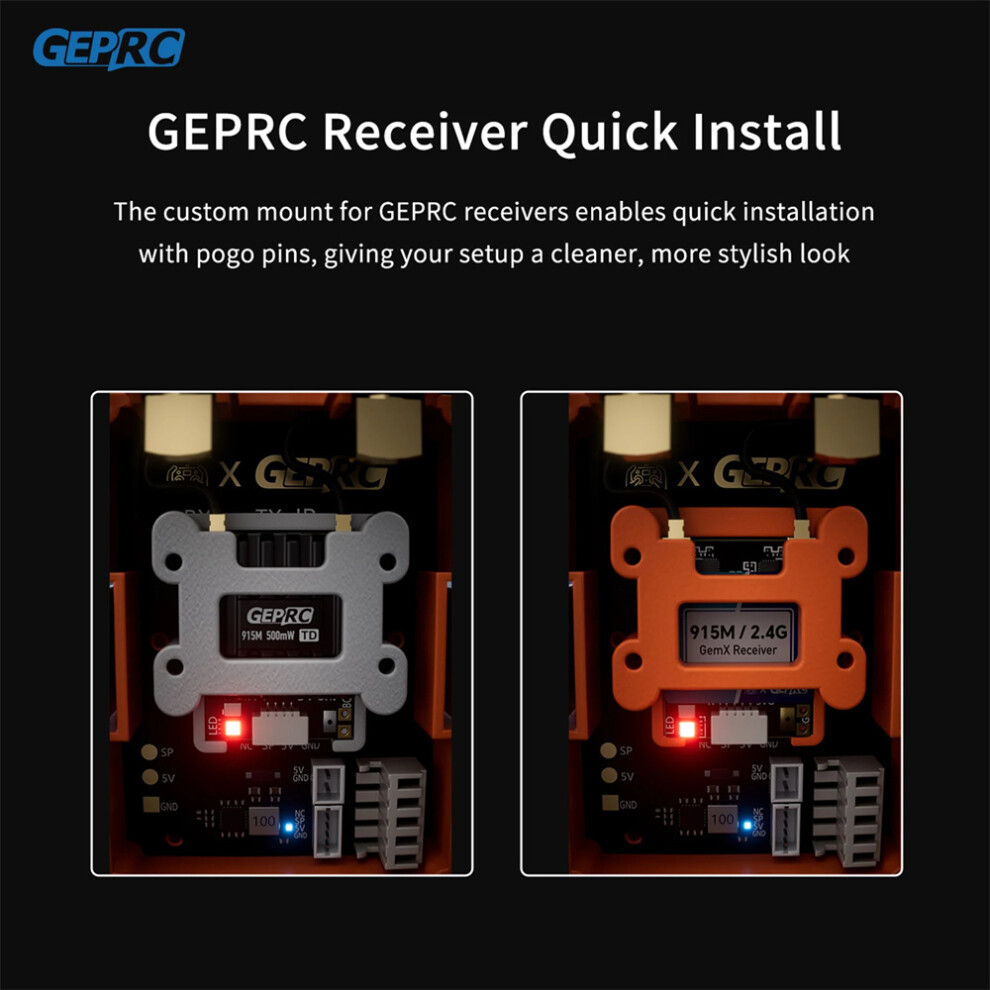

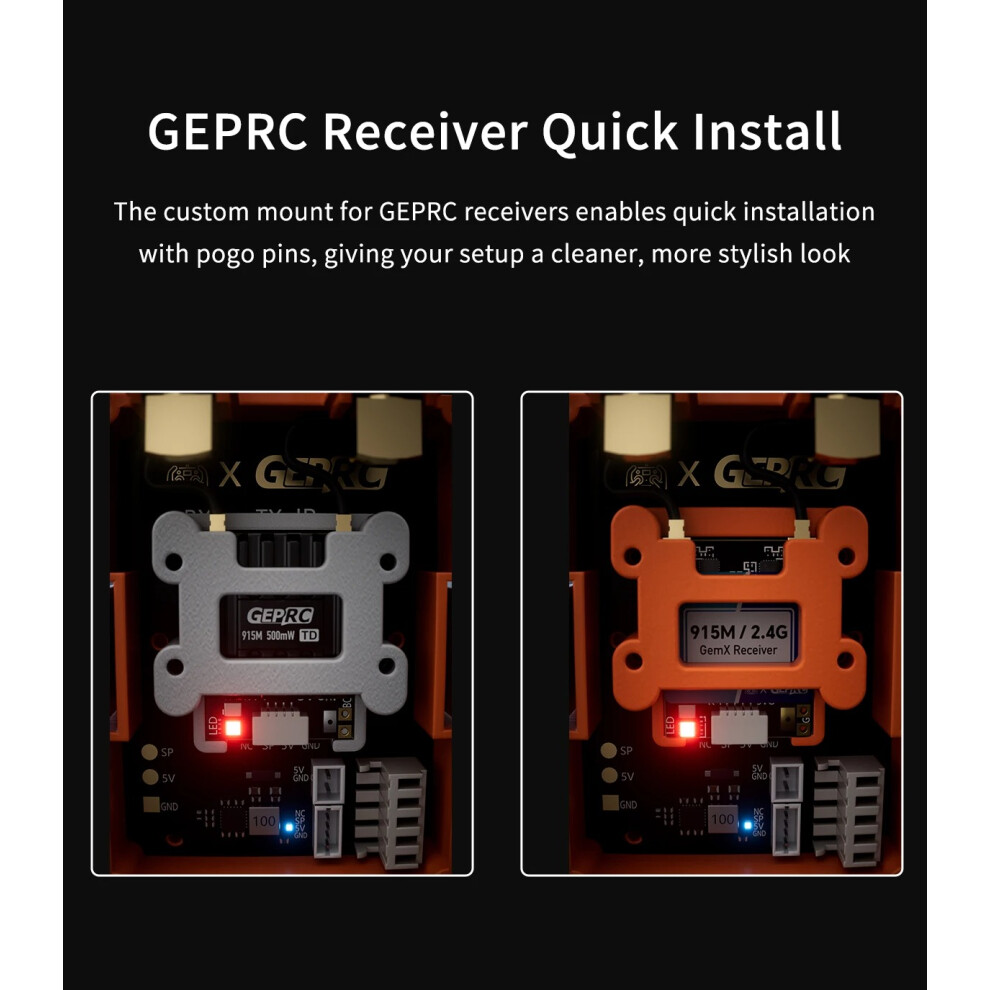

Custom-built mount base for easy, secure installation of GEPRC receivers

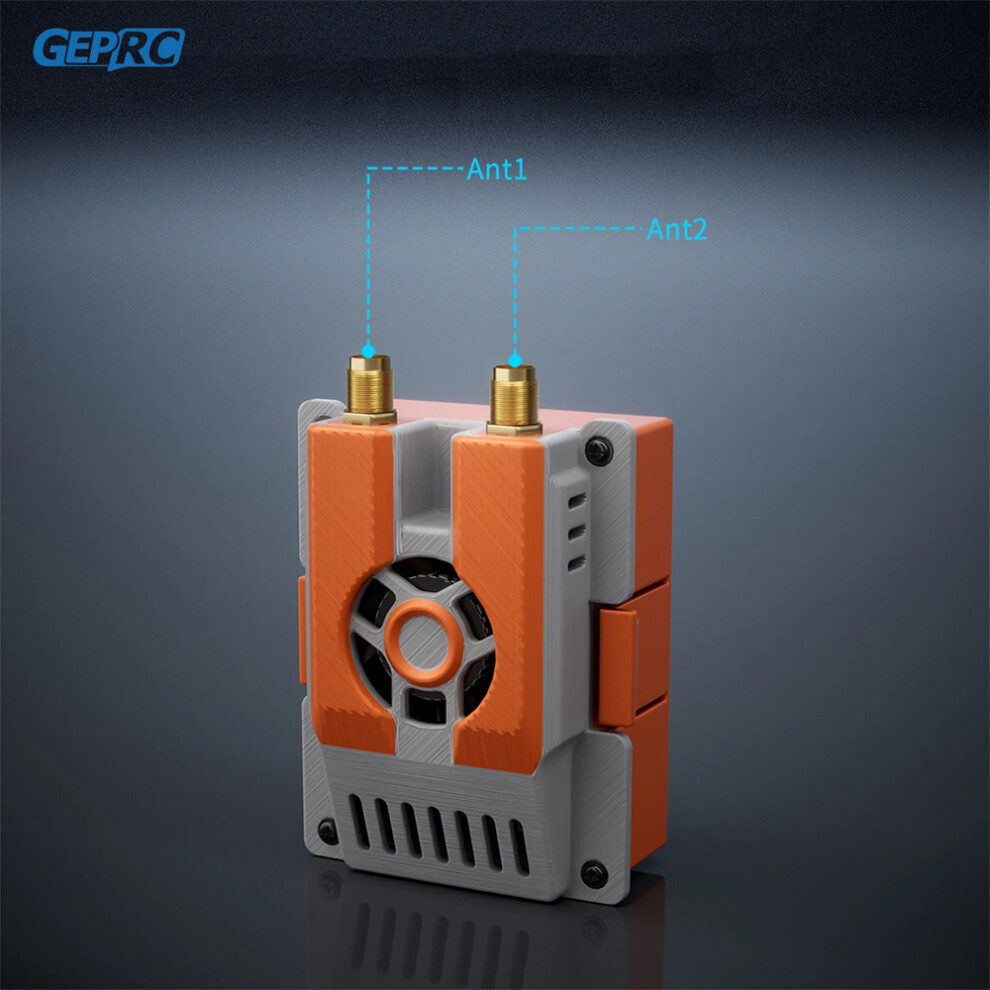

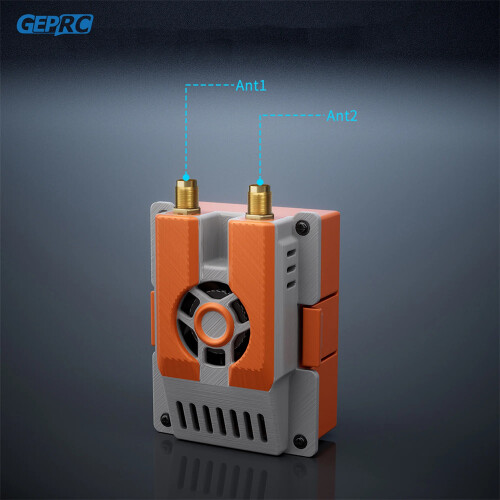

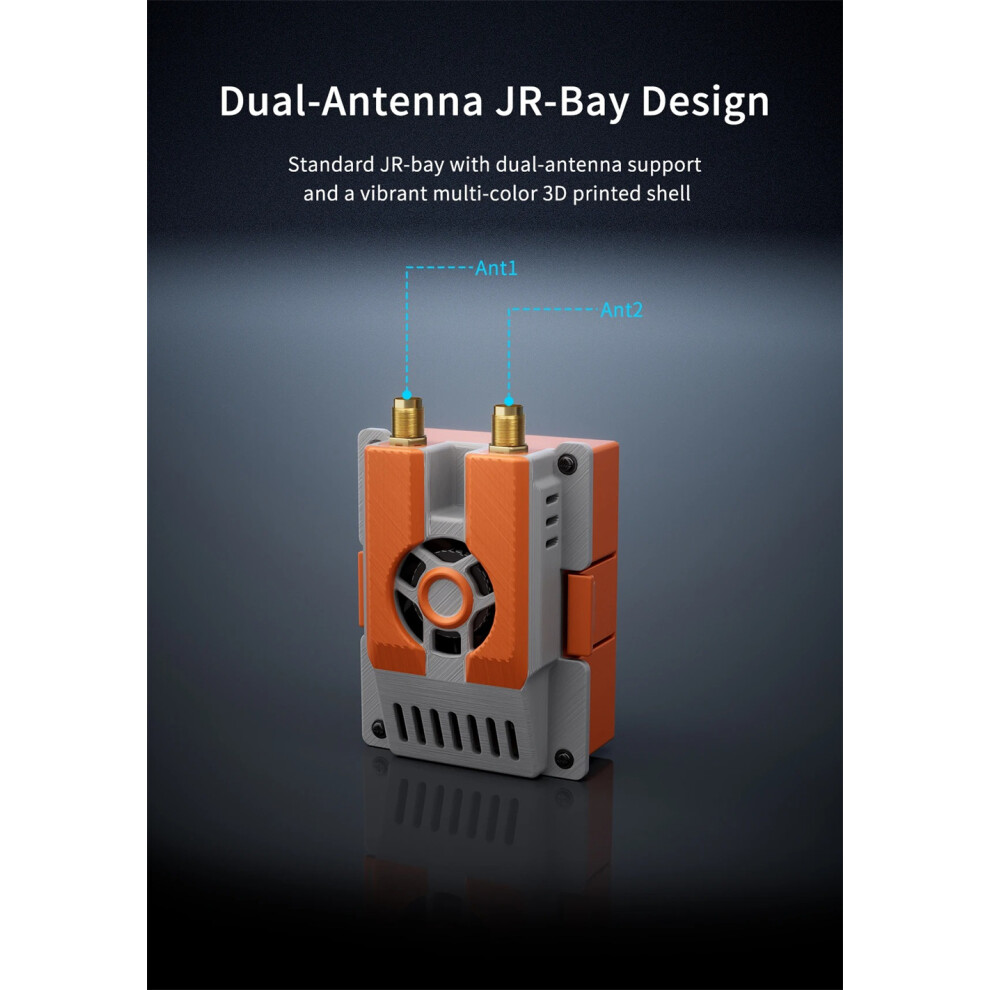

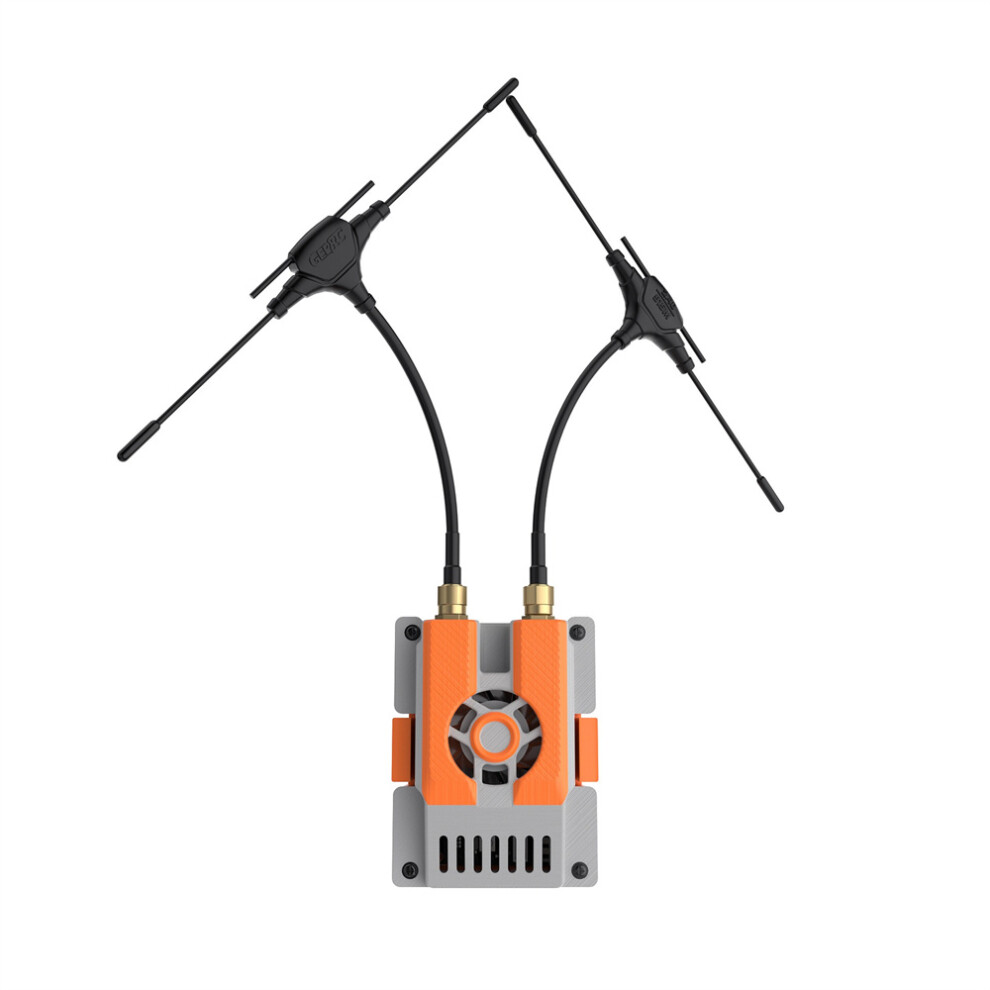

Dual antenna design, instantly upgrading to a Gemini TX module

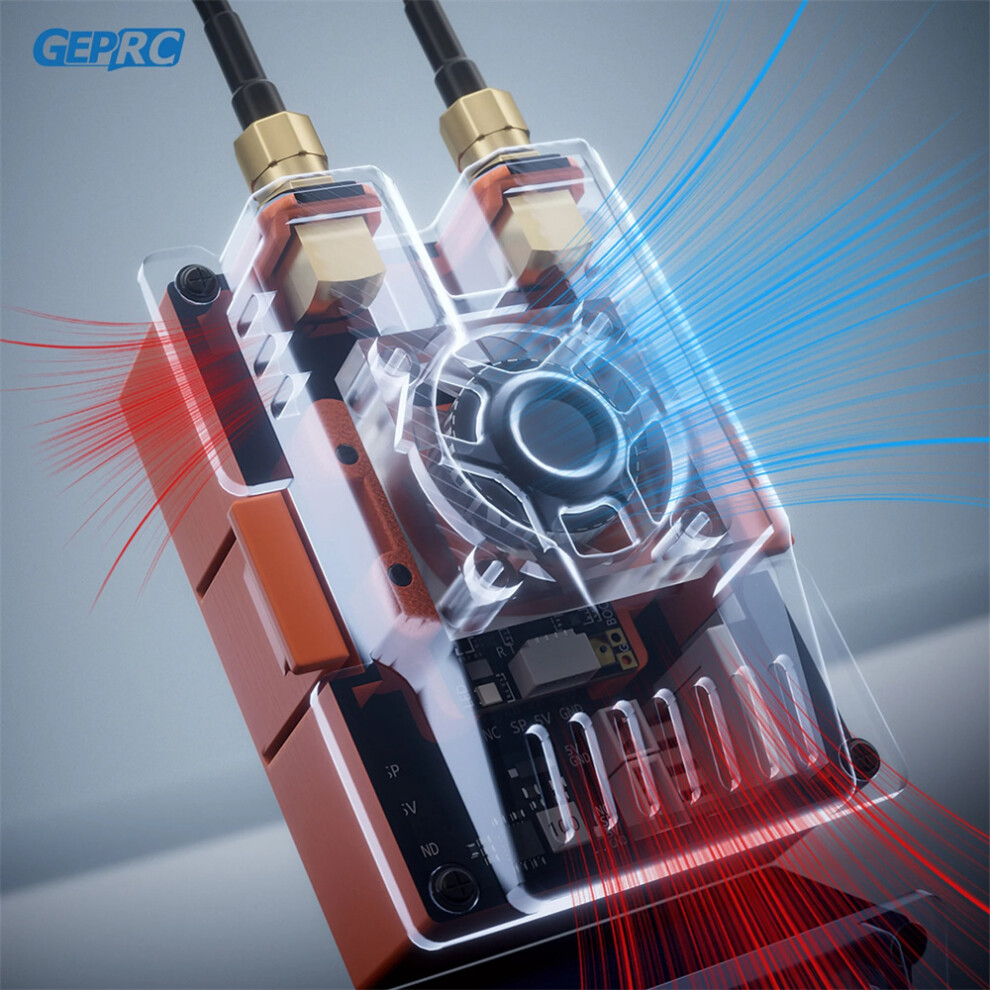

Cooling fan supported

Paired with 915M/2.4G dual-frequency T-type antennas for convenience

Open-source design files to fuel your creativity and expand possibilities

Specifications:

Model: For GEPRC RX as TX JR-Bay Modification Kit

Expansion Bay: JR Bay

Input Voltage: 2-6S

Output Voltage: 5V@1A

Housing Material: PLA

Number of Antennas: Dual antennas

Compatible Receivers: Receivers using ESP32 or ESP32-C3 chips

Connection Method: Soldering, SH1.0 connectors, pogo pins

Installation method:

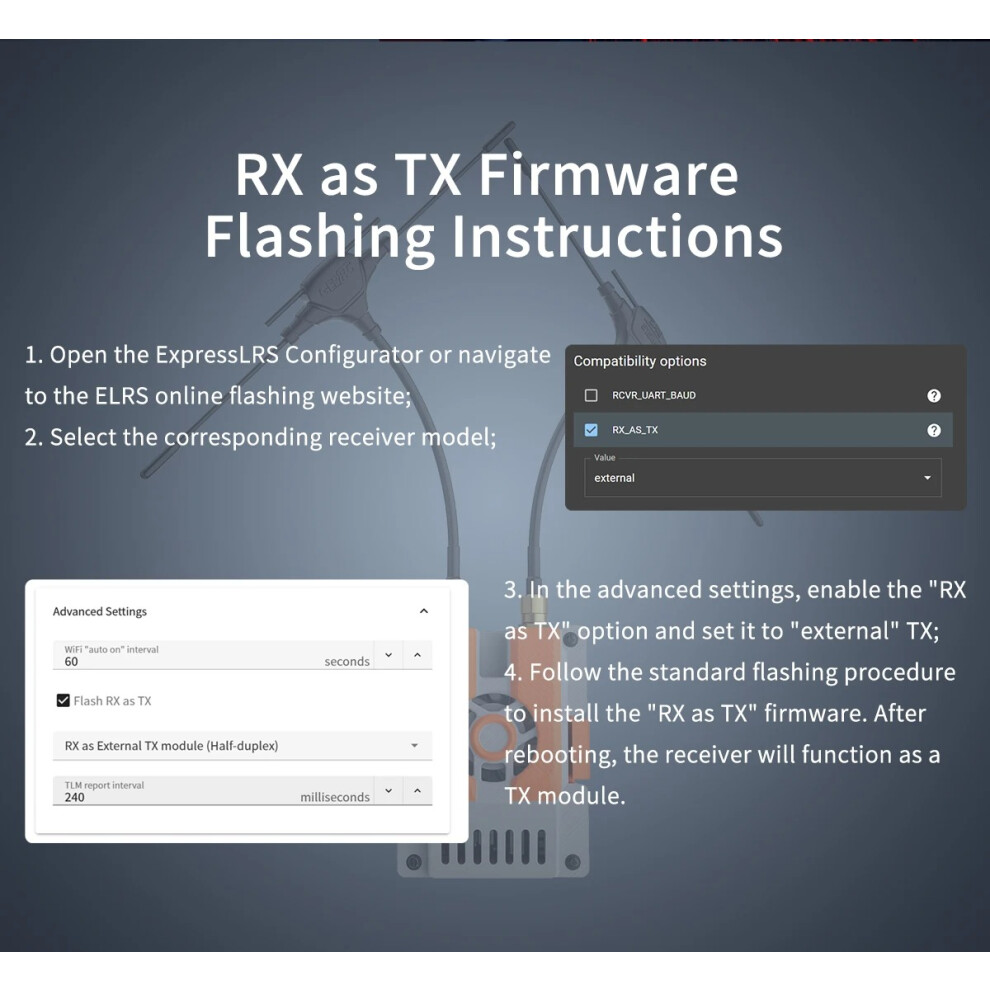

Open the ExpressLRS Configurator or navigate to the ELRS online flashing website:https://expresslrs.github.io/web-flasher/; Eye-catching multi-color 3D printed shell for a bold look

Select the corresponding receiver model;

In the advanced settings, enable the "RX as TX" option and set it to "external" TX;

Follow the standard flashing procedure to install the "RX as TX" firmware;

Connect the receiver's GND, 5V, TX to the JR-Bay Modification Kit's GND, 5V, and SP respectively.

After rebooting, the receiver will function as a TX module.

Package Includes:

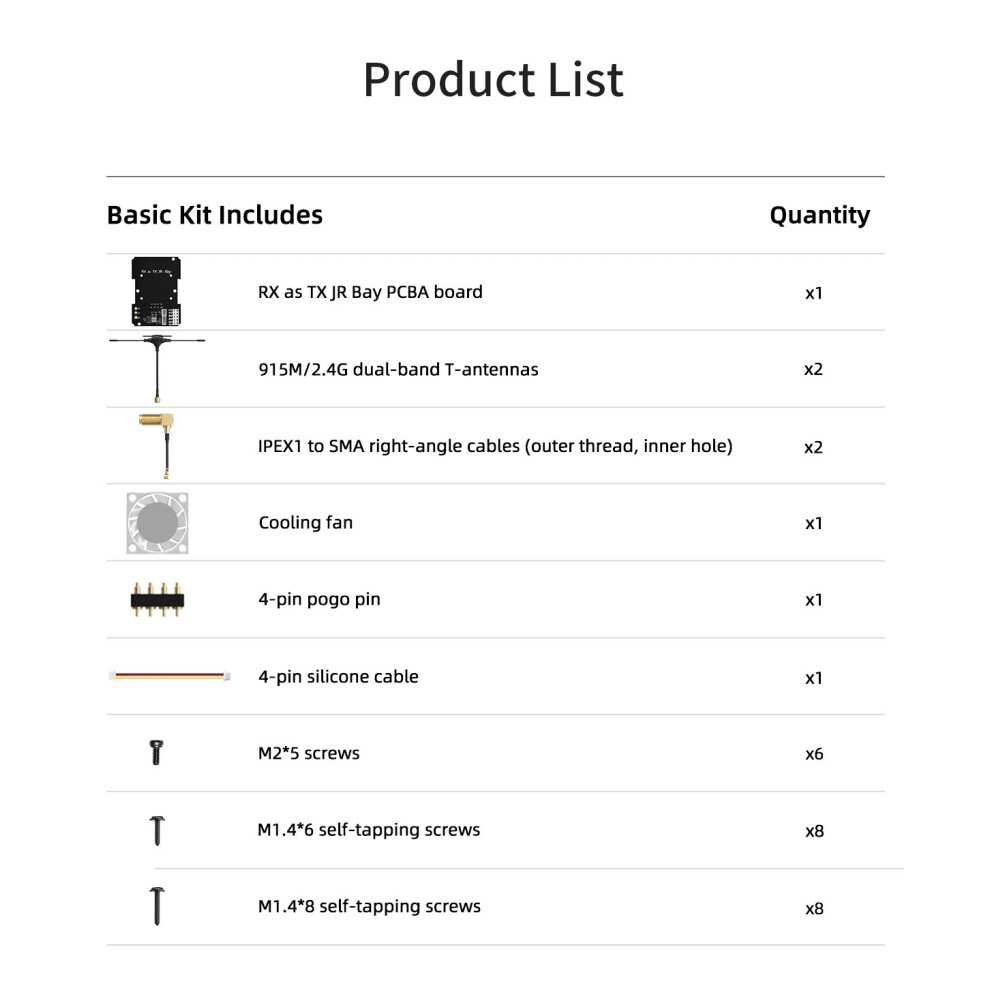

Basic Kit Includes:

1 x RX as TX JR Bay PCBA board

2 x 915M/2.4G dual-band T-antennas

2 x IPEX1 to SMA right-angle cables (outer thread, inner hole)

1 x Cooling fan

1 x 4-pin pogo pin

1 x 4-pin silicone cable

6 x M2*5 screwsA

8 x M1.4*6 self-tapping screws

8 x M1.4*8 self-tapping screws

3D-Printed Kit Includes:

1 x 3D-printed bottom shell for RX as TX JR Bay

1 x 3D-printed top cover for RX as TX JR Bay

1 x 3D-printed mounting base for GEPRC GemX Gemini receiver

1 x 3D-printed top cover for GEPRC GemX Gemini receiver

1 x 3D-printed mounting base for GEPRC DUAL 915M Diversity receiver

1 x 3D-printed top cover for GEPRC DUAL 915M Diversity receiver

1 x 3D-printed 5-pin connector mounting part

1 x RX as TX JR Bay PCBA board

2 x 915M/2.4G dual-band T-antennas

2 x IPEX1 to SMA right-angle cables (outer thread, inner hole)

1 x Cooling fan

1 x 4-pin pogo pin

1 x 4-pin silicone cable

6 x M2*5 screws

8 x M1.4*6 phillips self-tapping screws

8 x M1.4*8 phillips self-tapping screws
