Bearing Puller 21 in 1 Disassembly Puller Inner Hole Puller Removal Tool Puller Set

Bearing Puller 21 in 1 Disassembly Puller Inner Hole Puller Removal Tool Puller Set Description

Application

It fits Kubota, Wade, and Yangma for the bearing disassembly of mechanical harvesters and can be used for vehicle maintenance, mechanical bearings, agricultural machinery, and so on.

Specifications

Color: Black, Silver, Red

Material: #45 Steel

Surface Treatment: Quenching Process

Puller Head: WE1/WE2/WE3/WE4/WE5/WE6

Applicable Bearing: 6005/606/6007/6008/6009/6010/6205/6206/6207/6208/6209/6210/6305/6306/6307/6308/6309/6310

Net Weight: 2.7kg/5.9lbs

Gross Weight: 3kg/6.6lbs

Package Size: 29*23*8cm/11*9*3inch

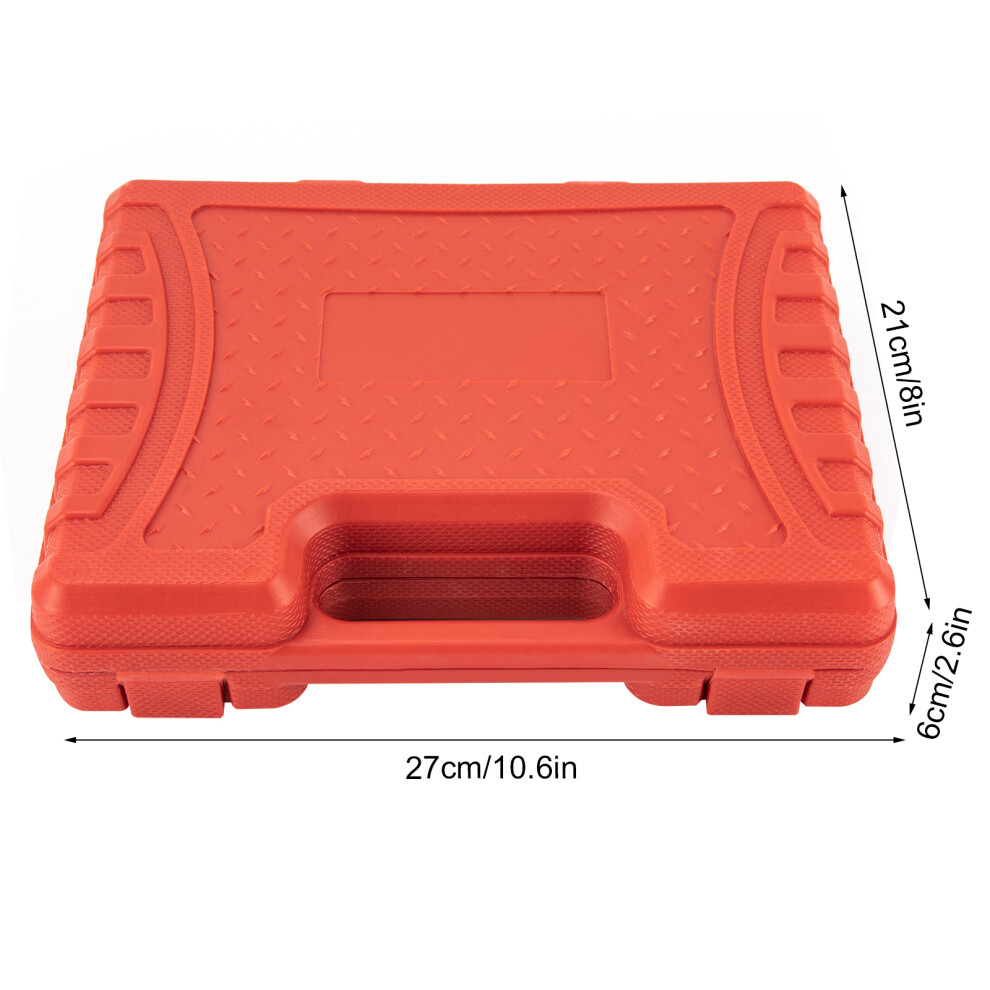

Toolbox Size: 27*21*6cm/10.6*8*2.6inch

Puller Head Corresponding to Bearing

WE1   6005/606

WE2   6007/6008/6205

WE3   6009/6010/6206

WE4   6207/6208/6305/6306

WE5   6209/6210/6307

WE6   6308/6309/6310

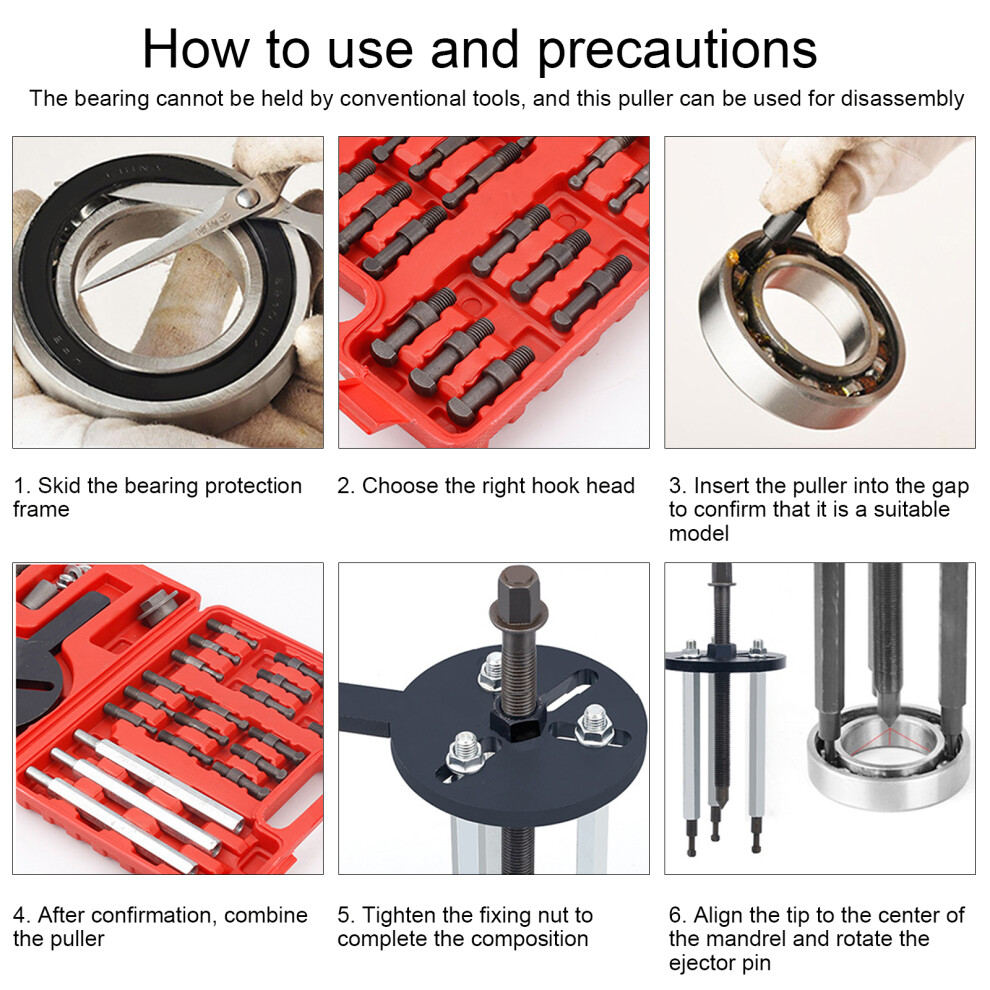

How to Use

1. Confirm the model of the removed bearing and select the corresponding puller head specification based on the bearing model.

2. Assemble the pull horse head and the pull rod (Please note that all threads at the pull horse head end need to be screwed into the inner hole of the pull rod and locked tightly).

3. Use a screwdriver to pry off the bearing cage to expose the ball, and pull the ball to leave gaps at three places at 120 .

4. Insert and rotate the puller head 90 at three gaps of 120 in order. At this time, the puller head can jam the inner and outer rings of the bearing, thereby confirming that the puller head model is correct.

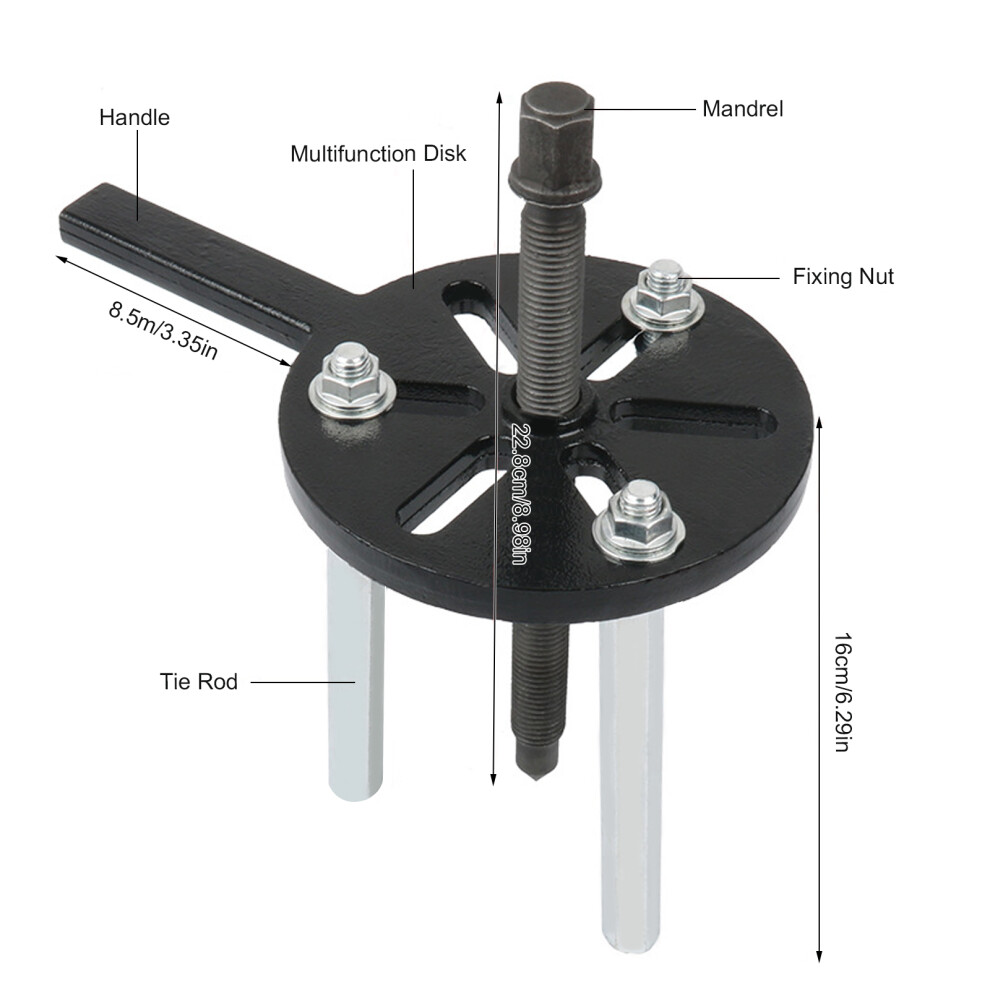

5. Install the multi-functional disk onto the pull rod, and secure the pull rod and the multi-functional disk with nuts. Before locking, continue to confirm that the puller head can fully jam the inner and outer rings of the bearing. If there is any misalignment, slightly rotate the pull rod for adjustment until the nut is fully locked.

6. Hold the handle in hand and rotate the ejector pin to allow the tip to enter the center hole of the spindle head, continuing to rotate until the bearing is removed.

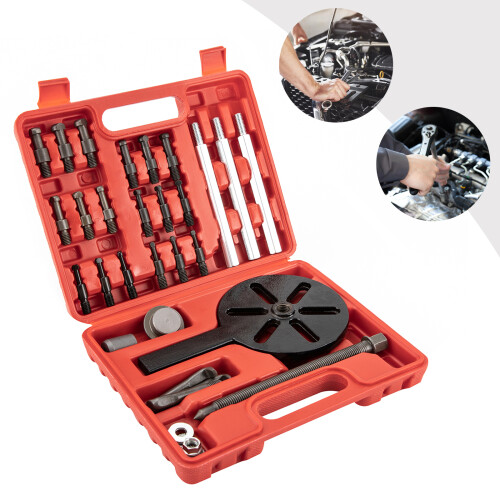

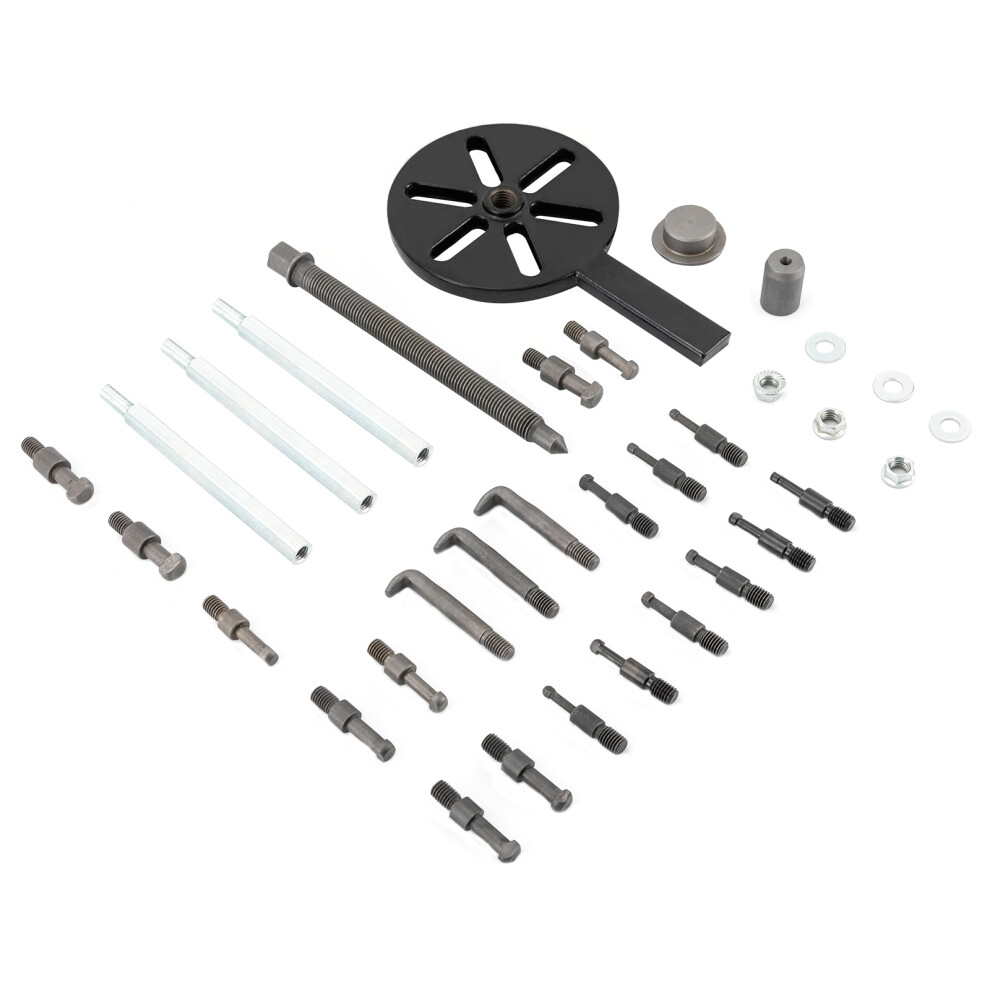

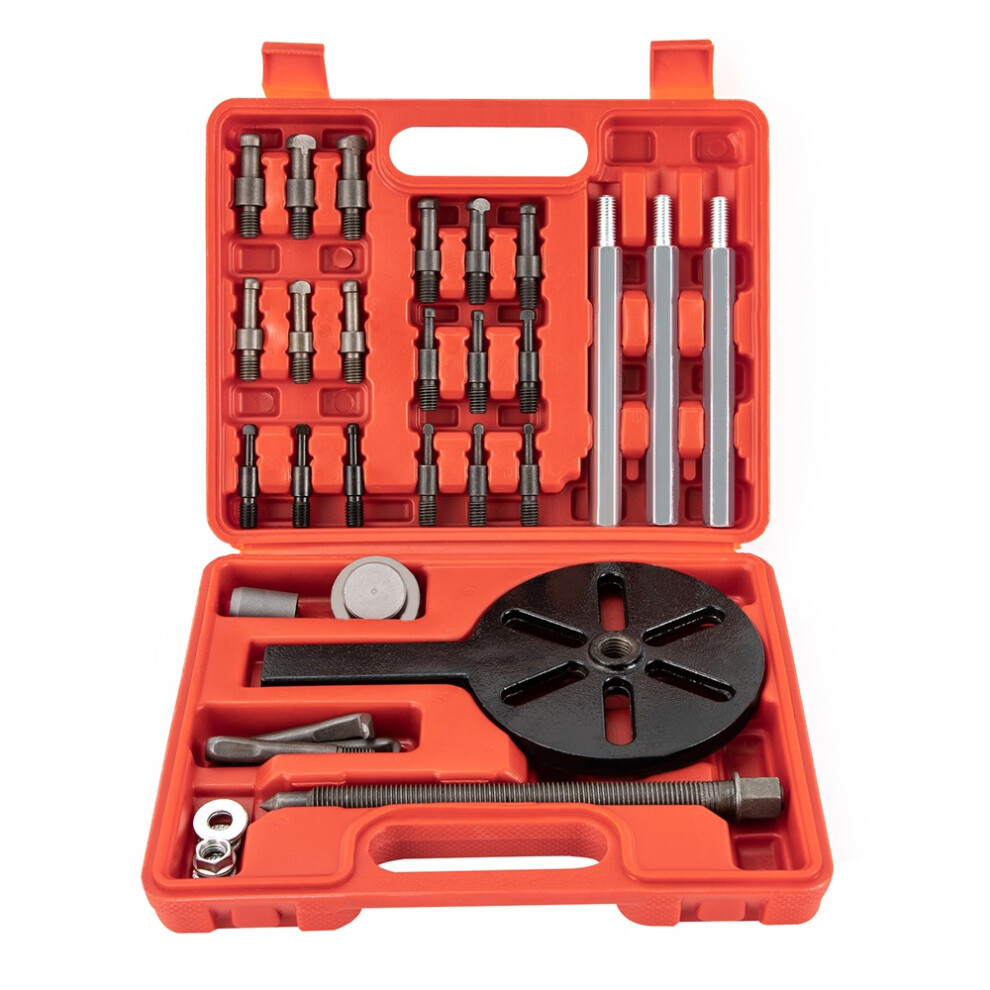

Package Included

18* Bearing Pullers

3 * Tie Rods

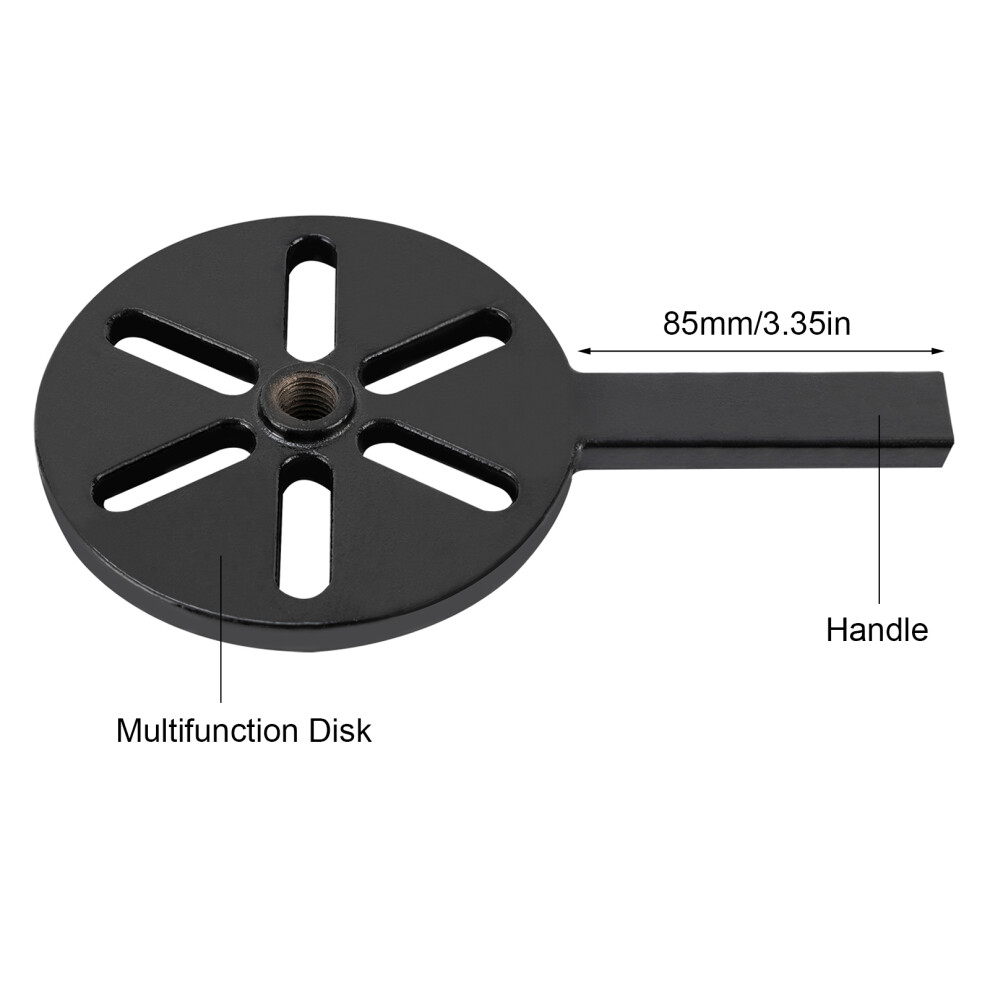

1 * Multifunction Disk

1 * Top Rod

3 * Hooks

2 * Gaskets

1* Toolbox

Other Accessories

Notes

1. This type of inner bore bearing puller cannot be used to disassemble washing machine bearings.

2. Please keep the nut downward during installation, which can increase the torque and is convenient for use.

3. Please always wear safety glasses (not included) when doing automotive maintenance.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
