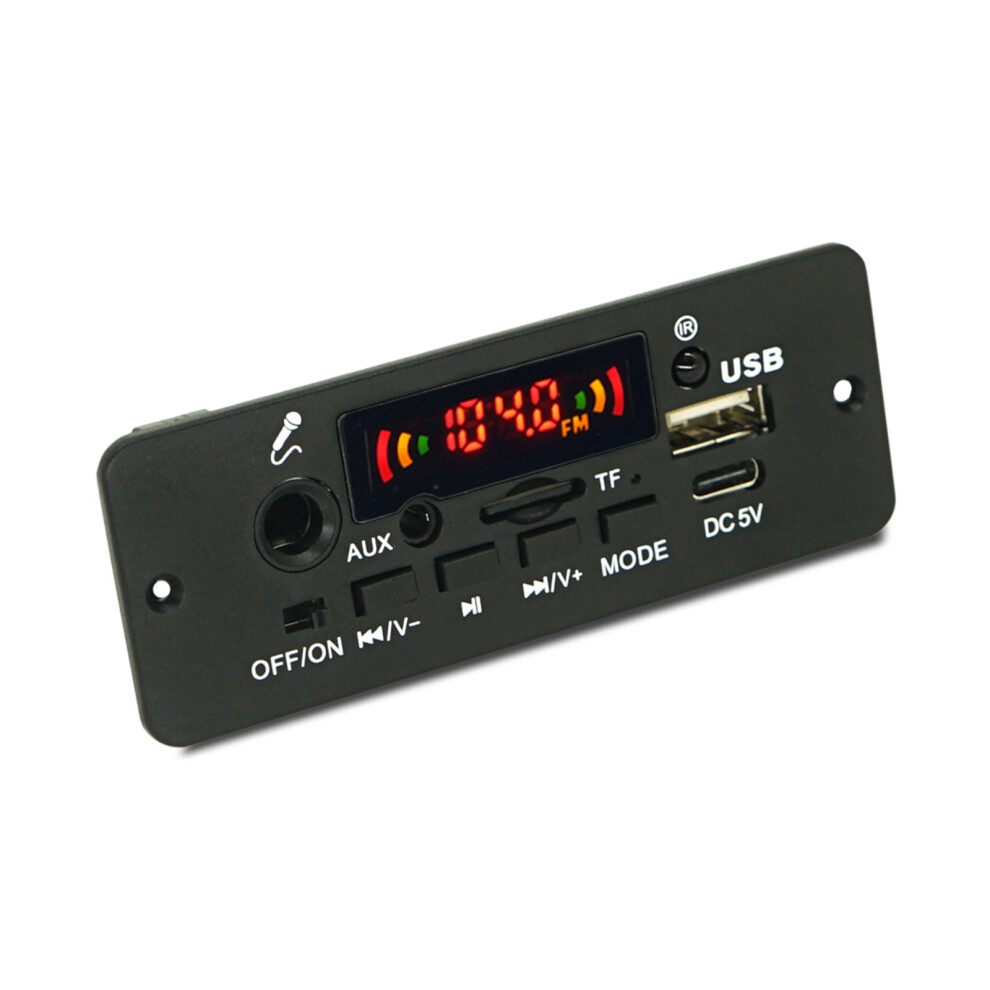

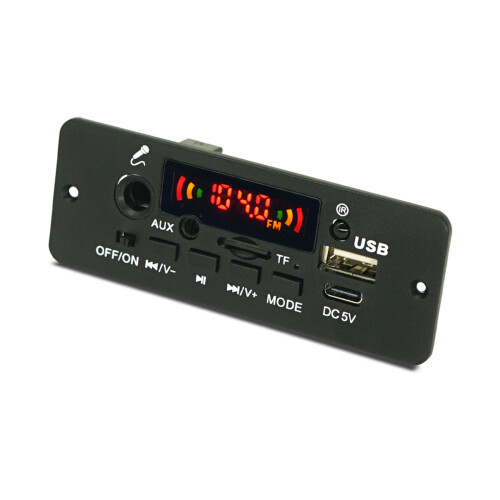

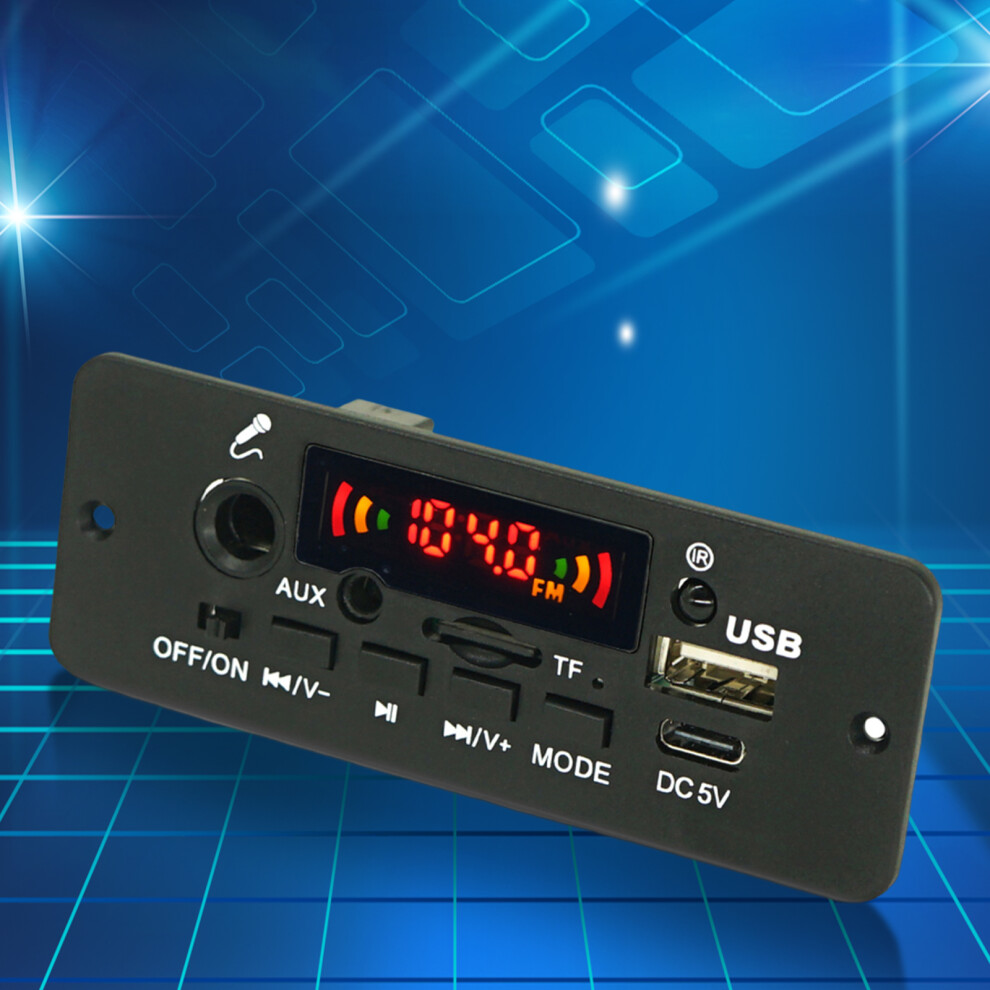

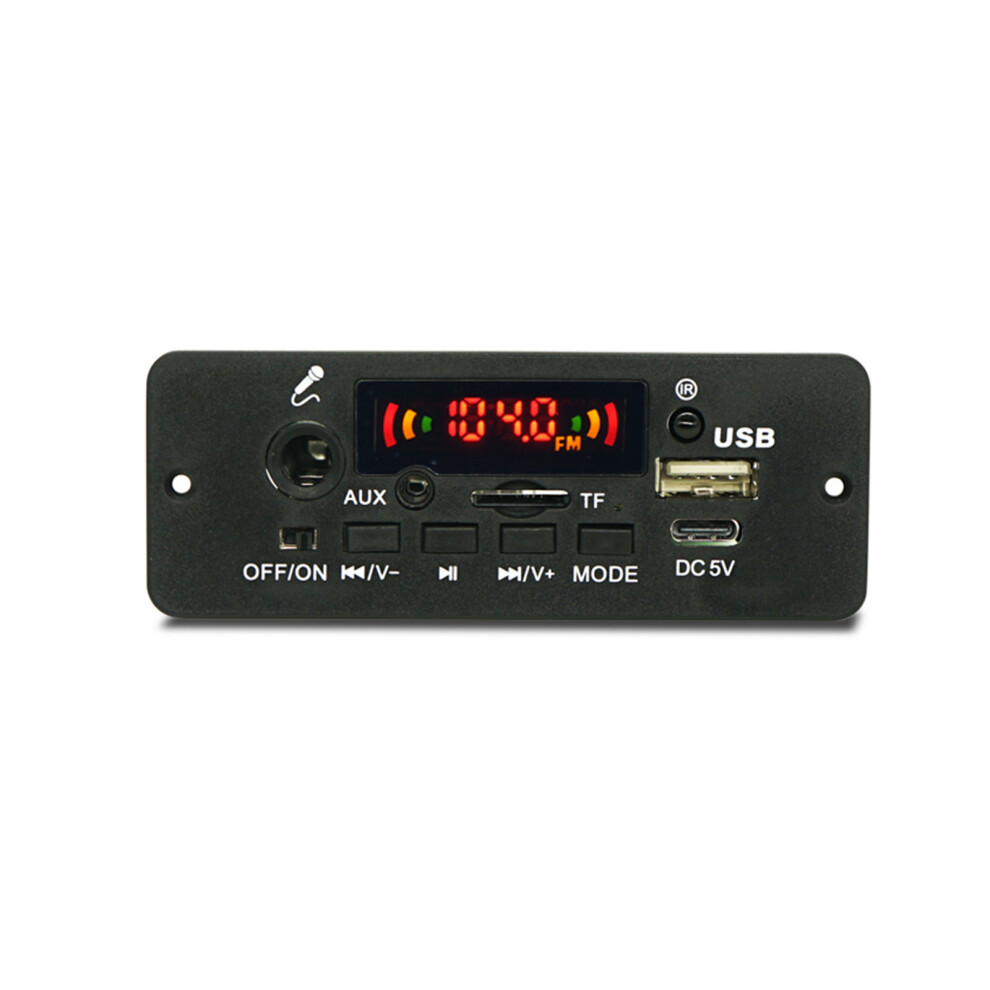

(Big Remote) 2.5W MP3 Decoder Board w/ Remote, Supports WAV/FLAC/APE

(Big Remote) 2.5W MP3 Decoder Board w/ Remote, Supports WAV/FLAC/APE Description

Features:

Bluetooth-compatible 5.0 Decoder Board: The decoder board supports Bluetooth-compatible 5.0 control and, when paired with your phone, wirelessly receives all formats of music played by the phone.

Features: Support Bluetooth-compatible control, digital color screen display, the effect is more moving; USB/TF play, MP3 lossless WMA/APE/WAV/FLAC play, FM broadcast.

Module Features: Support recording microphone, external audio input LINE IN and power failure memory function, 10 meters away from the infrared remote control operation, four buttons multi-directional control.

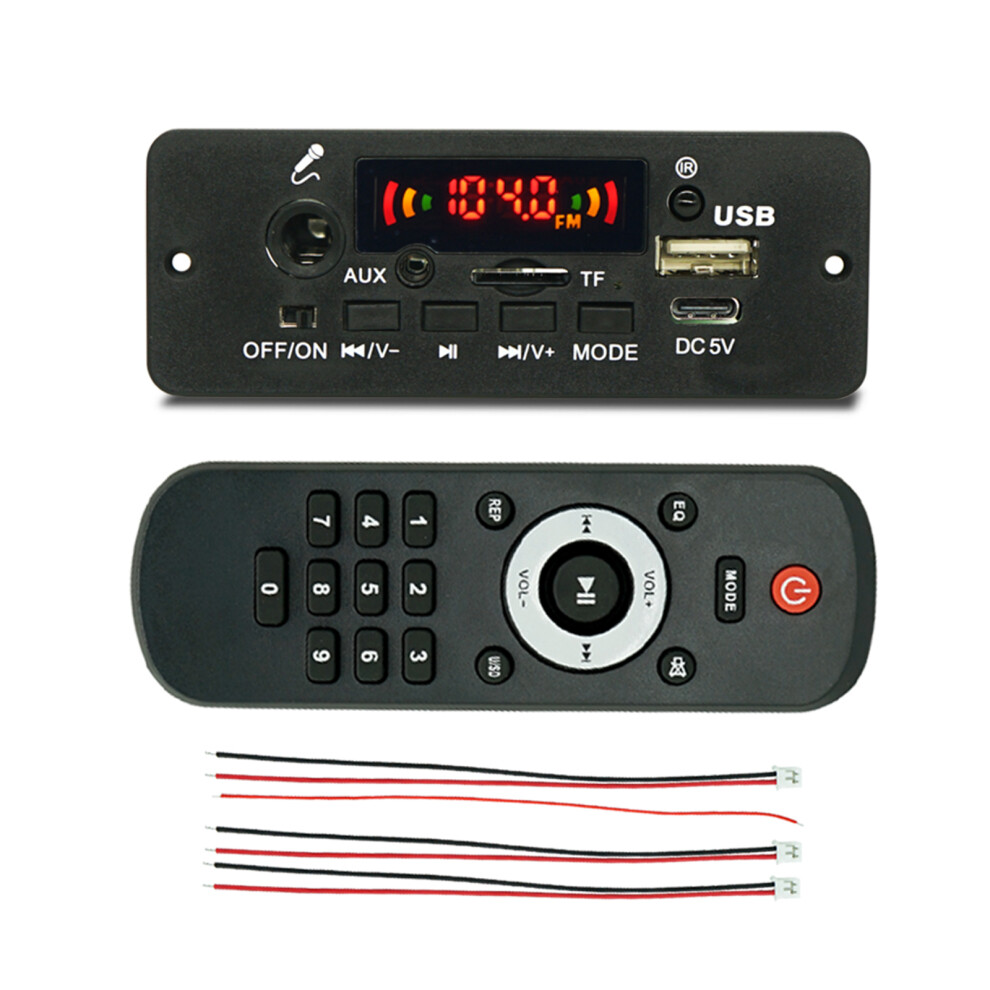

Package Included: The package is complete with accessories including decoder, a set of wires and a remote control for easy self-mounting without pressure.

After-sale Service: If you have any questions, please contact us immediately and we will help you solve it as soon as possible.

Specifications:

Color: Black

Power: 2*3W

Shell size: Length 129 * Width 30MM*Depth 38MM

Voltage range: 3.7V-5V

Key Operation Details:

VOL-key (previous song/volume down): In MP3 state VOL-short press for previous song, long press for volume down; in FM state short press for upward adjustment of a station number; in Bluetooth-compatible function short press for Bluetooth-compatible previous song, long press for volume down.

AUTO button (play/pause): short press AUTO for play/pause in MP3 state; short press for play/pause in FM state, long press for auto receive and save station; short press for play/pause in Bluetooth-compatible function.

VOL+ button (next song/volume up): In MP3 state VOL+ short press for next song, long press for volume up; in FM state short press for downward adjustment of a station number; in Bluetooth-compatible function short press for Bluetooth-compatible next song, long press for volume down.

MODE button: in the USB / TF / radio FM / audio input LINE IN / Bluetooth-compatible function in turn switch between; long press is recording microphone, another long press is to stop recording and play the recording text;
