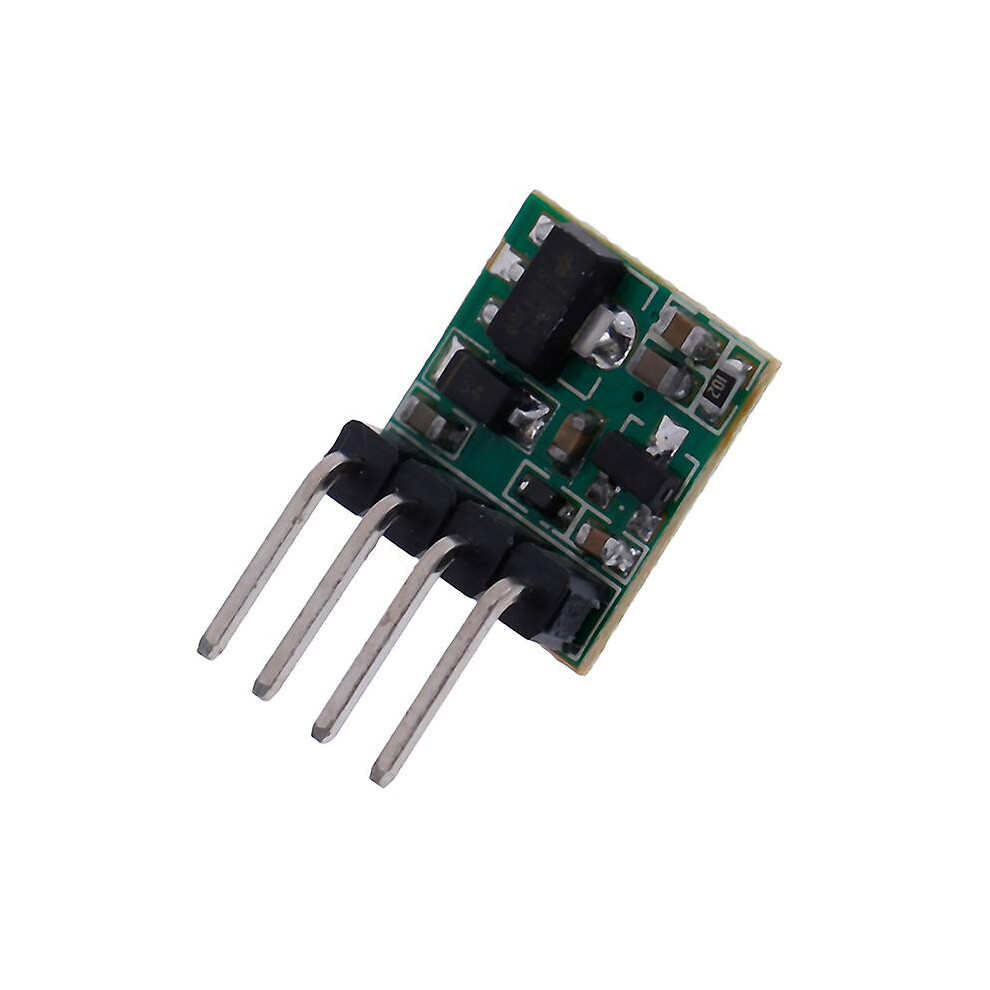

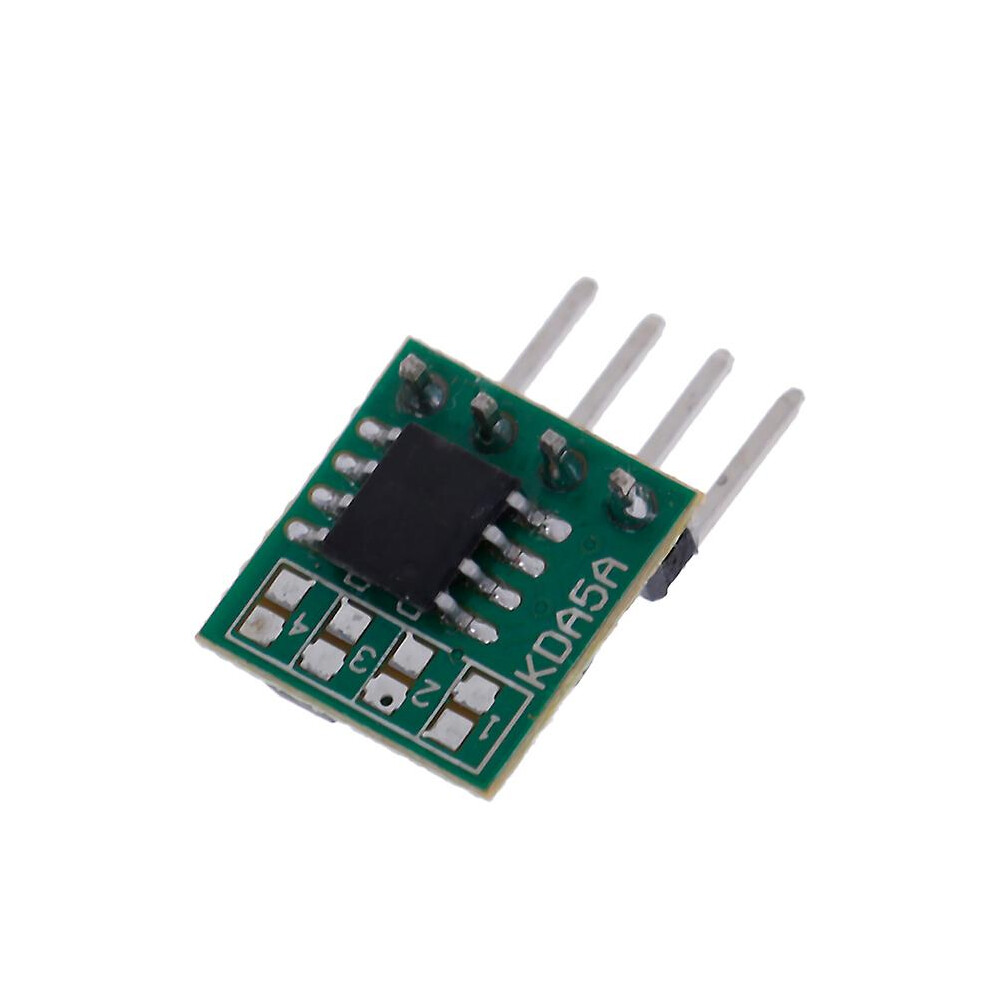

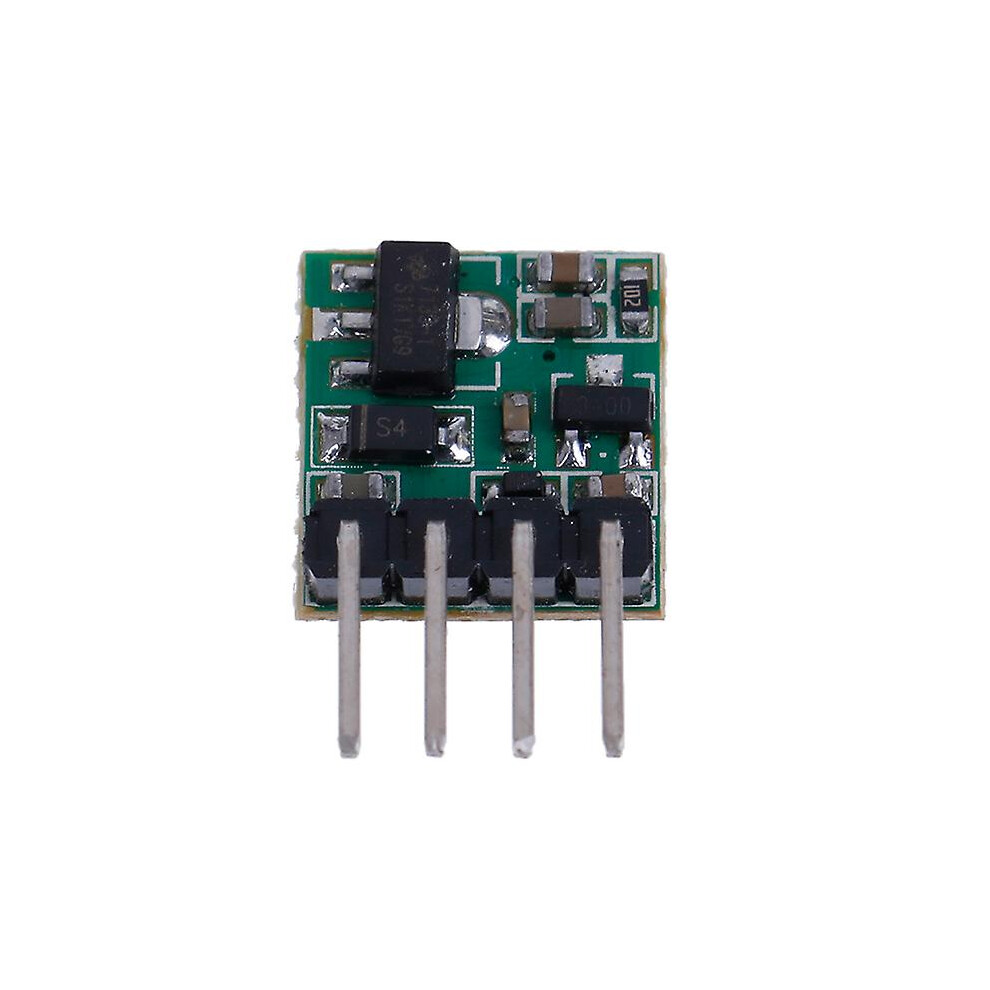

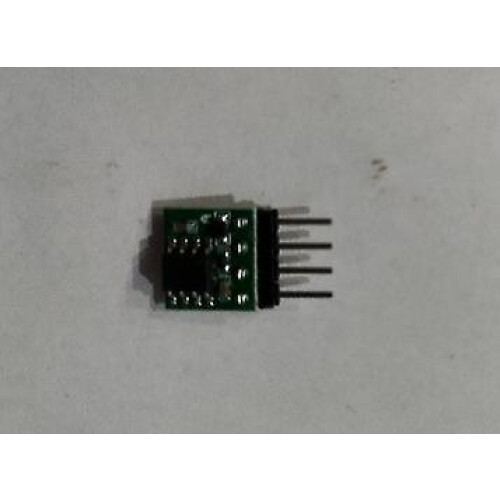

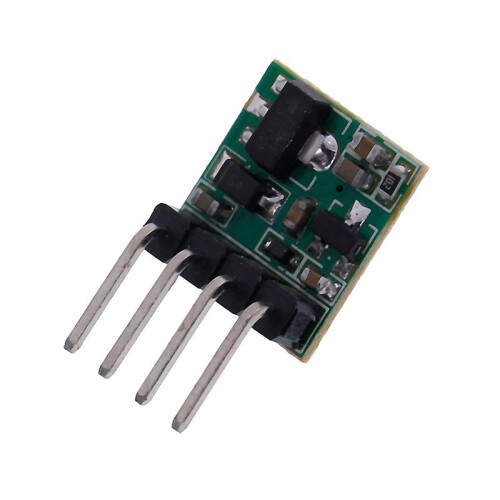

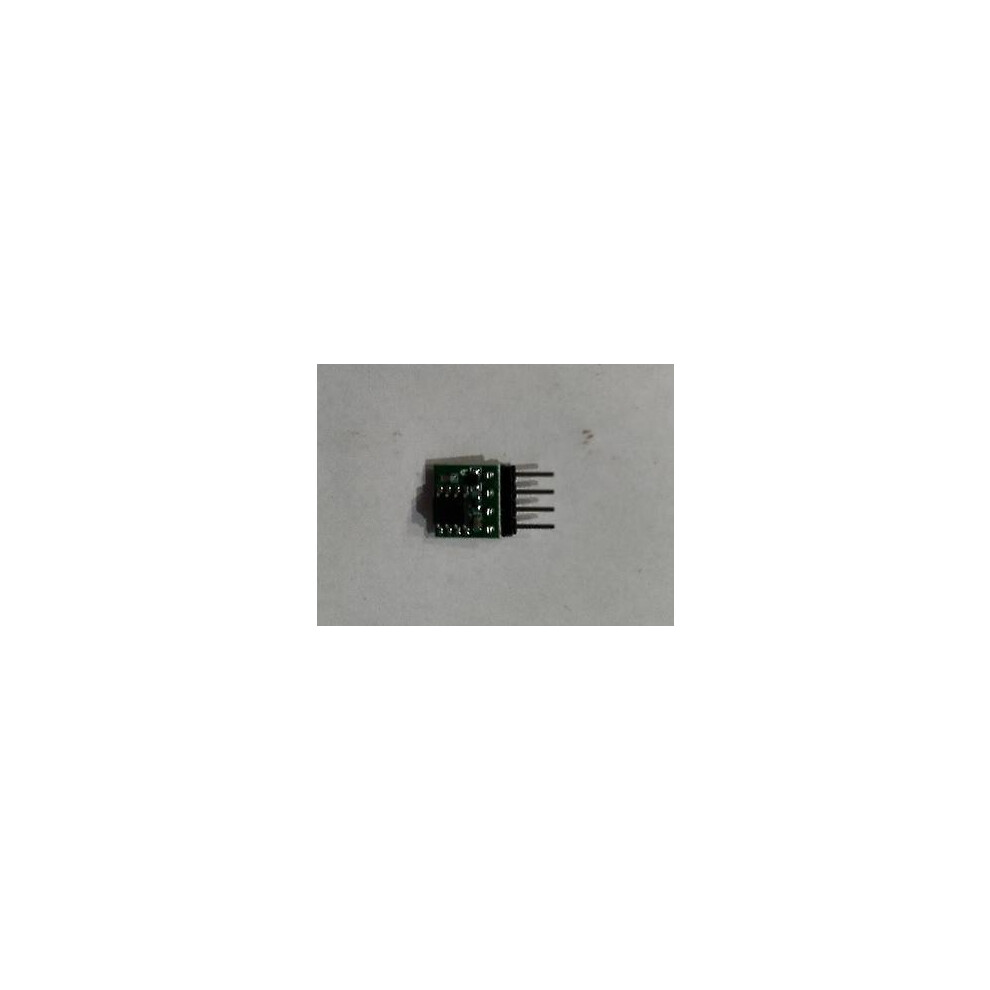

Bistable Flip-flop Latch Switch Circuit Module Button Trigger Power-off Memory

Common Feature: falling edge. Suppose the initial state of the output terminal Vo is open, the trigger once, Vo output terminal goes high once again trigger, Vo output terminal becomes an open state, and so on.Anti-false triggering function: the trigger signal must persist for some time to be effective, time can be freely set between 1s-7s (increments of 1 second).Default electrical output after the initial state is open. Can also be set to power memory function on again after power electrical output hold state before the power failure.Contains a switch contact inputs stabilization circuit, the action is very reliable.Output with protective diode, can be directly connected relays and other inductive loads.Power supply voltage: DC 3V-18V;Quiescent Current: the closed state consumes only 2uA, work state power consumption of about 2mA;Output: 1500mA can directly drive a long time within the resistive load (short can withstand 2500mA current);Purpose: self-locking switch transformed into micro-switches, flashlight switch;Size: free pin size 14mm 11mm. Pin pitch 2.54mmPin definition:VCC: power supply;VO: output;TG: trigger signal input terminal;GND: power ground.Include:1x Module 1. The material of high-quality goods is good. 2. The style is novel and unique, and is deeply loved by consumers. 3. It is practical and can stand the test. There are many repeat customers. 4. Will ship within 48 hours 5. Delivery within 4-10 working days
