[Bluetooth 5.0 Accelerometer+Inclinometer] WT901BLECL MPU9250 High-Pre

[Bluetooth 5.0 Accelerometer+Inclinometer] WT901BLECL MPU9250 High-Pre Description

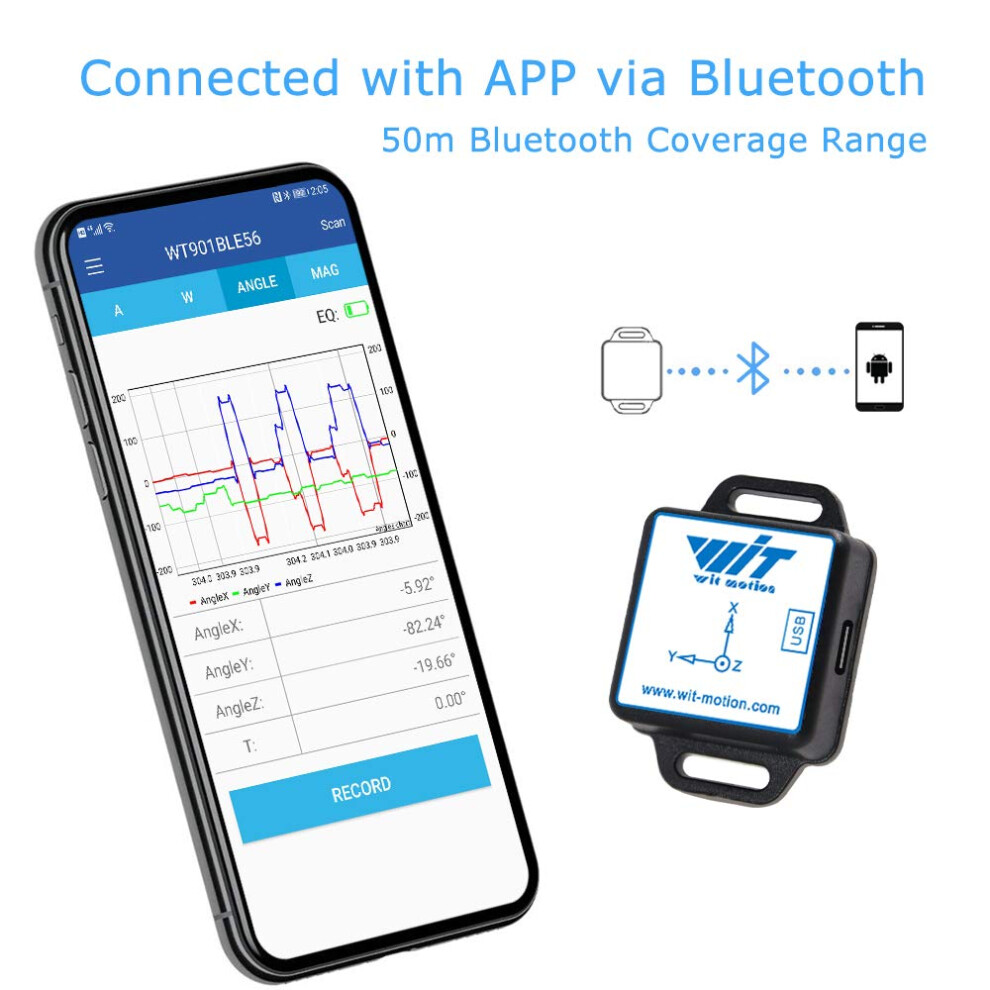

Product Description: a. WT901BLECL Gyroscope is good solution for 3-axis angle measuring 3-axis acceleration measurement and 3-axis angular velocity measurement 3-axis magnetic measurement b. The purpose of Bluetooth BLE5.0 wireless transmission for IOS and Android the transmission is stable a distance of more than 50meters. High performance cortex-M0 core processor operates as high as 48MHZ take into account low power consumption and high performance. c. The module can get accurate attitude in a dynamic environment. Attitude measurement precision is 0.05degrees high stability. d. The attitude controller is integrated inside the module the current attitude of the module can be accurately output in the dynamic environment with the dynamic Kalman filtering algorithm. . With advanced digital filtering technology reduce the measurement noise and improve measurement accuracy. e. 4 ports are reserved which can be configured as analog input digital input and digital output respectively.. Main Specification: a. Input voltage: 3.3V-5V b. Consumption current: typical 15mA c. Volume: 51.5mm*36.1mm*15mm d. Measuring : angle: 3 axis Acceleration: 3 Axis Angular Velocity: 3 Axis e. Range: Acceleration: 16g angular velocity: 2000 / s. f. The data output frequency 50Hz (baud rate 115200). g. Data Interface: Serial (TTL level) h. Baud rate 115200kps . Packing List: 1x WitMotion WT901BLECL high precision acceleration module
