Bluetooth 5.3 RF2.4G Microcontroller Multifunction Portable Low Power Dual USB RISC-V Module

Bluetooth 5.3 RF2.4G Microcontroller Multifunction Portable Low Power Dual USB RISC-V Module Description

Features: 1. Integrated 2.4GHz Transceiver And Baseband And Link Control
2. 32-Bit Barley RISC-V Processor WCH RISC-V4A
3. 512k Bytes Non-Volatile Storage Flashrom.
4. 2 Usb Controller And Transceiver Groups
5. 5V USB Cable Power Supply, Usb Burn-In Program

Description:
Interface Introduction:
1. USBA Port Female Socket: Can Be Used As Usb Host Interface
2. On-Board Power Conversion
3. On-Chip DCDC Converter
4. On-Board Antenna
5. Reset Button: Reset Microcontroller Operation
6. Download Button: The Boot Button, Insert The Usb To Download The Program.
7. Blue Led Light: User Can Program And Control By Themselves.
8. Type-C Port: Used To Burn Program.
Development Environment:
Ide Use-Mounriver
Download Mounriver_studio, Double-Click To Install, You Can Use It After Installation.
Download Instructions:

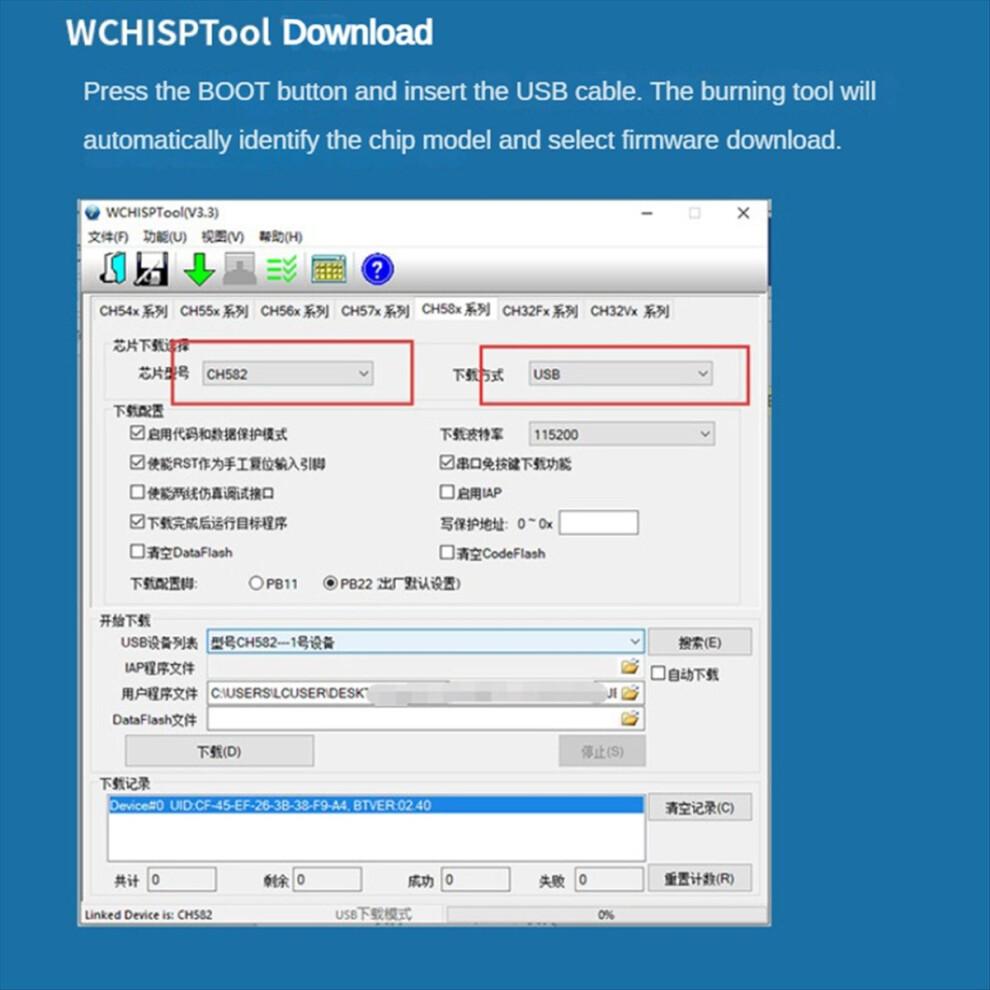

Wchisptool Download
The Boot Button And Plug In The Usb Cable. Wchisptool Automatically Recognize The Chip Model And Select The Firmware To Download.
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use

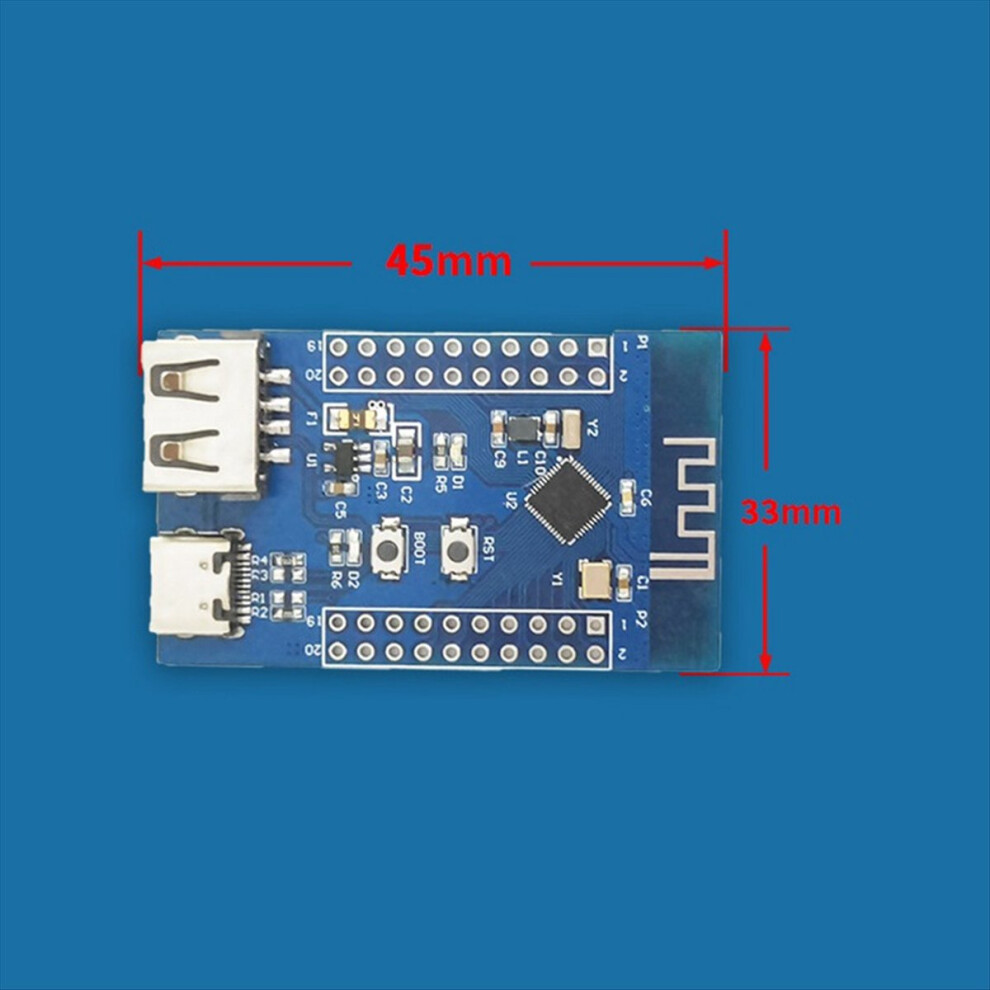

size: about 45 x 33mm
Material: PCB
colour: dark blue

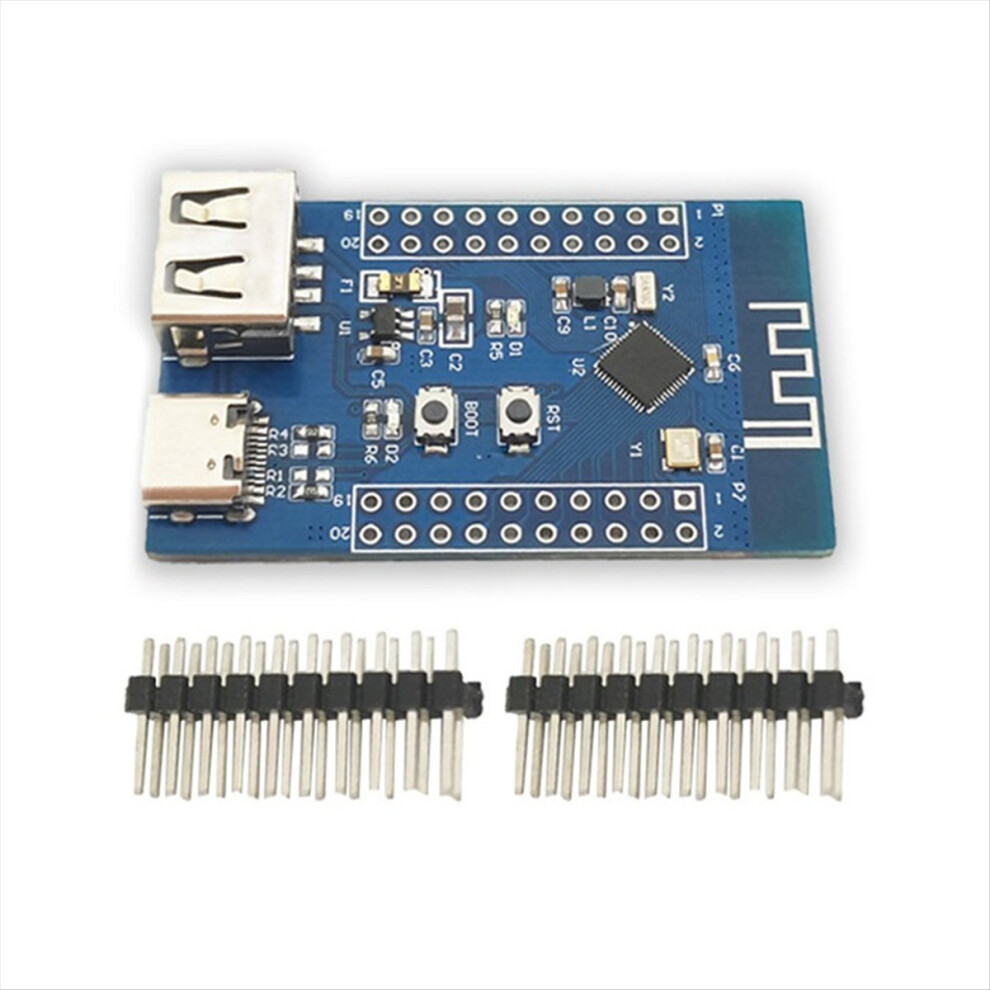

Package Contents:
1 x CH582M Development Board Module
2 x 10P Double Row Pins

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
