BME680 Environmental Sensor Module STEMMA QT/Qwiic Interface Temperature/Humidity/Air Pressure/Gas Detection

BME680 Environmental Sensor Module STEMMA QT/Qwiic Interface Temperature/Humidity/Air Pressure/Gas Detection Description

Advanced sensor technology: The module uses the BME680 sensor to accurately measure temperature, humidity/pressure/gas, making it ideal for environmental monitoring and altitude detection projects. High- measurements: High- sensors provide real-time updates on environmental conditions, ensuring reliable data to improve project performance.
Compact and versatile: The module's compact design makes it ideal for DIY electronics projects, wearables, and weather stations. Its versatility is suitable for both hobbyist and professional applications. Easy to integrate: The module uses standard communication interfaces to seamlessly integrate into existing systems, making it quick and easy for developers of all skill levels to set up.

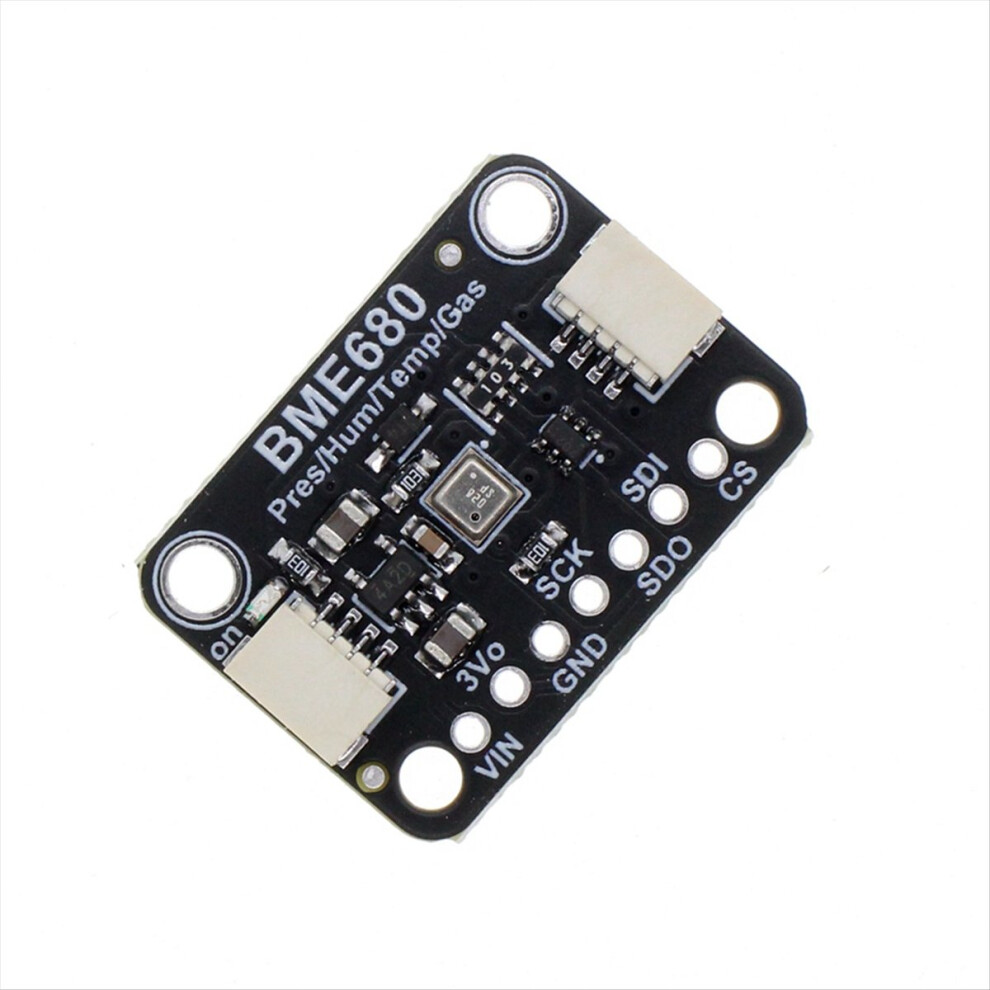

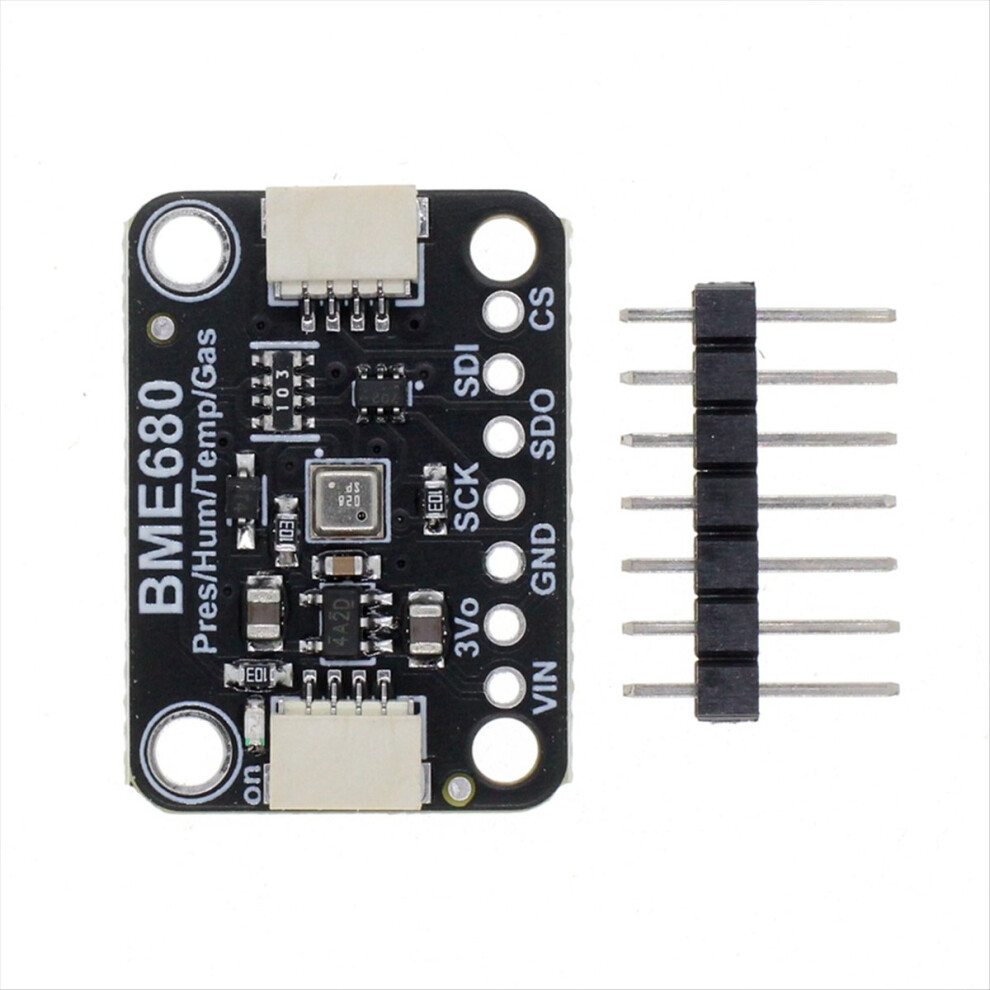

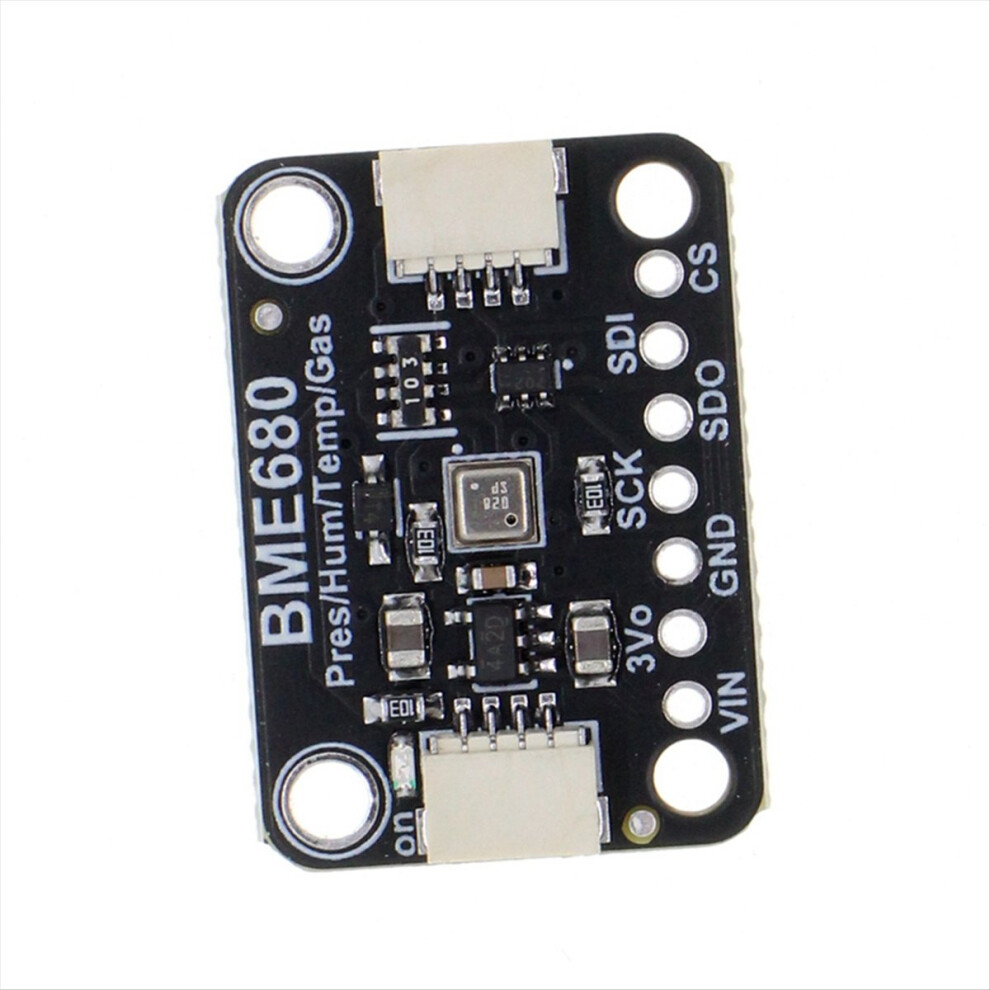

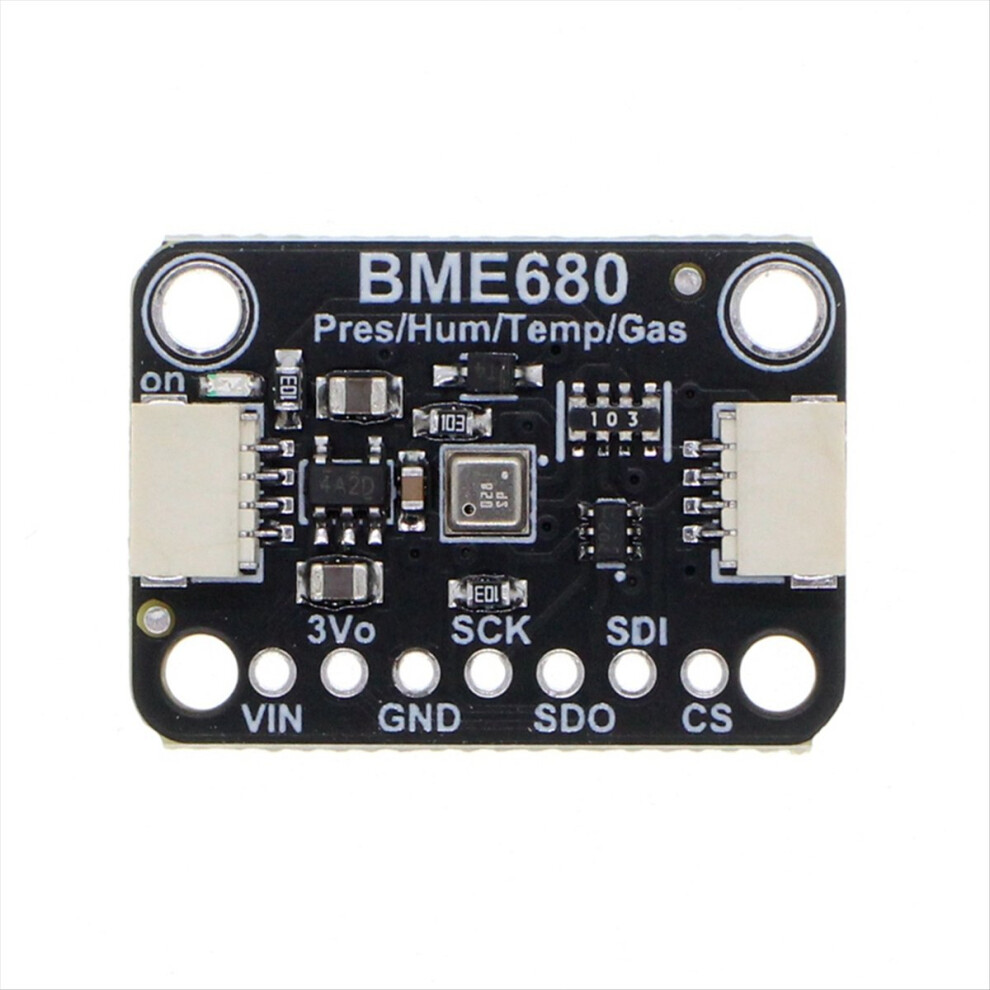

BME680 environmental sensor module (temperature and humidity/pressure/gas )
Interface type: STEMMA QT / Qwiic (I²C solder-free plug-in interface); Core functions; environmental monitoring: Temperature: Measuring range -40C ~ +85C, accuracy 1.0C; Humidity: Measuring range 0% ~ 100% RH, accuracy 3% RH; Air pressure: Measuring range 300hPa ~ 1100hPa, accuracy 0.6 (equivalent to 1 meter above sea level); Gas/VOC detection: Detection of volatile organic compounds (TVOC) and estimation of eCO₂ (indoor air quality indicator);
Interface advantages: Plug and play: equipped with STEMMA QT/Qwiic 4-pin interface (GND/VCC/SCL/SDA), compatible with , , Seeed and other ecological chain devices.

No soldering: quickly connect to the development board (such as for , for , ESP32) through the JST cable, saving 90% of wiring time.
Dual interface design:

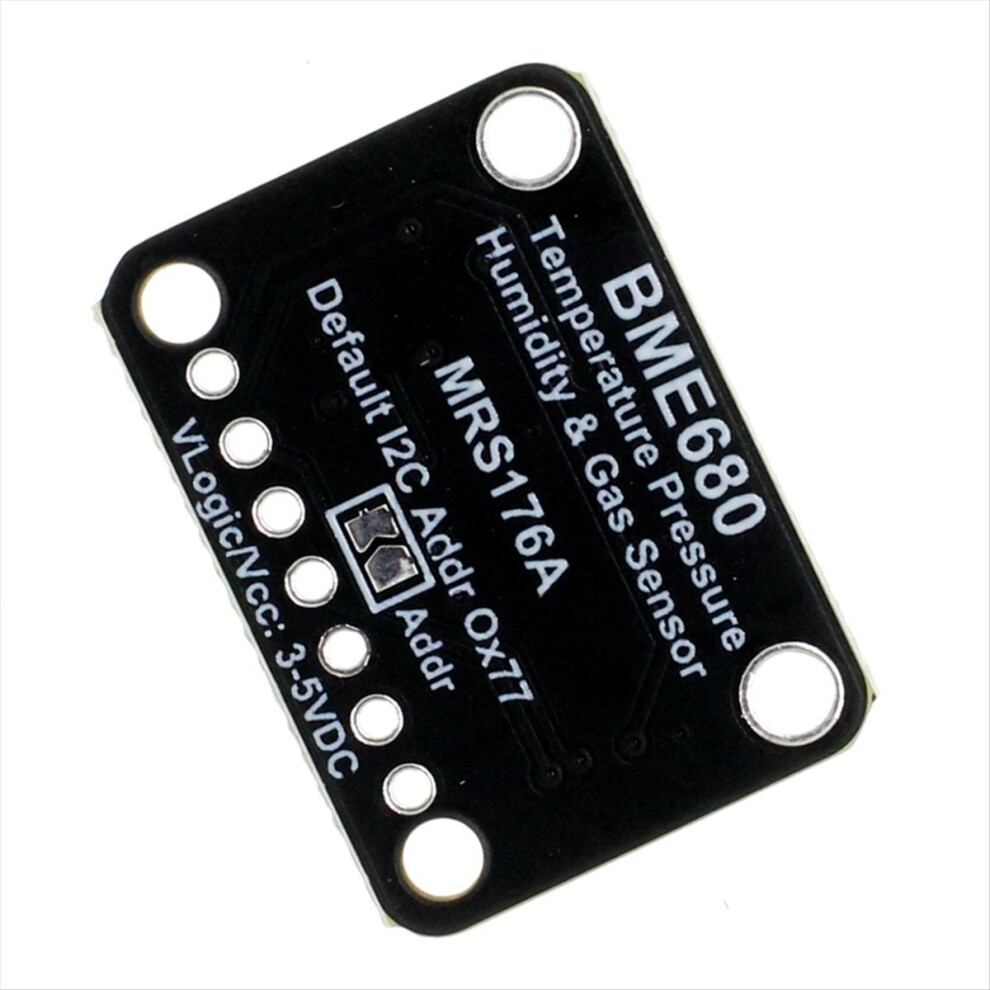

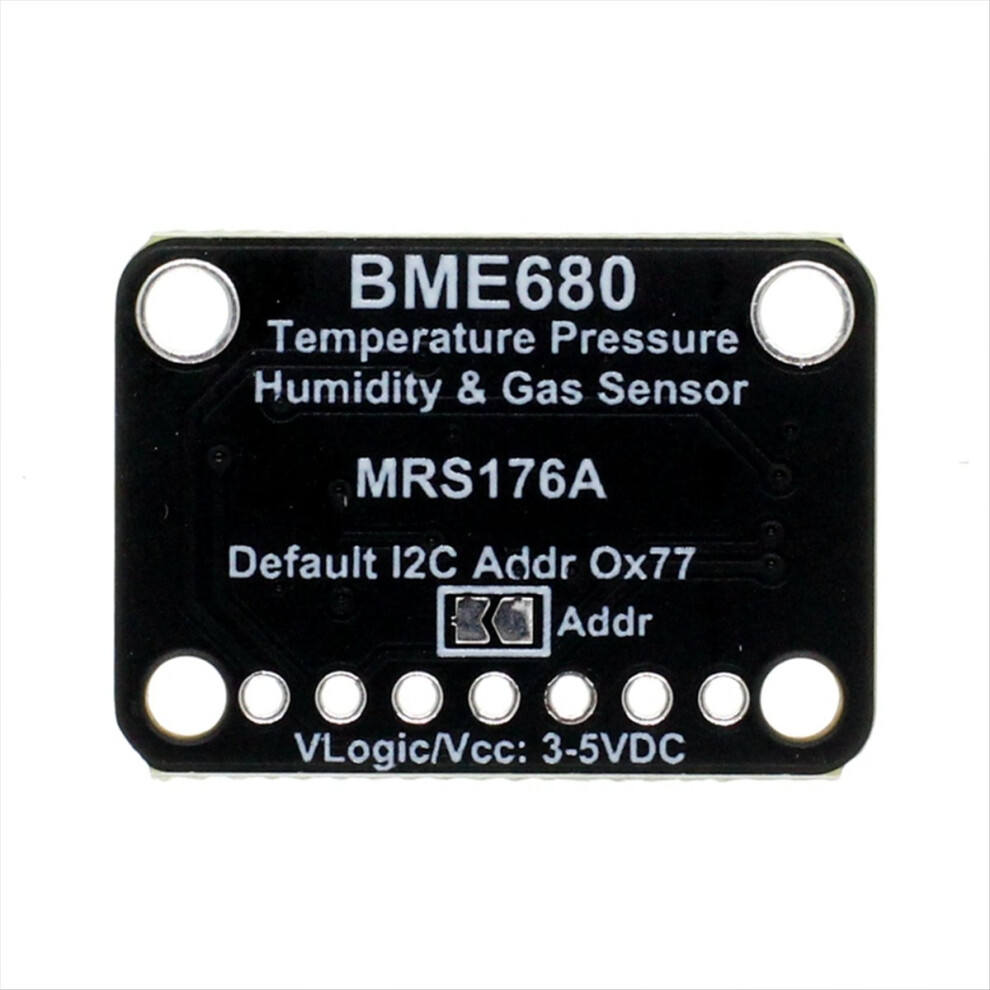

4-pin Qwiic interface (default I²C address 0x77)
Compatible with traditional pin pads (support I²C/SPI switching)
Technical
Parameter Value
Operating voltage 3.3V (compatible with 5V logic level)
Communication protocol I²C (default) / SPI (jumper required)
Power consumption Standby 0.15μA, sampling 2.1mA Resolution Temperature 0.01C, air pressure 0.18Pa Response time Humidity 1s, gas 10s Application scenarios Indoor air quality monitoring (formaldehyde/TVOC trend analysis) IoT weather station (temperature and humidity/air pressure/altitude) Smart home/agricultural greenhouse environment control Maker education/electronic experiments (for , MicroPython projects) Mainstream library compatibility: for : BME680 Library,Python: bme680 (for ),Sample code: Provide a quick guide to complete data reading in 5 minutes. Color: As Shown Material: PCB Package Contents: 1 * BME680 Environmental Sensor Module 1 * pin header (need to be soldered) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
