BN-880 GNSS Dual GPS Module for AMP2.6/PIX-HAWK Flight Controller

BN-880 GNSS Dual GPS Module for AMP2.6/PIX-HAWK Flight Controller Description

Item name: BN-880Q GPS+Glonass antenna module
Chip features: U 8th Chip

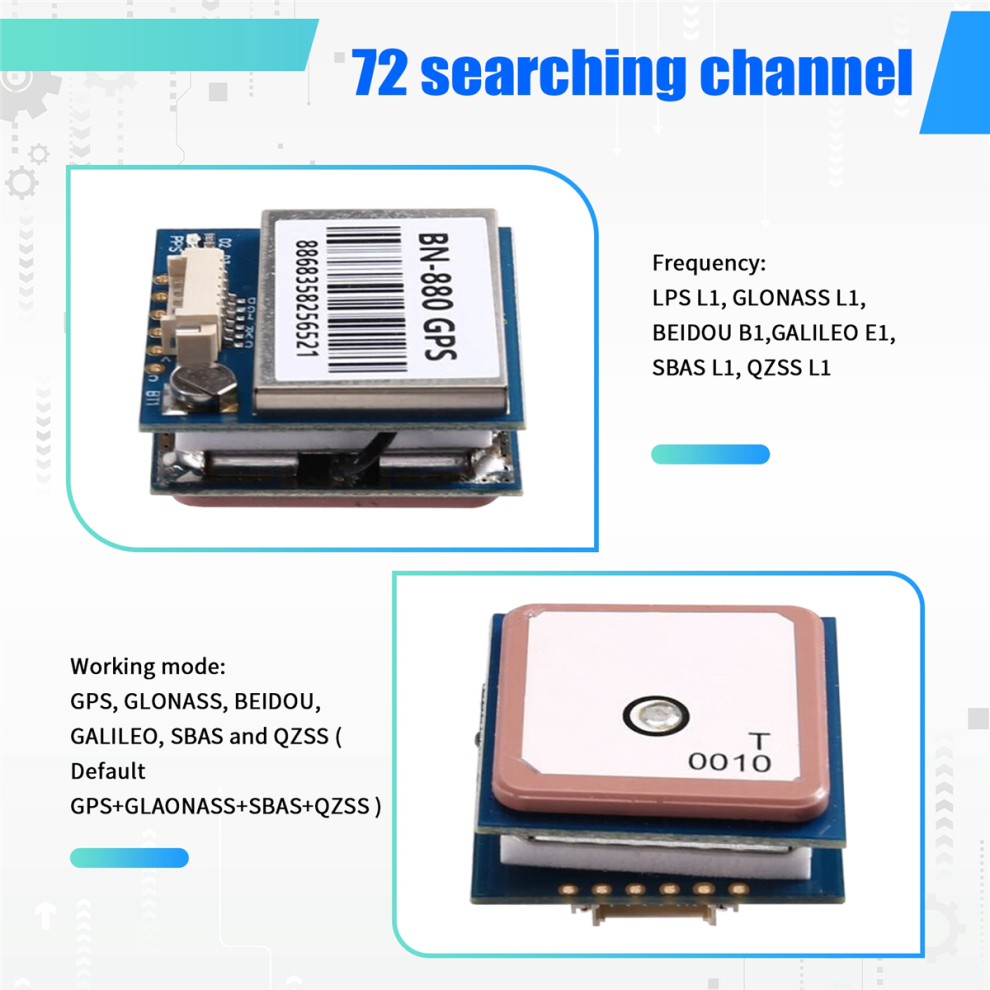

Frequency: L1, GLONASS L1, BEIDOU B1, E1, SBAS L1, QZSS L1
Working mode: GPS, GLONASS, BEIDOU, , SBAS and QZSS ( Default GPS+GLAONASS+SBAS+QZSS )
Channel: 72 searching channel

Receiving Sensitivity: Track -167dBm, Recapture -160dBm, Cold start -148dBm, Hot start -156dBm .
Precision Horizontal accuracy 2.0 m 2D RMS SBAS assist (open space)
Speed accuracy: 0.1m/s 95%(SA off)
Time accuracy: 1us
Startup time: Cold start 26s / Warm start 25s / Hot start 1s
Output data: Baud rate 4800bps-921600bps, default 9600bps
Output level: TTL
Output protocol: NMEA-0183 or UBX, default NMEA-0183 protocol
NMEA sentences: RMC, VTG, GGA, , GSV,
Update frequency: 1Hz-10Hz, default 1Hz
FLASH: 4M FLASH, The configuration can be changed and not be lost after power off
Working limit: Height 50,000m max ; Speed 515m/s max acceleration 4g max
Power consumption Voltage: DC 3.0V-5.5V, typical: 5.0V
Current: Normal 50mA 5.0V
Connector: 1.25 pitch 6pin carrier
Operate temperature: -40C-+85C
Storage temperature: -40C--+105C
Indicator light: TX light --Blue light flashing when power-on, indicated that there is data output
light --The light is not lit when it is not positioned; after 3D positioning, it starts to blink.
Compass:Compass With internal electronic compass QMC5883
Color: As Shown
Material: PC+Plastic

Package Contents:

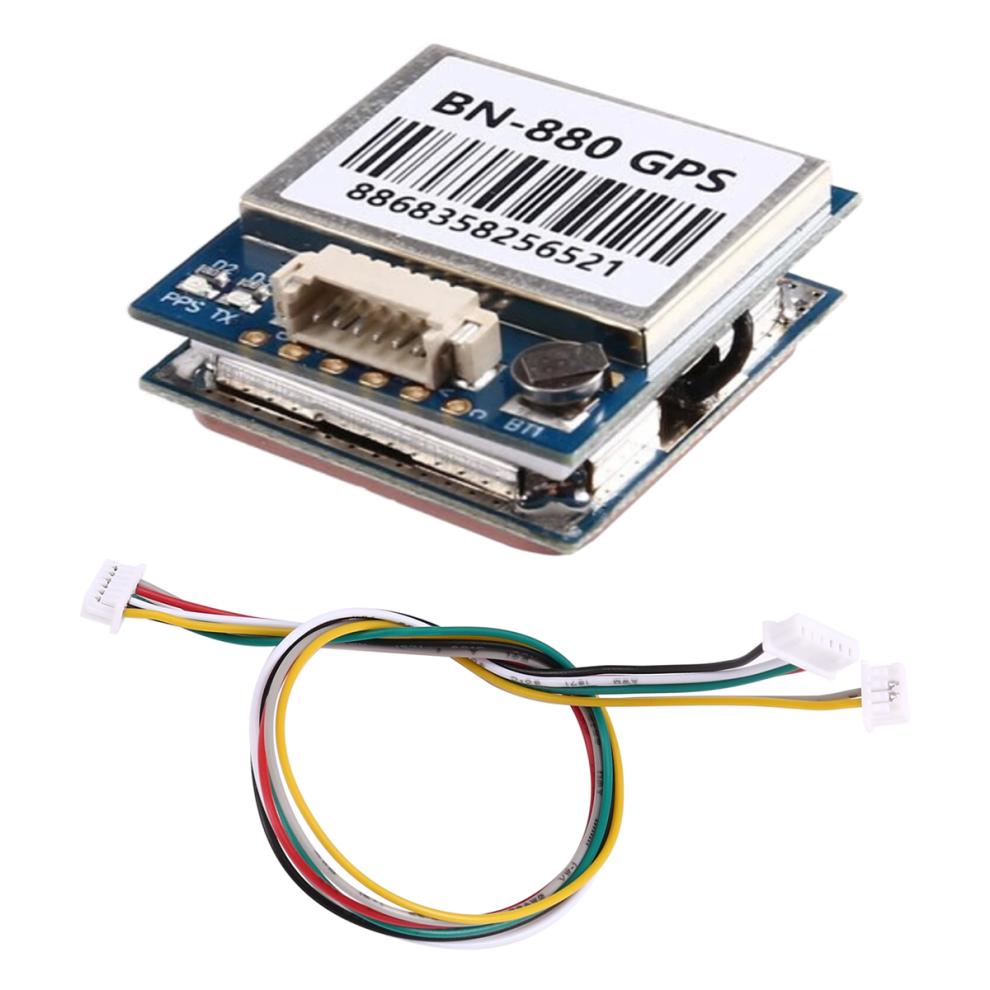

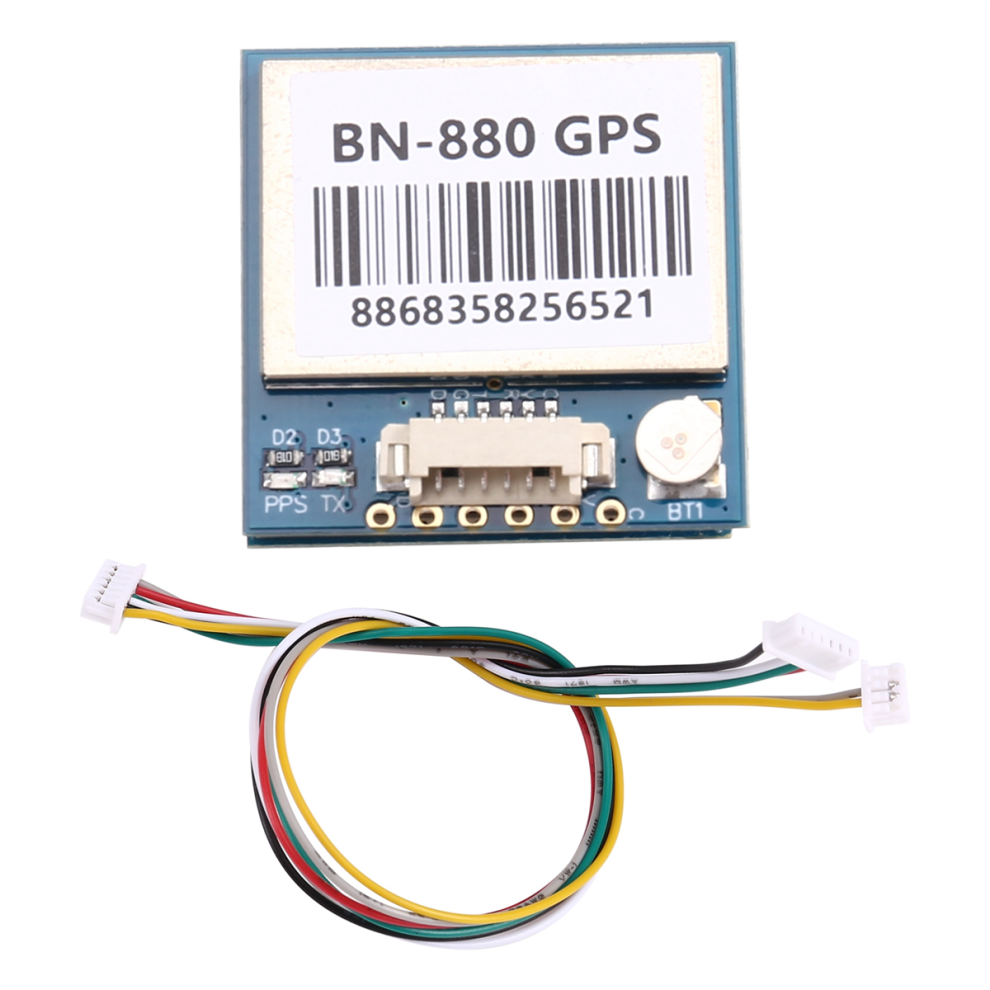

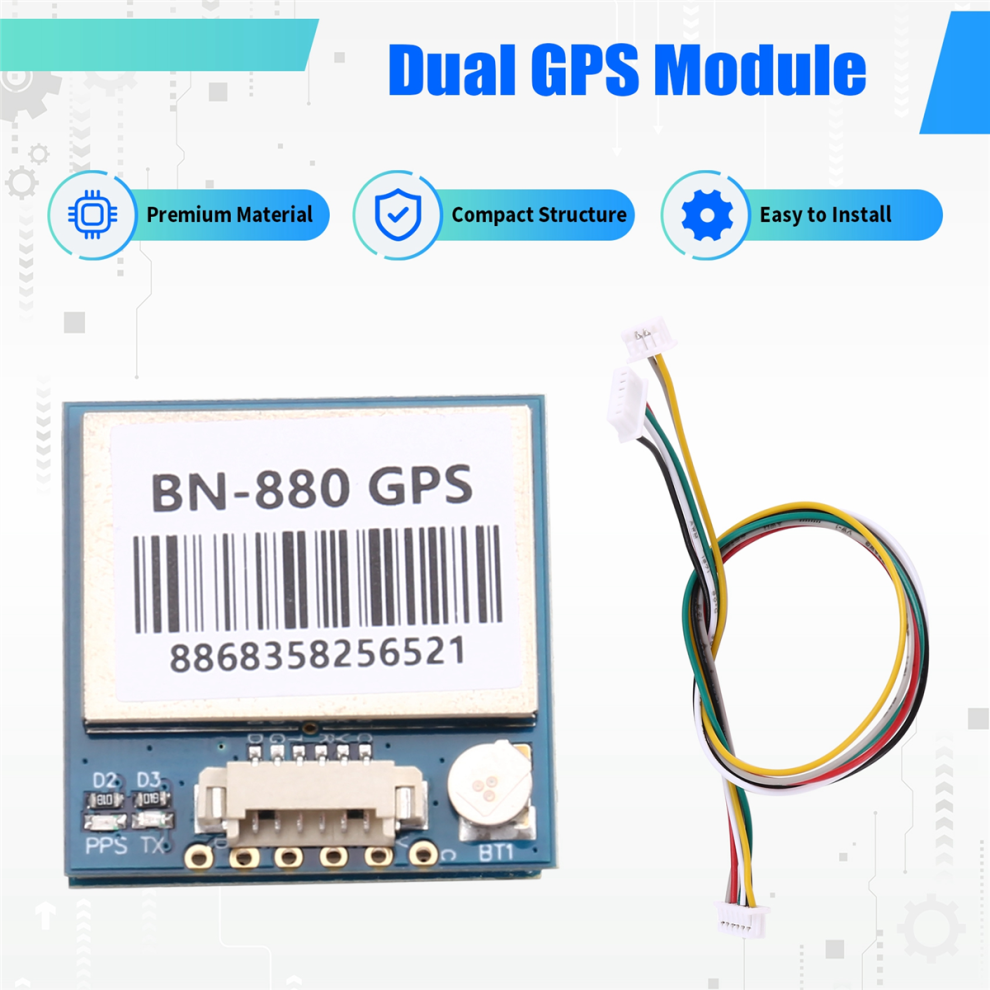

1 x BN-880 GNSS Dual GPS Module
1 x cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
