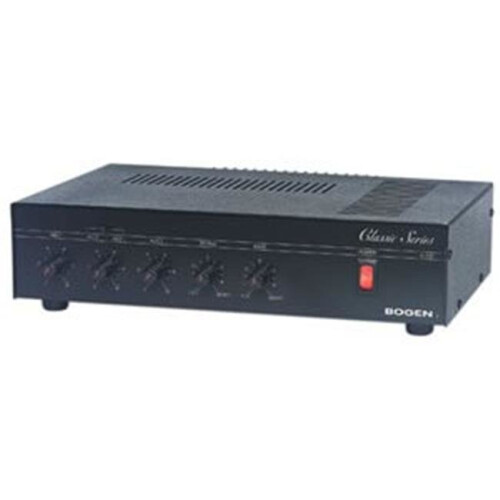

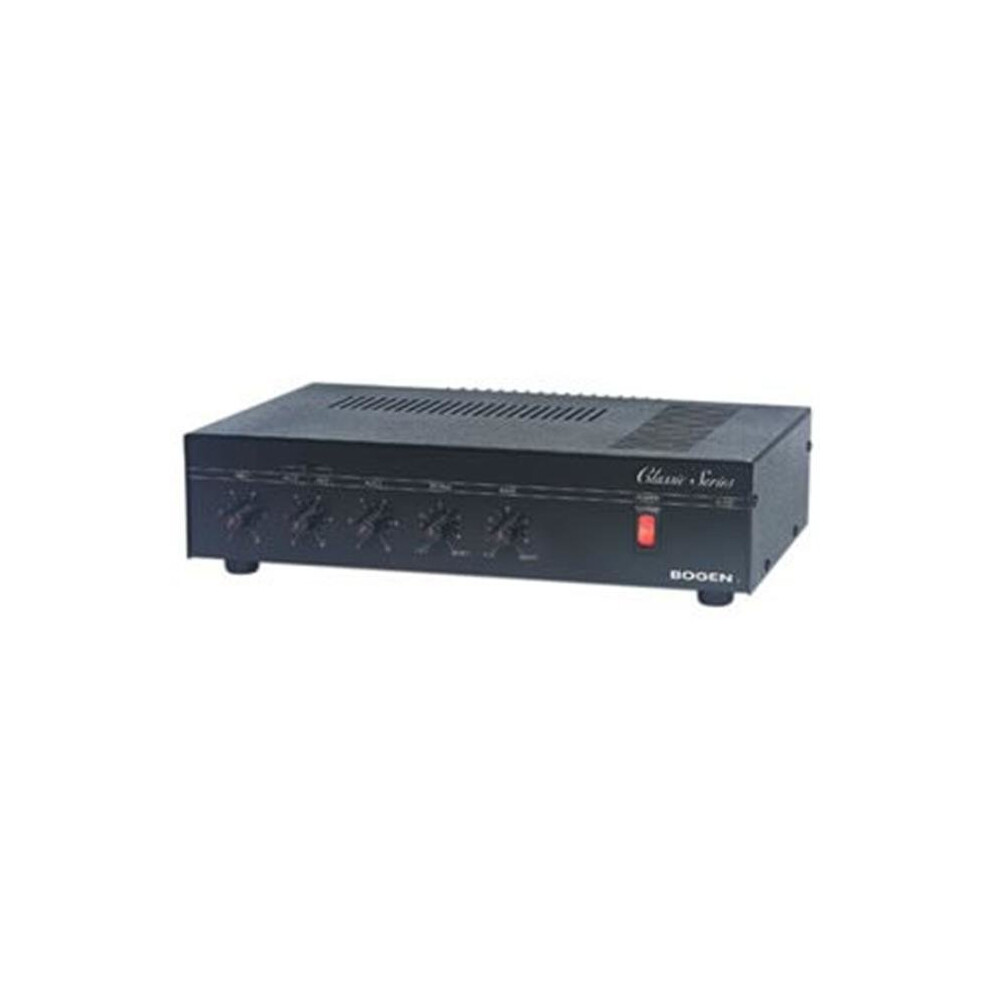

Bogen BG-C100 Classic Series Public Address Amplifier - 100W
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£15.00) | Sat 18th - Fri 24th Jul
Returns: 30 days
180-day payment protection
Most Popular in PA Systems
Bogen BG-C100 Classic Series Public Address Amplifier - 100W Description
- Bogen 100 watt public address mixer amplifier
- Provides mixing of microphones, telephone and auxiliary
sources
- 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable
MIC or AUX
- Each input controlled by an independent volume control
- Treble and bass control
- AUX muting by external contact closure for push-to-talk
microphones
- TEL input for telephone paging applications
- TEL input voice-activated (VOX) mute over AUX input
- Variable threshold for TEL input voice-activated AUX mute
- Audio output for tape recorder or booster amplifier
- Outputs for 4-ohm (direct), and 16-ohm, 25V and 70V speaker
systems (transformer coupled)
- Output jack to connect a tape recorder or booster amplifier
- Output jack to connect a general purpose 600-ohm matching
transformer (model WMT1A)
- Thermal protection and electronic shutdown
- Rack mountable with accessory mounting kit (RPK50)
- UL and CSA listedBGC100
Details
| OPC | PPYWBC |
|---|---|
| Brand | Bogen |
| Codes | 0765368330090 (EAN) |
| 765368330090 (UPC) | |
| MPN | BG-C100 |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
The Bogen Classic Series Models C35, C60, and C100 are public address mixer amplifiers that provide mixing of microphones, telephone, and auxiliary sources.
Output screw terminals are provided for 4-ohm (direct) and 8-ohm (C35 & C60 models only), 16-ohm,
25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape
recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory
transformer (Model WMT1A) is used.
Alternative names:
- Bogen C100 audio amplifier Performance/stage Black
Detailed Product Information
Weight & dimensions
| Weight | 8.62 kg |
|---|---|
| Height | 95.2 mm |
| Width | 368.3 mm |
| Depth | 279.4 mm |
Power
| Power consumption (typical) | 220 W |
|---|---|
| Maximum current | 2 A |
| AC input frequency | 60 Hz |
| AC input voltage | 120 V |
Technical details
| Connectivity technology | Wired |
|---|---|
| Product colour | Black |
| Bass adjustment | Yes |
| Treble adjustment | Yes |
| Purpose | Performance/stage |
| Volume control | Rotary |
| On/off switch | Yes |
Audio
| RMS rated power | 100 W |
|---|---|
| Total Harmonic Distortion (THD) | 0.5% |
| Input sensitivity | 85 mV |
| Frequency range | 20 - 20000 Hz |
| Output impedance | 16 Ω |
Display
| Built-in display | No |
|---|
