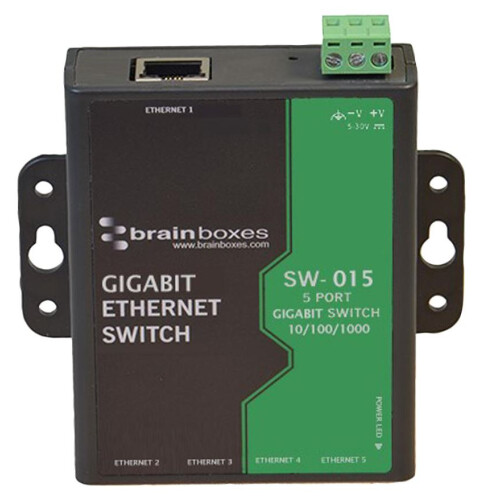

BRAINBOXES - 5 Port Industrial Giabit Ethernet Switch

BRAINBOXES - 5 Port Industrial Giabit Ethernet Switch Description

High speed 5 port unmanaged Ethernet switch which is ideal for a range of factory floor, vehicle and marine applications.

High speed 5 port network switch suitable for various applications

Automatic detection of transmission speed; 10, 100 or 1000Mb/s

Auto MDI/MDI-X crossover support on all ports

Each Ethernet port is magnetically isolated

IP-30 Rated non-conducting polyamide case

Industry approvals include compliance with Metlabs UL 60950-1

Wide operating temperature range for use in various environments (-10C to +60C)

+5VDC to +30VDC Power supply input range

Easy Wire removable screw terminal block

Plug and play design, no software needed

Optimised power consumption based on the status of the link device

Wall mount holes compatible with MK-048 DIN mount clips (not supplied)

Dimensions (HxWxD): 105x101x28mm

Footnotes

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

No. of Ports: 5Ports

Ethernet Switch Application: Industrial

Ethernet Switch Type: Unmanaged Gigabit Ethernet

Ethernet Switch Mounting: DIN Rail / Wall

Port Types: RJ45 x 5

Network Speeds: 10Mbps, 100Mbps, 1Gbps

Input Voltage Type: VDC
