Product Images
Brainboxes PE-515 Pure Embedded Industrial Gigabit Ethernet Evaluation Kit
Brand Brainboxes
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
£65.34
FREE Delivery
1%
Earn £0.65 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 8th - Fri 9th Oct
Sold by: Rapidonline
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Brainboxes PE-515 Pure Embedded Industrial Gigabit Ethernet Evaluation Kit Description

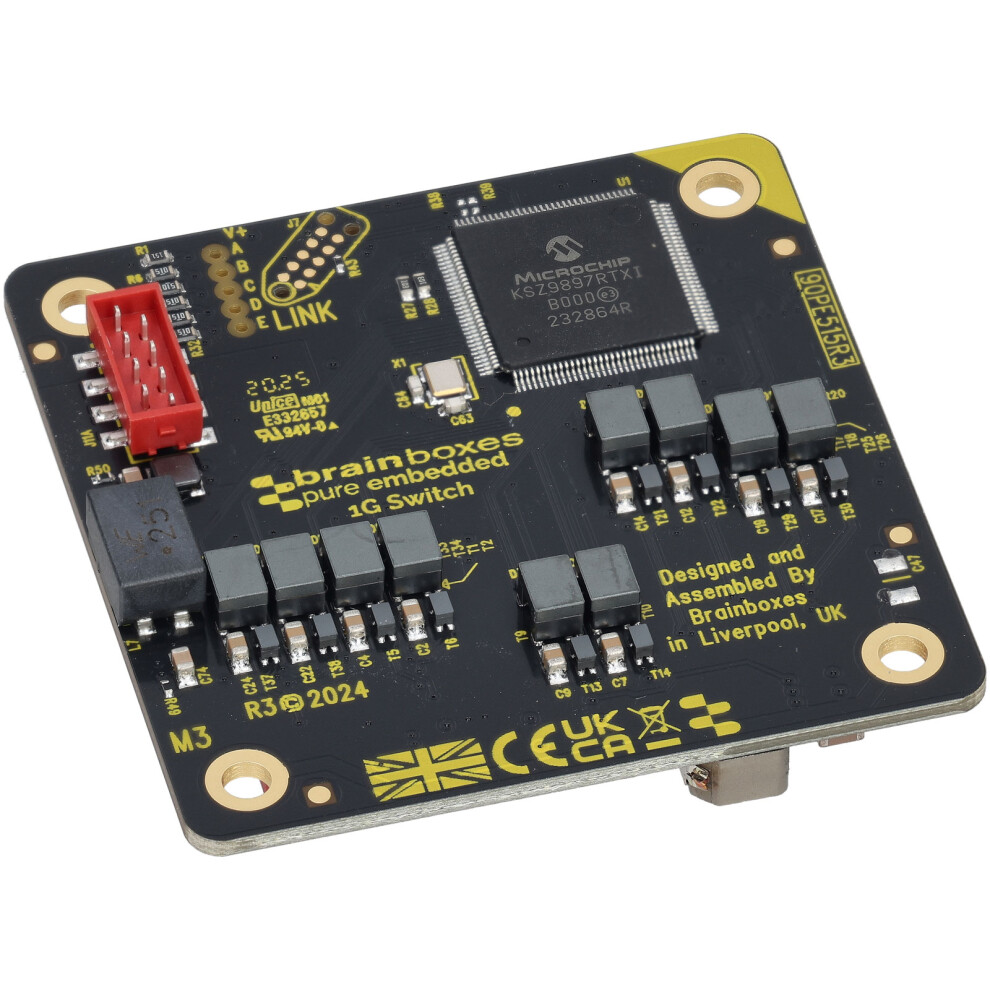

Pure Embedded Industrial Gigabit Ethernet Evaluation Kit - Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.
- PE-515 Pure Embedded Industrial 5 Port Gigabit Ethernet Switch has a mega compact form – at 55 x 55 x 16mm / 2.17 x 2.17 x 0.63in it's smaller than a standard business card.
- 3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software.

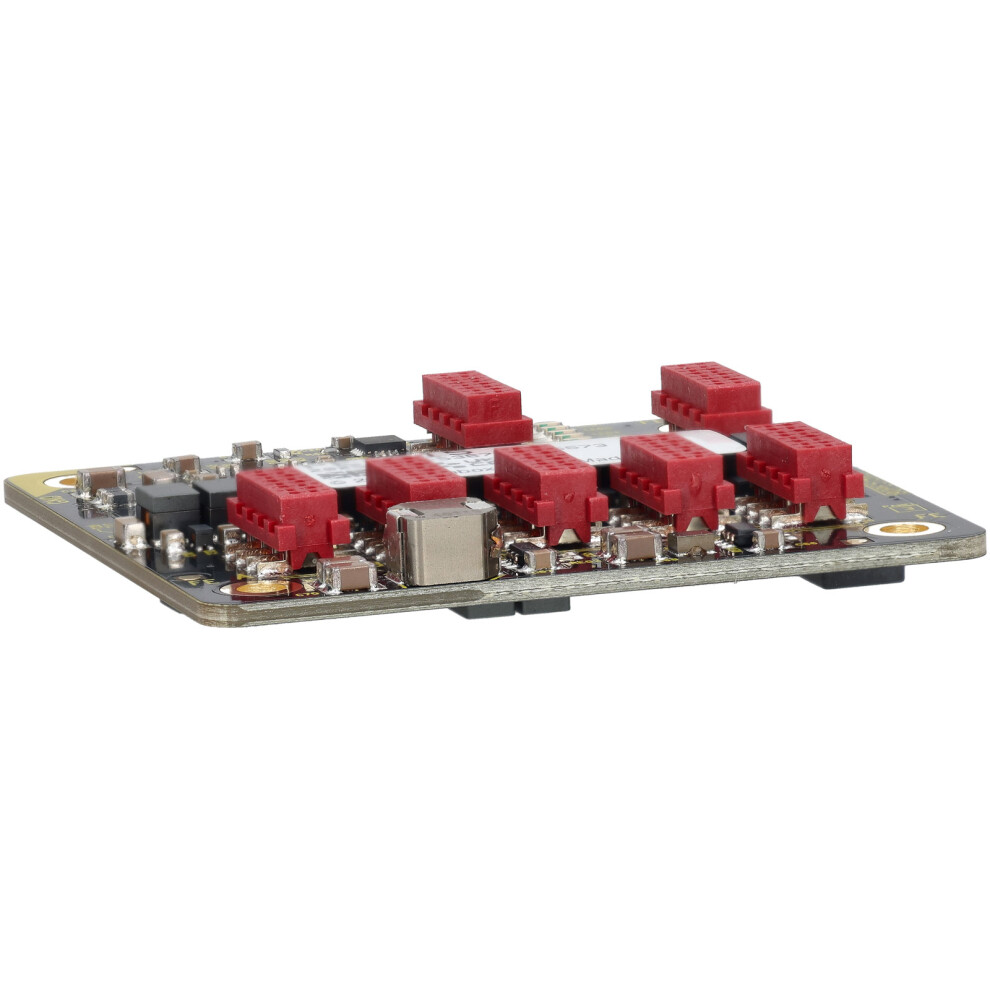

- Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes, or by electrical signal wired out of the connector
- Mega compact form – smaller than a standard business card (55 x 55 x 16mm /2.17 x 2.17 x 0.63in)
- Industrial operating temp (-40 °C to +85 °C / -40°F to +176°F)
- Seamless integration with design software - logical placements and fixed distances
- Board to board and board to cable connection
- LEDs visible in all orientations – can be directed to outer casing via fibre optics or light pipe, or electrically wired
- Comprehensive resources: Mechanical outline, 2D Footprint, 3D Model
Details
| OPC | PNQ6GT5 |
|---|---|
| Brand | Brainboxes |
| Codes | 0837324005318 (EAN) |
| MPN | PE-515 |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Weight & dimensions
| Weight | 123 g |
|---|---|
| Height | 22 mm |
| Width | 117 mm |
| Depth | 98 mm |
Certificates
| Certification | CE, UKCA, RoHS, REACH, WEEE |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95% |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 80 °C |
Packaging data
| Package weight | 261 g |
|---|---|
| Package depth | 160 mm |
| Package height | 49 mm |
| Package width | 135 mm |
Design
| Form factor | Embedded |
|---|---|
| Product colour | Multicolour |
Power
| Power source | DC |
|---|---|
| DC input voltage | 3.3 V |
| Power consumption (max) | 3.3 W |
Network
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | No |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Management features
| Switch layer | L2 |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
Logistics data
| Harmonized System (HS) code | 851762 |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
