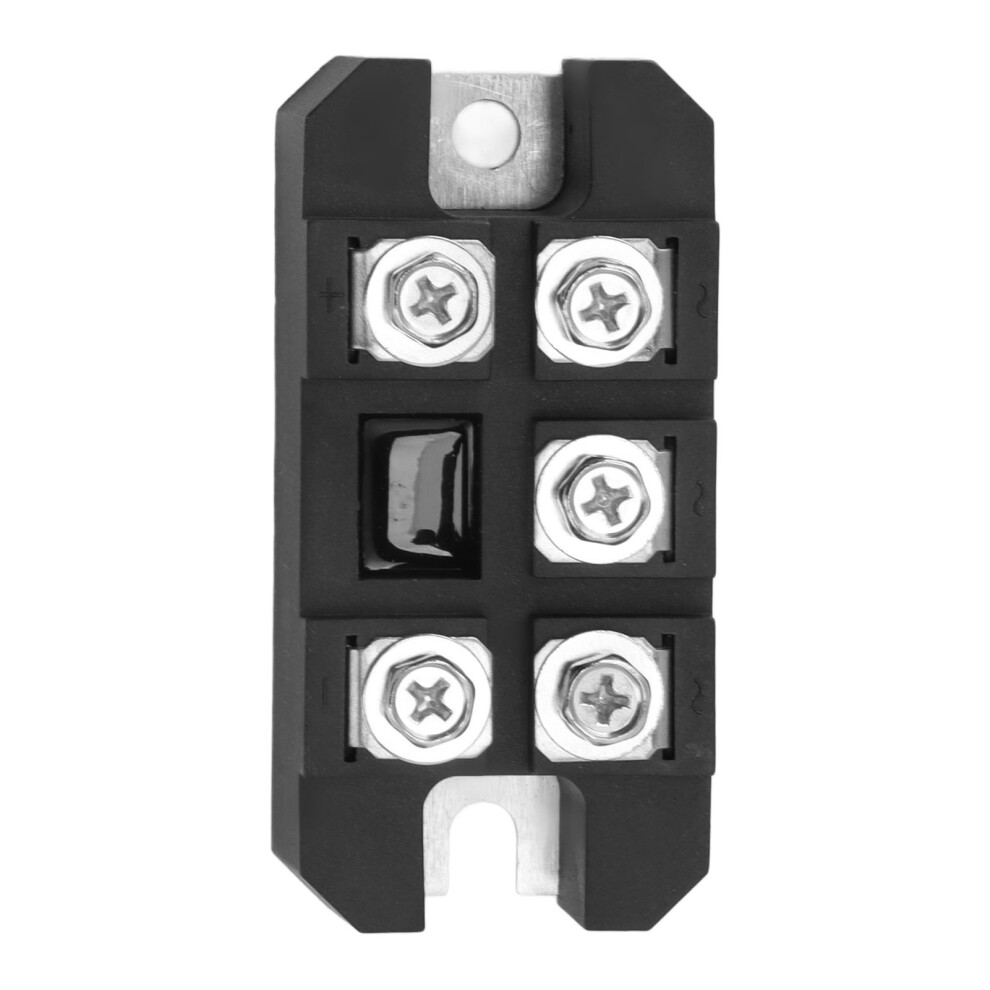

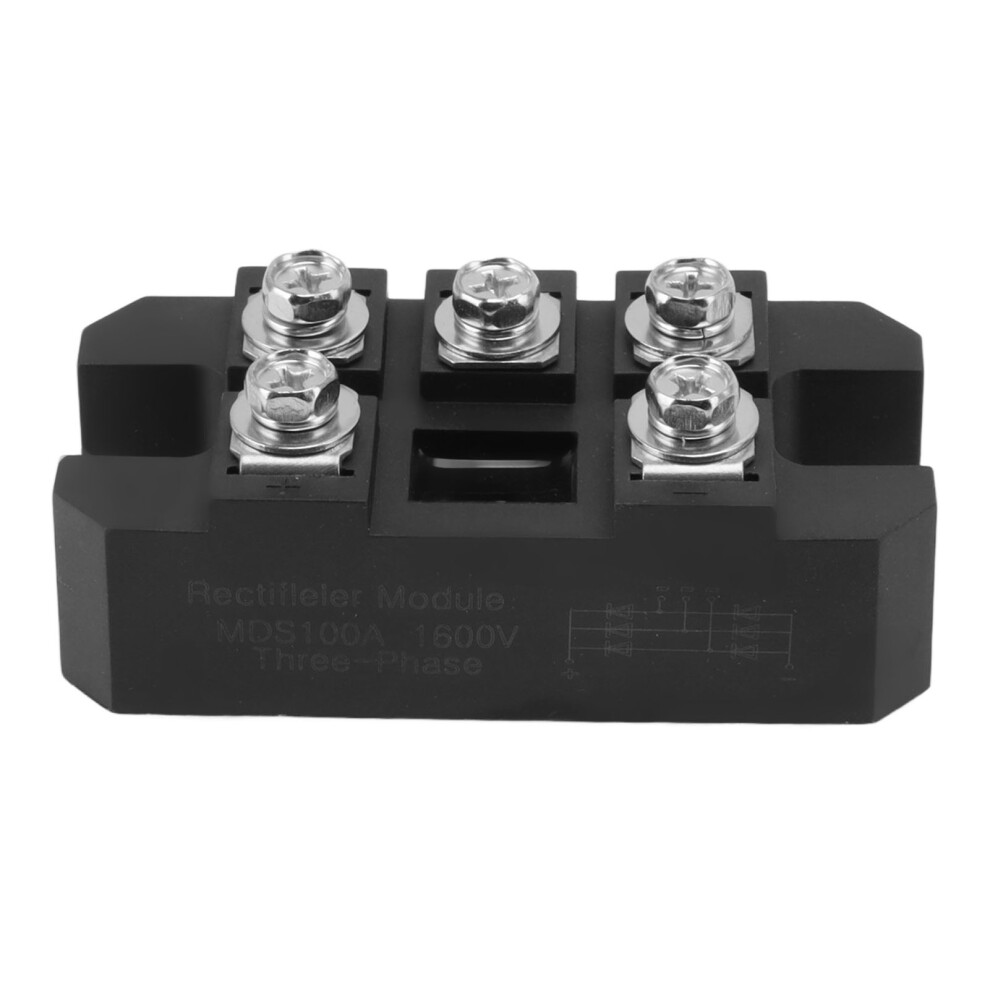

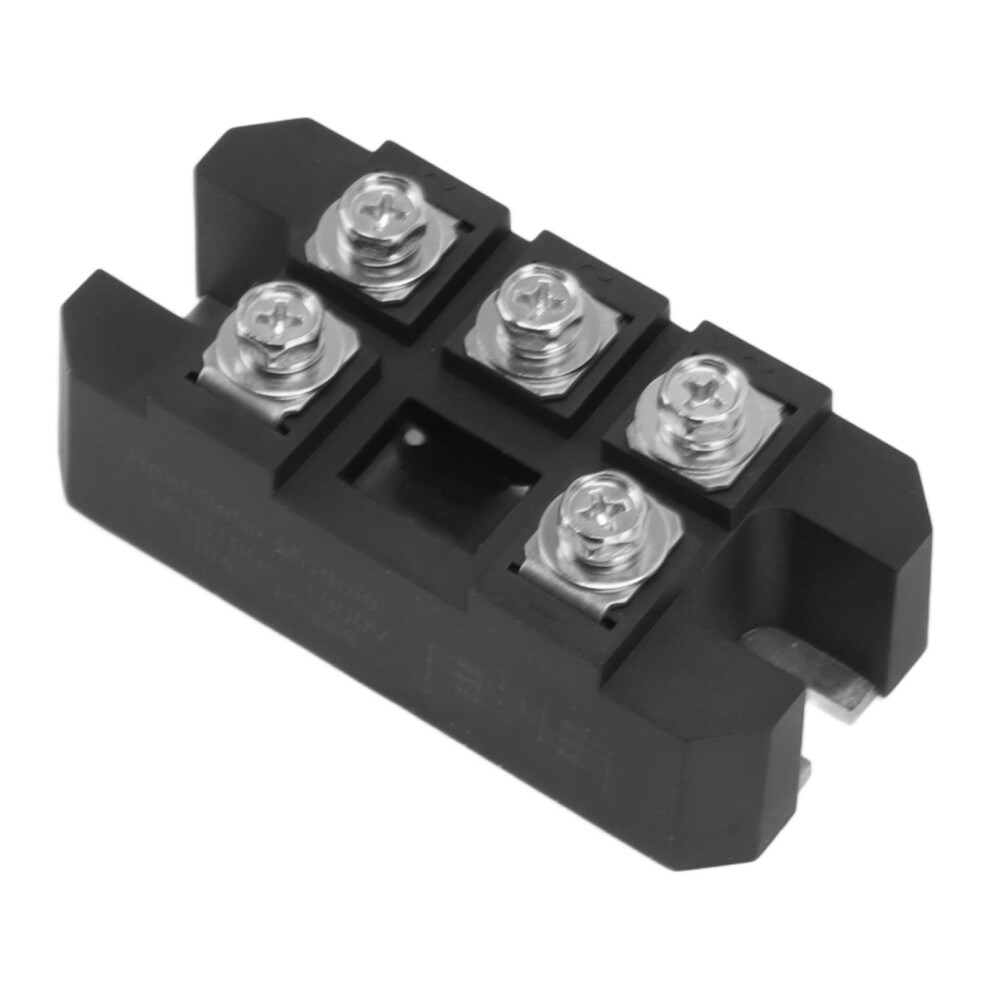

Bridge Rectifier3Phase Diode5Terminal100A1600V Rectifier Module MDS100A for Charging

Bridge Rectifier3Phase Diode5Terminal100A1600V Rectifier Module MDS100A for Charging Description

Item Type: Bridge Rectifier Material: ABS, steel. Forward Current: 100A Forward Voltage: 1600V Forward Peak Voltage: 1.60V Reverse Repetitive Peak Voltage: 1800V Reverse Repetitive Peak Current: 8A Forward Peak Surge Current: 1000A Rated Temperature: -60 ~ 175 Weight: 176g / 6.21oz(approx.) .wang-edit-text{ font-family: 'Arial' !important; } .wang-edit-text table { border-top: 1px solid #000; border-left: 1px solid #000; } .wang-edit-text table td, .wang-edit-text table th { border-bottom: 1px solid #000; border-right: 1px solid #000; padding: 3px5px; } .wang-edit-text table th { text-align: center; } Reliable Working: The power diode MDS100A bridge rectifier module is designed for three phase full wave rectification and has six diodes connected in three phase bridge configuration. Better in Design: High in both reverse withstand voltage and surge current, the output DC current is100A, and the maximum voltage can get up to1600V, very safe and reliable in the whole working process. Fine Workmanship: The vacuum sintering is adopted for the chip and substrate, which effectively improves the AC insulation and withstand voltage, and also improves the heat dissipation effect of the chip. Wide Application: Can be used in PWM inverter current input, battery charging, machinery, metallurgy, automobile, electric power, electroplating power supply, electrochemistry, electric drive and so on. Quick to Install: 5terminal design together with a light weight and a compact size can largely simplify the installation of this bridge rectifier.
