Brushless Motor Driver Board Controller Open Loop Closed Loop Control Compatible 9V-36V

Brushless Motor Driver Board Controller Open Loop Closed Loop Control Compatible 9V-36V Description

Specification:

1.Compatible with brushless motors with or without halls

Automatically recognizes sensitive

And non-sensitive drives without setup

2.Speed control mode

Supports open-loop speed control

And closed-loop speed control with PID controller

Setting via pull-code switches

3.Speed control mode

Modbus rtU 485 communication control

External potentiometer/analog signal/PWM/pneumatic PWM/joystick control

Internal potentiometer control

4.Support enable,direction change,emergency stop and brake control

The control interface is compatible with active control(24V max.)

And passive control

5.Programmable output interface

Supports alarm signals/direction change(speed)

Supports alarm signal/commutation(speed)

Pulse/stop signal/communication control output

The output signal is a 3.3V level signal

6.Supports speeds up to 110,000 RPM(1-pole to motor)

7.Supports phase sequence learning

Motor and controller automatically adapt

8.Support long time blocking,will not burn the motor and controller

Package Includes:

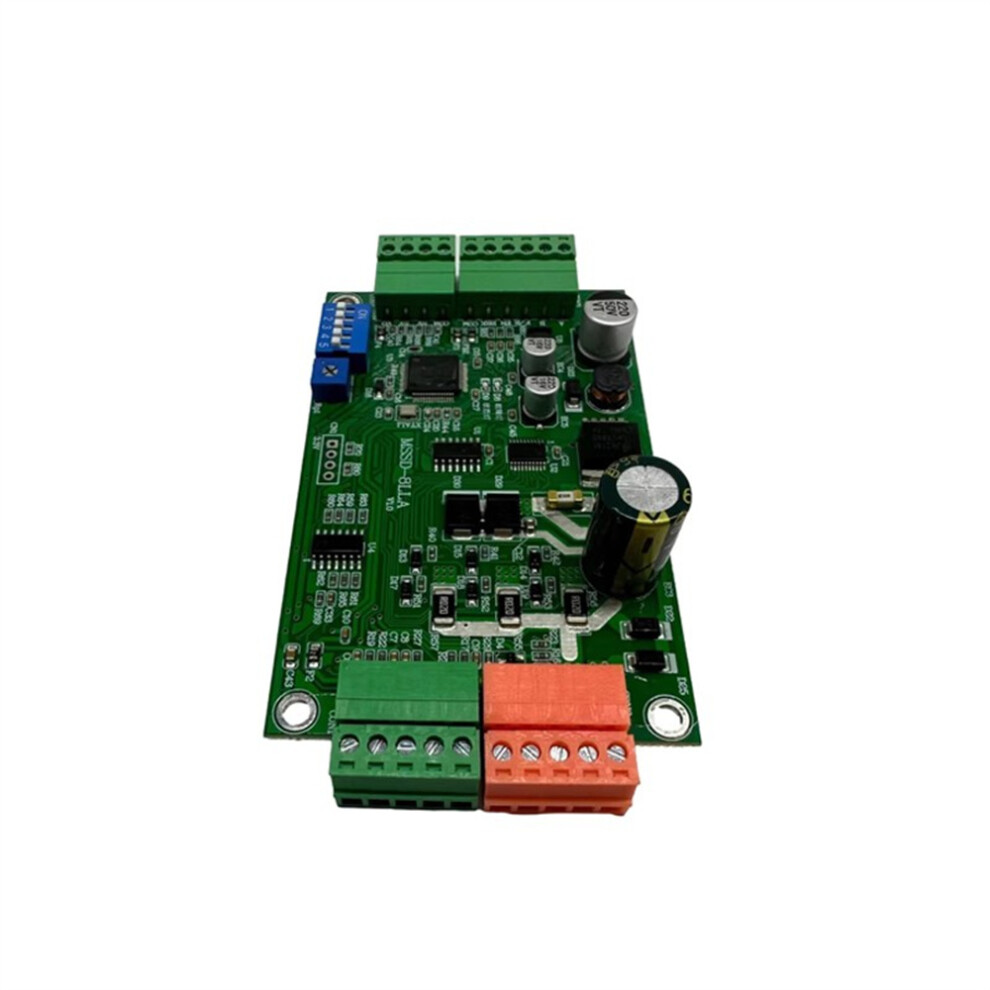

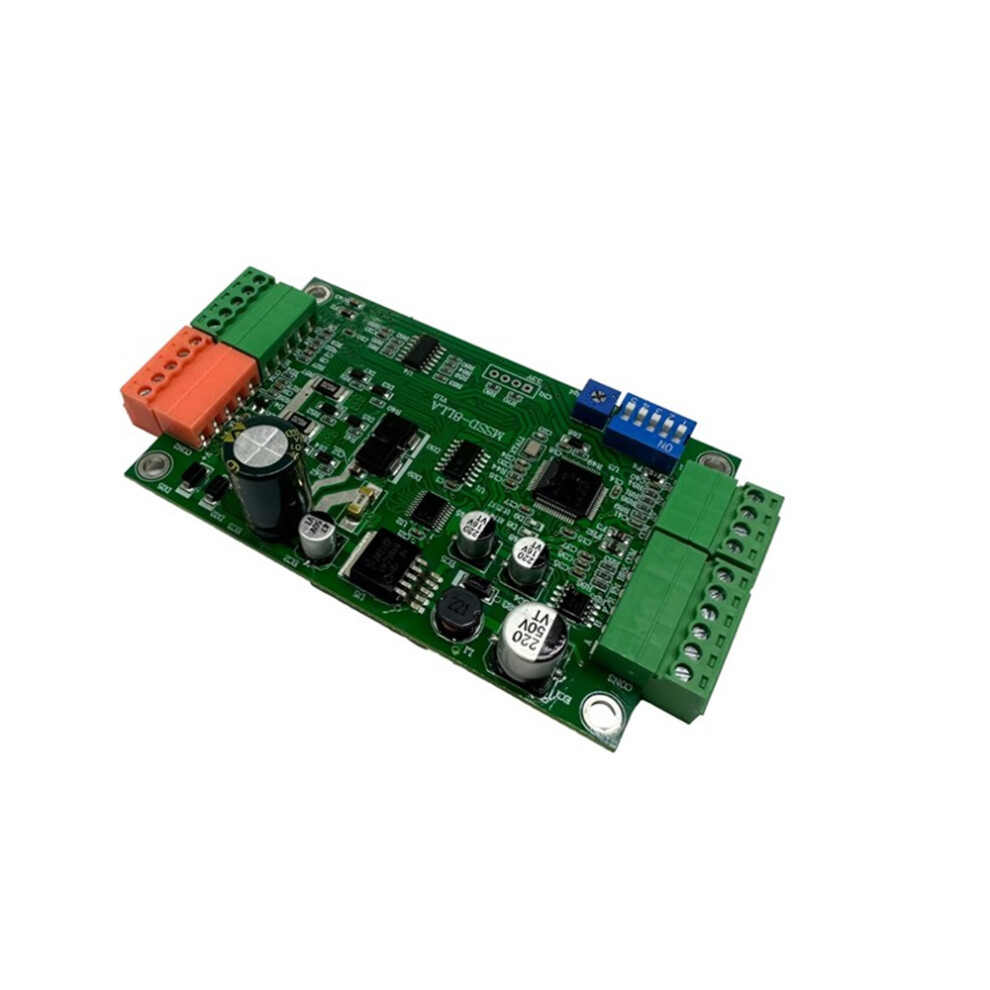

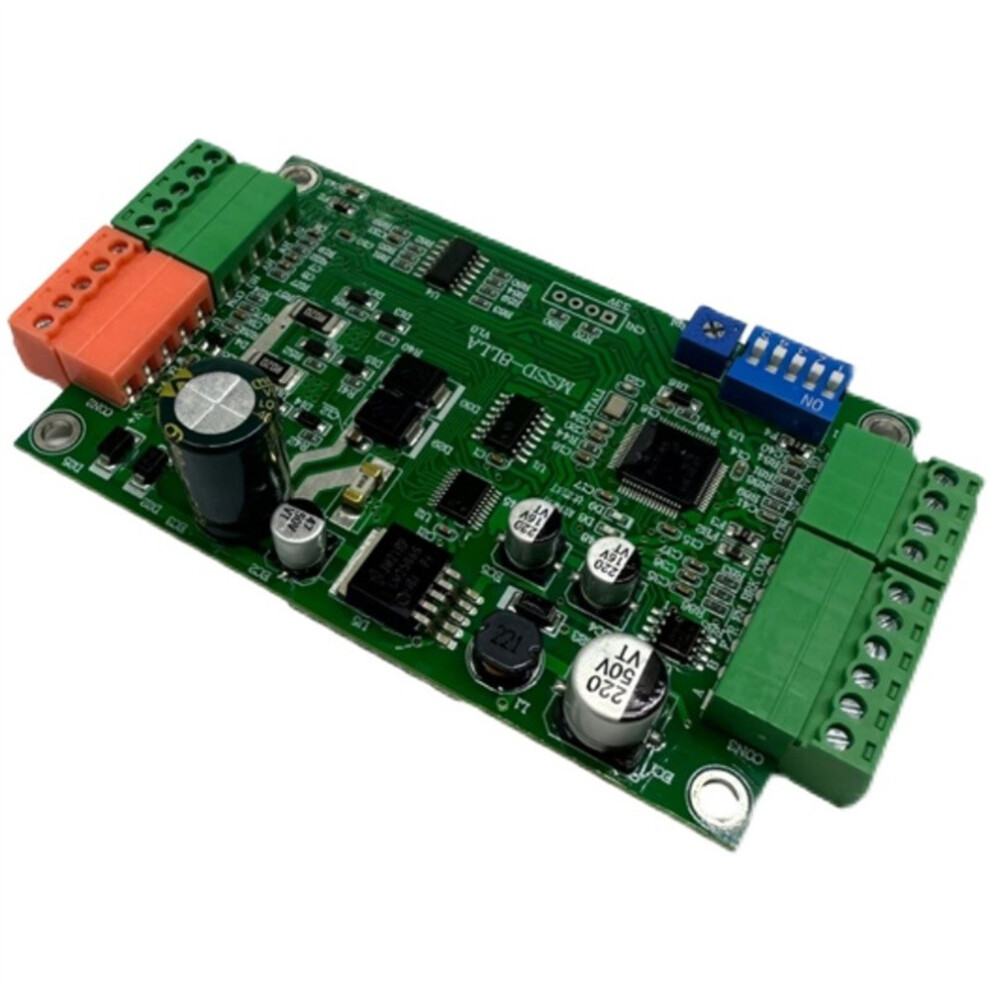

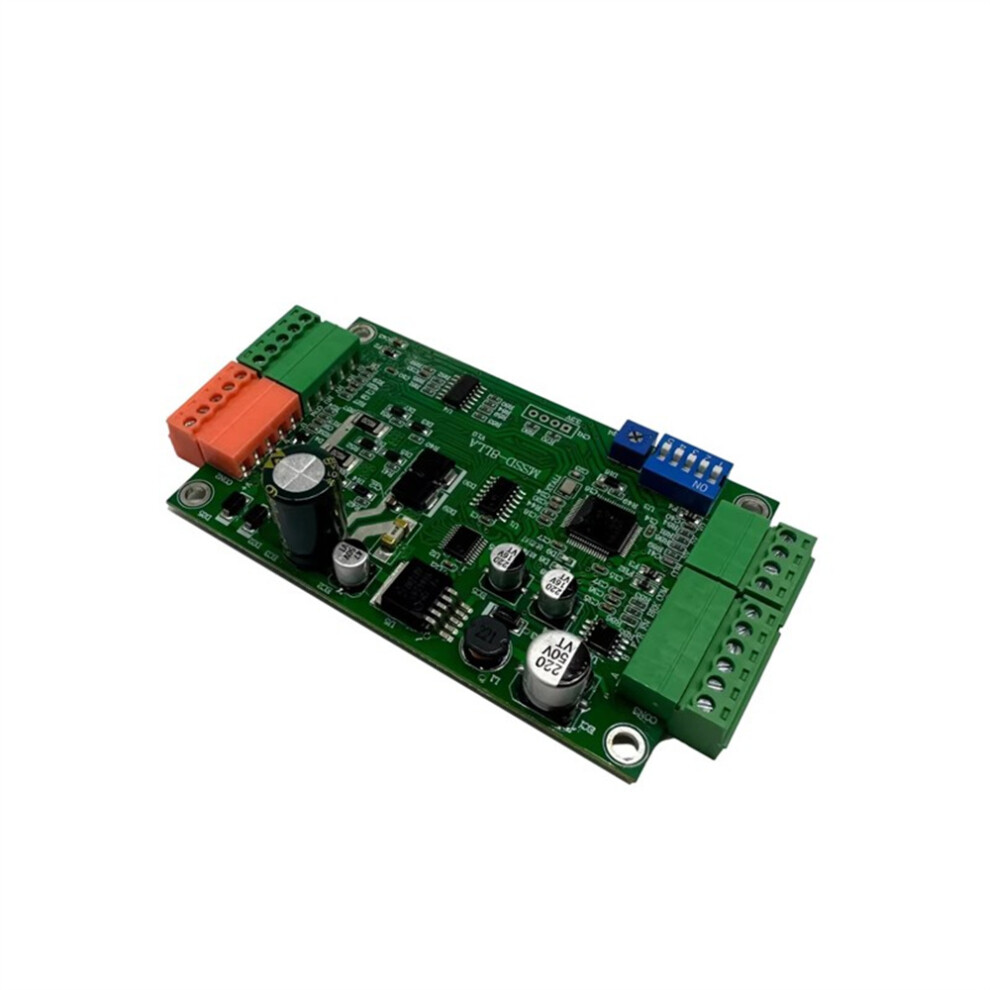

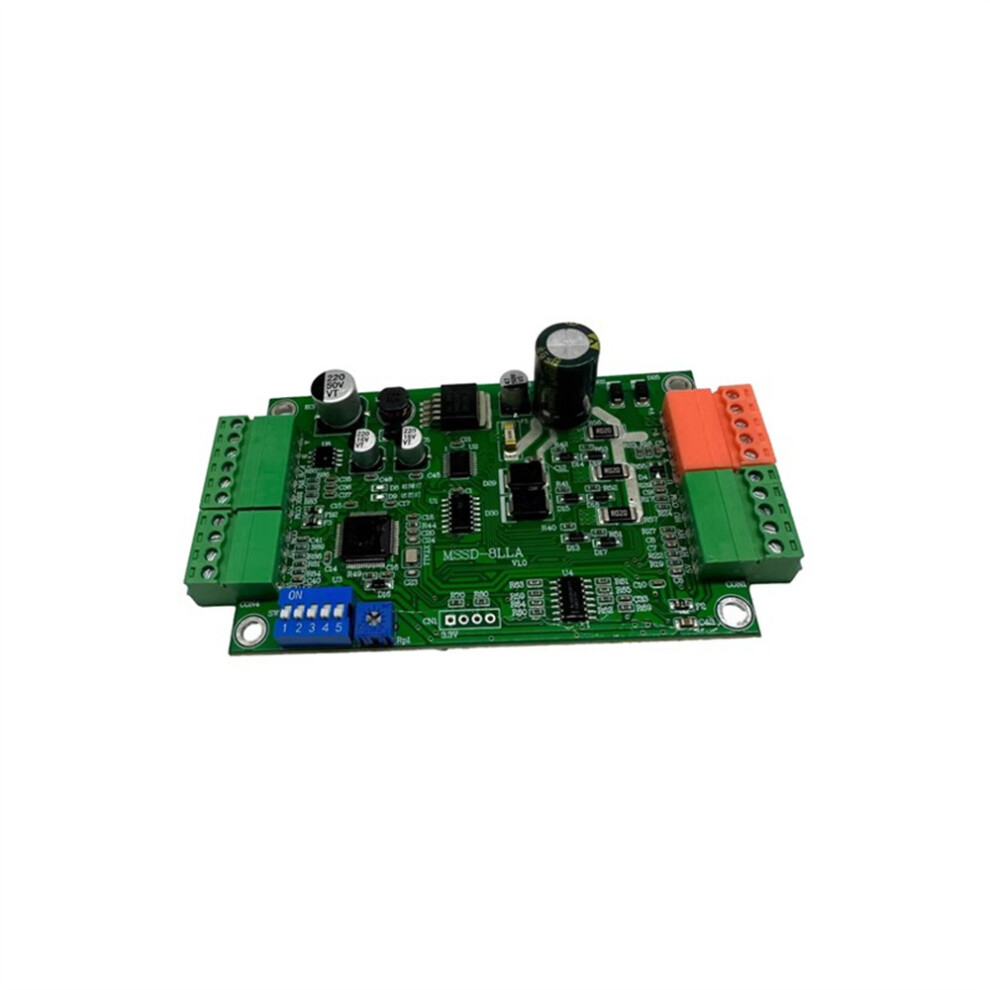

1*Brushless Motor Drive Board

Note:

Only include the above package products

Specifications have been manually tested,for reference only

Please refer to the actual situation,thank you
