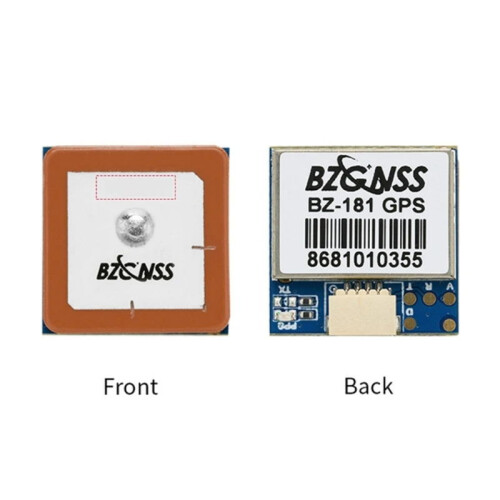

BZGNSS BZ-181 GPS Module Dual Protocol FPV Hover Return F7 F4 Flight Control

BZGNSS BZ-181 GPS Module Dual Protocol FPV Hover Return F7 F4 Flight Control Description

BZGNSS BZ-181 GPS Module Dual Protocol FPV Return Hover F7 F4 Flight Control Fixed Wing Return Rescue Drone Parts
Features:
Advanced Chip: The GPS Module is equipped with the u-blox M10050, a ten-generation chip, ensuring high performance and reliability.
Multiple Positioning Systems: The module supports GPS, GLONASS, BDS, GALILEO, SBAS, QZSS, with default GPS+GLONASS+BDS joint positioning, providing accurate and fast location tracking.
High Receiving Sensitivity: With a receiving sensitivity of Trace-162dBm / Capture -160dBm, the module can pick up weak signals, ensuring stable and reliable positioning.
High Accuracy: The drone GPS module boasts a speed accuracy of 0.05m/s and a horizontal positioning accuracy of 2D ACC 1.5m (open air), providing precise location data.
Dual Protocol: The module supports NMEA / UBLOX dual protocol, offering flexibility and compatibility with different systems.
Specifications:
BZ-181
Chip: u-blox M10050(Ten Generation Chip)
Pattern: GPS, GLONASS, BDS, GALILEO, SBAS, QZSS (Default GPS+GLONASS+BDS joint positioning)
FLASH: Supported
Frequency: GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
Power: 5V

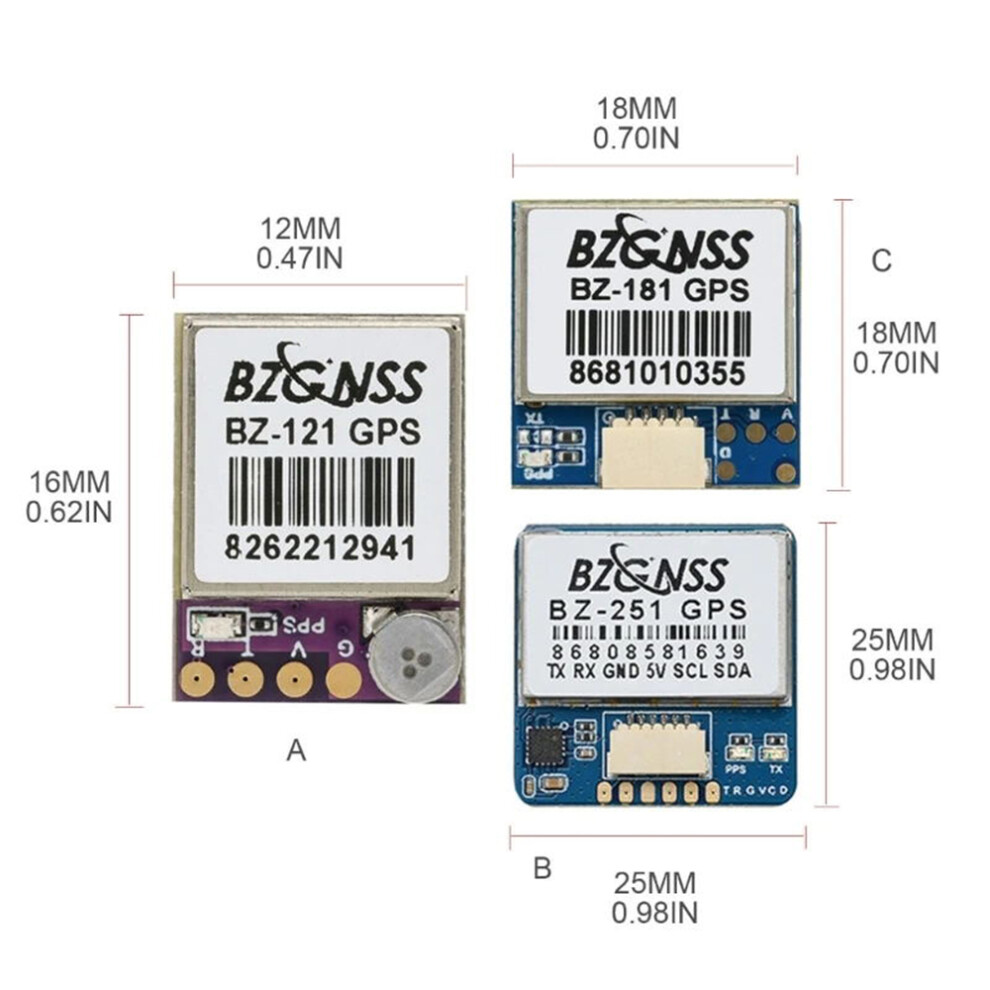

Size: 18x18x4.8mm(Thinnest point)
18x18x6mm(Including thickness of terminal block)
Interface: SH1.0 4Pin
Weight: 6.9g

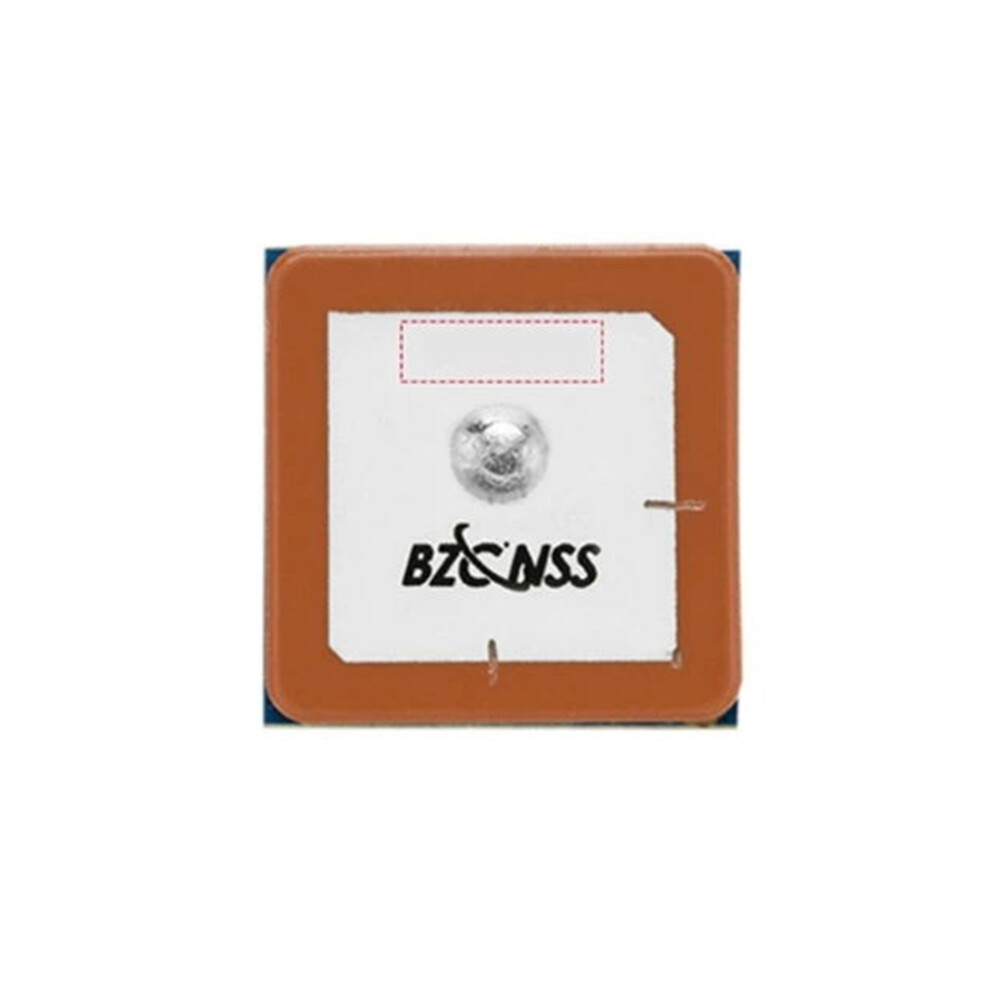

Antenna: Ultrathin Ceramic Antenna / Standard Ceramic Antenna
Receiving channels: 72 search channels
Baud rate: 115200dps
Output Protocol: NMEA / UBLOX (Dual protocol)
Output Frequency: 1Hz-10Hz.  Default 10Hz
Speed accuracy: 0.05m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
Receiving Sensitivity: Trace-162dBm / Capture -160dBm
Dynamic characteristics:
Altitude: 50000m
Speed: 500m/s
Acceleration: 4G
Operating temperature: -40°C~+85°C
Storage temperature: -40°C~+105°C
Indicator light: PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning
Package Information:
Package Size: 120*80*10mm
Package Weight: 10g

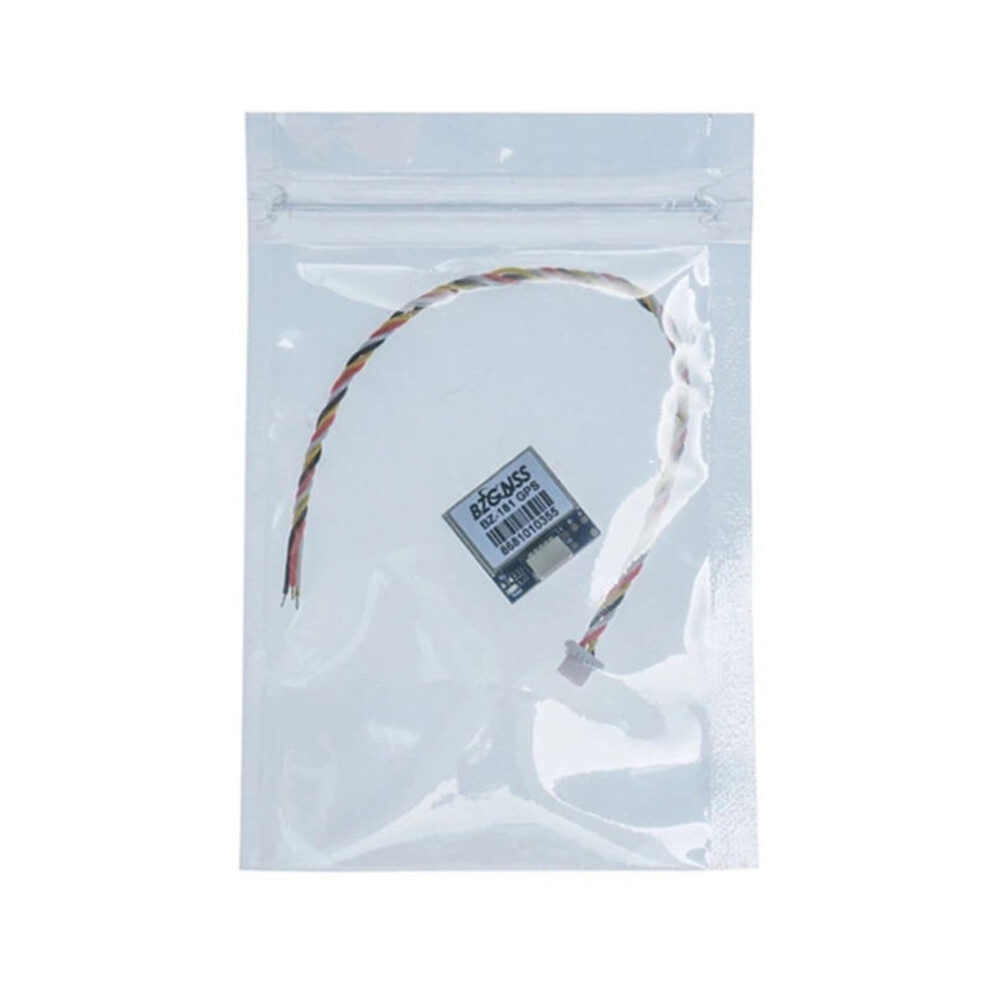

Package List:
1 * BZGNSS BZ-181 GPS
