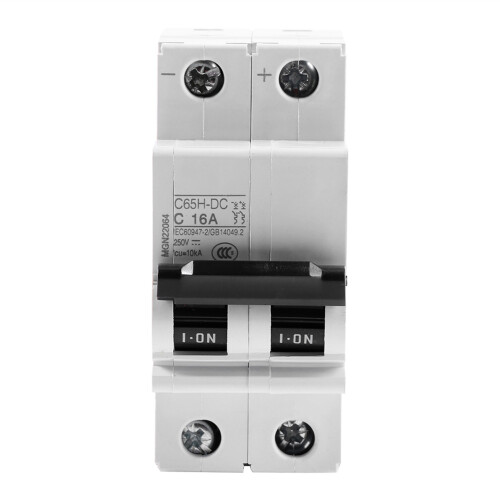

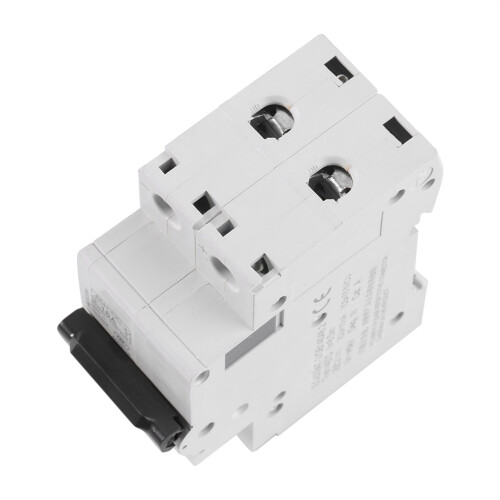

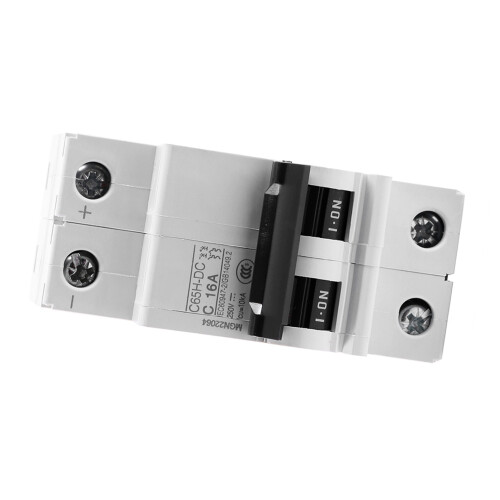

C65H-DC 2 Pole 250V DC Solar Circuit Breaker 16A Durable Air Switch

C65H-DC 2 Pole 250V DC Solar Circuit Breaker 16A Durable Air Switch Description

Circuit Breaker C65H-DC 2P 250V DC Solar Energy Air Switch Amps (16A)

Features:



This is a great  circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit.



Fast closing to ensure reliable operation of the load and prolong the life of electrical circuit breakers.


It is easy and reliable e, which supports short circuit protection, overload protection.




It can be mounted conveniently on DIN rail, DIN rail is not included.



Widely used for solar panels grid system, wind and solar hybrid system and many other DC systems.





Specifications:


Model: C65H-DC  2P


Poles: 2P


Rated Current: 16A/32A/63A(Optional)


Rated Voltage: DC250V


Ultimate Breaking Capacity(ICU): 10kA

Trip Characteristics: B, C

Rated Impulse-withstand Voltage(Uimp): 5kV





Current Limiting Class: 3


Mechanical Life: 20,000 times (IEC 60947-2/GB14048.2)


Electrical Life: 10,000 times (IEC 60947-2/GB14048.2)


Operating Temperature: -25~+70

Storage Temperature: -40~+85




Heat & Humidity Resistance: 55, 95%RH


Size: 8.2 x 3.6 x 7cm / 3.22 x 1.41 x 2.75"






Package Includes:


1 x Circuit Breaker
