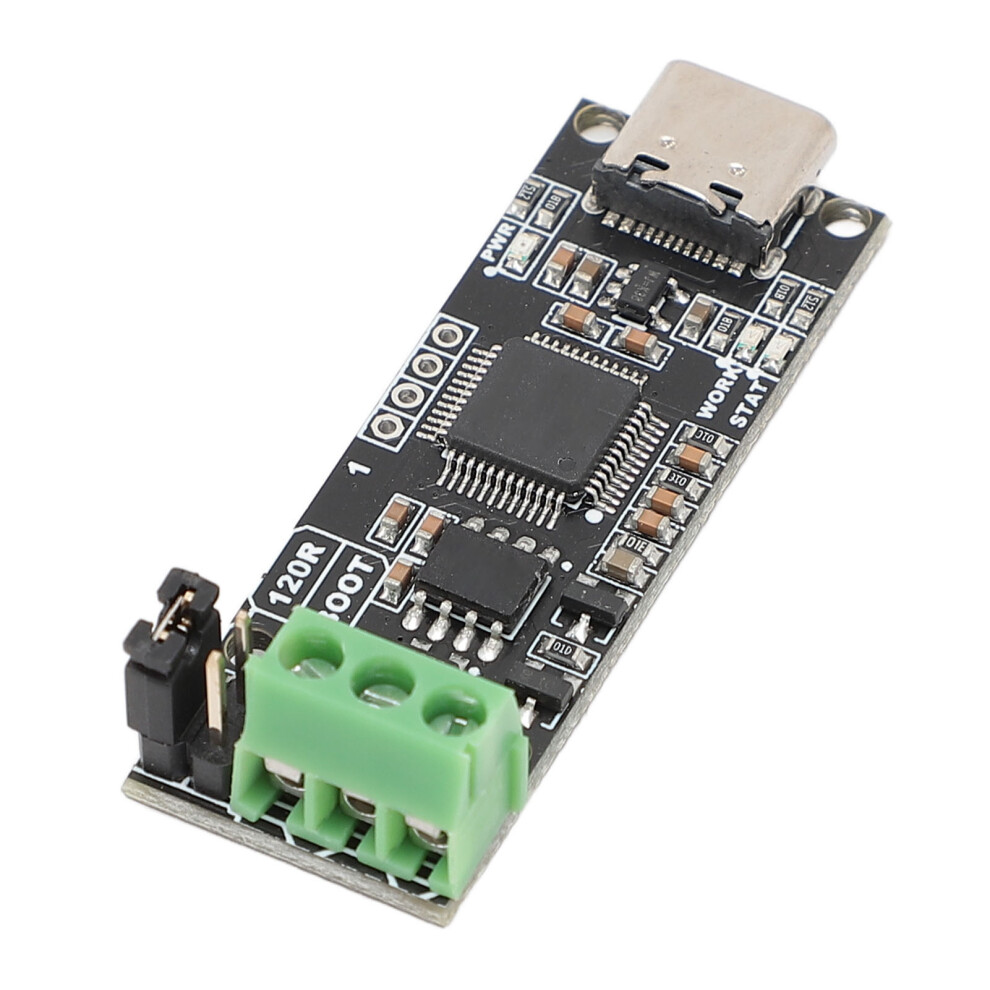

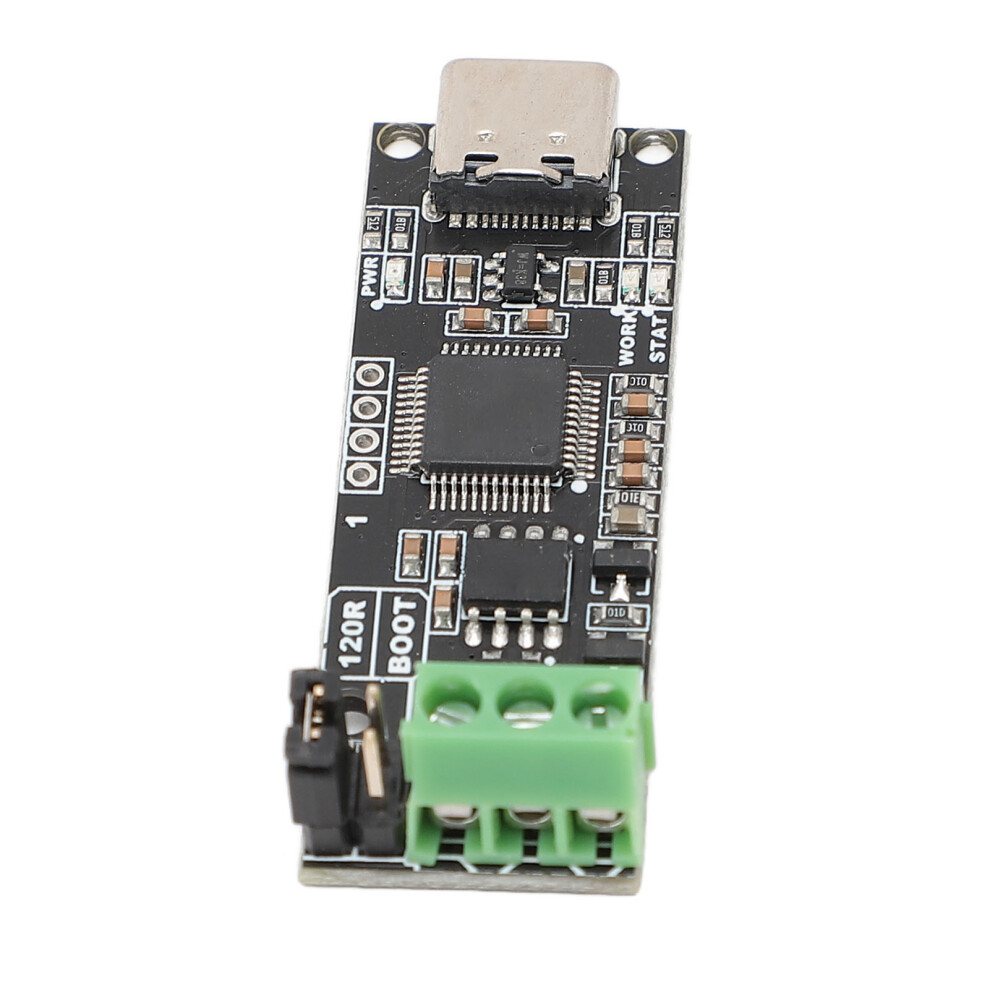

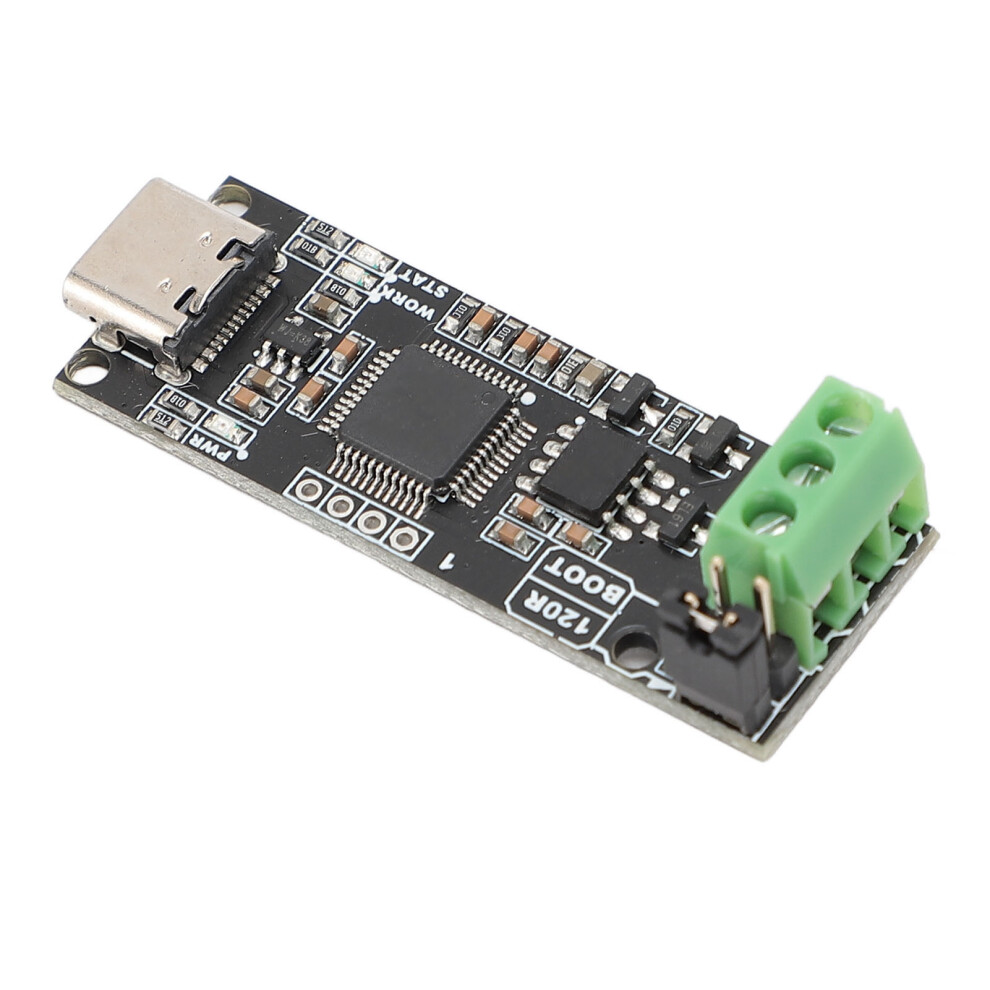

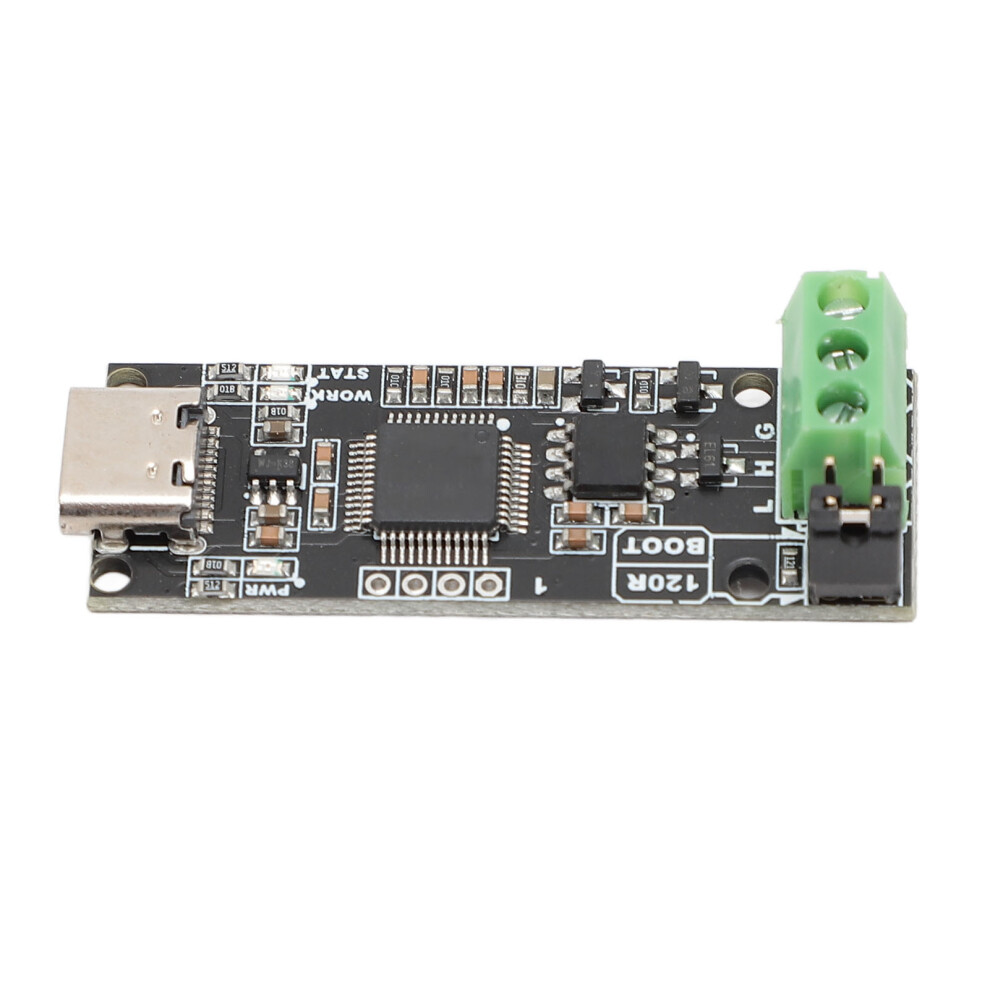

CAN Analyzer USB to CAN Module Converter Adapter for Data Analysis

CAN Analyzer USB to CAN Module Converter Adapter for Data Analysis Description

1、VIRTUAL PORTS: For CANable 2.0 is a small open source USB to CAN analyzer that enumerates virtual serial ports on your computer and acts as a serial line for the CAN bus interface 2、LOCAL INTERFACE: When using for candle light firmware, for CANable is enumerated as a local CAN interface on for Linux, which is very stable and practical 3、APPLICABLE SCENARIO: For CANable 2.0 support standards CAN2.0A, CAN2.0B and CAN FD. Support Type C USB port, online firmware upgrade and DFU mode firmware upgrade 4、HIGH FREQUENCY PROCESSOR: CAN analyzer uses a high performance for ARM Cortex M4 for STM32G431C8T6 processor running at up to 170MHz, efficient and stable 5、APPLICABLE MODEL: The for CANable analyzer is compatible with for ARM based embedded platforms such as for RasPi, for RasPi Zero, for ODROID, for BeagleBone, etc., making it suitable for integration into OEM products
Item Type: CAN Analyzer
Material: PCB
Microprocessor: For STM32G431C8T6
Communicating Chip: For TJA1051T/3
Voltage: DC 3.3V-5V
CAN FD: Supported
CAN 2.0A/B: Supported
Firmware: For CandleLight, for slcan
Transmission Rate: 1M, 2M, 5M
ESD Protecting: 30kV

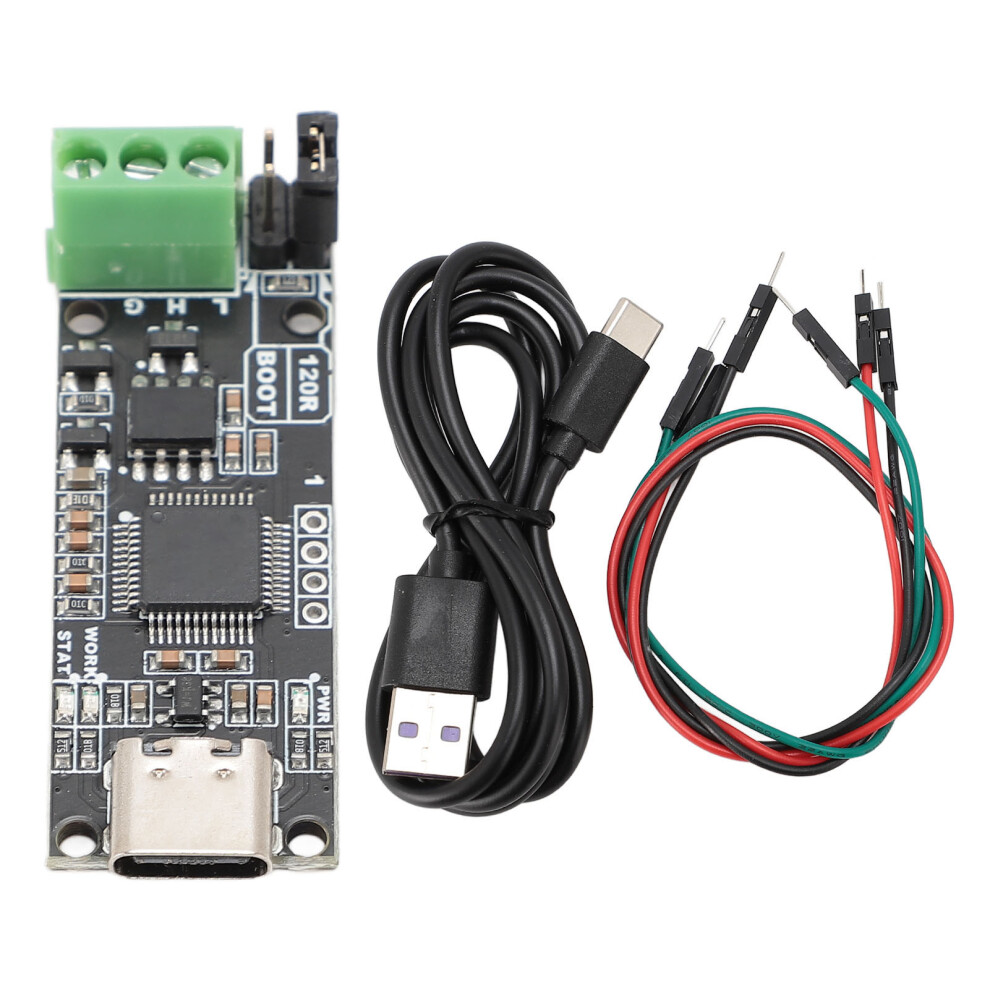

1 x CAN Analyzer
1 x USB Cable
1 x Connecting Cable
