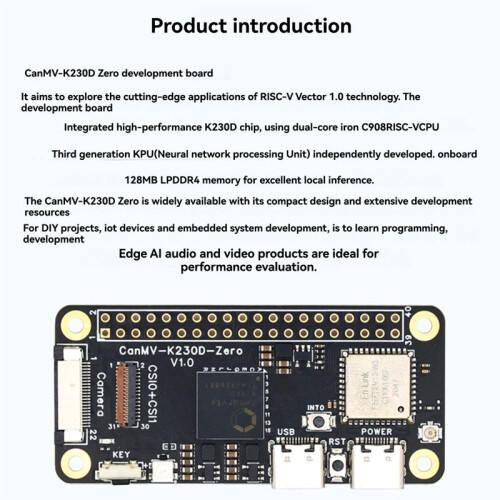

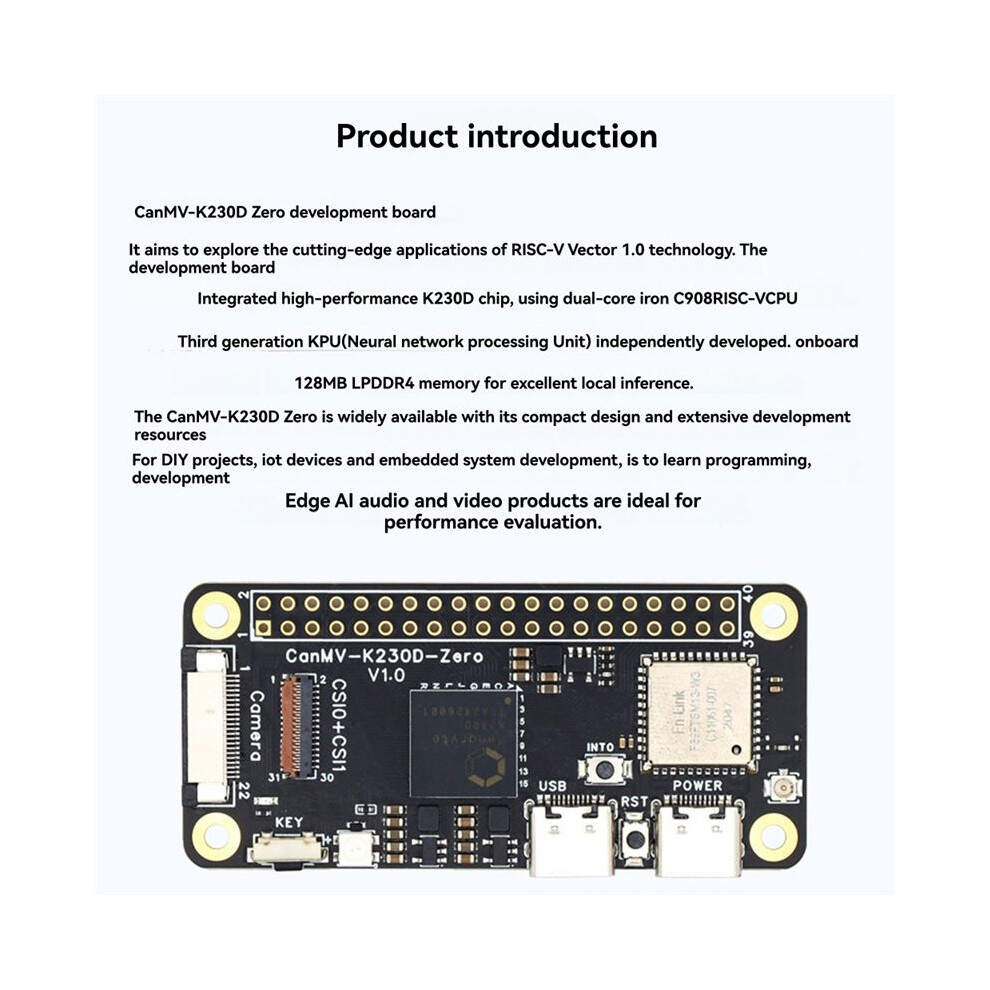

CanMV K230D ZERO Development Board Machine Vision Recognition Camera2093 AI RISC-V Motherboard Artificial Intelligence

CanMV K230D ZERO Development Board Machine Vision Recognition Camera2093 AI RISC-V Motherboard Artificial Intelligence Description

Supports INT8 and INT16. KPU computing power can reach 13.7 times that of K210
Dual-core RISC-V CPU

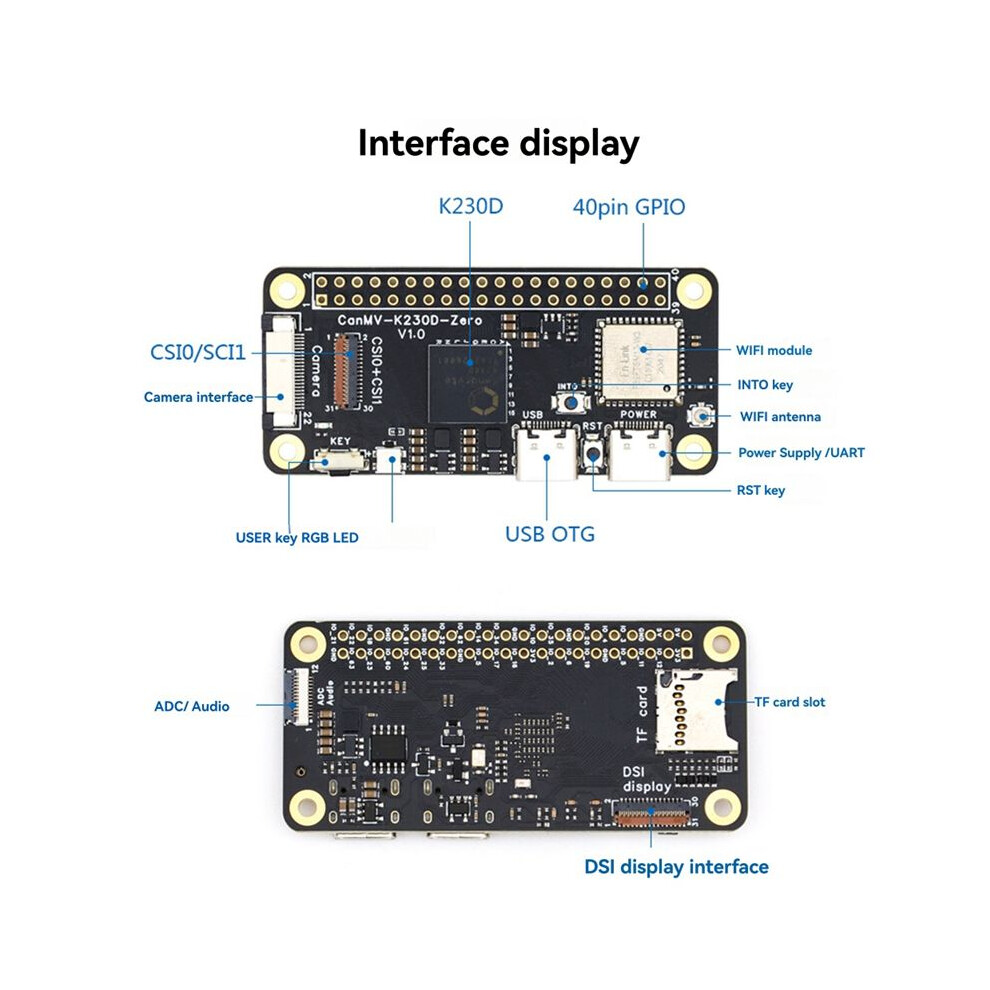

HD LCD display interface
The chip also has a rich variety of peripheral interfaces and multiple dedicated hardware acceleration units for scalar, vector, and , such as 2D and 2.5D. It can perform full-process computation acceleration for various image, video, audio, and AI tasks, featuring low latency, high performance, low power consumption, fast startup, and high security.

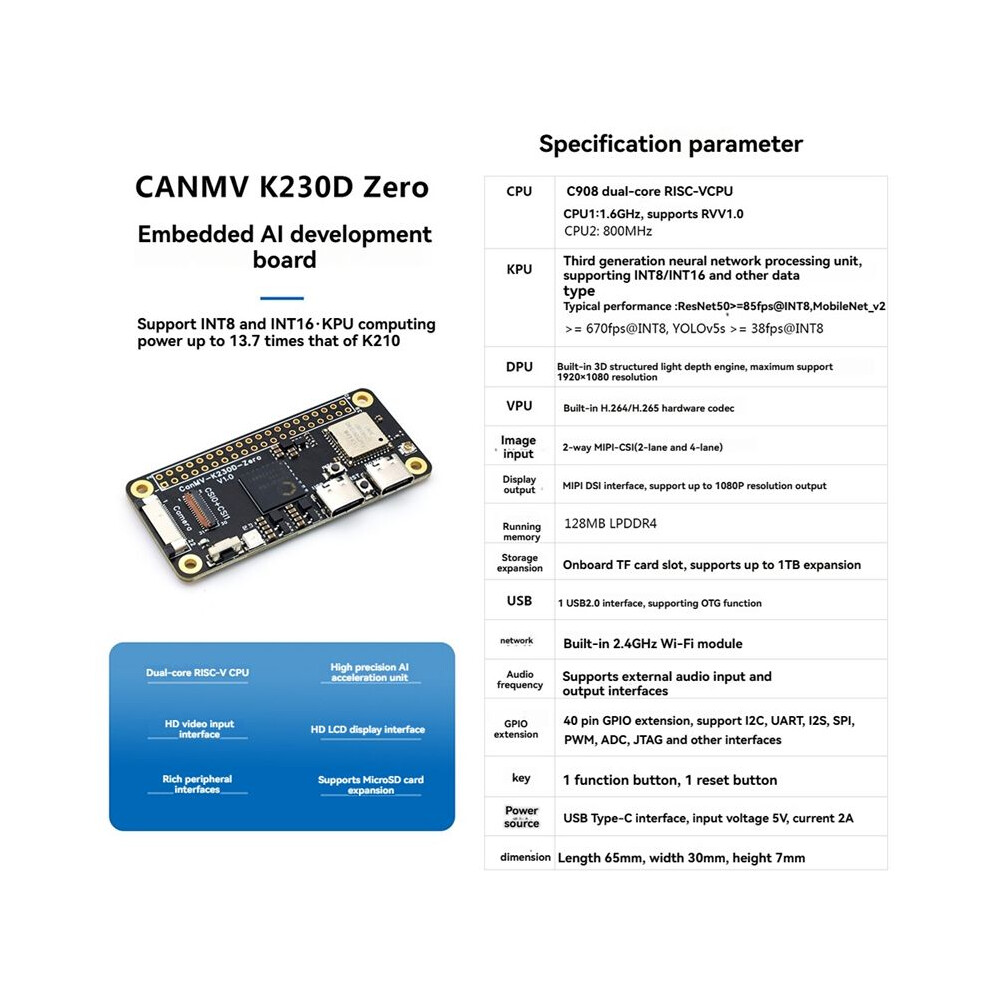

CPU:Black Iron C908 Dual-core RISC-V CPU, CPU1: 1.6GHz, supports RVV1.0 ,CPU2: 800MHz
KPU:The third generation neural network processing unit supports multiple data types such as INT8/INT16. Typical performance: ResNet50 greater than equal 85fps@INT8, MobileNet_v2 greater than equal 670fps@INT8, YOLOv5s greater than equal 38fps@INT8
DPU:Built-in 3D structured light depth engine, maximum support 1920x1080 resolution
VPU:Built-in H.264/H.265 hardware codec
Image input:2-way MIPI-CSI (2- and 4-)
show output:MIPI interface, supports to 1080P resolution output
running memory:128MB LPDDR4
storage expansion:Onboard TF card slot, supports to 1TB expansion
USB:1 USB 2.0 port, supports OTG function
network:Built-in 2.4GHz Wi-Fi module
Audio:Support external audio input and output interface
GPIO extension:40-pin GPIO expansion, supporting I2C, UART, I2S, SPI, PWM, ADC, JTAG and other interfaces
button:1 function button, 1 reset button
power supply:USB Type-C interface, input voltage 5V, current 2A

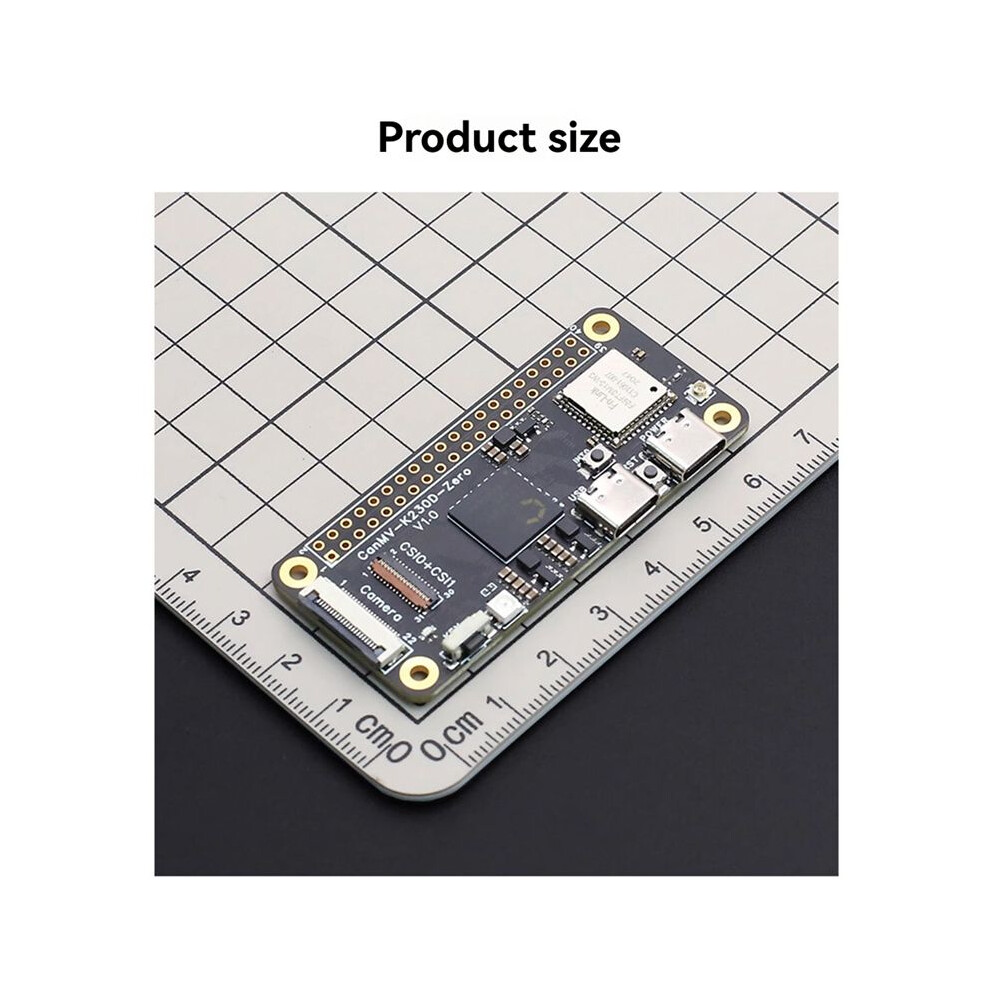

size:Length 65mm, width 30mm, height 7mm
The product appearance and printed words may vary depending the batch, but this does not affect use.

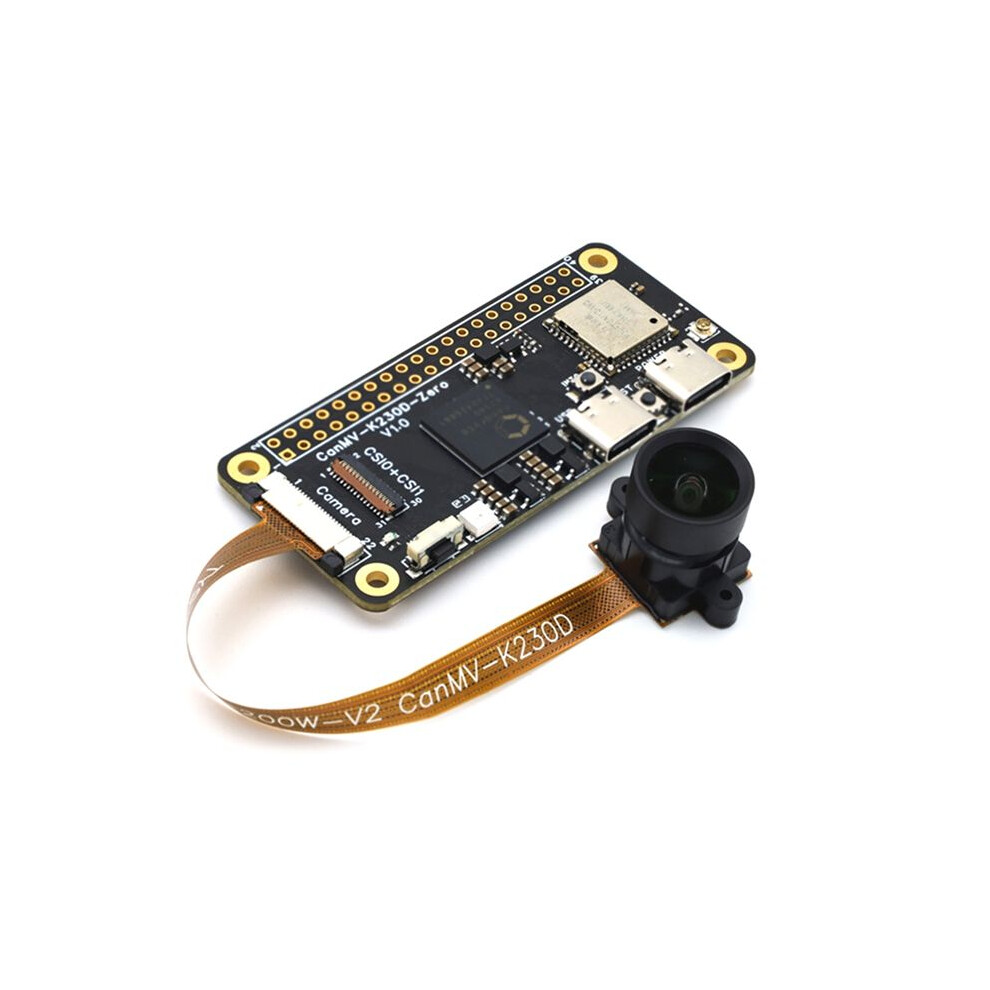

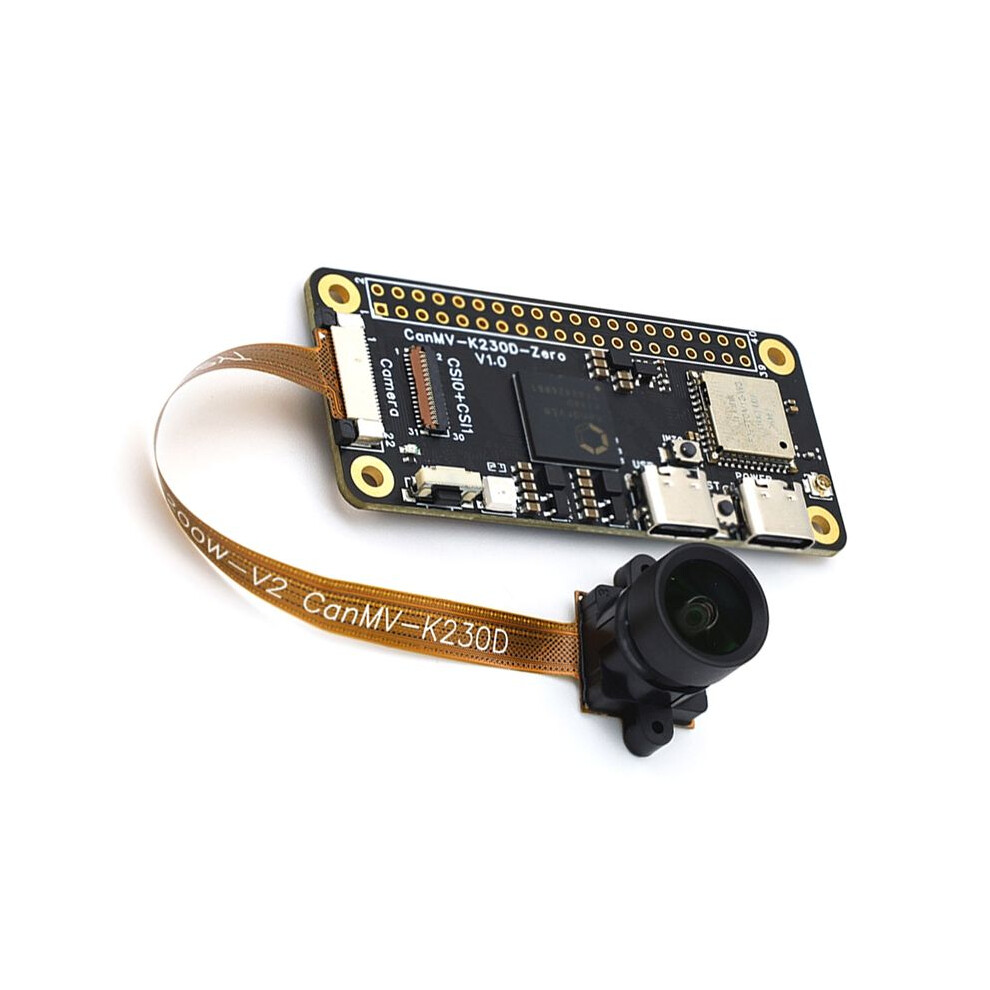

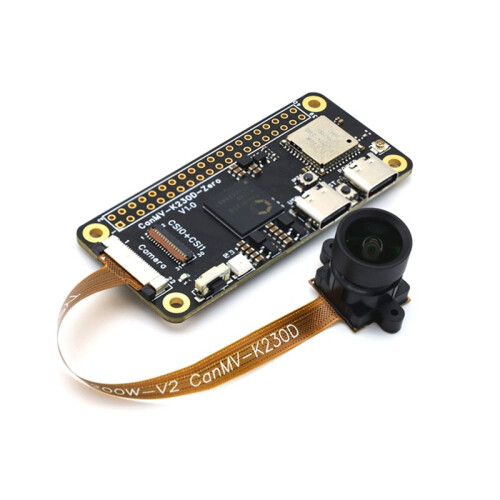

Specification:B:with 2093 V2 camera
Colour:As Shown
Material:PCB

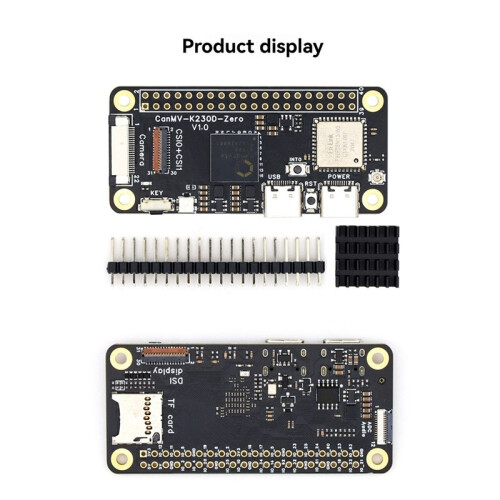

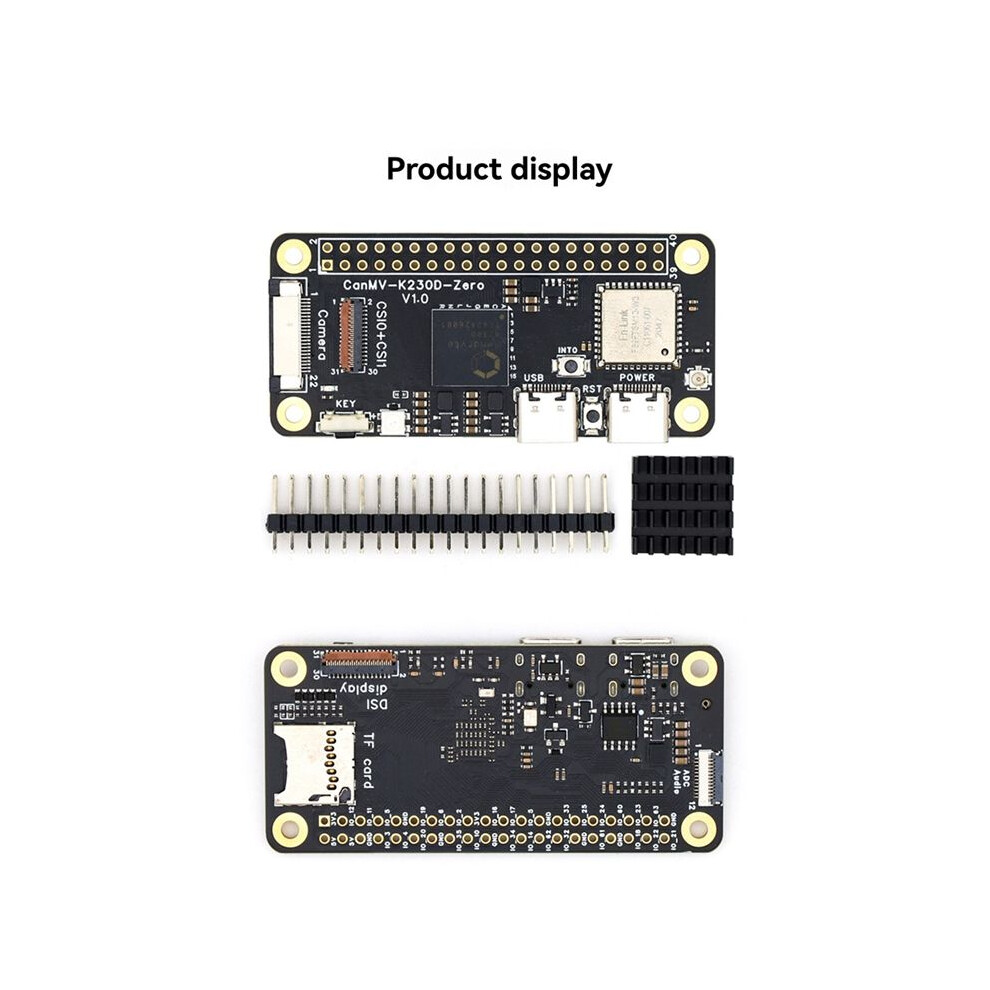

Package Contents:
1 * AI RISC-V Motherboard
