Capsule Slip Ring 12 Channel 2A Compact Rotary Electrical Connector for 360 Signal Transfer

Capsule Slip Ring 12 Channel 2A Compact Rotary Electrical Connector for 360 Signal Transfer Description

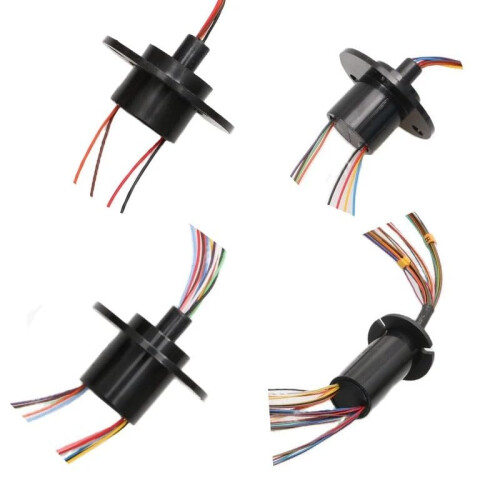

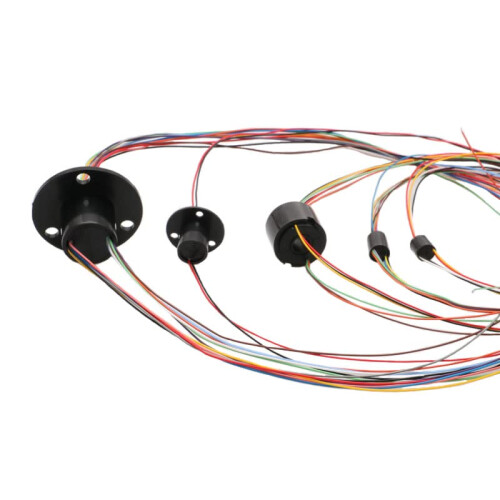

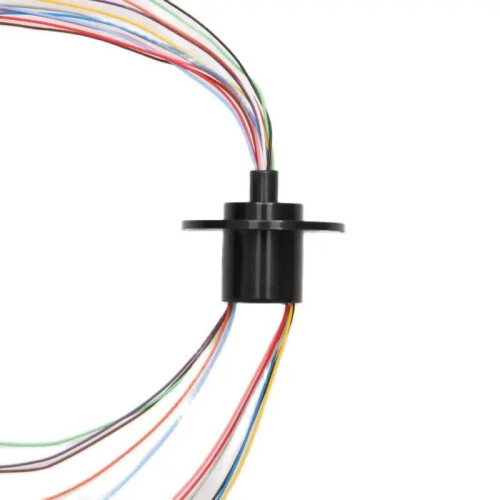

Compact capsule slip ring for reliable power and signal transfer during continuous rotation. Designed for small rotating assemblies, this unit keeps wiring intact while allowing 360 degree motion between a stationary supply and a rotating load. Key features and specifications Function: transmits power and data signals between stationary and rotating parts using rotor and stator contacts. Available diameters: 8.5 mm, 12.5 mm, 15.5 mm, 22 mm. Example configuration: Dia 22 mm, 12 channels, 2 A per channel. Channels: selectable from 2 up to 36 channels. Rated voltage: 220 VAC or 220 VDC. Rated current per channel: available options 1 A, 1.5 A, 2 A, 10 A, 15 A. Maximum rotation speed: 250 rpm. Contact material: gold on gold for stable lowresistance connections. Dynamic resistance fluctuation value: 10 mOhm minimum. Insulation resistance: 500 MOhm at 500 VDC. Dielectric strength: at least 500 V at 50 Hz. Working temperature range: 20 to +60 C. Wire specification: AWG32, AWG30, AWG28, AWG16. Standard wire length: 200 mm. Shell material: engineering plastics. Working life: at least 5 million revolutions, dependent on operating environment and speed. Package includes: 1 x slip ring. Benefits and why this product is useful Prevents wire twisting and failure during continuous rotation, simplifying mechanical design and reducing maintenance. Gold contacts provide low and stable electrical resistance for reliable power and signal transmission. Multiple channel and current options support mixed signal and power needs in compact installations. Small capsule form factor and multiple diameter options let you integrate the slip ring into tight rotating centers. Rated for both AC and DC operation with insulation resistance and defined dielectric strength for consistent performance. Typical applications Pan and tilt camera systems or surveillance mounts that require continuous rotation while supplying power and signals to cameras. Robotic joints and manipulators where multiple signals and power lines must pass through a rotating axis without cable winding. Test rigs, rotating sensors, and industrial instruments that need uninterrupted electrical continuity during rotation. Installation notes Install at the rotation center with proper alignment of rotor and stator to achieve rated life and lowest contact resistance. Choose channel count, wire gauge, and per channel current rating to match your system requirements. Observe the maximum rotation speed of 250 rpm and the specified temperature range for reliable operation. This slip ring delivers a compact, configurable solution for transferring power and signals through a rotating interface while protecting wiring and simplifying system design.
