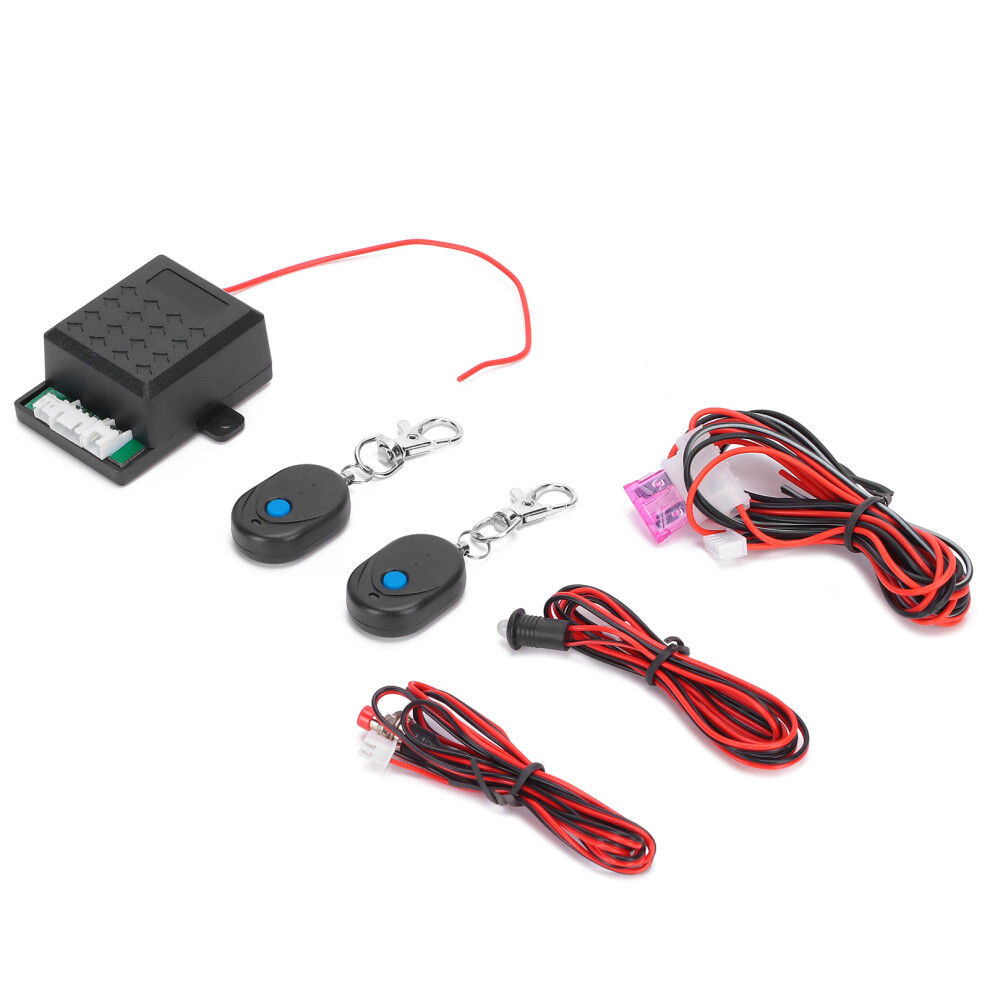

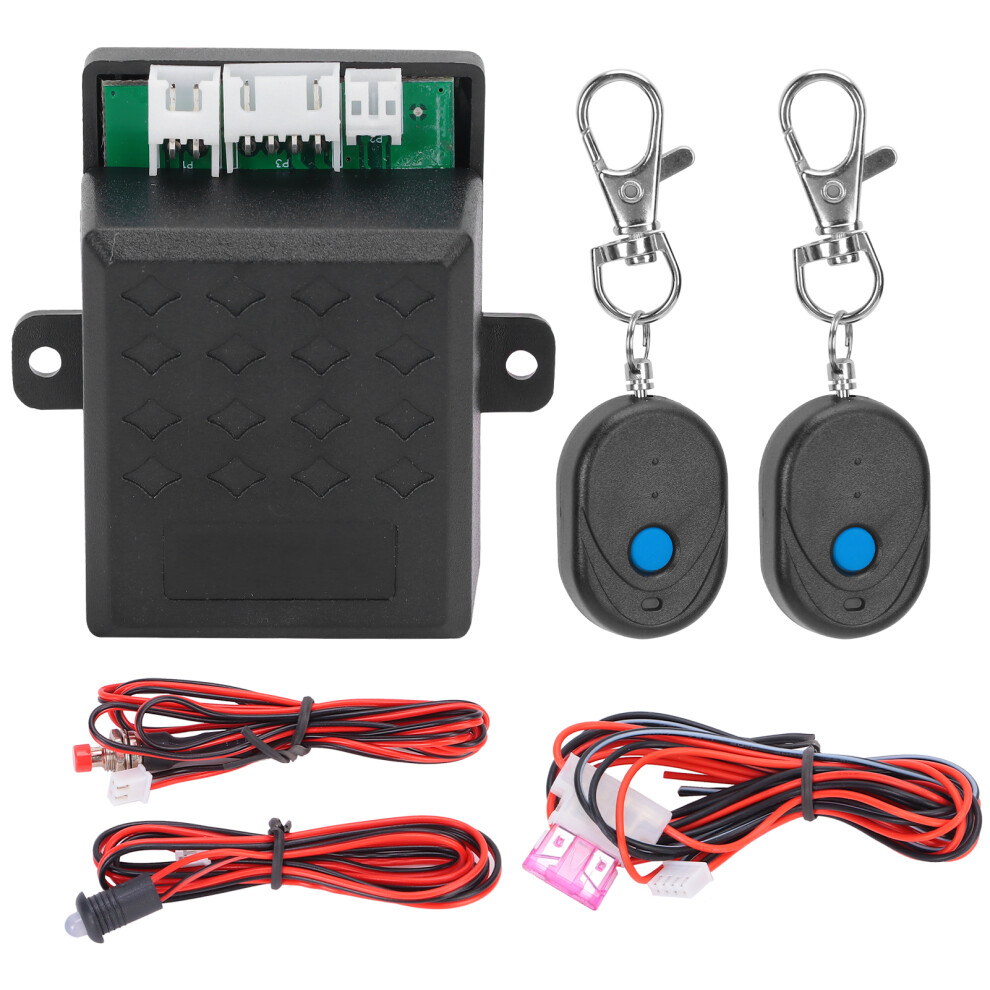

Car Anti-Theft Kit with Engine Immobilizer and Progressive Cut-Off

Car Anti-Theft Kit with Engine Immobilizer and Progressive Cut-Off Description

Intelligent Car Engine Immobilizer System Remote Control Anti Theft Anti Hijack Security Alarm Kit
Item Type: Engine Immobilizer System
Material: ABS
Color: Black
Battery Type: Button battery (included)
Battery Capacity: 120mAh
Battery Model: CR2025LED Status
LED DisplayNumber of flashesStatus
Red/GreenStaggered flashing traffic lightsIndicates that the engine is on
RedFlashing red lightActivate the first stage of anti-robbing
RedRed light is onActivate the second stage of anti-robbing
GreenGreen light on for 2-4 secondsThe remote control transmits a signal (the signal is recognized)
GreenSteady green lightLearn code mode
Does not light upshut downSystem shutdown
Instruction:
1.This system is a device that controls the engine to stop. When your car is parked, it can protect the car from being stolen; or when you are forced to leave the car by others, it can also protect the car from being stolen. It can protect the safety of the car even when you are away from the car.
2.This system has the function of controlling the engine circuit and oil circuit, and the time for automatic flameout is 1.5 minutes or 3 minutes.
Note: It is recommended to install the LED status indicator in a concealed place to prevent the on/off status of the anti-robbing device from being detected by intruders.
Operation Method:
1. The remote control is turned on
Press and hold the remote control button for 8 seconds until the indicator light is on, then the remote control enters the working state and the indicator light starts to flash intermittently.
2. The remote control is off
Press and hold the remote control button for 8 seconds until the indicator light is off. At this time, the remote control is off and the indicator light does not flash. Only manual buttons can work.
3. Turn off the system
Press the emergency release button 5 times to turn off the protection system. This operation can confirm the identity of the car owner and allow the engine to be started. Through this emergency release, the car works normally
4. Driving Recognition
Before entering the car, turn on the remote control, the LED indicator light will be on for 4 seconds, indicating that the host system has recognized the signal sent by the remote control, and then the red and green lights of the LED indicator will flash alternately to confirm the signal reception and display the state of the car normally.
5. Automatic Anti-Robbing
If you are driven out of the car and you have not had time to do any protection operations, this device will automatically complete it for you. At this time, the car will automatically turn off after 1 minute and 30 seconds (phase 1), or 3 minutes (phase 2).
6. Learning Code Method
First, temporarily release the system. Press the emergency release button 5 times and the LED indicator turns green. Long press the emergency release button until the green light flashes quickly. Press the button of the remote control and the LED indicator flashes red and green, indicating that the remote control has learned successfully. This operation allows you to learn 2 remote controls at the same time. The code learning time for each remote control cannot exceed 2 seconds. Once the programming is successful, please turn on the system protection device.
Installation Method:
1. Install the host in a concealed position in the car, away from moving parts.
2. The LED status indicator is installed in a place that is not easy to be found.
3. The emergency contact switch must also be installed in a concealed position.
4. The red/black wire is connected to port 85 of the relay, 86 is connected to the positive pole, and port 87a is connected to the original car flameout device circuit.
5. The black/white wire is connected to port 85 of the relay, 86 is connected to the positive pole, and port 87 must be connected to the oil pump circuit.
