Car Blind Spot Mirror BSD BSM Radar Detection System Microwave Sensor Waterproof

Car Blind Spot Mirror BSD BSM Radar Detection System Microwave Sensor Waterproof Description

Product Features:
100% Original Factory Manufacturer Produced, Good Quality Assurance.
Type: Blind Sport Monitoring System (BSM)
Electricity Voltage: 12V
Maximum Power: 5W (max)
Working Temperature: -40¡æ¡«+85¡æ
Storage Temperature: -40¡æ¡«+85¡æ
Waterproof level: IP67K
Detection Range: Lateral Distance: 0.3m-4m; Rear side Distance: 0.3m-10m.
Detection Range Accuracy: ¡Ý96
Alarm Range: 0.3m-10m
System Alarm Accuracy: ¡Ý96

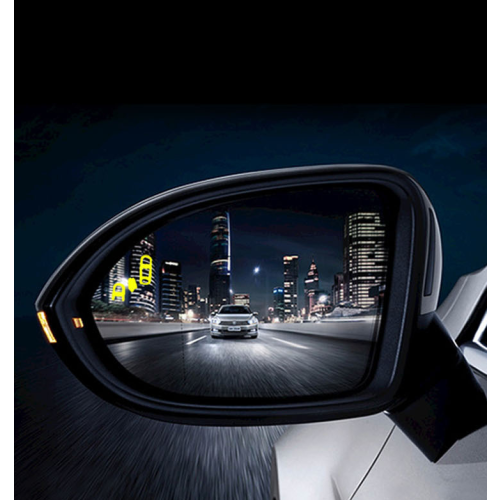

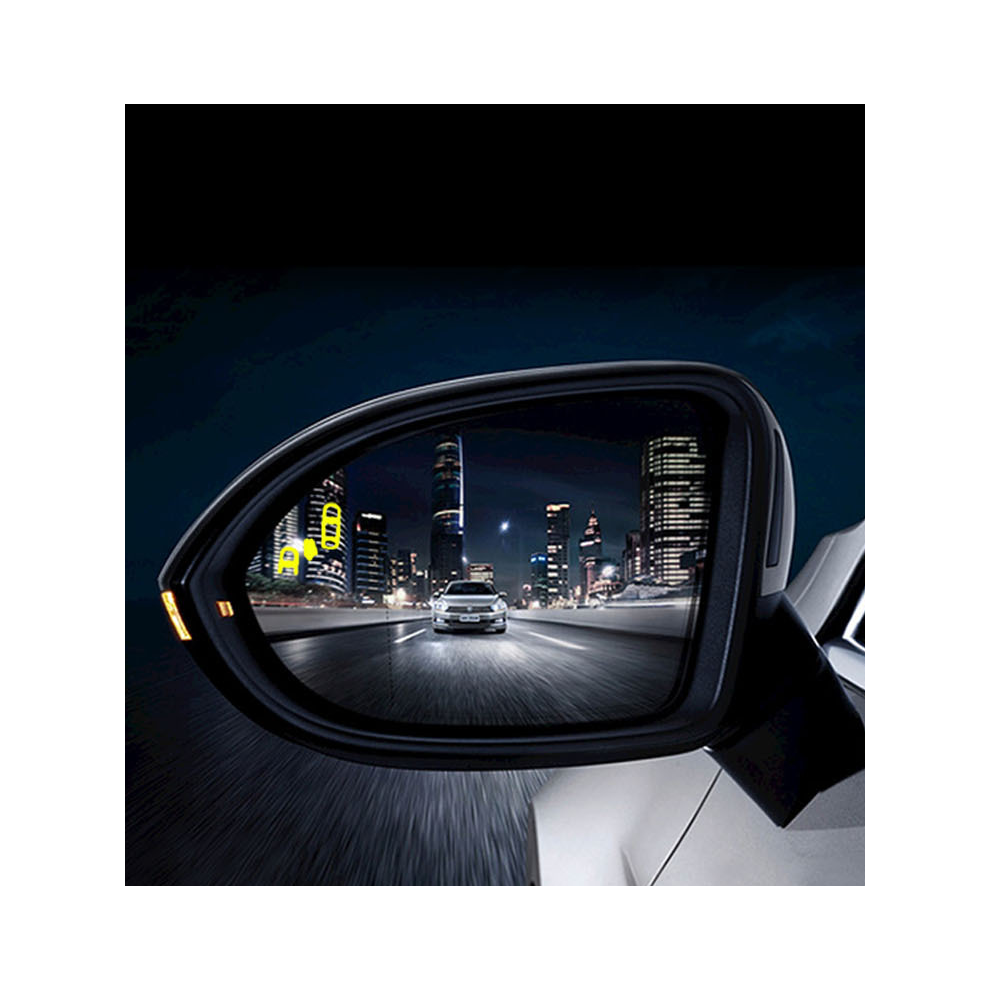

Alarm method: method 1 => LED light turn on. Method 2 => LED flash and buzzer sound.

Note: Universal Version is not suitable for all cars, please  provide photos of your car rear view mirror before purchase, we need to confirm whether your car rearview mirror is suitable for application.

Function Introduction:
This system is a vehicle assistance device that helps driver lane changing safely during driving. With the aid of 24GHz microwave sensor, probe the side / rear of the vehicle for those moving objects into the blind spot of the detection zone. The system works in a set of a control box (controlled by computer), two microwave sensors, two blind region monitor (or LED light), a buzzer and the wire harness which is the perfect connection of microwave and computer.
There is blind zone at the rear of the vehicle which is easy to endanger driving safety. When you installed BSM into your lovely car, no matter it's day time, night time or even in the snow,you can be alerted whenever there is a moving object pop into the rear of the vehicle, with the aid of LED lighting on , blinking, buzzer sound so that the driver can be cautious when lane changing to avoid the possibility of side crash accident.
When you get ready to get off, open the door, if someone moves behind, it will also give an accurate alarm.

About installation:
Note:
1. Please prepare necessary disassembly tool and protective bumper painted sponge pad or cloth pad.
2. When you disassemble connector, MUST NOT pull wire harness in force, otherwise, will broken the harness. Please plug in connector until it practically tightened (you can hear the sound of "Click").
3. The wire harness should be fixed with the car cable harness by tie band. Neither droop nor abnormal sound. Cut off excess tie band.
4.  Disassemble and assemble procedure, please strictly follow our installation manual. Try not to break parts as careful as possible. In case of breakage, please change the parts immediately.
5. Microwave sensor installation cautions points:
1. Microwave sensor (signal launching surface) can only penetrate the plastic bumper case.
2. Microwave sensor (signal launching surface) in the front, must be no metal intervention.
3. Should not install microwave sensor opposite to fluorescent light.

Overall diagram of installation:
2018-09-05_084551
Wire connection:
Warning: control box is suggested to instll under dash board of driver side (left drive car). Due to wire lenght of LED indicator is limited, when install in a right drive car, please install left/eight LED indicator in vice versa.
(When green wire connected, system does not work when reverse packing. Connection of this wire is optional.)
2018-09-05_085553
1. Power supply wire connection
(1) Connect black wire of control box with negative side of the vehicle or ground.
(2) Connect red wire of control box with vehicle power supply ACC 12V
(3) Connect yellow wire of control box with Left turn light 12V.
(4) Connect white wire of control box with Right turn light 12V.
2. Connect sensor extension wire with control box, connect sensor A & B with the relativeconnector.
3. Connect left blind spot rear mirror LED light wire with control box relative terminal.
4. Connect right blind spot rear mirror LED light wire with control box relative terminal.

Method of Installation
1. Sensor installation
(1) Blind sport sensors are to be pasted on vehicle back's two sides inner arc of plastic bumper, The installation height within 35-90 cm.

Parcel listº
1 set  (pictured)
