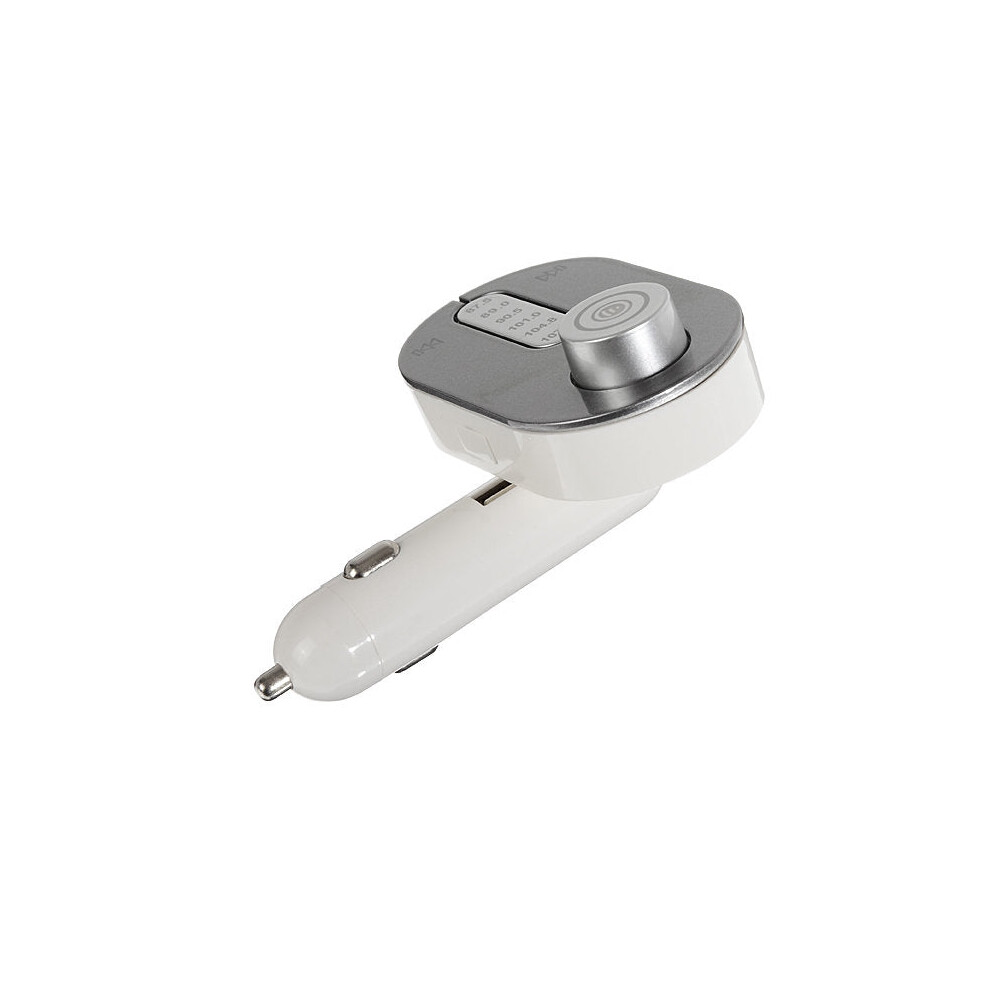

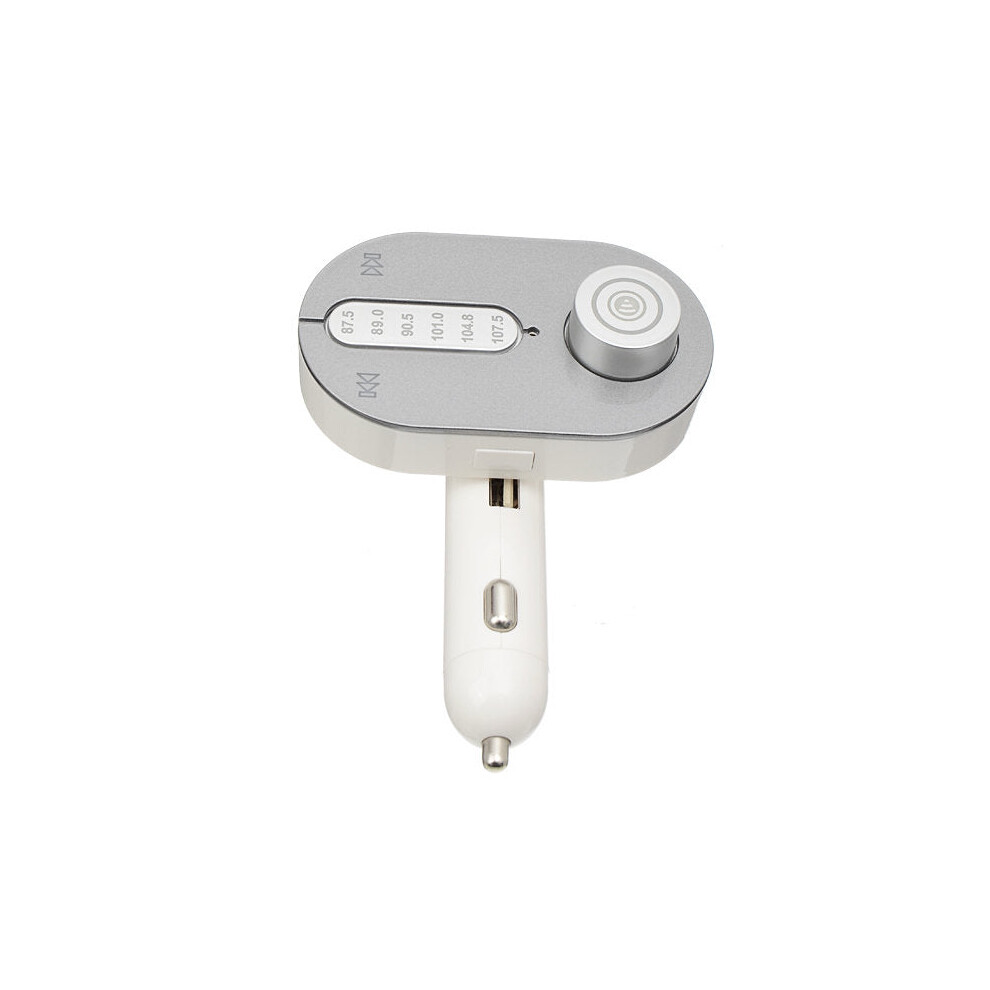

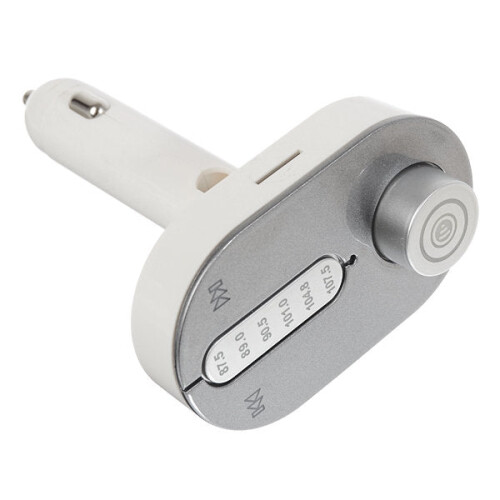

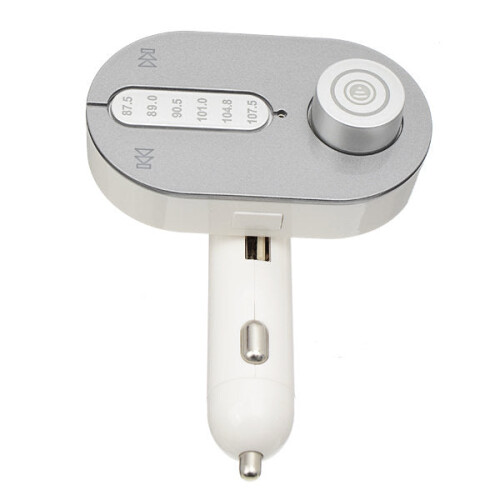

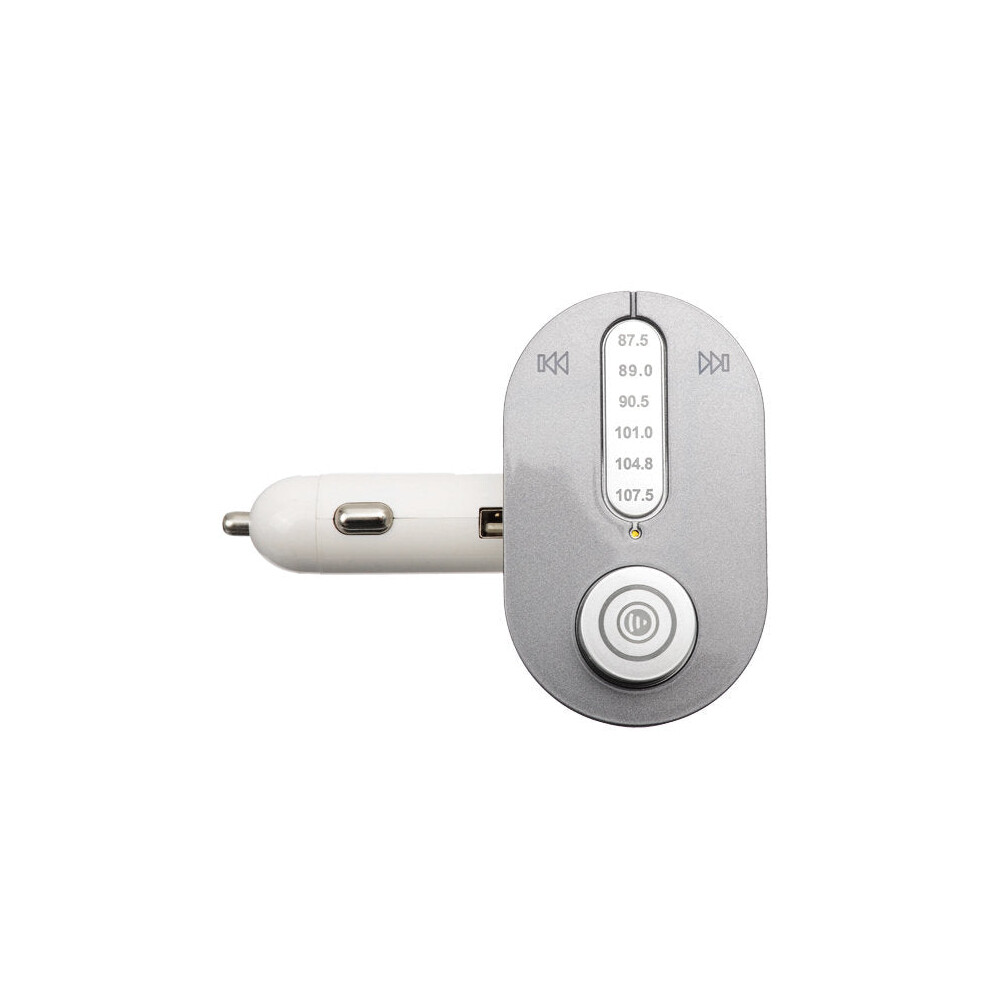

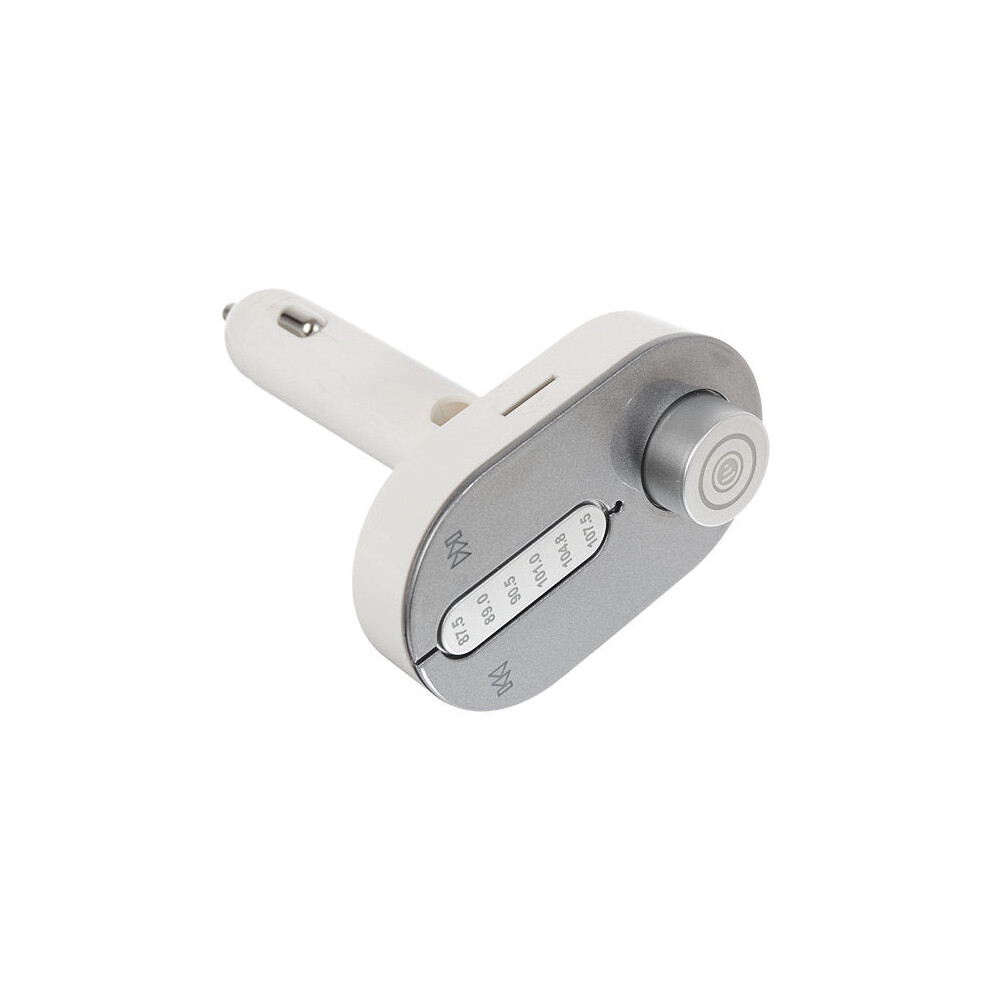

Car Bluetooth MP3 Player FM Transmitter

Car Bluetooth MP3 Player FM Transmitter Description

Product Introduction:
1. This device is a Bluetooth MP3 player developed for car-used,which equipped with professional
high-performance Bluetooth module and MP3 decoder chip.
2. It can play and transmit the music from TF card to car stereo via FM radio signal,can transmit your
mobile phone's music to car stereo via Bluetooth,also can be used as a hands-free car kit during driving.
3. This device transmits signal by wireless method,no need to modify anthing in car.It can be used
both as the music player in entertainment purpose or hands-free car kit in safety purpose during driving.

Feature:
1. Support Bluetooth hands-free phone calling via its build-in microphone.
2. Noise and wind suppressed by CVC technology to create full duplex sound quality.
3. Support mobile's A2DP function. Music will be played directly while the mobile phone is connected.
4. Mobile phone can be connected automatically when the device turns on.
5. Support an extermal TF card, can play music files in MP3/WMA format.
6. Intergrated car charger of output 5V - 1000mA, is available for charging handheld device in car.

Specification:
Input Voltage: 12 ~ 24V.
Output Voltage: 5V 0.25.
Outout Current: 1000mA (Max).
Short Circuit Protection Current: 2.4 A ~ 3 A.
Bluetooth:
Bluetooth Version: V3.0 + EDR.
Frequency: 20h ~ 20KHz.
Sensitivity: - 42dB 3dB360.
Voltage: 5V 0.5.
Working Current: 45mA (Max).
Stand-by Current: 25mA (Max).
Frequence: 2.402 ~ 2.480gHz.
Effective Range: 5M.
Sensitivity: - 92dBm.
RF Output: 4 dBm.
Frequencies:
FM: 87.5MHz - 89.0MHz890.5MHz - 102.0MHz - 105.8MHz - 107.5MHz.
Transmitted Power: 87 dBuv / 107 dBuv.
Effective Range: 2M.

Note:
This device is compatible with most of the mobile phones, except of a few mobile phones that
are not available to use parts of above functions.

Package Included:
1xBluetooth MP3 player
