Car GPS Receiver 0.25-10Hz USB Dual RTK +RD Fusion Positioning

Car GPS Receiver 0.25-10Hz USB Dual RTK +RD Fusion Positioning Description

Multi-system, can simultaneously receive GPS (L1C/A/L5) BDS (B1I/B2a/B1C) (E1/E5a) GLONASS (L1) four-system dual-frequency
Built-in dual-frequency RTK and inertial navigation fusion positioning algorithm
Centimeter-level positioning can be achieved
Quick positioning can be achieved in any shielded environment
Antenna positioning is integrated for easy design and installation

100% New
material
Light weight and durability
Type: GPS Receiver
Interface:USB
Model: -2828-RD
Algorithm: integrated dual-frequency RTK + fusion positioning algorithm
Protocol: KMEA-01830r custom
Available baud rate: 4800bps-921600bps (black recognition 115200bps)
Number of channels: 128
Sensitivity:
Tracking: -167dBm
Capture: -158dBm
Cold start: -148dBm cold start: average 28 seconds
Hot start: -158dBm hot start: average 1 second
Horizontal accuracy: horizontal 1cm+1ppm CEP50: elevation 2cm+1ppm CEP50
Maximum altitude: 18000 meters
Maximum speed: 515 meters/S
Update frequency: 0.25Hz-10Hz
Positioning method: A-, dual-frequency RTK+ fusion positioning
Voltage: 1.6V-5V
Application scope:
Intelligent IoT, shared two-, crowdsourcing maps
GIS collection, handheld terminals, displacement monitoring
Lawn mowers, agricultural machinery, drones and other fields
Vehicle positioning, personnel positioning, vehicle aftermarket, etc.
Colour:Black
Material:plastic
Size:Cable: 3 meters

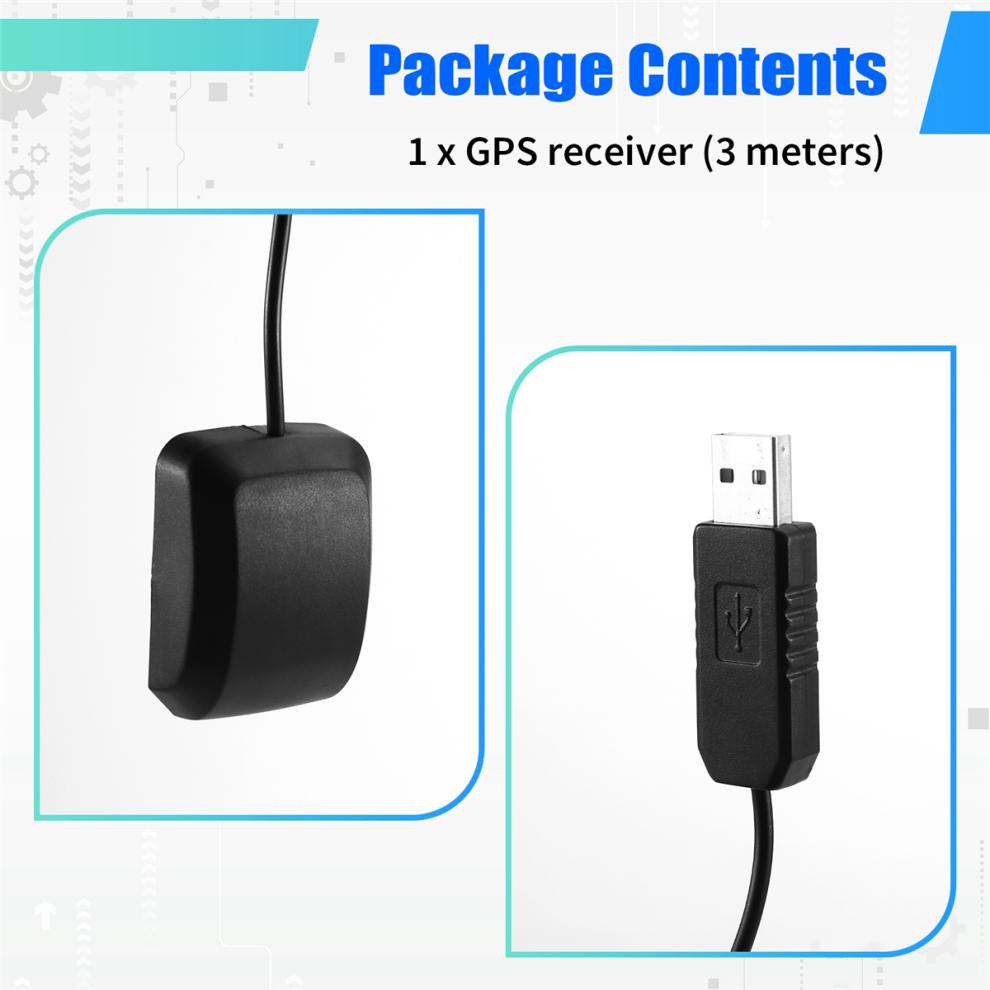

Package Contents:
1 x GPS receiver (3 meters)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
