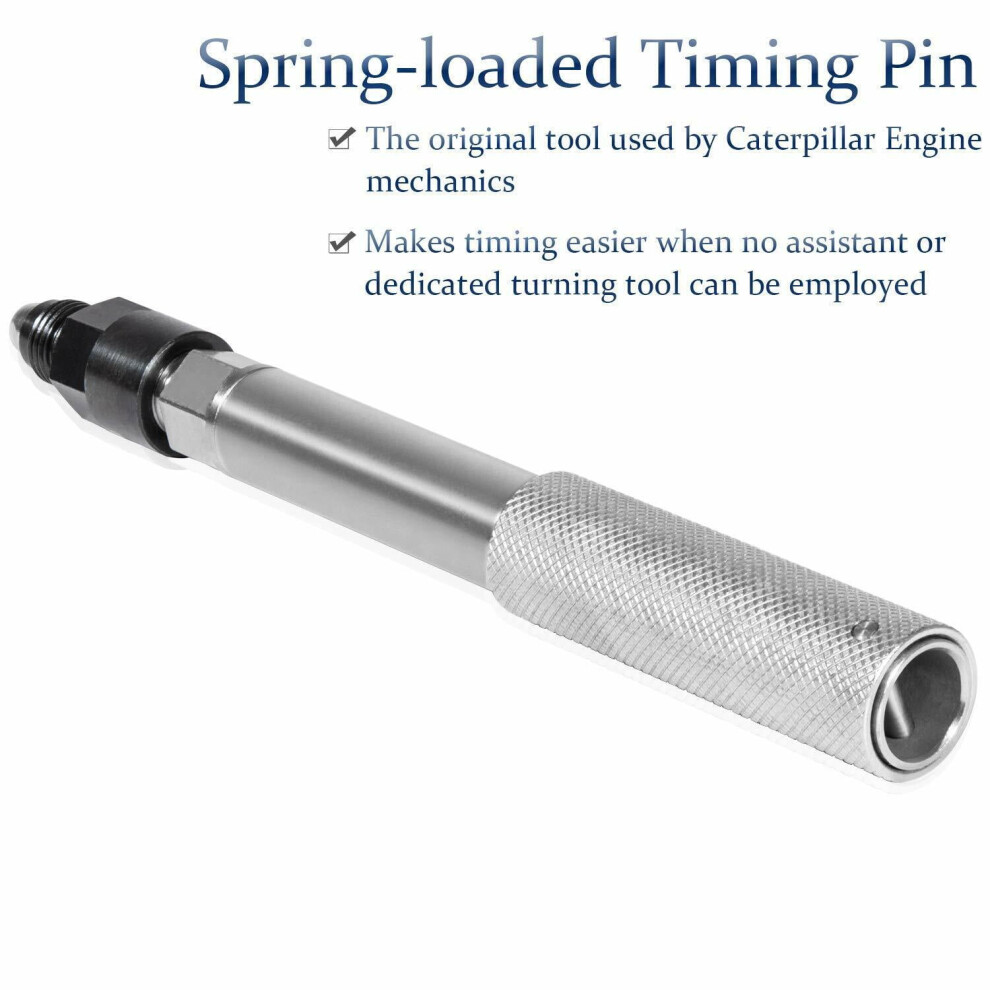

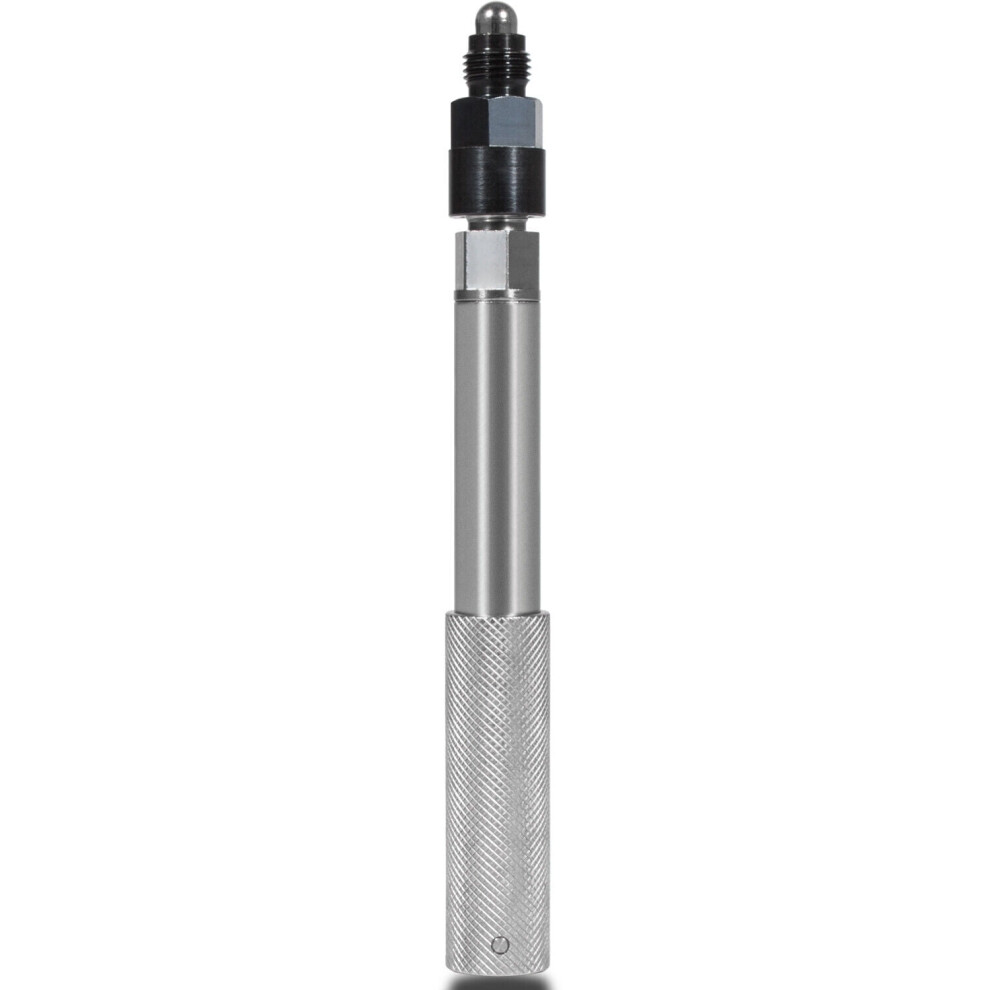

CAT Engine Timing Pin for Caterpillar 3200 C11 C13 C15

CAT Engine Timing Pin for Caterpillar 3200 C11 C13 C15 Description

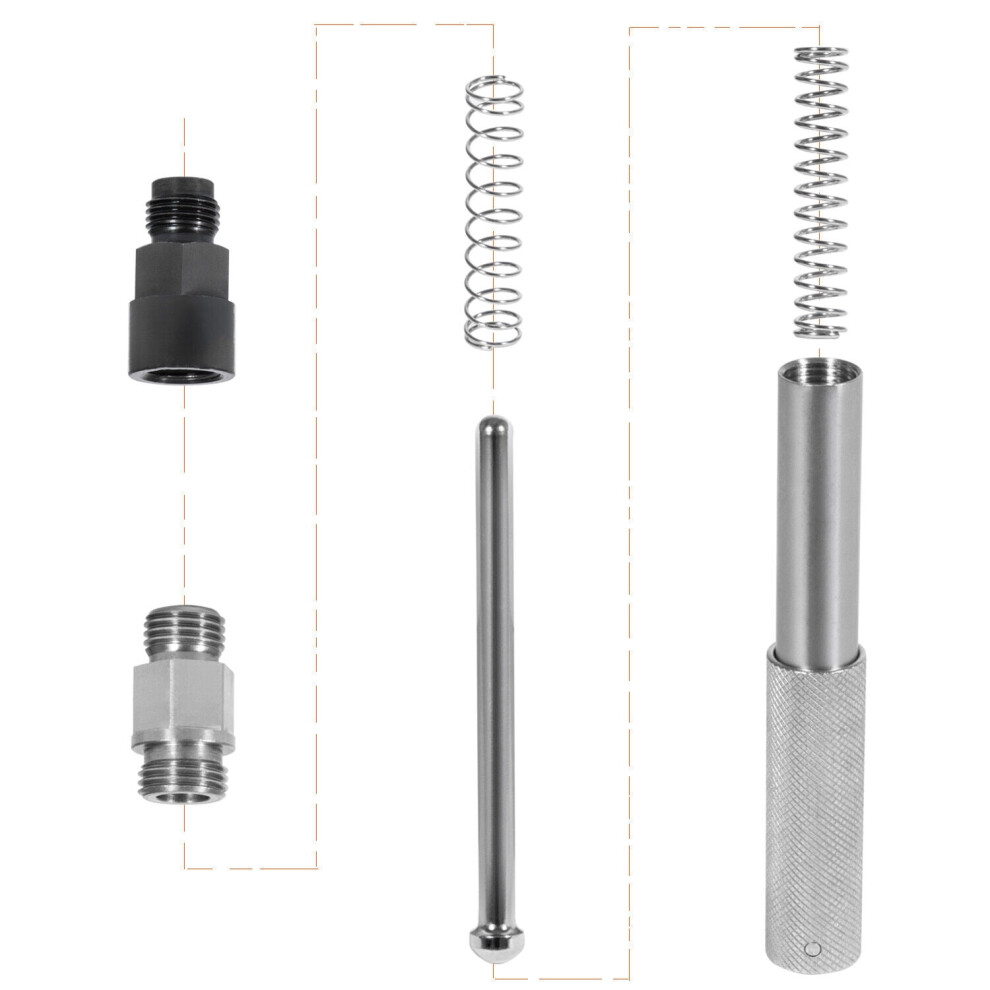

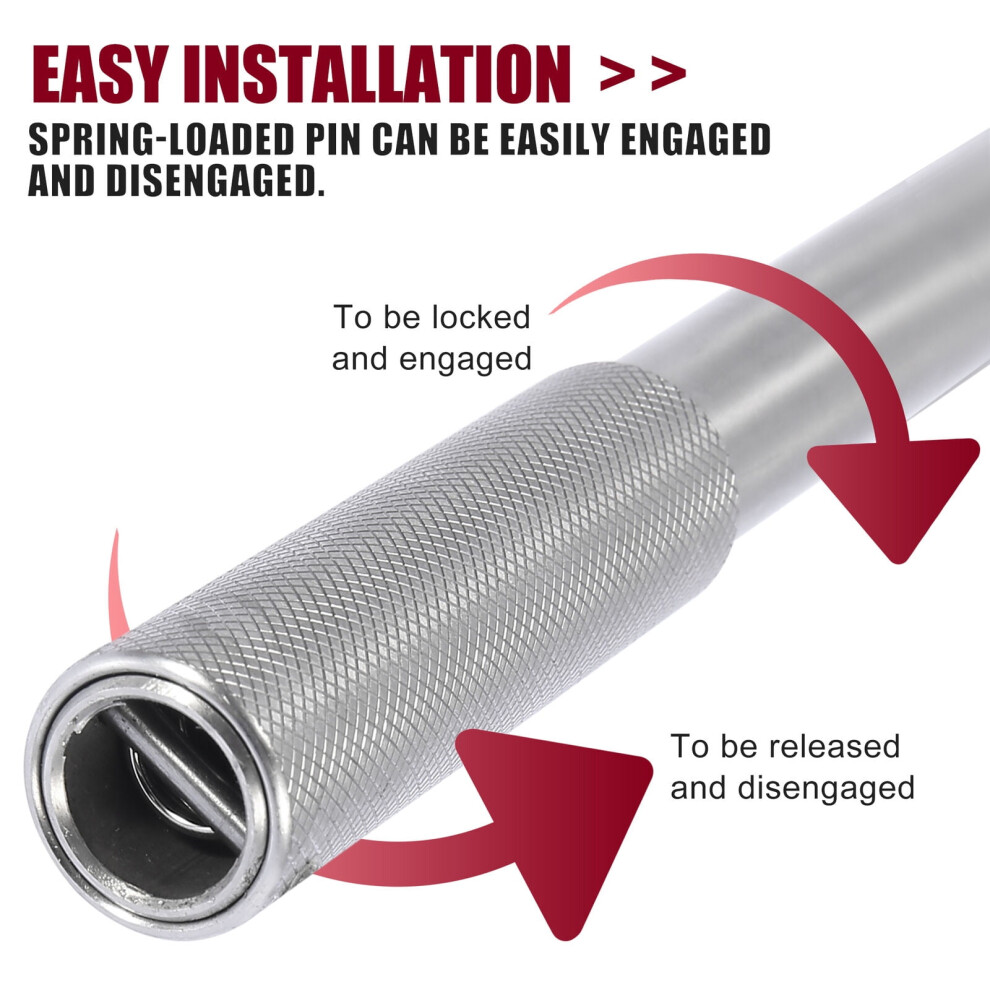

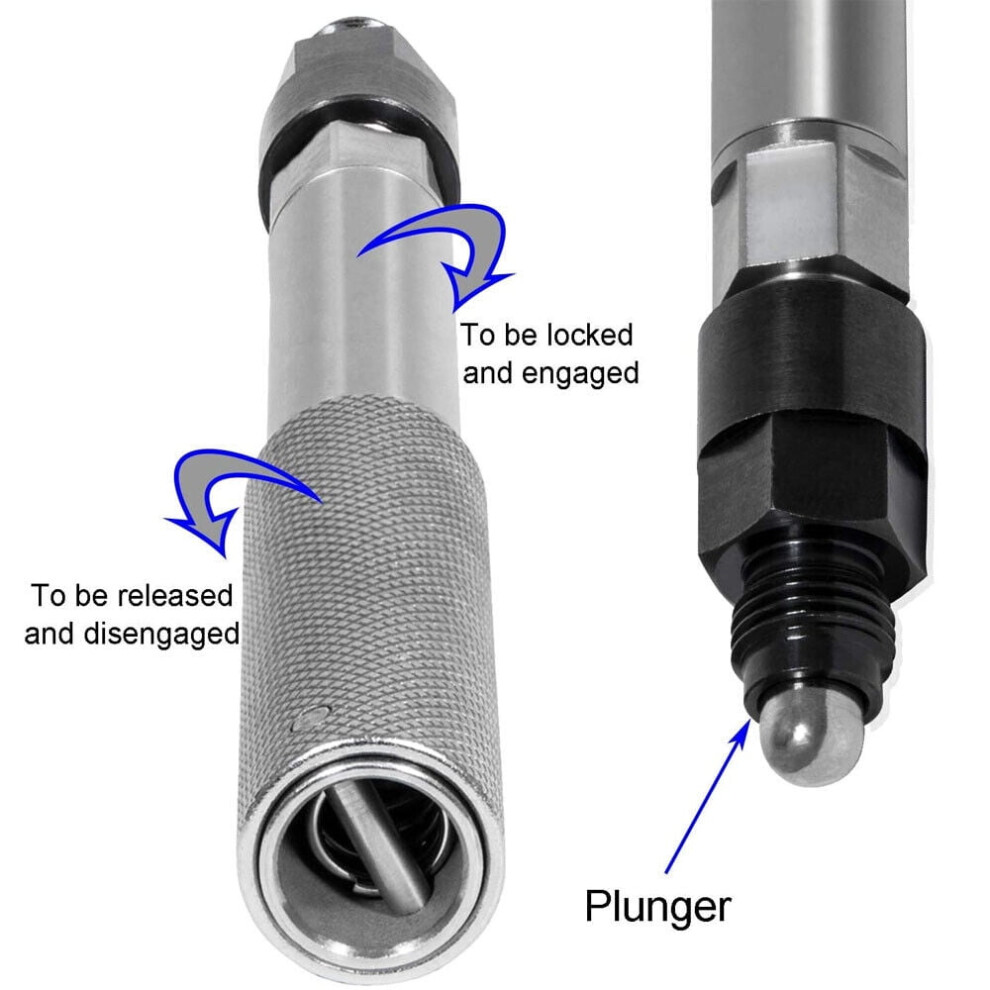

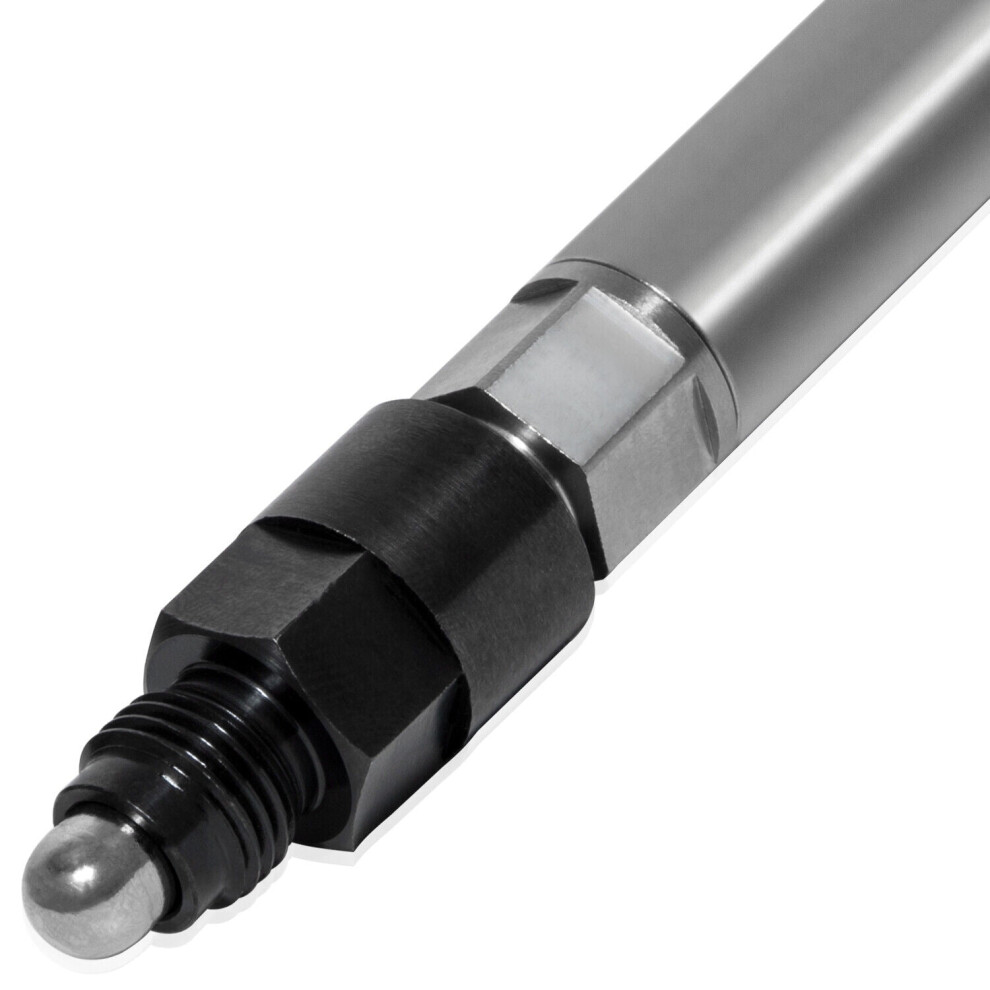

Feature:Function--Timing pin and adapater - Make timing easier, acquire TDC and begin valve and fuel injection timing procedures; Material-- Durable steel for timing pin, use for a long time. This is a non-OEM product,accessory only! Specification: Material: Steel Color: Silver Tone Placement on Vehicle: for Caterpillar Engine OE Number: J-42083 Timing Pin Size: 17.5Cm/6.89"(H) Timing Pin Thread Size: M13x1.25 Application: Works for Caterpillar C-7, C-9, C-11, C-13, C-15, C-16, 3179, 3196, 3200, 3300 and 3400. Use Instruction: Remove the plug from either the left or right side timing access holes. To install, hand tighten the J42083 Automatic Timing Pin Lock into the timing access hole. Preload the spring on the automatic timing lock by pushing the slide handle forward and turn it clockwise to engage either of the two locking slots. Manually, turn engine in direction of rotation(usually counter clockwise)until a notice "click" sound is heard. The automatic timing pin plunger has now engaged the flywheel timing holes in either the top center compression or exhaust stroke. To remove, turn slide handle counter clockwise to release spring tensile force on the plunger (if plunger doesn't retract from flywheel with light pressure, jog the flywheel back and forth). Unscrew from flywheel housing. Package Included: 1 x Automatic Timing Pin
