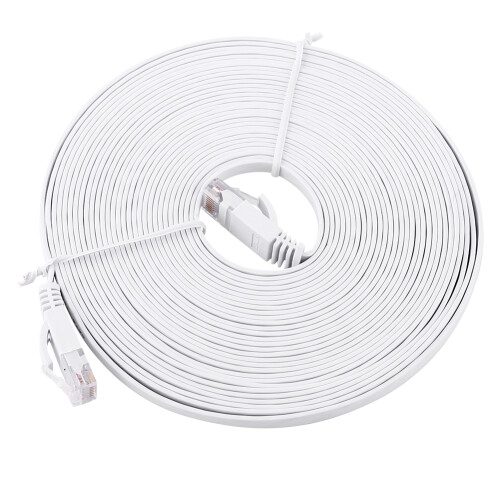

CAT6 RJ45 Flat LAN Cable UTP 1000M White 8m

CAT6 RJ45 Flat LAN Cable UTP 1000M White 8m Description

1、Small attenuation, low crosstalk, higher ratio of crosstalk to crosstalk (ACR) and signal return ratio (SNR), smaller delay error and better performance. 2、Mainly used for Gigabit Ethernet (1000Mbps). 3、This type of cable increases the winding density, the outer layer is made of high-quality insulating material, the transmission rate of 250MHz, for voice transmission and the maximum transmission rate of 10Mbps data transmission. 4、Waterproof, anti-pull and anti-interference, it can be used in the field. The outer material is high-grade PVC material, which is flame retardant. The cable is very soft, light and easy to carry. Especially for notebook computer users. 5、 RJ45 (8P8C) to RJ45 (8P8C), fully in line with Cat.6 standard, support 10/100 / 1000M network environment. Transmission efficiency is 2.5 times the traditional cable. Using pure copper core material, multi-core super-soft wire.
Features:
Small attenuation, low crosstalk, higher ratio of crosstalk to crosstalk (ACR) and signal return ratio (SNR), smaller delay error and better performance.
Mainly used for Gigabit Ethernet (1000Mbps).
This type of cable increases the winding density, the outer layer is made of high-quality insulating material, the transmission rate of 250MHz, for voice transmission and the maximum transmission rate of 10Mbps data transmission.
Waterproof, anti-pull and anti-interference, it can be used in the field. The outer material is high-grade PVC material, which is flame retardant. The cable is very soft, light and easy to carry. Especially for notebook computer users.
RJ45 (8P8C) to RJ45 (8P8C), fully in line with Cat.6 standard, support 10/100 / 1000M network environment. Transmission efficiency is 2.5 times the traditional cable. Using pure copper core material, multi-core super-soft wire.
Specification:
Color: White
Cable Length: (Approx.)0.5m, 1m, 2m, 3m, 5m, 8m, 10m, 15m / 19.69inch, 39.37inch, 78.74inch, 118.11inch, 196.85inch, 314.96inch, 393.70inch, 590.55inch (Optional)
Quantity: 1pc
Impedance: 100 ohms 15%, IMHzto 600MHz
Transmission Delay: 536ns / 100mm
Delay Offset: 45 ns max
Conductor Resistance: 66.58 ohms max / km
Capacitance: 5.6NF max / 100m
DC Resistance: 7.55Ω
Pressure Resistance: 300 vots AC DC
Bending Radius: 1 inch (4 times the cable diameter)
Rated Speed: 70 nom%
U / NEC Rating: CMR, CM
Working Temperature: -20 to 60
Storage Temperature: -20 to 80
Conductor: 32AWG
Outer diameter: 1.5mm thickness x 6.0mm width
Package included:
1 x RJ45 CAT6 LAN Cable
Note:
1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
