CC1101 Module Wireless Communication Module E07-900M10S 855- 925MHz SPI Serial Communication Protocol for Smart Home

CC1101 Module Wireless Communication Module E07-900M10S 855- 925MHz SPI Serial Communication Protocol for Smart Home Description

CC1101 is a high-performance wireless communication module. It uses E07-900M10S module solution (built-in CC1101 low-power Sub-1 GHz transceiver), operates in the 855~925MHz frequency band, and supports 2-FSK, 4-FSK, GFSK, MSK, ASK, and OOK modulation schemes, providing stable wireless data transmission while maintaining low power consumption.

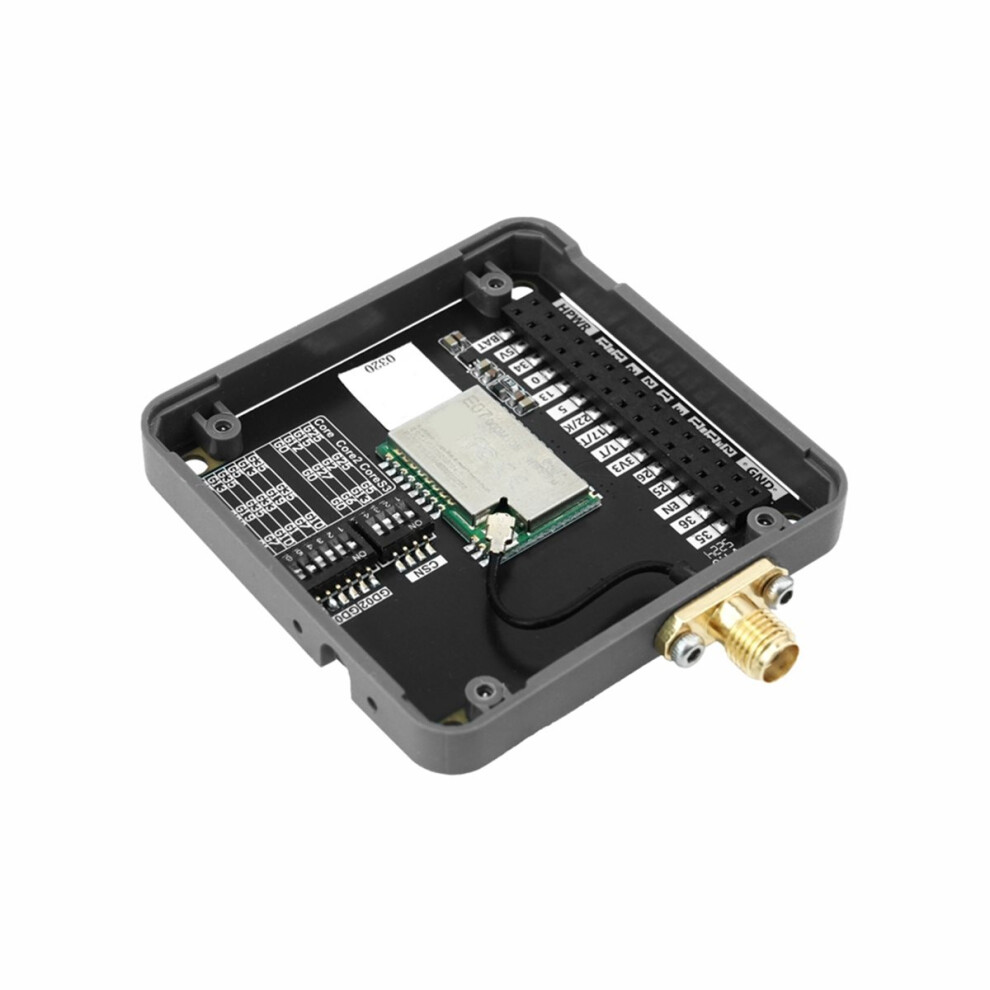

The module uses an SPI communication interface and has onboard DIP switches for flexible switching of communication pins, supporting multiple modules stacked simultaneously for functional expansion.
It is suitable for wireless control applications such as industrial automation, smart home, automated lighting and robotic equipment.

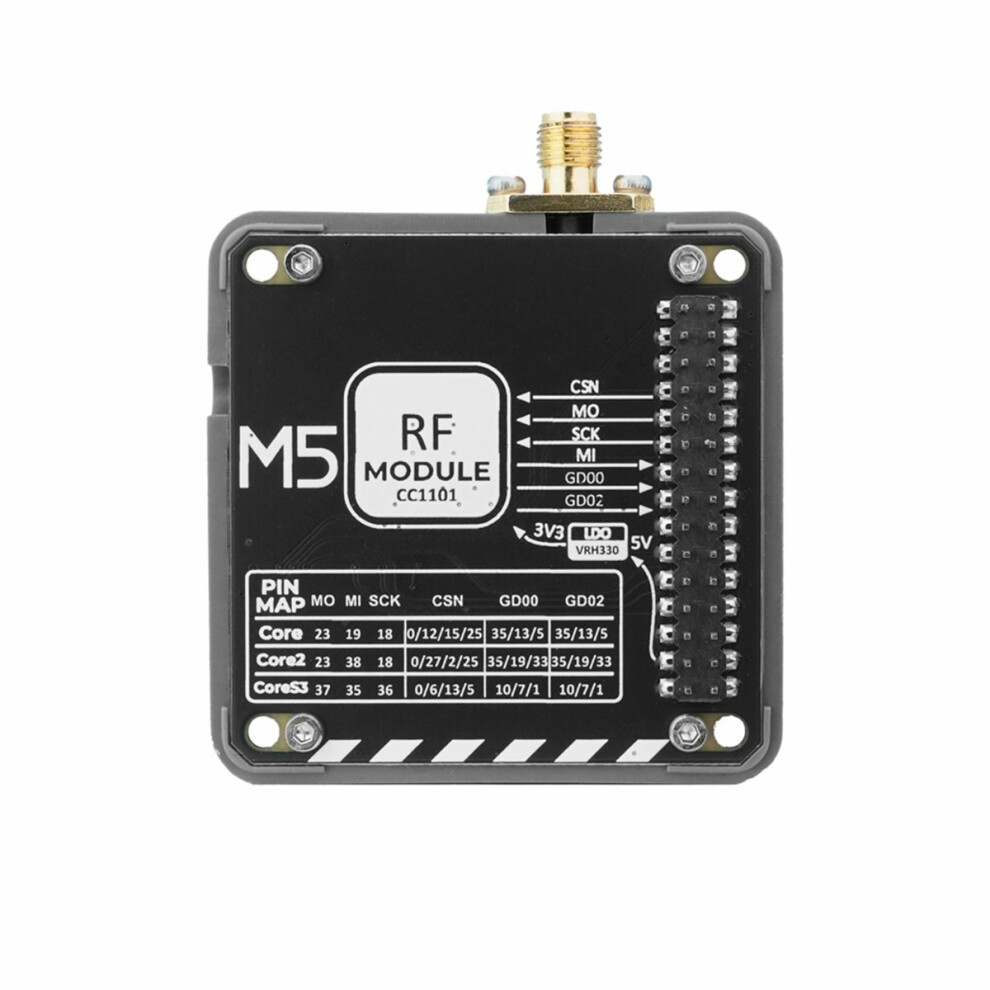

SPI Serial Communication Protocol

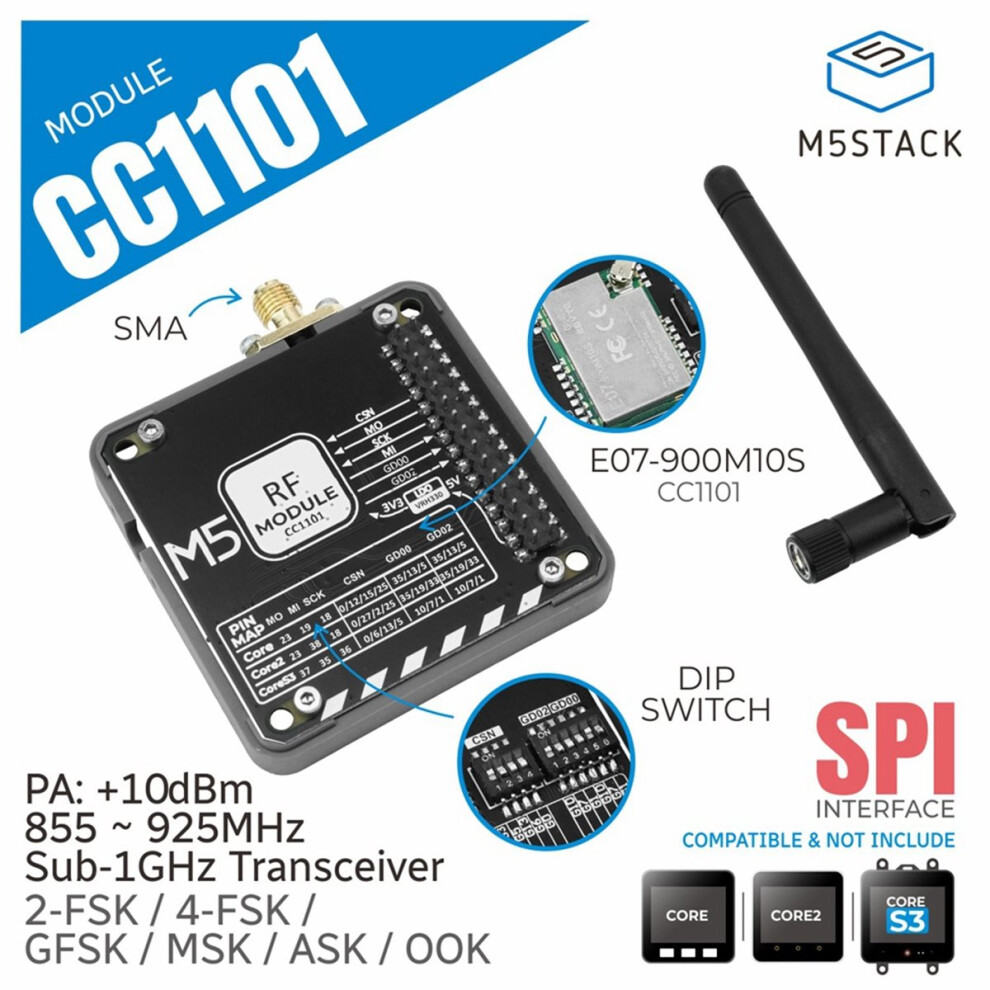

E07-900M10S Module (Based on CC1101)

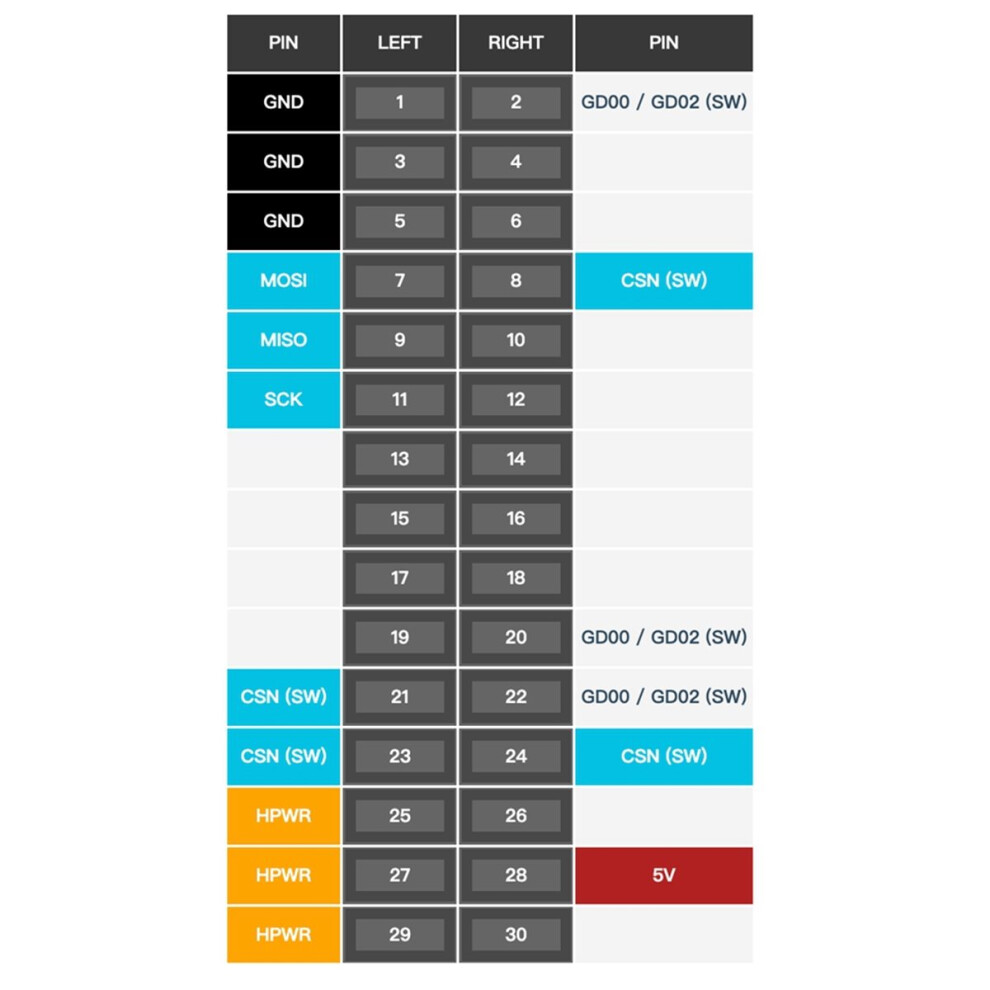

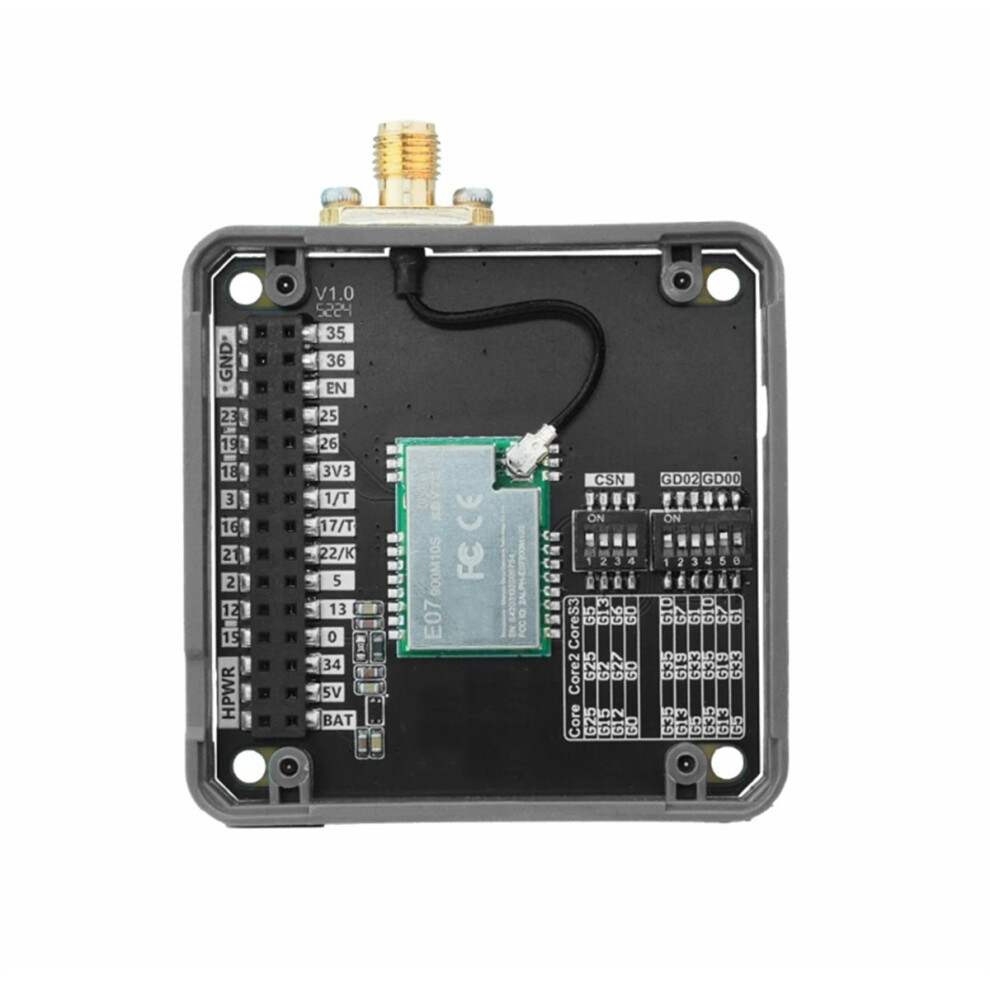

Built-in DIP Switch Pin Switching
Multiple Units Can Be Stacked
CC1101 Low-Power Sub-1 GHz Transceiver
64-byte RX FIFO and TX FIFO
Supports RSSI (Received Signal Strength Indicator) and LOI (Link Quality Indicator)
Operating Frequency Band 855~925 MHz
Supports 2-FSK, 4-FSK, GFSK, MSK, ASK, and OOK Modulation Modes
Receiver Sensitivity: Up to -109 dBm (1.2kbps rate)
Low Power Consumption in Sleep Mode

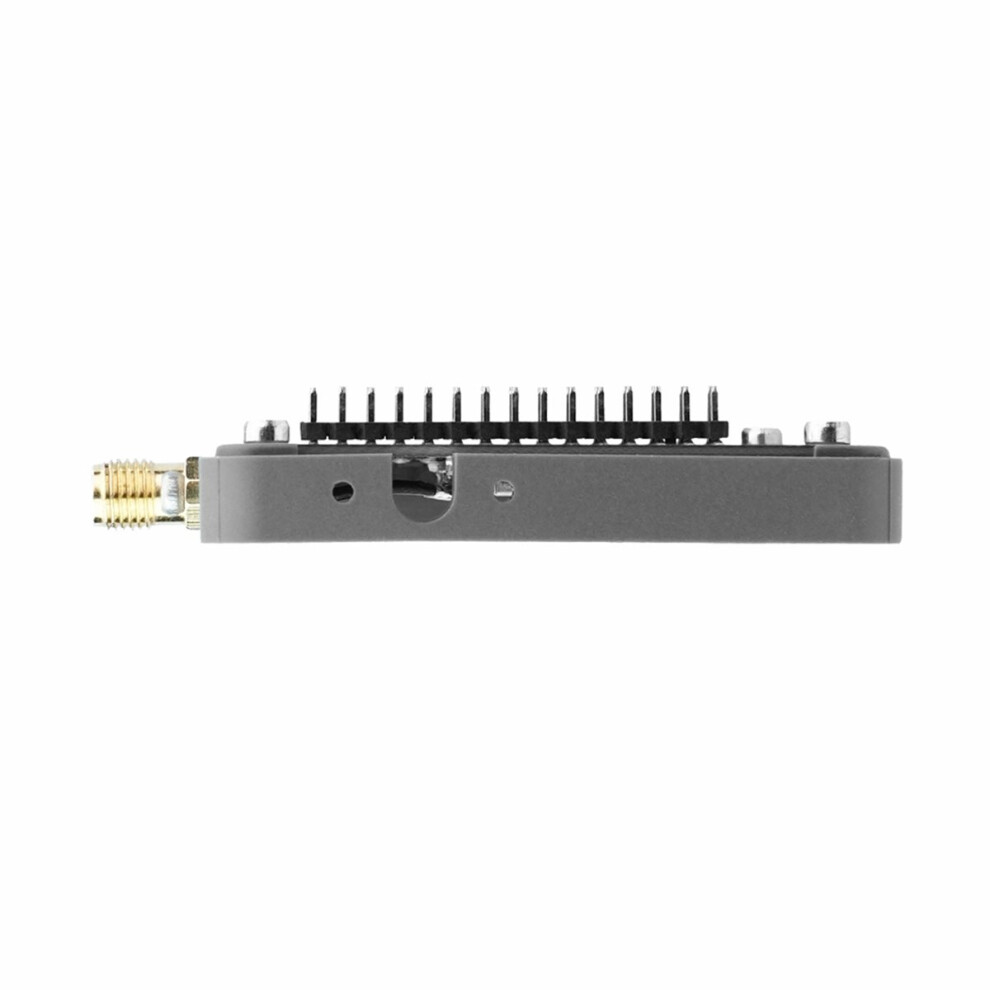

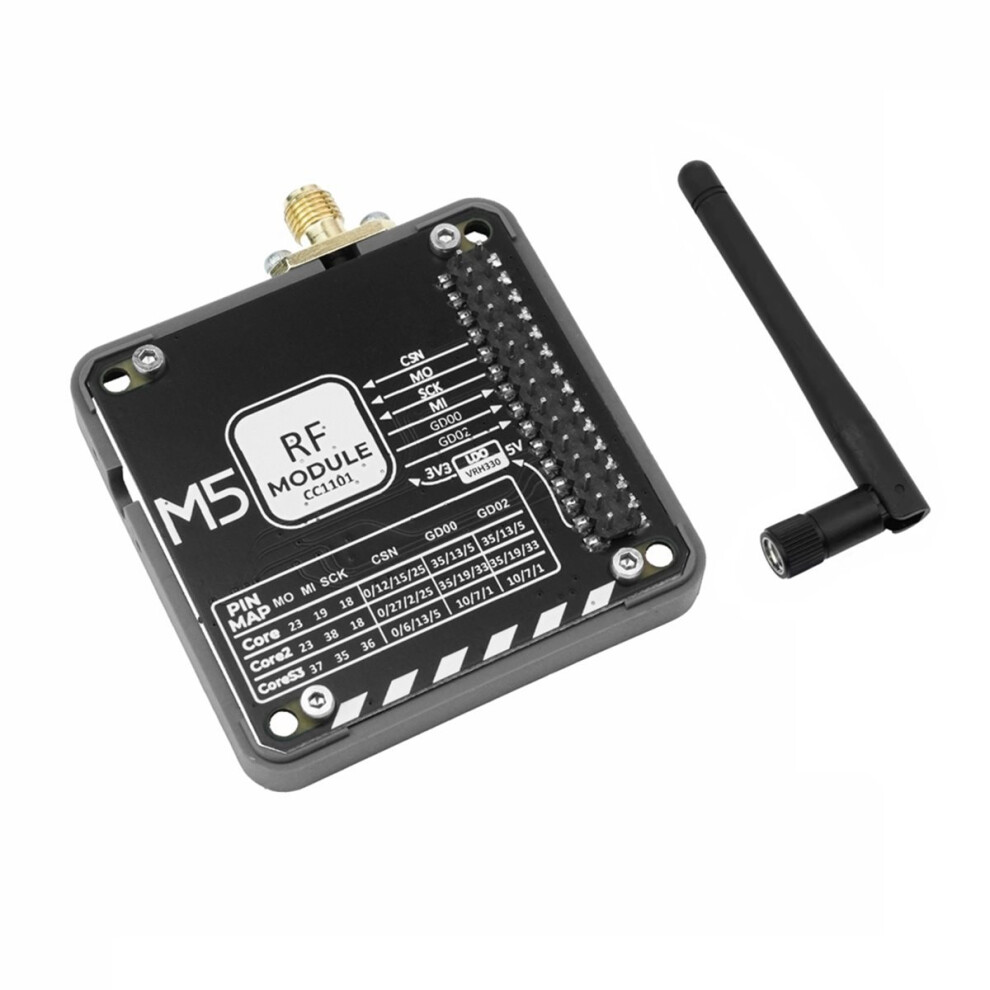

External SMA Antenna Interface
Development Platform: , UiFlow2
Color: Black & Gray
Material: PCB+Plastic

Package Contents:
1* CC1101 Module

Only the above package content, other products are not included.
