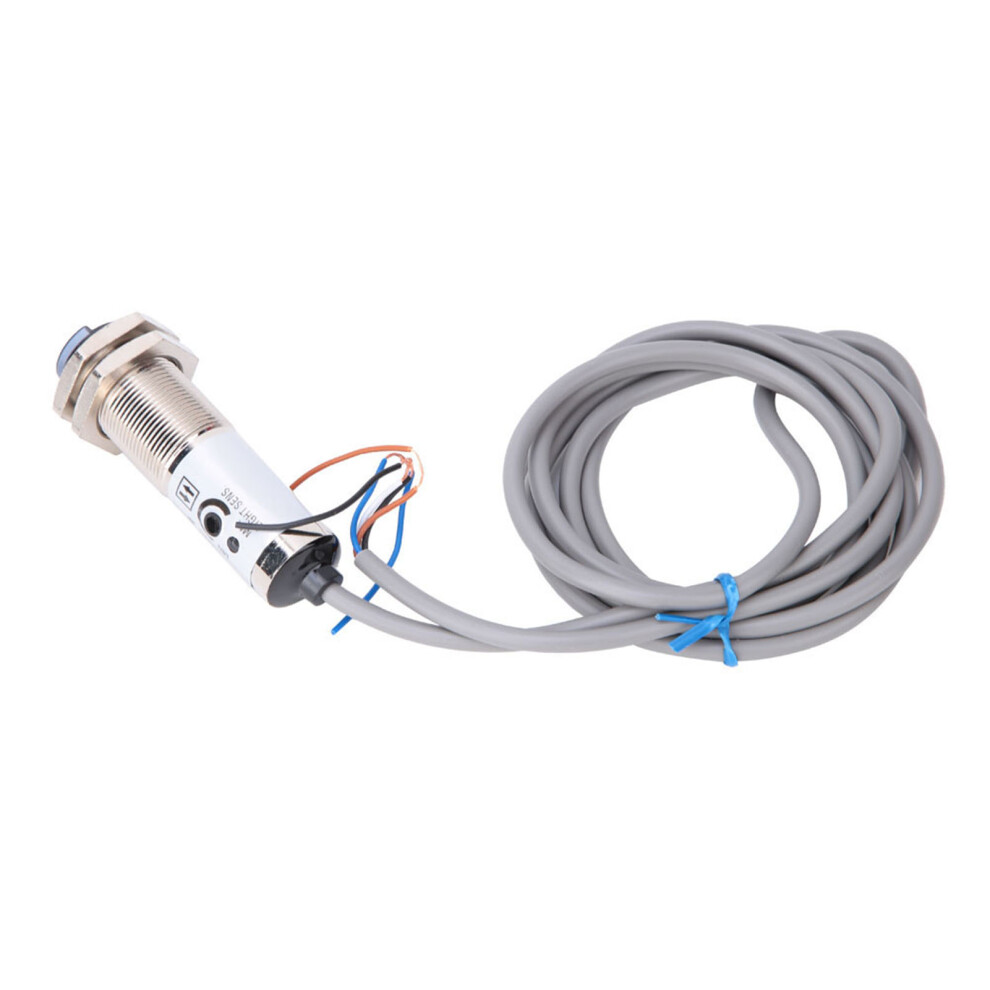

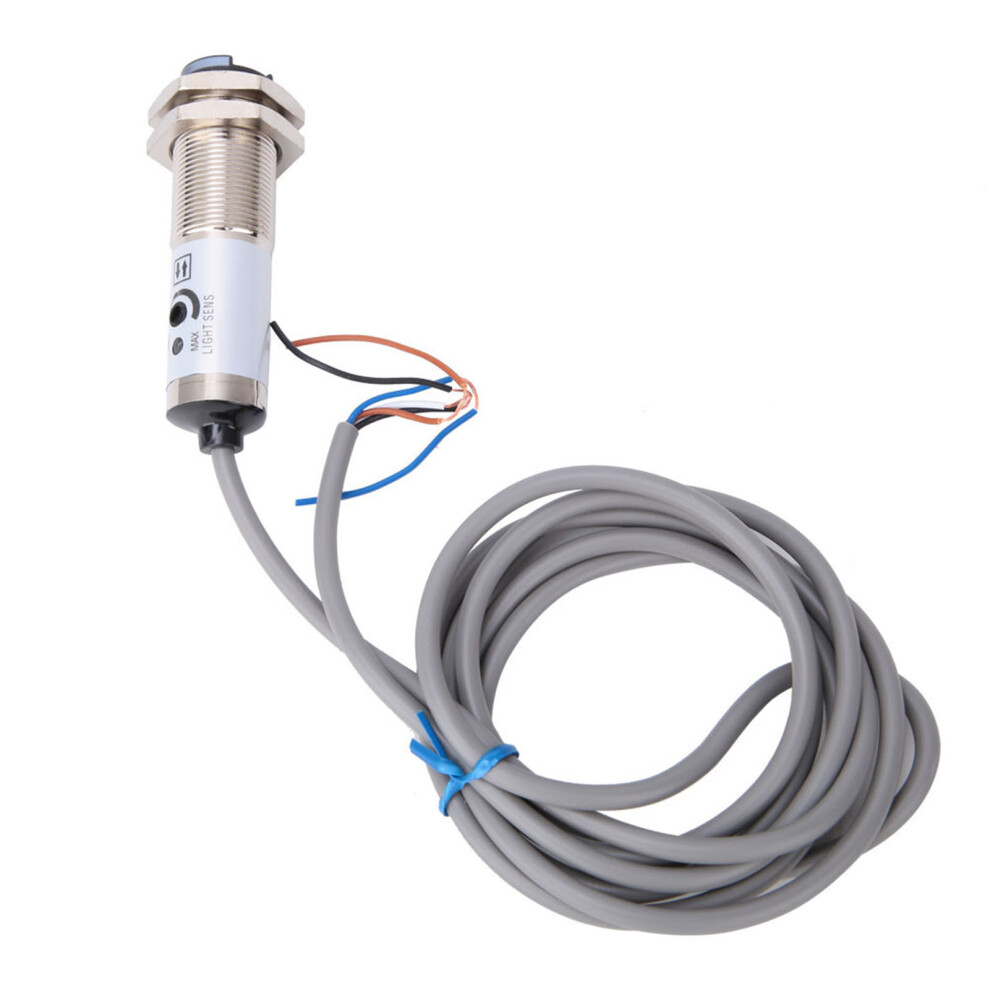

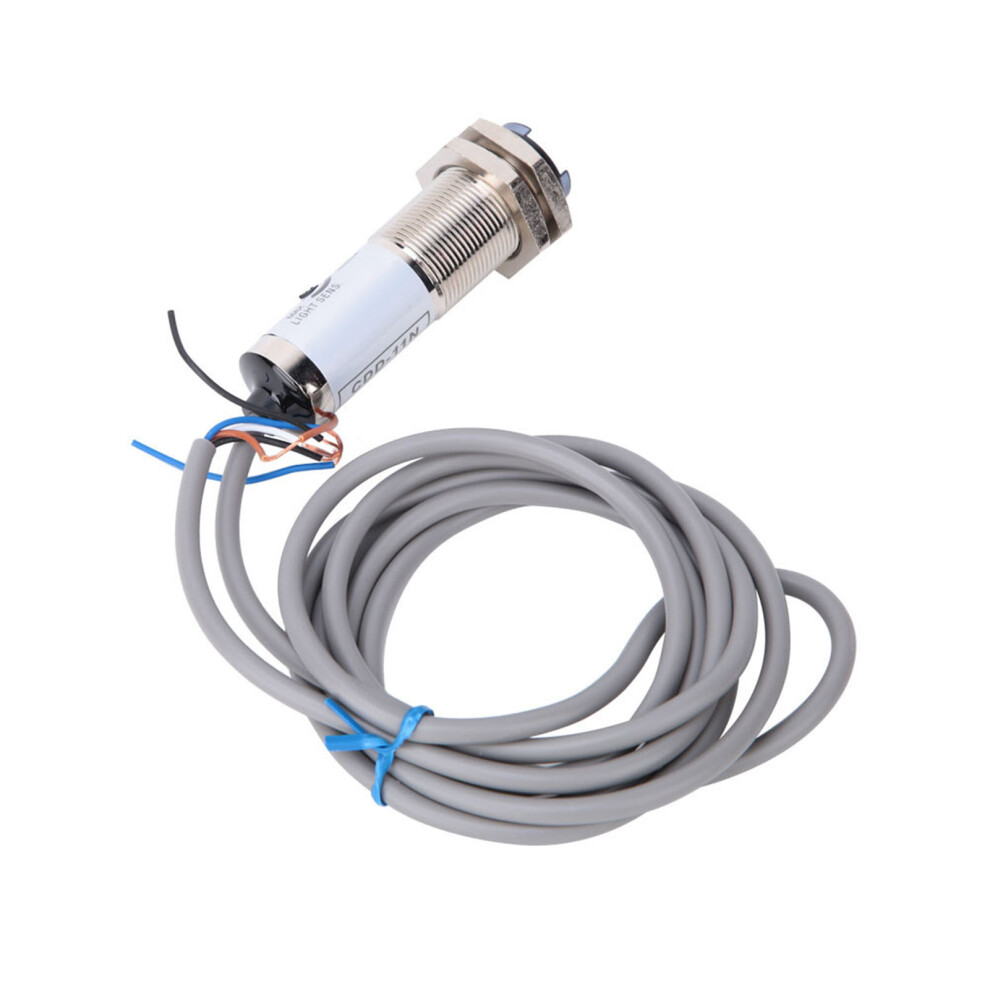

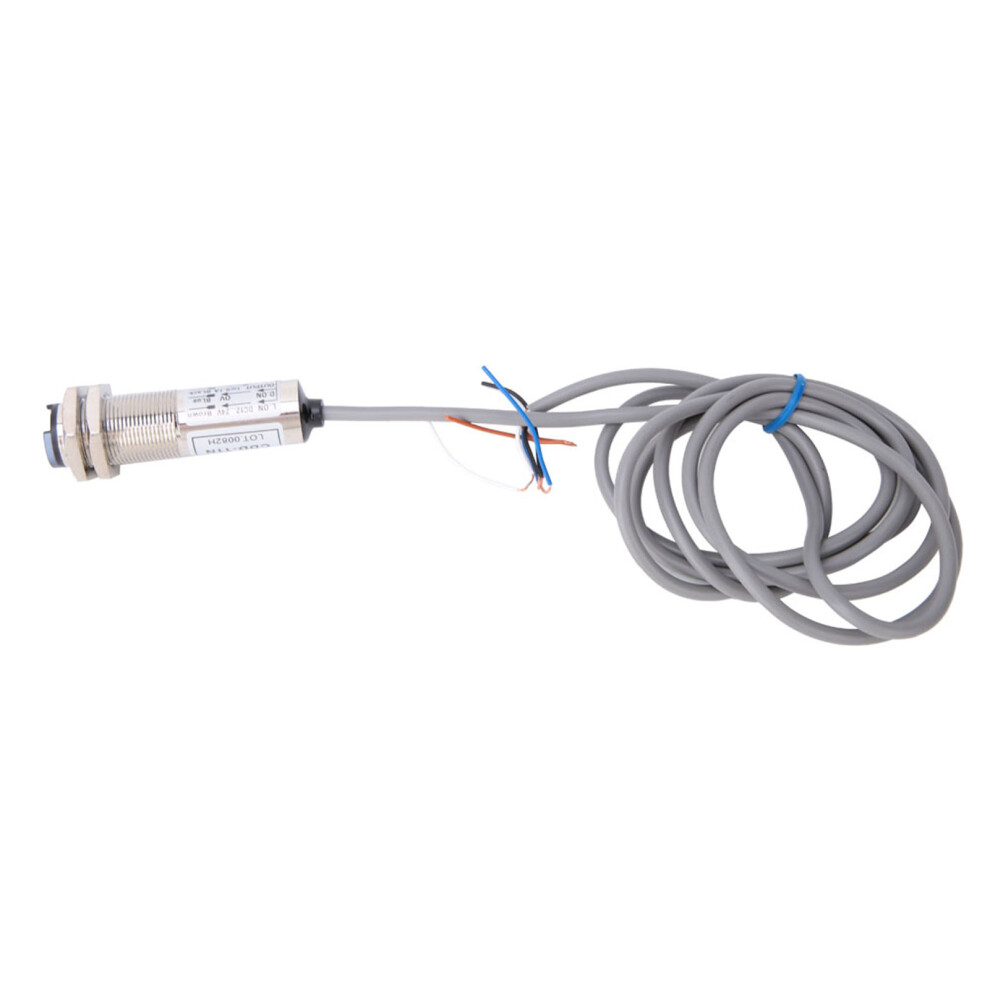

CDD-11N 10mm Diffuse Photoelectric Sensor 4-Wire 12-24VDC

CDD-11N 10mm Diffuse Photoelectric Sensor 4-Wire 12-24VDC Description

1、Photoelectric switch makes use of the block or reflection of the detected object to the light beam, and the circuit is turned on by the synchronous circuit to detect the presence or absence of the object. 2、Detection objects are not limited to metal, and all objects that reflect light (or block light) can be detected. 3、The photoelectric switch converts the input current into a light signal on the transmitter, and the receiver detects the target object according to the intensity or presence of the received light. 4、The sensor uses infrared light to detect the objects for sensitive detection with delay that can be almost ignored. 5、Built-in multiple protection circuits, strong anti-interference ability, sensitive response.
Features:
Photoelectric switch makes use of the block or reflection of the detected object to the light beam, and the circuit is turned on by the synchronous circuit to detect the presence or absence of the object.
Detection objects are not limited to metal, and all objects that reflect light (or block light) can be detected.
The photoelectric switch converts the input current into a light signal on the transmitter, and the receiver detects the target object according to the intensity or presence of the received light.
The sensor uses infrared light to detect the objects for sensitive detection with delay that can be almost ignored.
Built-in multiple protection circuits, strong anti-interference ability, sensitive response.
Specification:
Model: CDD-11N
Power Supply Voltage: DC12-24V
Output Form & Status: NPN NO
Detection Distance: 10mm
Detecting Objects: Opaque objects
Cylindrical Head Diameter: 18mm
Line Length: 1.5m
Light Source Type: Transmitting tube
Induction Method: Diffuse reflection
Protection Level: IP66
Housing Material: Copper nickel plating
Control Output:
