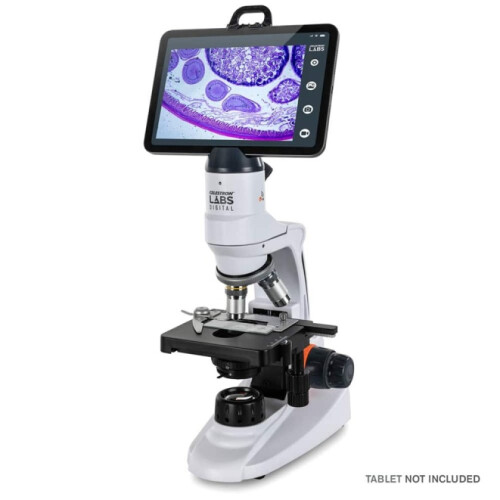

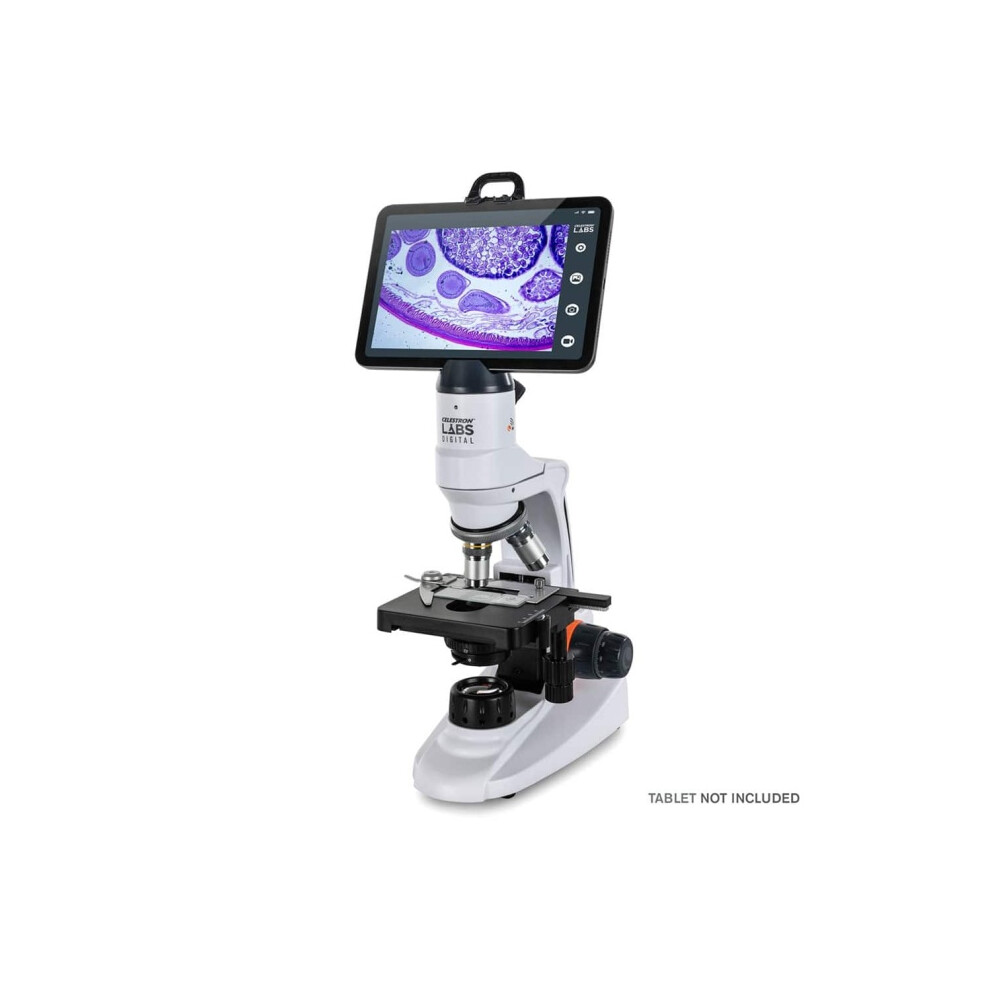

Celestron Labs Digital Wi-Fi Microscope

Celestron Labs Digital Wi-Fi Microscope Description

A Real Optical Microscope with Wi-Fi Integration -Traditional optical performance is combined with integrated digital imaging and wireless communication in the Celestron Labs Digital Wi-Fi Desktop Microscope. With the accuracy of a fully functional biological microscope, you view your specimen directly on your smartphone or tablet rather than through a typical eyepiece.

Features
- 12x digital eyepiece
- 3 fully achromatic objective lenses, 4x, 10x, and 40x
- Digital Wi-Fi App for iOS and Android

With a 12x digital eyepiece, three plan achromatic objective lenses (4x, 10x, and 40x) can provide 48x, 120x, and 480x total magnification. To transition from scanning bigger structures to looking at fine cellular detail, rotate the objective turret. Achromatic optics minimise colour distortion and preserve sharpness throughout the field of view, resulting in crisp, accurate images on your screen.

Your specimen slides are safely held and smooth X/Y movement is made possible by a fully adjustable mechanical stage. While coarse and fine focus adjustments allow you to precisely bring features into sharp focus, lower LED illumination offers strong, customisable lighting.

The Celestron Labs Digital Wi-Fi App for iOS and Android turns your tablet or smartphone into the microscope's control and display. You can measure samples straight from your device, take still photos, shoot video, and view specimens in real time.

You are free to utilise your smart gadget as you see fit. For increased stability, hold it in your hand or use the adjustable strap to fasten it to the provided stand.

The patent-pending stand keeps your device centred and aligned by magnetically attaching to the top of the microscope in lieu of the conventional eyepiece. The stand can also be placed directly on your tabletop next to the microscope if you'd like. This adaptable configuration facilitates idea demonstration, documentation of discoveries, and sharing of observations without requiring users to rotate through a single eyepiece, whether working alone or in a group.

Designed with performance and portability in mind this microscope is simple to transport between classrooms, labs, and workspaces thanks to its sturdy casing and built-in carry handle. It weighs only 1588g (56 ounces), making it portable for hobbyists and students.

For longer sessions, use the universal AC adapter that comes with the microscope to power it. A calibration ruler and five prepared slides are included so you can start measuring and observing right away.

Turn on your Celestron Labs Digital Wi-Fi desktop microscope, download the app, and begin exploring.

What's in the Box
5 Prepared Slides
Calibration slide
AC adapter (4 plug for International)
Unique, optional smart device holder with safety strap

Technical Specifications
Type of Microscope:     Wi-Fi Desktop /w triple objectives
Head:     Head has sensor and Wi-Fi module for sending wireless streaming images
Eyepiece Type:     CMOS Sensor in lieu of eyepiece (12x magnification)
Sensor Size:     2MP | 1/2.8" Sony IMX290 LQR-XC
Stage Type:     Mechanical -Double Layer, 115mm x 125mm (4.52" x 4.92")
Sensor magnification:     12x
Pixel Size:     2.9 μm x 2.9 μm
Memory Type:     No memory - uses smart device memory to save images and video
Still image capture resolution:     640x480 | 1280x720 | 1920x1080
Video resolution:     640x480 | 1280x720 | 1920x1080
Shutter trigger position:     In device APP
Software:     Celestron Labs Digital Wi-Fi APP
Software Compatibility:     iOS and Android
Nosepiece:     Triple with click stop
Objective(s) Type:     (3) Finite Plan Achromatic CF objectives on turret
Objective(s) Standard:     DIN 35 RMS
Objective(s) Magnification     4x, 10x, 40x
Magnification Range:     48x, 120x, and 480x
FOV:     4x:  37.5mm | 10x: 6.7mm | 40x: .65mm
Objective(s) Thread:     WJ 4/5" x 1/36"
Focus Type(s):     Course and Fine Focus
Focus Travel (per rotation):     0.7mm to 35.3mm (.027" to 1.39") (est.)
Illumination Type:     LEDs (3W/4V- 220V/110V)
Illumination Position(s):     Bottom Illuminator
Illumination Adjustability Mechanism:     Adjustment dial on base
Power Source:     Universal AC Adapter* 100 to 240V, 50/60 hz multi-country plug
Battery Option:     Yes. 3AA Batteries for (2 hours) backup power - if needed
Stage:      Double layers mechanical stage
Stage size： 115mm×125mm (4.5" x 4.9")
Moving range： 70mm×30mm (2.75" x 1.18")
Condenser Type:     Abbe condenser with iris diaphragm & filter
Condenser N.A.:     N.A. 1.25
Port(s) In:     AC Adapter/ 5-6V DC, 200-1000mA tip positive electrical input. (Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long) (Final TBD)
Port(s) Out:     N/A
AC Adapter:     5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long (Final TBD)
Microscope Dimensions:     170mm x 140mm x 330mm (6.7" x 5.5" x 13")
Microscope Weight:     1600g (56 oz)
2-Year Warranty
Product code 44351-CGL
