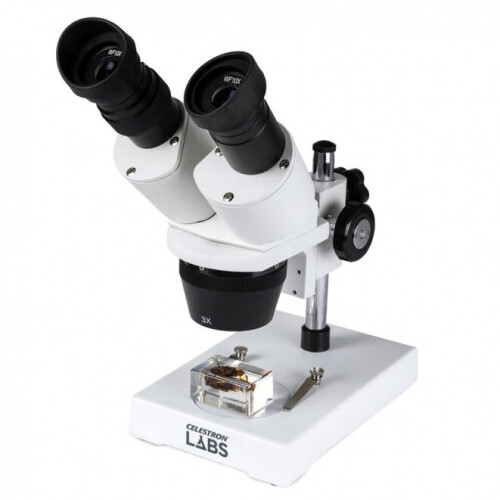

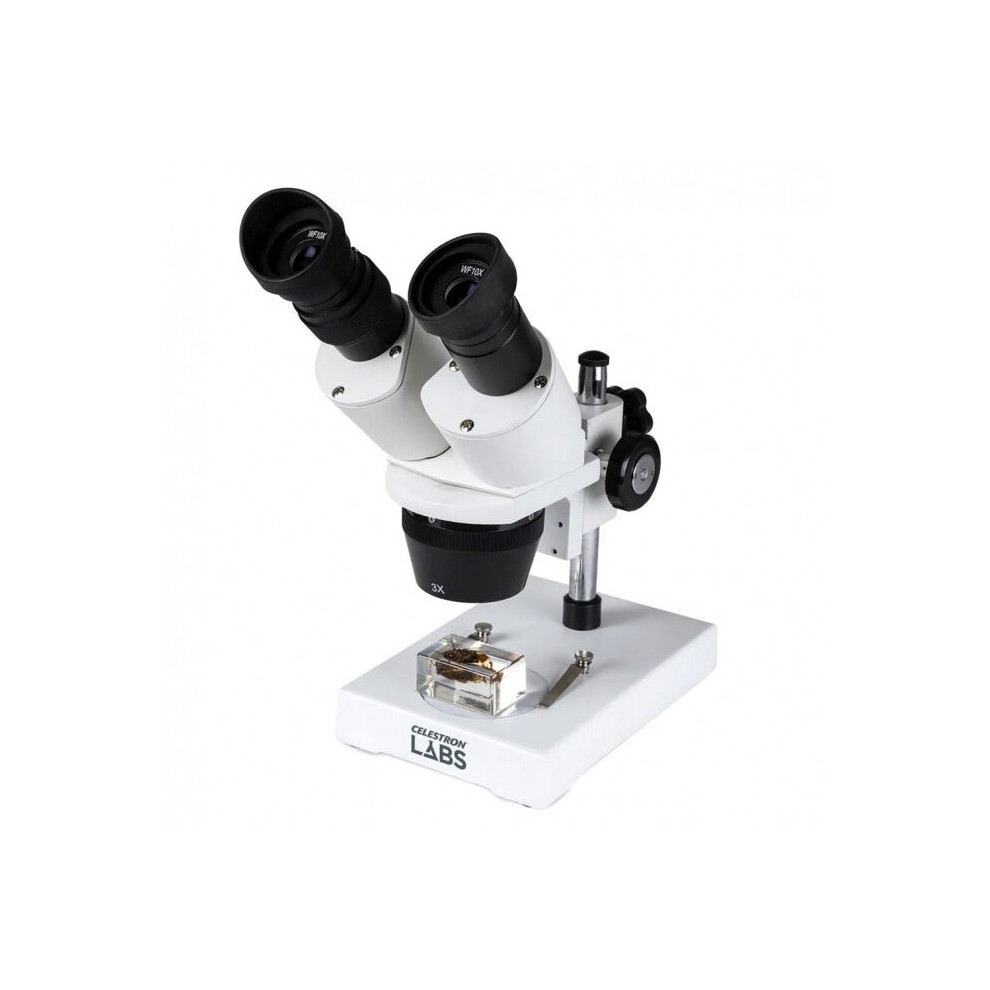

Celestron Labs S1030N Stereo Microscope

Celestron Labs S1030N Stereo Microscope Description

The ideal specialized stereo microscope is the Celestron Labs S10-30N stereo microscope. This stereoscope creates a 3D image of your specimen with selectable low-power 10x and 30x magnification. It's perfect for looking at things like rocks, leaves, fossils, insects, and more.

The ergonomically inclined head of the microscope lessens neck strain for more pleasant viewing times. It has a reversible stage plate and employs internal or exterior lighting.

Users' interpupillary distances are taken into account when adjusting the binocular eyepieces. An integrated diopter adjustment control is included into the left eyepiece. After positioning the eyepieces as desired, fine-tune focus using the rack-and-pinion focus knob. It is recommended to start viewing a sample at low power (10x), switching to high power as necessary.

You might need to increase your focus range to accommodate large samples by vertically sliding the head along the pillar stand to bring the image into focus. The Celestron Labs S10-30N microscope head can revolve around the pillar stand to accommodate objects, such as fossil bones, that do not fit on the microscope base.

The microscope is portable and lightweight. Take this microscope with you on all of your daily discoveries, whether they take place in a lab, on a desk, or outside. Both students and enthusiasts can use it effectively.

Accessories Included
Your Celestron Labs S10-30N comes complete with two synthetic rubber flared eyepiece eye cups, a stage plate, and a dust cover. Install the angled rubber eye cups to reduce extraneous light that may interfere with your viewing.  The stage plate comes in a reversible black/white, offering you different ways to observe to get the best detail. Protect your instrument with the dust cover when it is not in use.

Type of Microscope:    Stereo
Head:    Ergonomic binocular viewing head, inclined at 45°
Eyepiece(s) Magnification:    (2) WF 10x
Eyepiece(s) Diameter:    30.5mm (1.2")
Nosepiece:    stereo, rotational
Objective(s) Type:    Greenough
Objective(s) Standard:    N/A
Objective(s) Magnification:    1x / 3x
Objective(s) Thread:    N/A
Focus Type(s):    Rack and pinion, coarse focus only
Focus Travel (per rotation):    40mm (1.57")
Magnification Range:    10-30x
Illumination Type:    Natural light
Illumination Position(s):    N/A
Illumination Adjustability Mechanism:    N/A
Power Source:    None
Battery Option:    None
Stage:    60mm (2.36") diameter glass reversible black / white surface plate, stage clips
Condenser Type:    None
Condenser N.A.:    None
Stage Diaphragm:    None
Included Items:    (2) 10xWF eyepieces
(2) synthetic rubber eye cups
Small screwdriver for eyepiece security screws

- Stereo microscope with 10x to 30x power
- Ergonomic angled binocular viewing head
- 10x eyepieces with 2 objective lenses (1x and 3x) for a magnification range of 10x and 30x
- Greenough objective design with natural light illumination
- Cordless design for maximum portability
- Accessories include a reversible black & white stage plate and a dust cover
