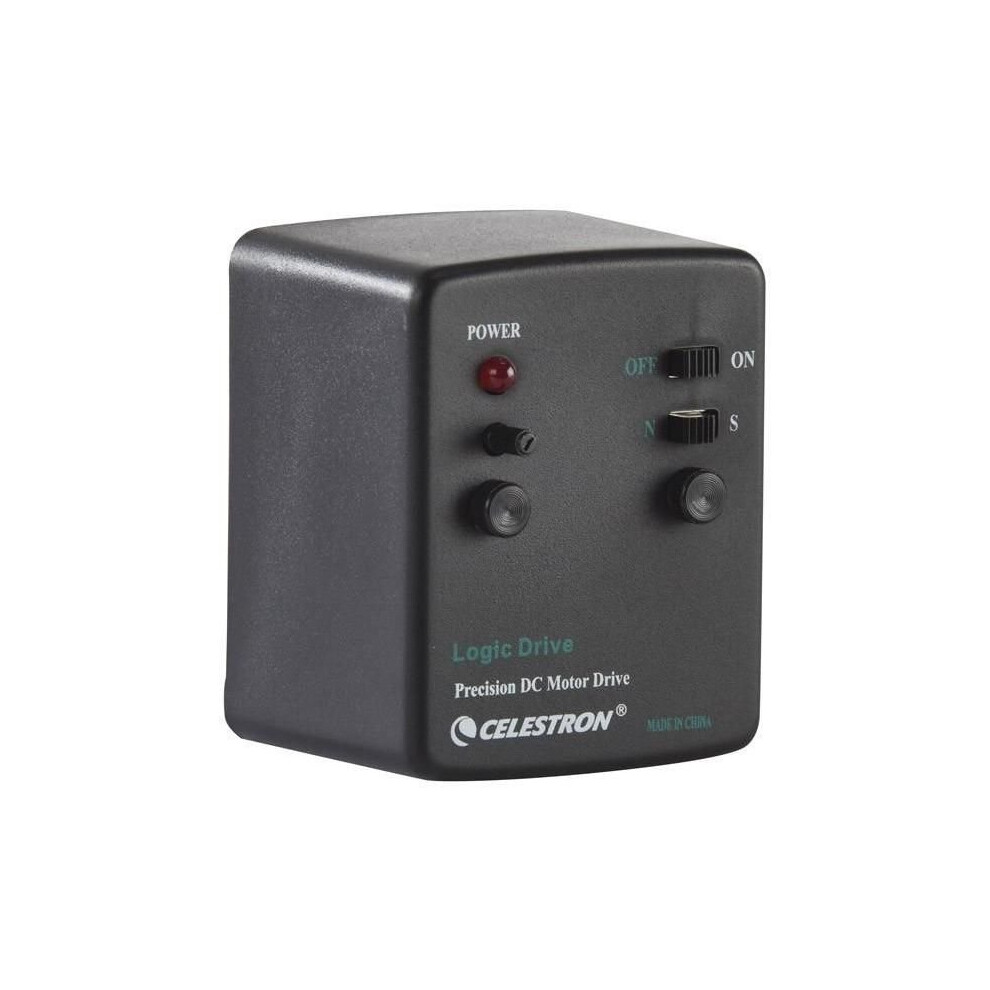

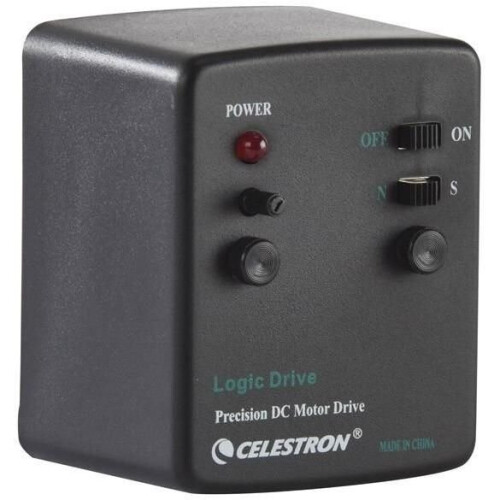

Celestron Motor Drive for EQ AstroMasters & PowerSeeker Telescopes

Celestron Motor Drive for EQ AstroMasters & PowerSeeker Telescopes Description

Compatible with all German Equatorial (EQ) AstroMaster and PowerSeeker telescopes. Variable speed RA Motor drive offering the convenience of hands free tracking of astronomical objects. The Celestron Motor Drive allows tracking of celestial objects, with this single axis motor drive for the CG-2 and CG-3 EQ Mounts.

Compatible with:

AstroMaster 70EQ
AstroMaster 76EQ
AstroMaster 90EQ
AstroMaster 114EQ
AstroMaster 130EQ
--------------------------
PowerSeeker 70EQ
PowerSeeker 60EQ
PowerSeeker 80EQ
PowerSeeker 114EQ
PowerSeeker 127EQ

Once polar aligned, the motor drive will accurately track objects in Right Ascension as they move across the sky. Only minor adjustments in Declination will be necessary to keep celestial objects centered in the eyepiece for long periods of time.

Add right ascension (RA) tracking capabilities to any Celestron AstroMaster or PowerSeeker equatorial telescope, or any set-up that uses a Celestron CG-2 or CG-3 equatorial mount. This easy-to-install RA motor drive compensates for the Earth's rotation, so the telescope tracks a star's movement through the night sky from east to west. When the telescope mount is properly polar aligned and the RA drive is attached and running, the user need only make occasional adjustments in declination (Dec) to keep an object in the eyepiece for long periods of time.

The Celestron single-axis motor drive runs on a 9V battery, so there are no cords to get in the way. The drive can be used in either the Northern or Southern Hemisphere. To change hemispheres (reverse the motor's direction), simply flip the North/South (N/S) switch on the face of the motor drive. It is also simple to change the speed of the motor. A Speed Rate Regulator knob is located just under the power indicator, and can be turned in either direction to slow down or speed up the motor. Since solar system objects like the Sun and, Moon move through the sky at different rates than deep-sky objects do, this gives you the ability to match the motor's speed to the particular type of object you are observing.

- Install this motor drive on your AstroMaster or PowerSeeker equatorially mounted telescope and start tracking the stars
- Right Ascension tracking compensates for the Earth's rotation.
- Can be used in the Northern or Southern Hemisphere.
- For Celestron CG-2 & CG-3 equatorial mounts.

PLEASE NOTE: MOTOR DRIVE UNIT ONLY. DOES NOT INCLUDE 1:60 GEARBOX OR SETTING CIRCLES.

Installation & Operating Instructions - Click Here
