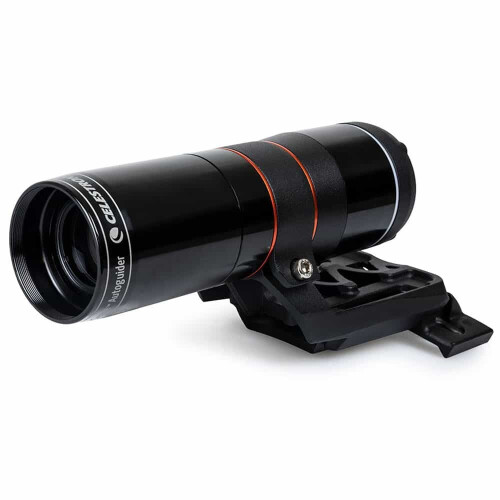

Celestron StarSense Autoguider

Celestron StarSense Autoguider Description

Using your telescope is now simpler and more enjoyable than ever thanks to the Celestron StarSense Autoguider. This strong, little device attaches to your Celestron mount to improve pointing precision and make it simpler for you to take clear, long-exposure photos. You will spend more time outside beneath the stars if you add this game-changing item, regardless of how accomplished you are at astroimaging or how new to the pastime you are.

Be prepared to observe in minutes with automatic alignment
The StarSense Autoguider aligns your telescope to the night sky without any user input in roughly three minutes. In order to automatically align the telescope, Celestron's unique StarSense technology 'sees' star patterns overhead and compares them to its internal database. By doing away with the trouble of manually aligning your telescope, this function allows you to concentrate on what matters—observing and imaging.

Supercharge Your Pointing Accuracy with Precise GoTo
much though Celestron's computerised mounts are praised for their precision in aiming, adding the StarSense Autoguider makes your mount much more effective. Even if you're using a powerful eyepiece or one of today's tiny image sensors, Precise GoTo centres celestial objects in the field rather than placing them within the telescope's field of view.

Autoguiding: Design Your Own Celestial Work of Art
One of the most fascinating things you can do with your telescope is take pictures of astronomical objects. However, with autoguiding the ability to make minute adjustments to the mount's tracking to keep your object locked in during lengthy exposures, which is necessary to obtain beautiful deep-sky astroimages. A separate autoguiding camera, a guidescope, and a computer were typically used in older, more complicated, and more expensive autoguiding configurations. All of that is replaced by StarSense Autoguider, allowing even newcomers to plunge head first into the realm of imaging. Your targets are clear and detailed, and the stars in the backdrop always appear as sharp pinpoints rather than oblong or streaky ones.

Choose the best alignment possible with assisted polar alignment
For the majority of casual observing and imaging, many users find that adding StarSense Autoguider to their setup greatly improves accuracy to the point where they no longer need to polar align their German equatorial mounts.

But if you want to reach the highest level of accuracy, the Autoguider makes the polar alignment procedure incredibly simple. You can achieve a full polar alignment in less than five minutes by simply following the on-screen directions on the hand control or in the CPWI programme.

4-element optical design of the highest calibre
The renowned optical designer Mark Ackermann created a superior 4-element optical design for the StarSense Autoguider. Its distinctive shape produces images that are sharper than those of other mini-guidescopes. The optical tube has a 2" astronomical filter thread. To align your mount in the dusk or to focus during the day, add an IR-pass filter or a neutral density filter.

In order to give outstanding guiding precision, the device additionally features an inbuilt microprocessor and a highly sensitive Sony IMX290-DLL monochrome CMOS image sensor. If you'd like, you can use your computer to view a live image from the camera.

Modern choices
The advanced settings in CPWI are perfect for advanced users to fine-tune their autoguiding configuration. Dithering settings allow you to slightly shift the mount between camera sub-exposures, which might improve the efficiency of your image-processing software.

Through CPWI, you may even steer a comet. Simply choose the comet from the database of more than 100,000 astronomical objects that is continually updated by the software. Better results will be obtained by guiding directly on the comet as opposed to neighbouring stars.

The best part is that you can continue to access intriguing features like these for the duration of your StarSense Autoguider. You get access to all upcoming firmware upgrades as a result of your purchase. With a quick firmware update, you'll always be able to take advantage of the most recent features added by Celestron experts to our devices.

Works with the set-up that you have
You get to decide how to operate your StarSense Autoguider. It functions with your NexStar+ hand controller, CPWI telescope control software over a wired PC connection, and Wi-Fi (using a Wi-Fi enabled mount or the SkyPortal Wi-Fi Module add-on). The Autoguider also integrates seamlessly with the rest of your Celestron accessories for a setup that complements your telescope.

Most modern Celestron computerised mounts, including German equatorial and altazimuth models, are compatible with StarSense Autoguider. For complete information on compatibility, see the chart below.

General Features:

Automatic alignment: Aligns your telescope to the night sky in about three minutes with no user input, thanks to Celestron’s patented StarSense technology.
Precise GoTo: Boosts the pointing accuracy of your Celestron mount, placing celestial objects in the centre of the field of view of high-powered eyepieces and small imaging sensors.
Autoguiding: Tracks celestial objects accurately for pinpoint stars in long exposure astroimages, eliminating the need for a separate autoguiding camera, guidescope, and computer.
Assisted polar alignment: Walks you through an easy, automated process to dial in the best polar alignment.
High-quality 4-element optical design: Features a unique optical design by famed optical designer Mark Ackermann, with sharper optics than other mini-guidescopes.
Multiple ways to control: Works with your NexStar+ hand control or CPWI telescope control software via a wired PC connection or Wi-Fi.

Technical Specifications:

Lens Design:    Double-Gauss
Aperture:    28mm (1.10")
Focal Length:    120mm (4.72")
Focal Ratio:    f/4.3
Number of Elements:    4
Coatings:    Fully Multi-Coated
CMOS Image Sensor:    Sony IMX290LLR, monochrome, back-illuminated
Sensor Size:    6.46mm diagonal
Pixel Size:    2.9μm x 2.9μm
Number of effective pixels:    2.13M
Onboard computer:    Integrated Computer-On-Module
Primary Arm® core:    2x Cortex® -A53 up to 1.4 GHz
Secondary Arm® core:    1x Cortex-M7 up to 600 MHz
RAM:    512 MB
ROM:    4 GB
GPU:    GC7000UltraLite
Operating Temperature:    -25°C to 85°C
Ports:    AUX and USB-C
AUX:    For connection to Celestron mounts
USB-C:    For PC connection for live view, USB 3.1
Housing:    Aluminium with plastic covers, threaded for 2" filters

Best Paired with:
Astro Fi 102mm Maksutov-Cassegrain Telescope
CGEM II 1100 EdgeHD Telescope
CGEM II 1100 Schmidt-Cassegrain Telescope
CGEM II 800 EdgeHD Telescope
CGEM II 800 Schmidt-Cassegrain Telescope
CGEM II 925 EdgeHD Telescope
CGEM II 925 Schmidt-Cassegrain Telescope
CGEM II EQ Mount and Tripod
CGX Equatorial 1100 Schmidt-Cassegrain Telescope
CGX Equatorial 800 HD Telescope
CGX Equatorial 800 Schmidt-Cassegrain Telescope
CGX Equatorial 925 HD Telescope
CGX Equatorial 925 Schmidt-Cassegrain Telescope
CGX-L Equatorial 1100 Schmidt-Cassegrain Telescope
CGX-L Equatorial 1400 HD Telescope
CGX-L Equatorial 1400 Schmidt-Cassegrain Telescope
CGX-L Equatorial Mount and Tripod
CPC 925 GPS (XLT) Computerised Telescope
NexStar 90SLT Computerised Telescope
CGX-L Equatorial 925 Schmidt-Cassegrain Telescope
CGX-L Equatorial 925 HD Telescope
CGX-L Equatorial Mount Without Tripod
CGX 800 Rowe-Ackermann Schmidt Astrograph (RASA) Telescope
CGEM II 800 Rowe-Ackermann Schmidt Astrograph (RASA) Telescope
CGX 700 Maksutov Cassegrain Telescope
CGEM II 700 Maksutov-Cassegrain Telescope
Advanced VX 700 Maksutov Cassegrain Telescope
Advanced VX 800 Rowe-Ackermann Schmidt Astrograph (RASA) Telescope
Advanced VX 9.25" EdgeHD Telescope
CGX 1100 Rowe-Ackermann Schmidt Astrograph (RASA) Equatorial Telescope
CGX-L 1100 Rowe-Ackermann Schmidt Astrograph (RASA) Equatorial Telescope
Advanced VX 11" Schmidt-Cassegrain Telescope
Astro Fi 130mm Newtonian Telescope
CGX Equatorial 1100 HD Telescope
CGX-L Equatorial 1100 HD Telescope
CPC Deluxe 925 HD Computerised Telescope
CPC 1100 GPS (XLT) Computerised Telescope
Advanced VX 6" Refractor Telescope
Advanced VX 6" Newtonian Telescope
CPC Deluxe 800 HD Computerised Telescope
Advanced VX 6" Schmidt-Cassegrain Telescope
CPC 800 GPS (XLT) Computerised Telescope
NexStar 102SLT Computerised Telescope
CGX Equatorial Mount and Tripod
NexStar Evolution 9.25 Telescope
NexStar Evolution 6 Telescope
Advanced VX 8" Newtonian Telescope
Advanced VX 8" Schmidt-Cassegrain Telescope
NexStar 127SLT Computerised Telescope
NexStar 130SLT Computerised Telescope
CPC Deluxe 1100 HD Computerised Telescope
NexStar 5SE Computerised Telescope
Advanced VX Mount and Tripod
NexStar Evolution 8 Telescope
NexStar 6SE Computerised Telescope
NexStar 4SE Computerised Telescope
NexStar 8SE Computerised Telescope
Astro Fi 90mm Refractor Telescope

Mount Compatibility Chart
Compatible
Advanced VX , CPC, CPC DX, NexStar Evolution, NexStar SE Series, CGEM II, CGX, CGX-L, CGEM, CGEM DX, CGE Pro
Not Compatible
NexStar SLT, Astro Fi, SkyProdigy, LCM series
