CH32V003 Development Board CH32V003F4P6 MCU

CH32V003 Development Board CH32V003F4P6 MCU Description

32-bit RISC-V2A processor with 2-level interrupt nesting support
Up to 48MHz system main frequency
2KB , 16KB Flash
Power supply voltage: 3.3/5V
Multiple low-power modes: Sleep, Standby

Power up/down reset, programmable voltage detector
1 group of 1-channel general-purpose DMA controller
1 group of
1 group 10-bit ADC
1 16-bit advanced-control timer and 1 16-bit general-purpose timer
2 watchdog and 1 32-bit SysTick timer
1 USART interface, 1 group of IC interface, 1 group of SPI interface
18 I/O ports, mapping an external interrupt
64-bit chip ID
1-wire serial debug interface(SDI)
Colour:As Shown
Material:PC+Metal

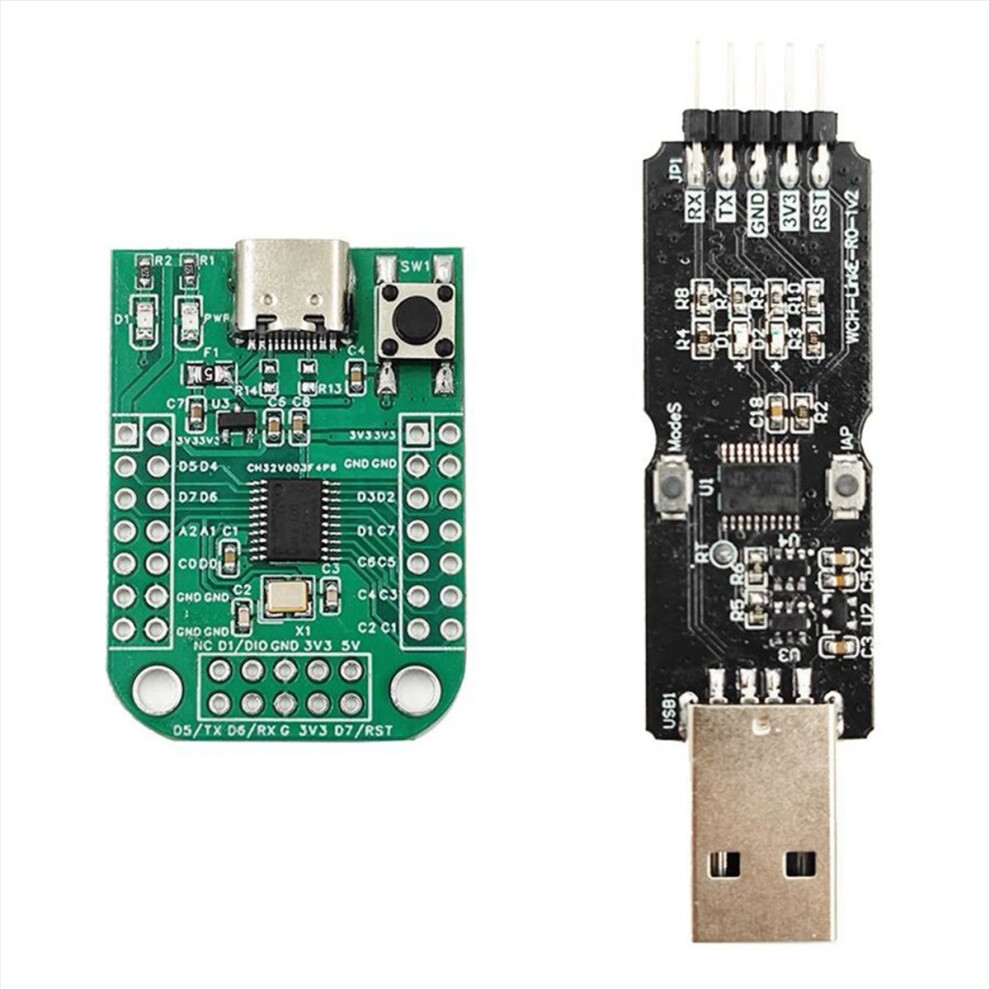

Package Contents:

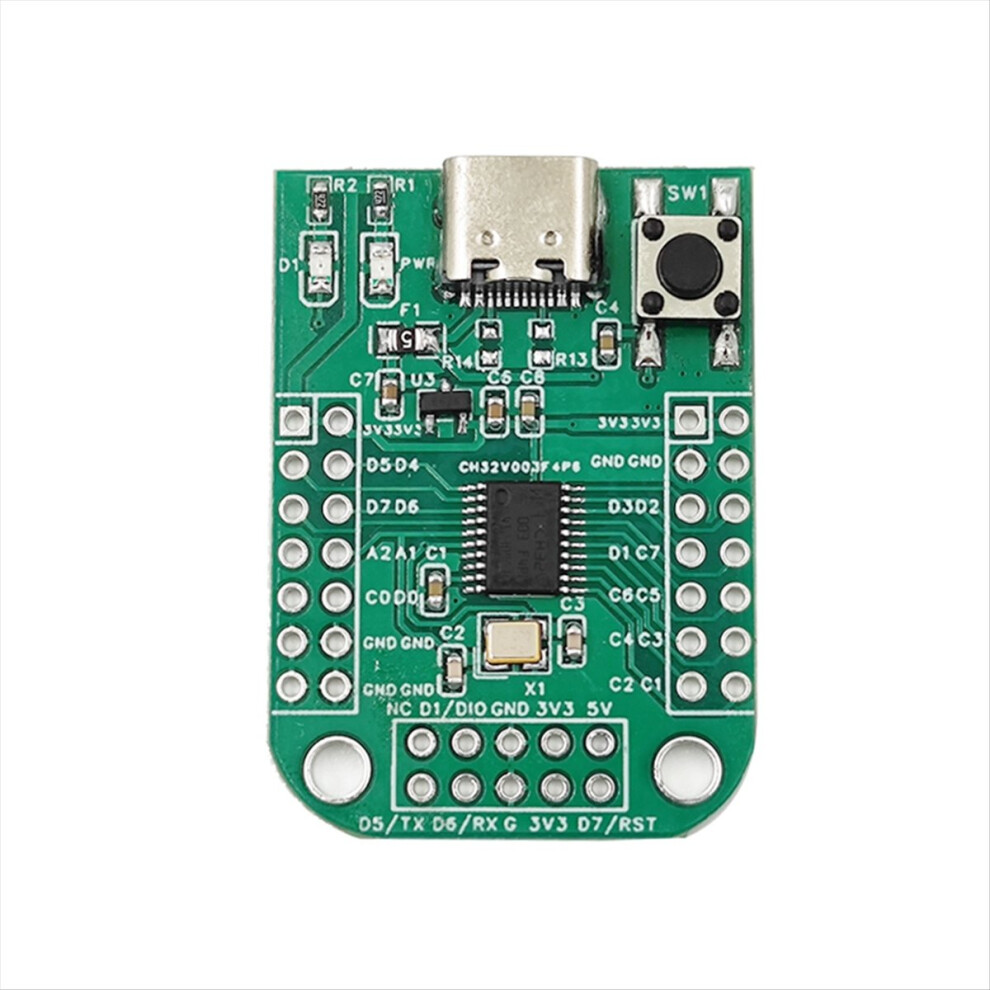

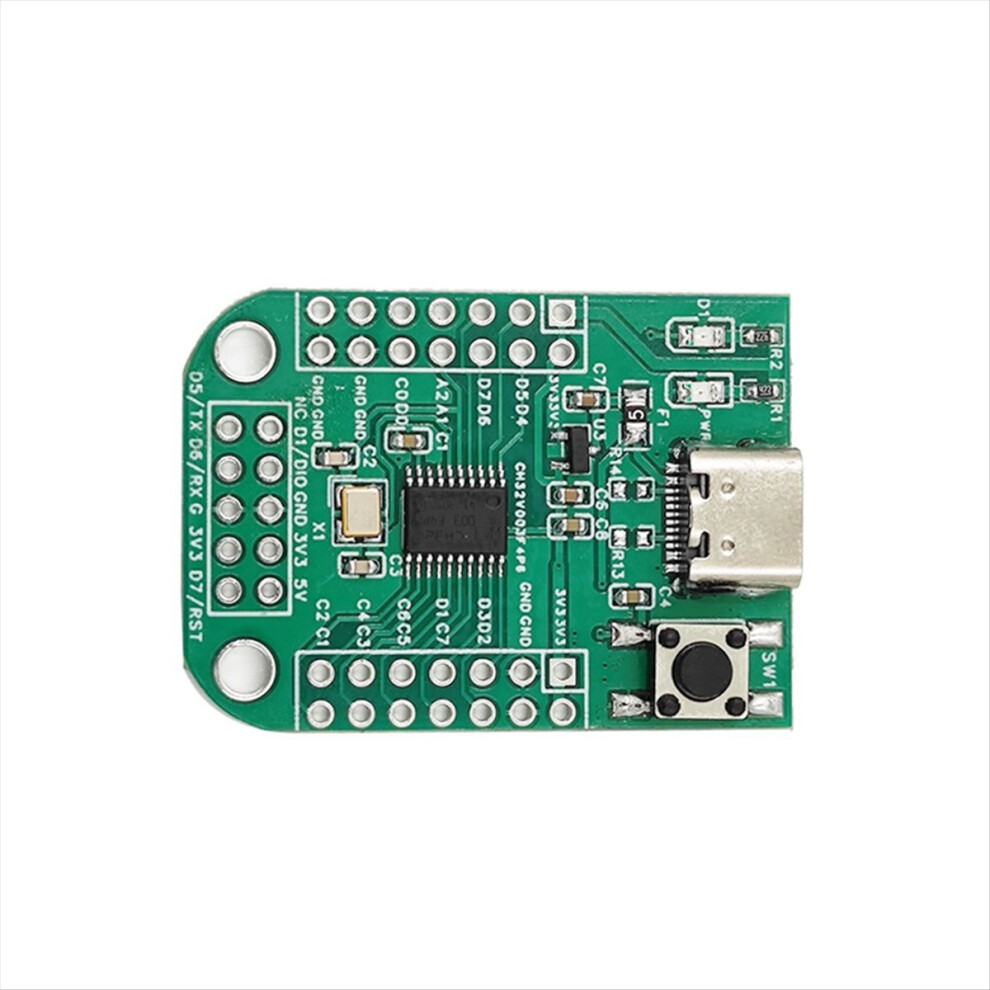

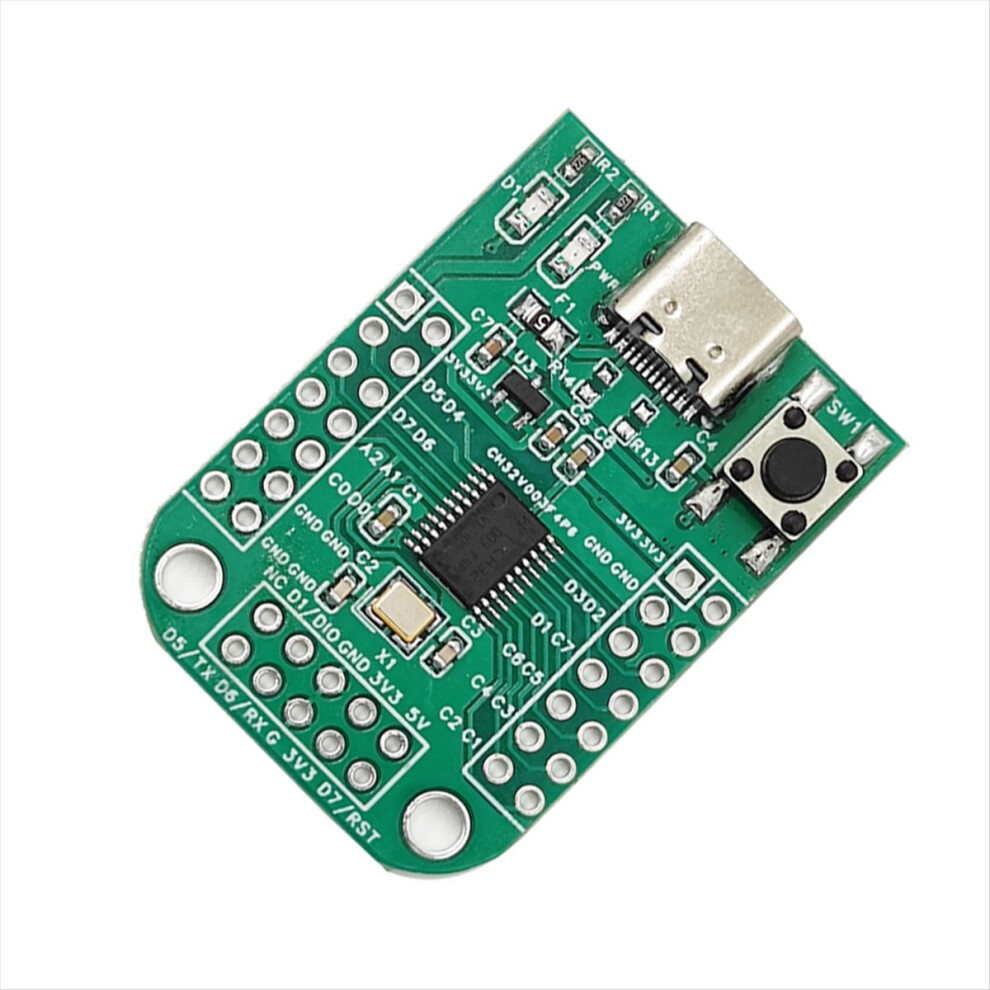

1 x ch32v003 board

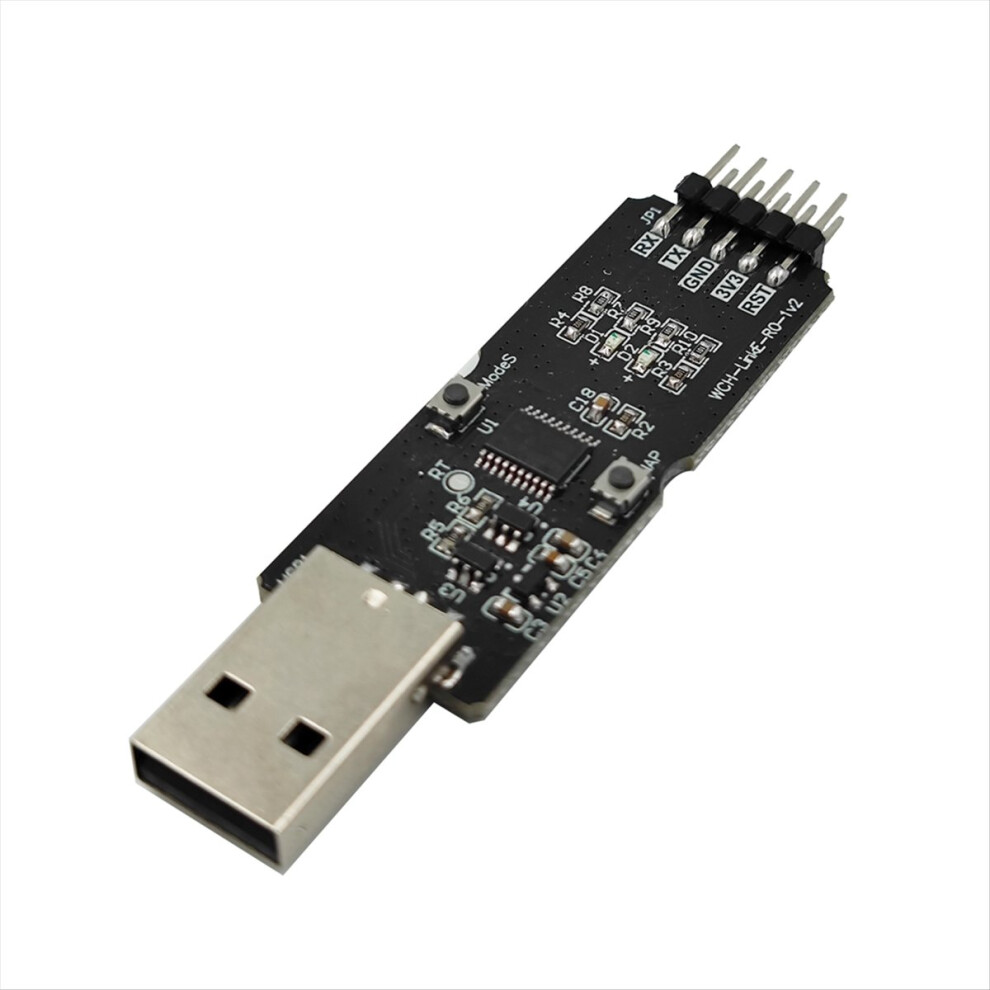

1 x wchlinke(Due to different product batches, the appearance may be different, which does not affect use.)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
