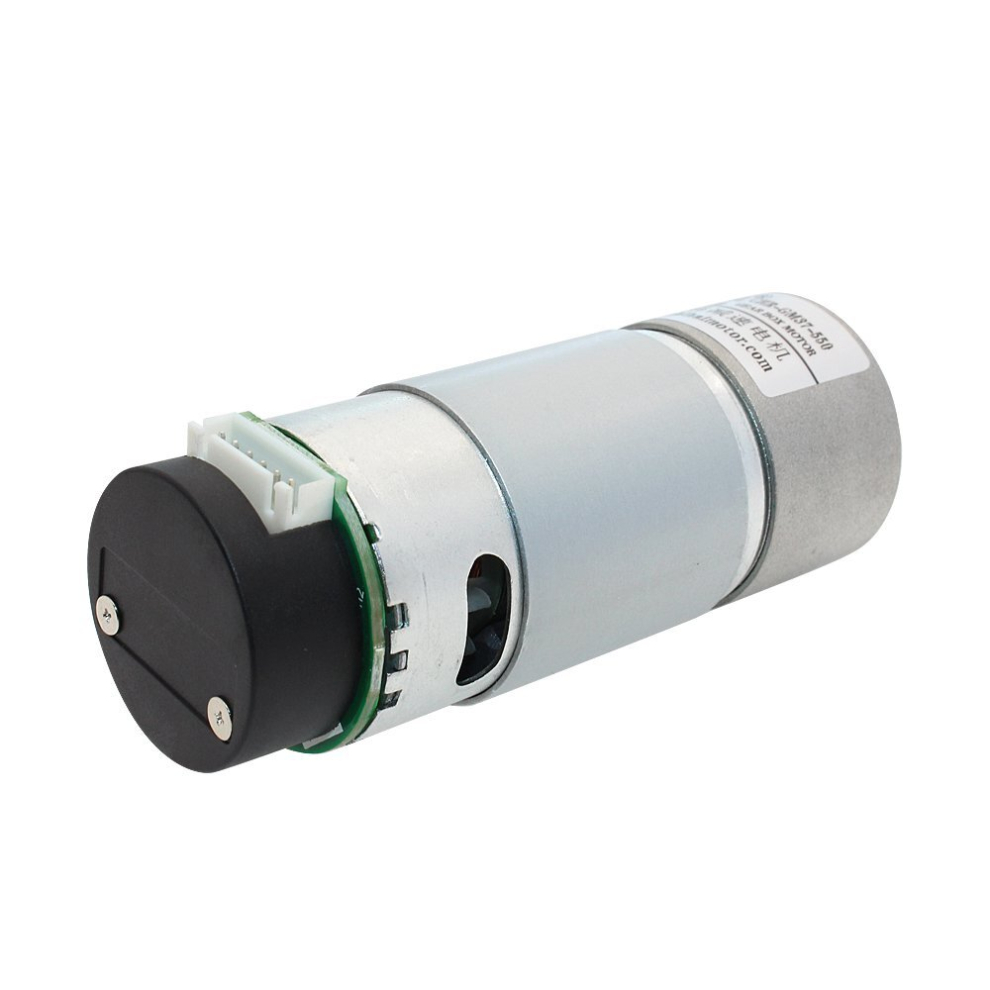

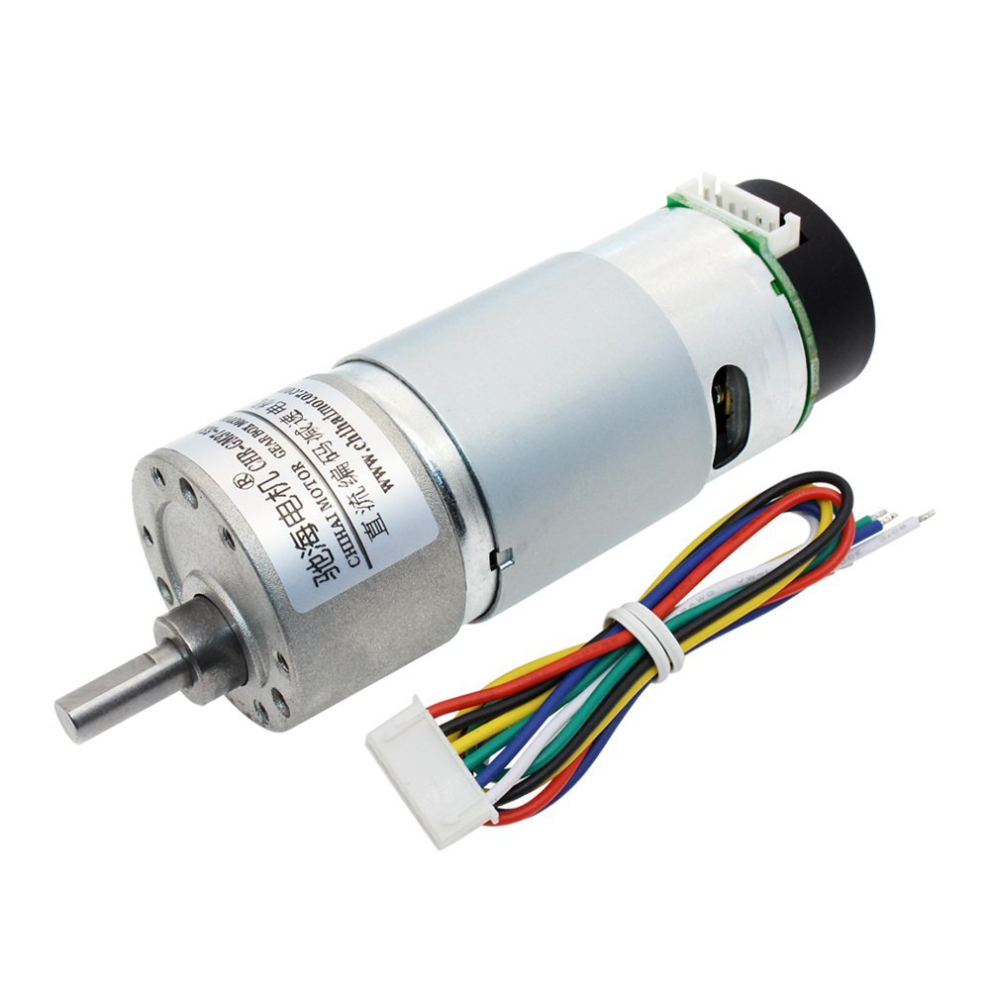

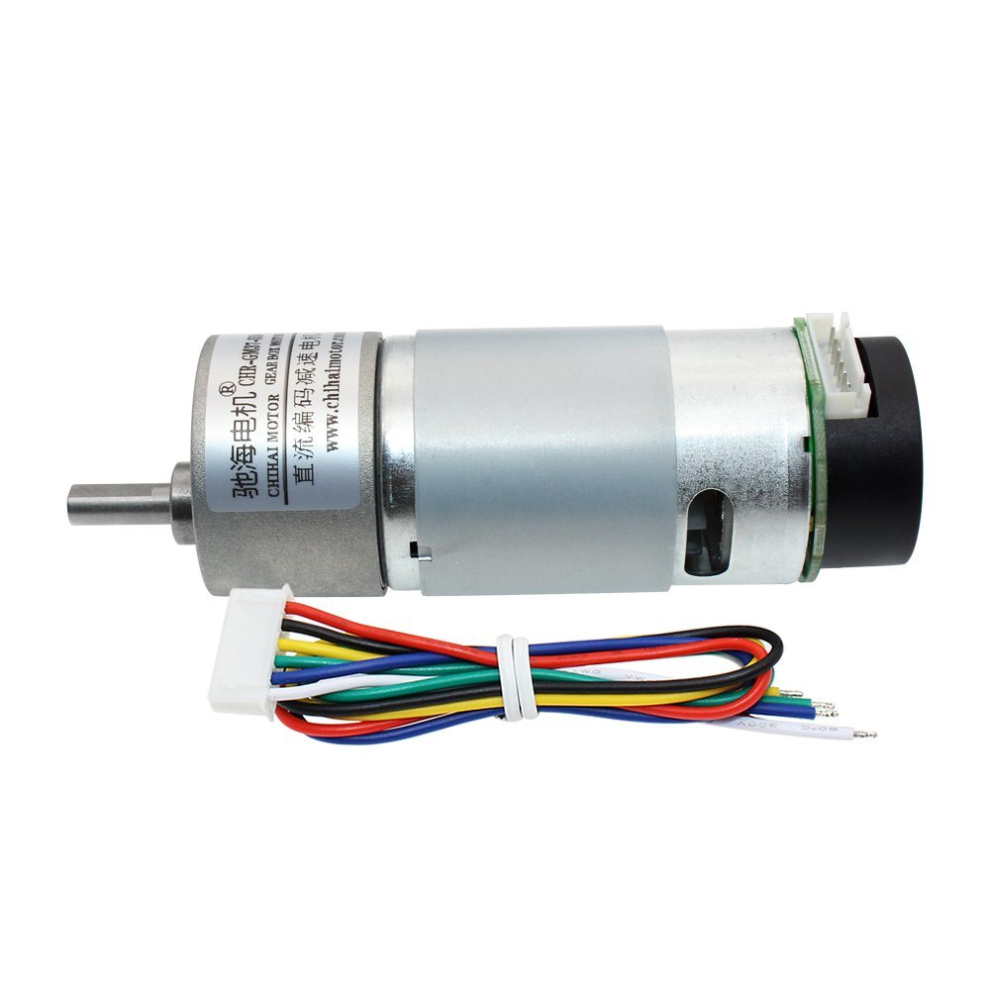

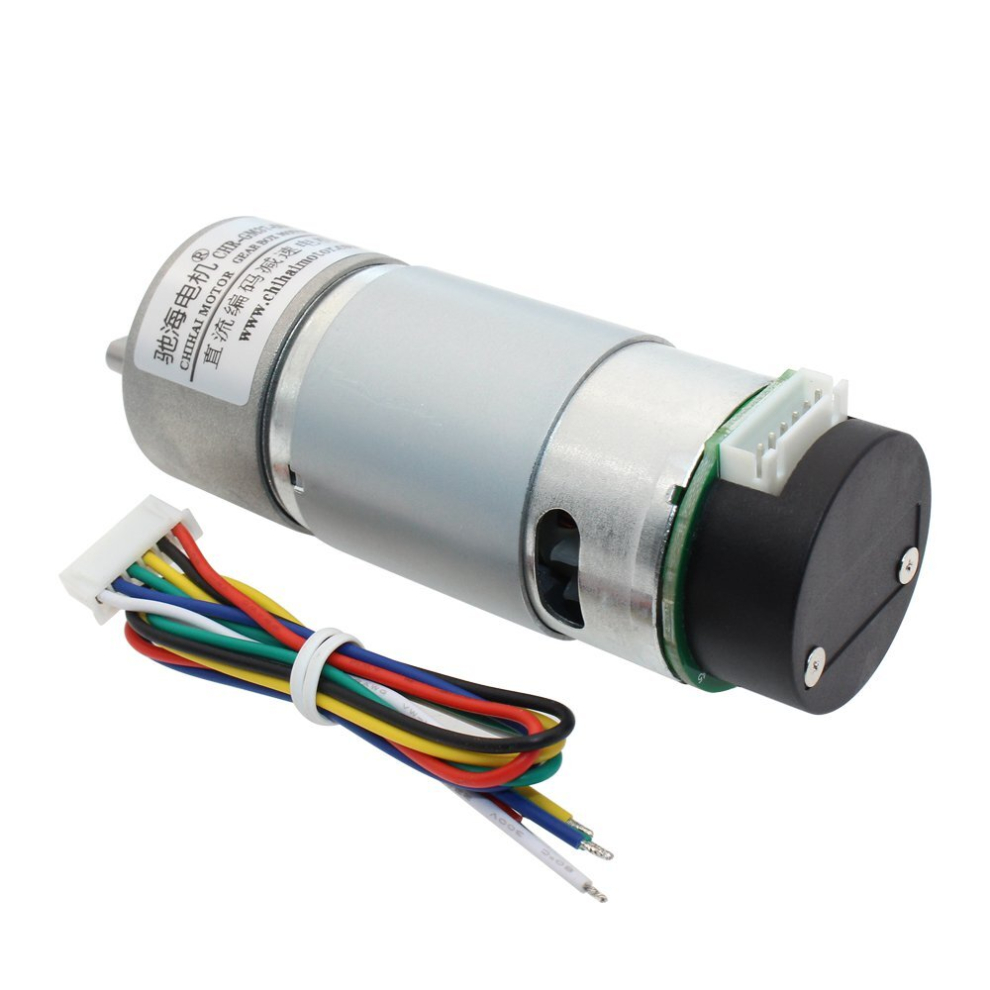

Chihai CHF-GM37-550ABHL Holzer Encoder DC Motor High Torque Gear Reducer D Axis Encoder Motor

Chihai CHF-GM37-550ABHL Holzer Encoder DC Motor High Torque Gear Reducer D Axis Encoder Motor Description

Description: Chihai CHF-GM37-550ABHL Holzer Encoder DC Motor High Torque Gear Reducer D Axis Encoder Motor Specifications: Product Name D Axis Encoder Motor Model CHR-GM37-550ABHL External Diameter â37mm ÃL mm (different deceleration radio different length) Shaft Diameter â6mm, D thick 5.4mm (batch customizable) Out Axis Length Length 21mm, D Length 12mm Voltage DC 12V Max Power 40W Weight About 310g (different ratio different weight) Application Intelligent Robot, electric curtain, intelligent balance car, intelligent manipulator,etc Quantity 1 Pcs Encoders Conflg: Type AB dual phase incremental encoder Pulse Outputs of Rotation Basic pulse 17 PPR Ã gear reduction ratio Holzer Power Supply Voltage DC 3.3V/ DC 5.0V Basic Function With the pull-up shaping resistor,the single-chip microcomputer can be used Encoder Interface Type XH 2.54-6PIN (Standard wiring) Output Signal Type Square wave AB phase Response Frequency 100kHz Basic Pulse Number 17 PPR Poles of Magnetic Ring 34 polse (17 pairs of poles) Ratio 1:6.3 1:10 1:18 1:30 1:50 1:90 1:150 1:270 1:450 No-Load Current (mA) â1100 â 1100 â 1100 â 1100 â 1100 â 1100 â 1100 â 1100 â 1100 No-Load Speed (rpm) 2650 1650 875 550 330 180 110 60 36 Rated Torque (Kg.cm) 2.0 3.0 5.5 9.0 15.0 27.0 Max torque 35.0kg.cm (3.4N.m) Max torque 35.0kg.cm (3.4N.m) Max torque 35.0kg.cm (3.4N.m) Rated Torque (mN.m) 196.1 294.1 539.2 882.3 1471 2647 Max torque 35.0kg.cm (3.4N.m) Max torque 35.0kg.cm (3.4N.m) Max torque 35.0kg.cm (3.4N.m) Rated Torque (rpm) 1700 1100 580 360 215 120 70 50 24 Rated Current (A) â6.0 â6.0 â6.0 â6.0 â6.0 â6.0 â6.0 â4.5 â3.8 Stall Current (A) 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 Speed Changing Box(L) 19.0 19.0 21.5 21.5 24.0 24.0 26.5 26.5 29.0 Hall Resolution 107.1 170 306 510 850 1530 2550 4590 7650 Features: - Using MIM process, hardened steel D-hole gear. - The motor is supported by upper and lower ball bearings, and the shaft sleeve is supported by 1 ball bearing. - Tree wiring fixing modes, such as plug-in spring wiring, welding wiring, external screw fixing wiring. - The body of the motor is equipped with heat dissipation holes to accelerate heat dissipation. - Special PPS high temperature resistant plastic steel rear cove. Package Included: 1 Ã D Axis Encoder Motor More Details:
