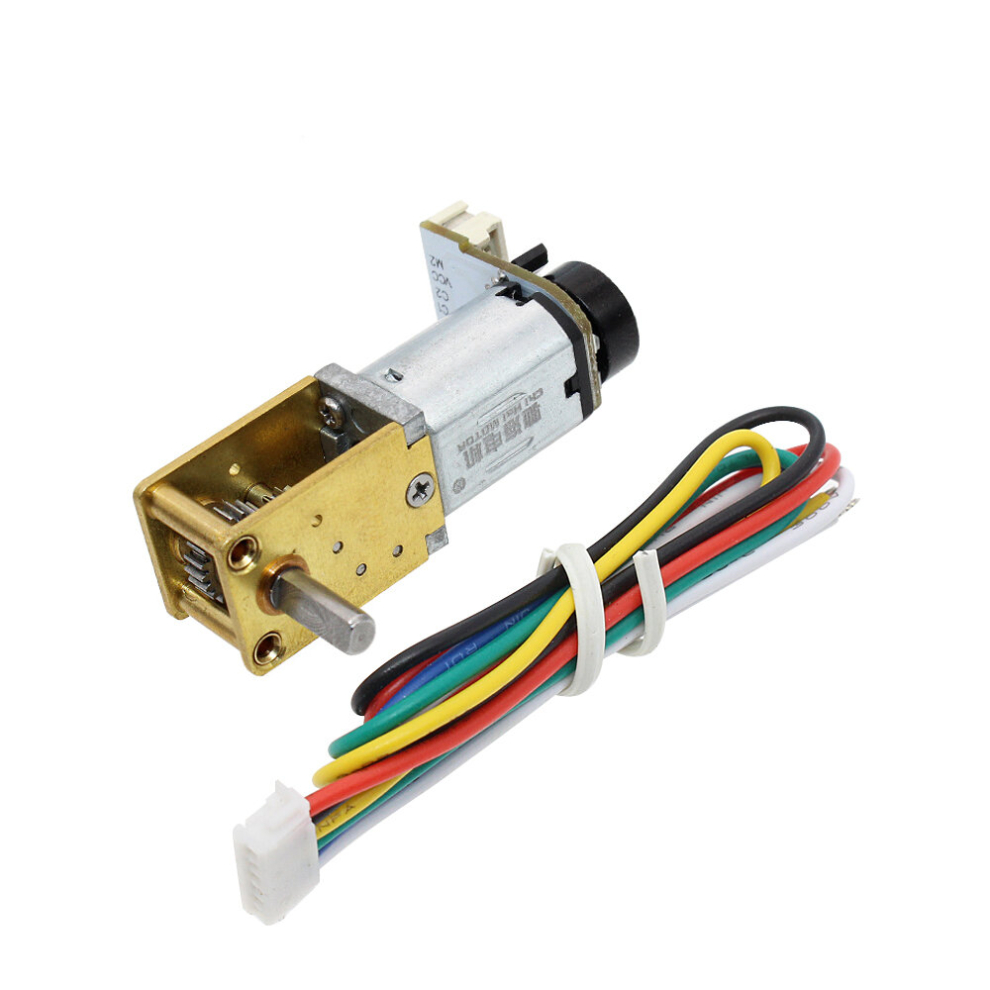

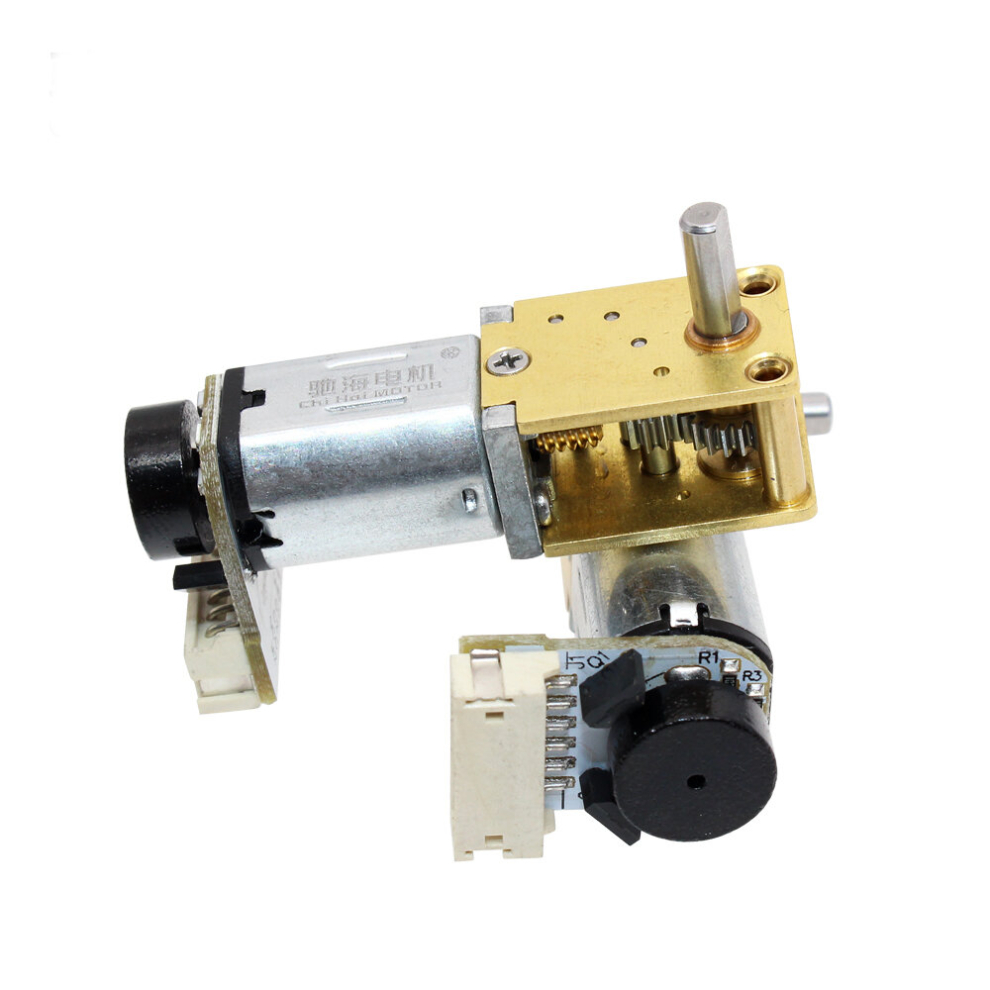

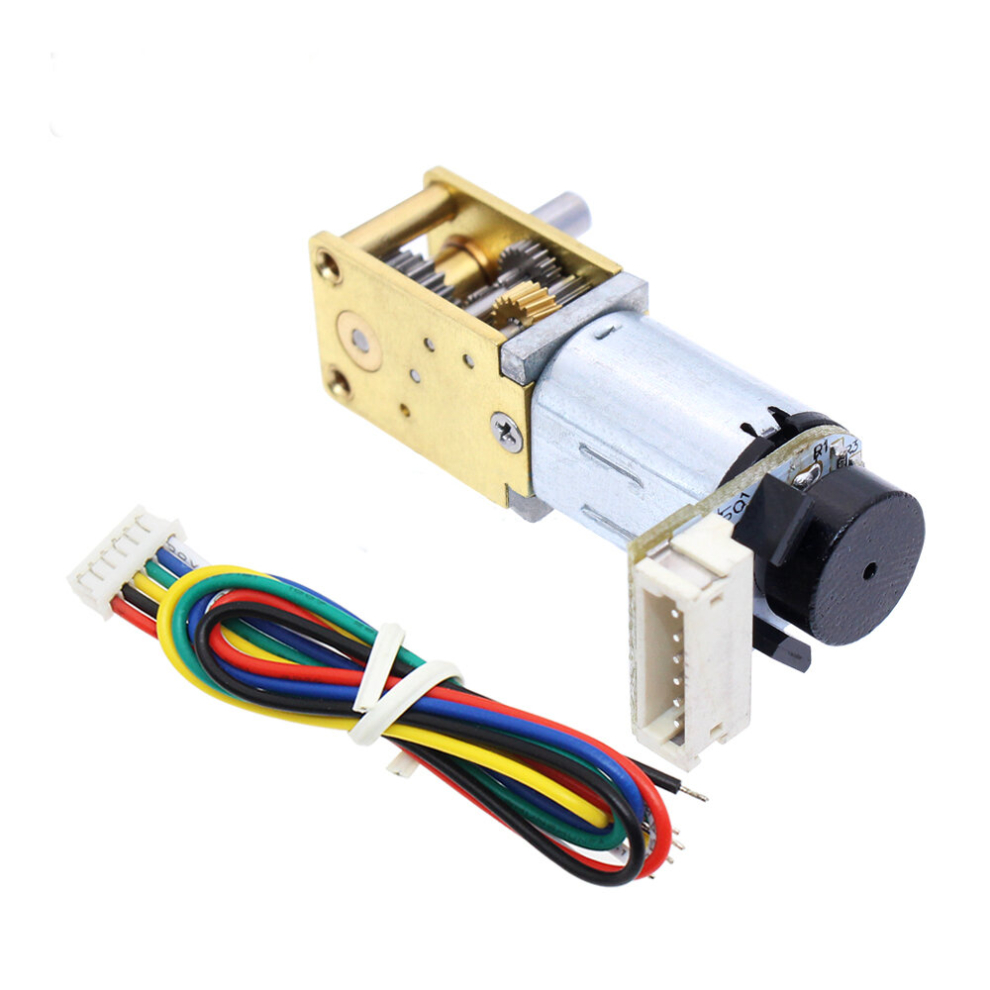

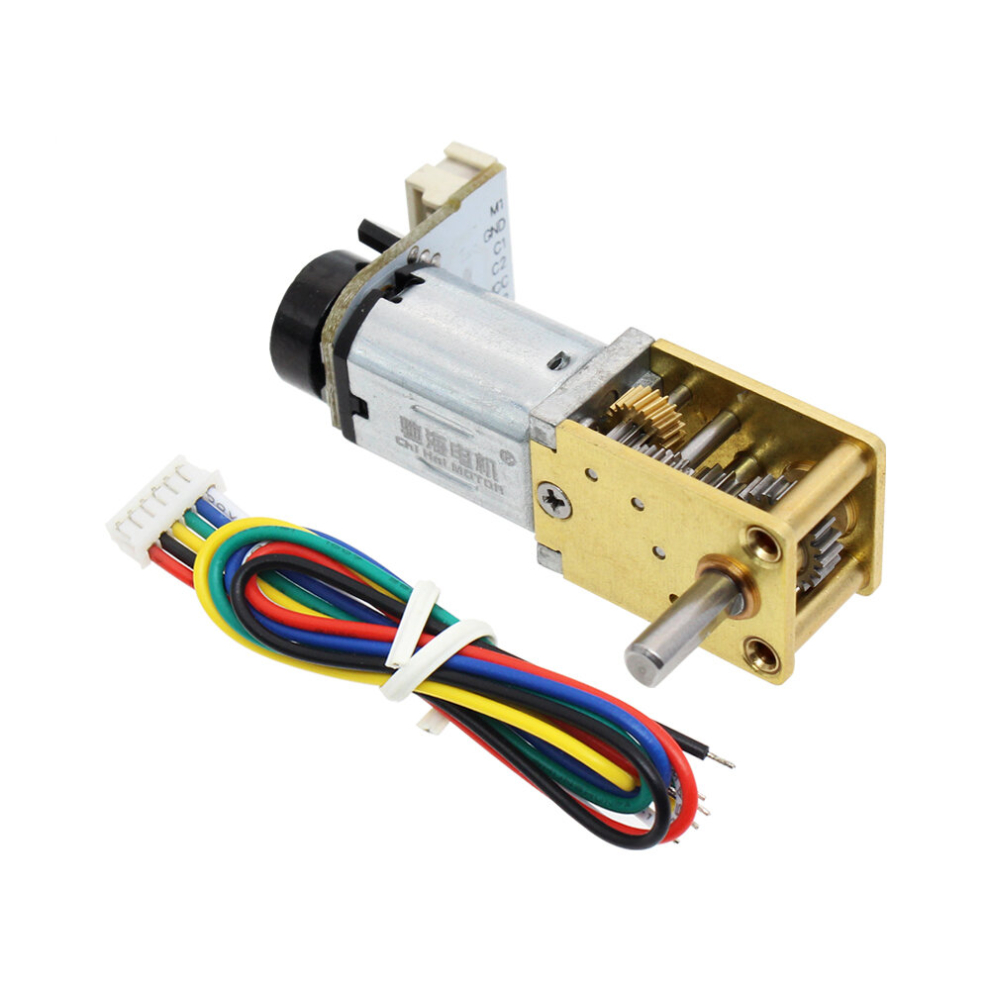

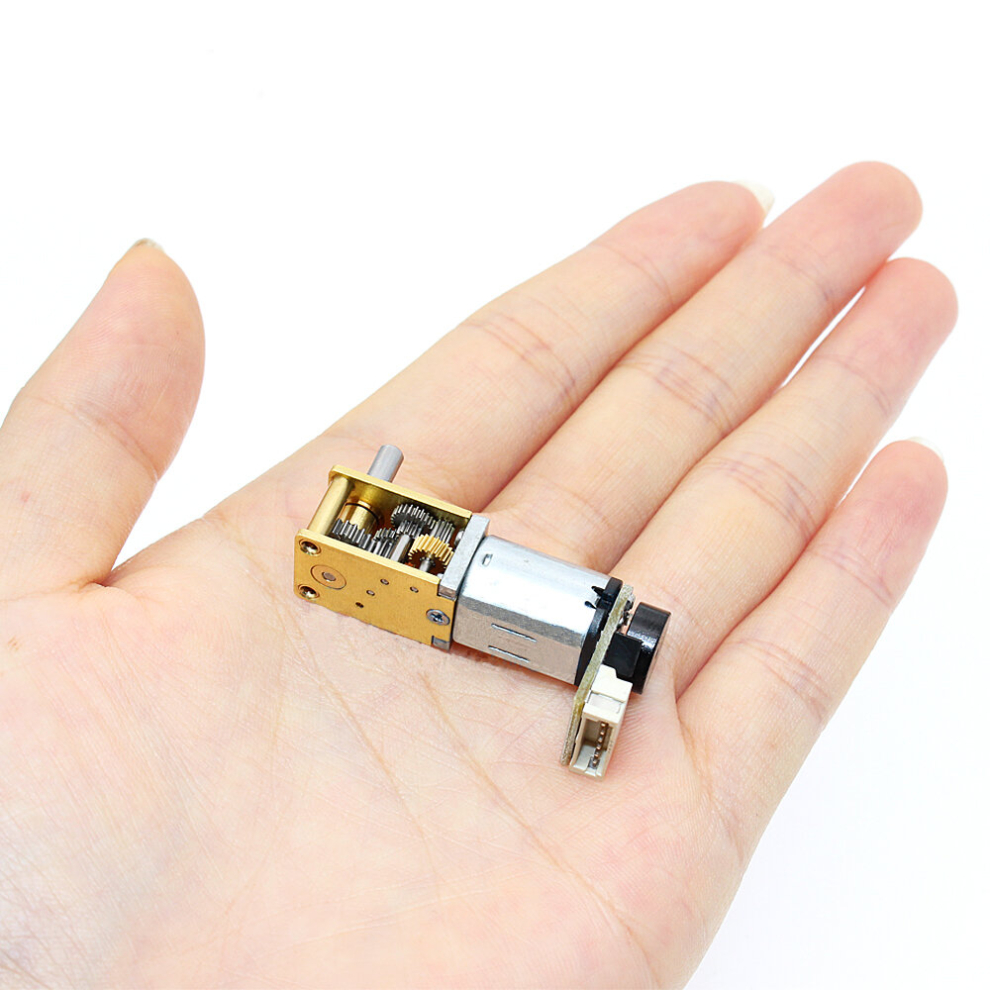

Chihai CHF-GW12T-N20VA Gear Motor DC 12V Encoding Worm Geared Motor

Chihai CHF-GW12T-N20VA Gear Motor DC 12V Encoding Worm Geared Motor Description

Description: Chihai CHF-GW12T-N20VA Gear Motor DC 12V Encoding Worm Geared Motor Specifications: Product Name DC Worm Gear Motor Model CHF-GW12T-N20VA DC Worm Gear Motor Size 10*39mm (not include the shaft) Shaft Length 8mm D Shaft Diameter Î3mm Thick 2.5 D Voltage DC 3-12V Power 0.2W Application Intelligent robot, intelligent manipulator, intelligent furniture Intelligent focusing system, miniature head, etc Quantity 1 Pcs Encoders Conflg: Type AB dual phase incremental encoder Pulse Outputs Of Rotation Basic pulse 7PPR Ã gear reduction ratio Holzer Power Supply Voltage DC 3.3V/ DC 5.0 V Basic Function With the pull-up shaping resistor, the single-chip microcomputer can be used Encoder Interface Type ZH1.5-6PIN (Standard wiring) Output Signal Type Square wave AB phase Response Frequency 100Khz Basic Pulse Number 7 PPR Number Of Trigger Poles Of Magnetic Ring 14 Poles (7 Pairs of poles) Model: CHF-GW12T-N20VA DC Worm Gear Motor Voltage: DC12.0V Power 0.2W (A35# Input the motor) Micro-gear construction, self-locking fuction is not recommended to use greater than 5.0kg.cm. The continuous rated load should not exceed 2.5kg.cm Ratio 118 238 300 603 No-Load Current (mA) â65 â 65 â 65 â 65 No-Load Speed (rpm) 200 100 78 39 Rated Torque (Kg.cm) 0.4 0.7 0.9 1.8 Rated Torque (N.m) 0.034 0.069 0.088 0.18 Rated Speed (rpm) 140 70 55 27 Rated Current (A) â 0.15 â 0.15 â 0.15 â 0.15 Stall Current (A) â 0.4 â 0.4 â 0.4 â 0.4 Stall Torque (Kg.cm) â 1.10 â 2.40 Cant exceed 3.0kg.cm Cant exceed 3.0kg.cm HALL Signal (7ÃRatio) 826.469 1652.931 2112.082 4224.164 Features: - All metal gears, wear-resistant, strong torsion resistance, long life, fast heat dissipation, and strong composite ability. - Pure copper wire winding, the rotor part adopts pure copper group, low resistance, strong conductivity, and the motor torque is increased. - Worm gears reduce speed, increase transmission ratio, have self-locking function, smooth transmission, and compact structure. Package Included: 1 Ã DC Worm Gear Motor More Details:
