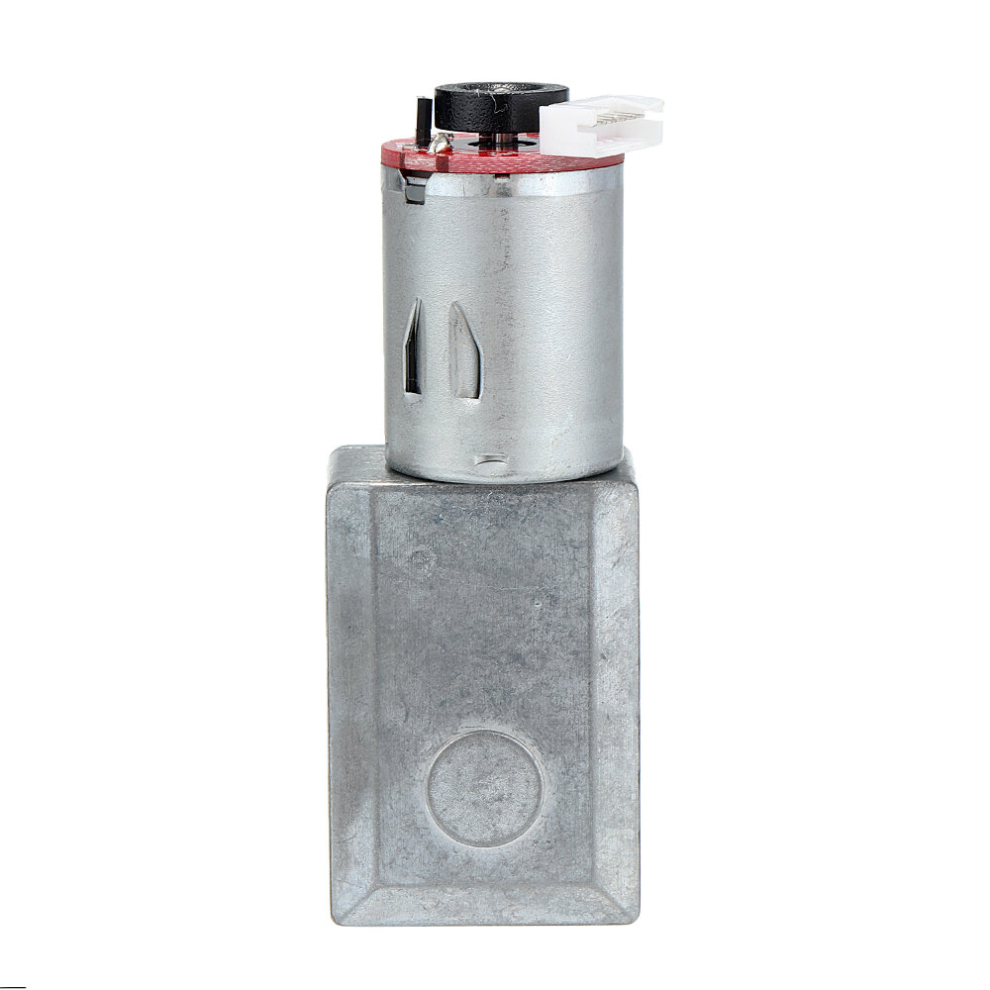

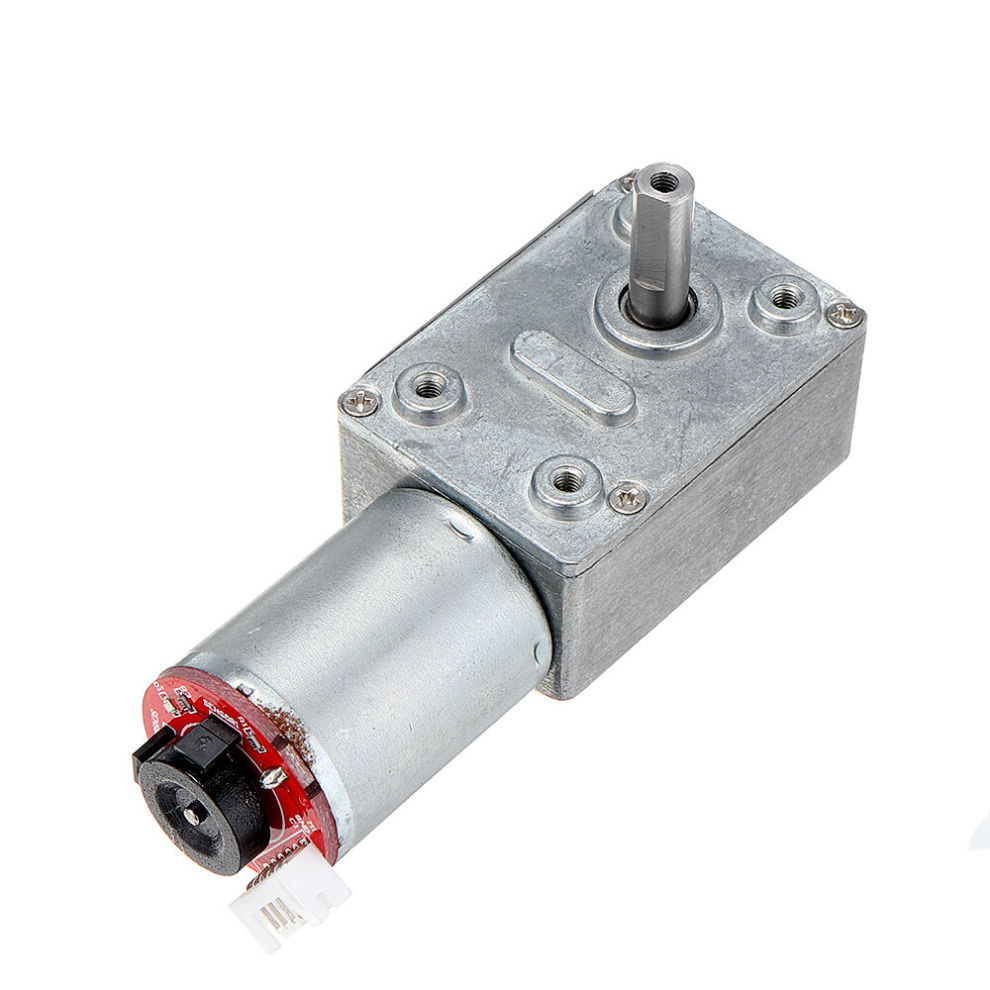

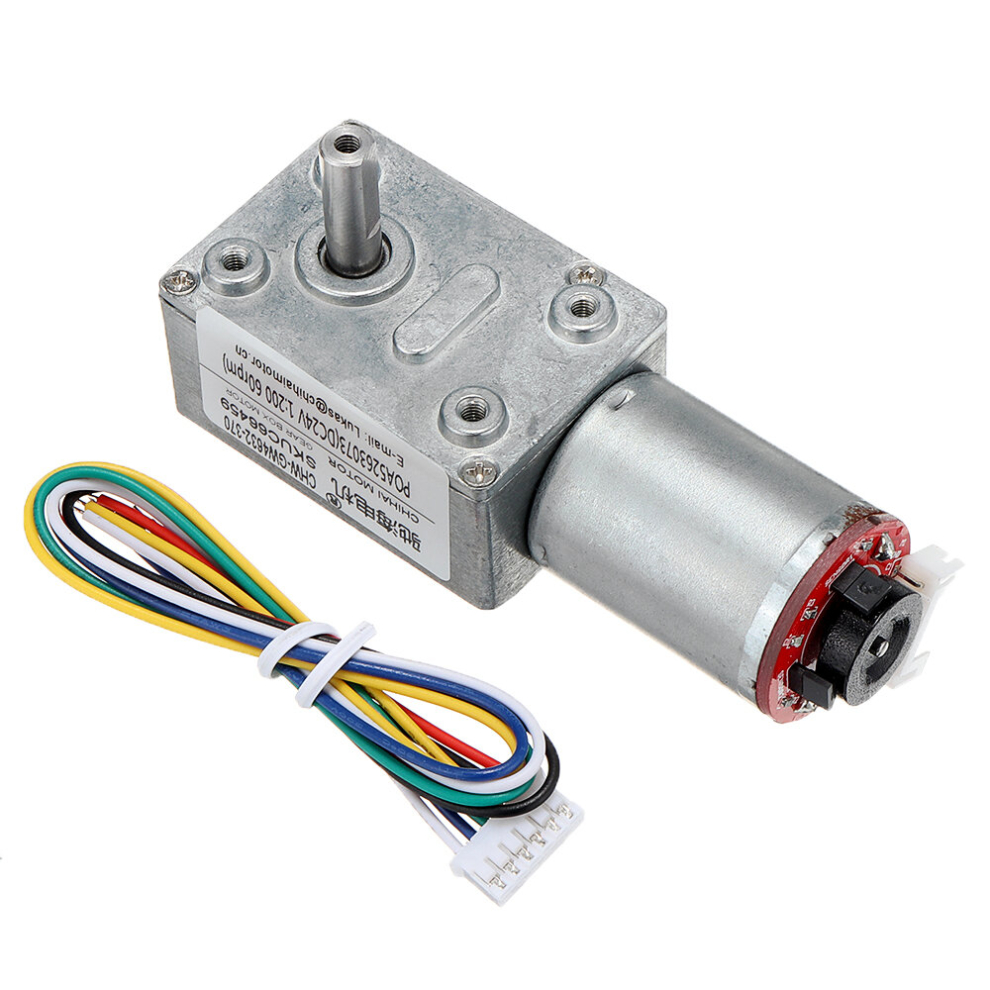

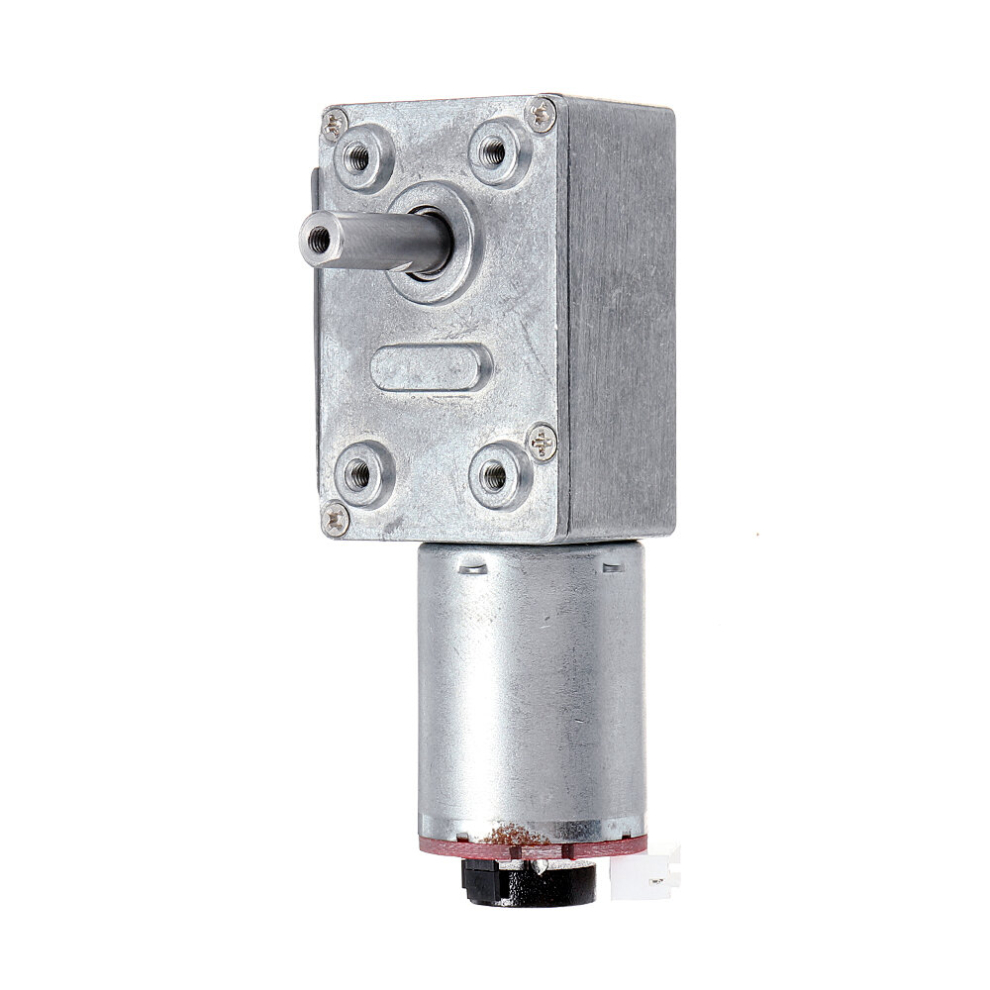

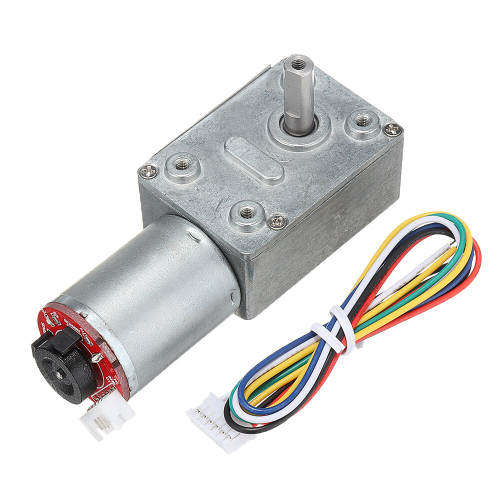

Chihai CHW-GH4632-370 Reduction Gear Encoder Motor Permanent Magnet DC Hall Coding Motor with Code

Chihai CHW-GH4632-370 Reduction Gear Encoder Motor Permanent Magnet DC Hall Coding Motor with Code Description

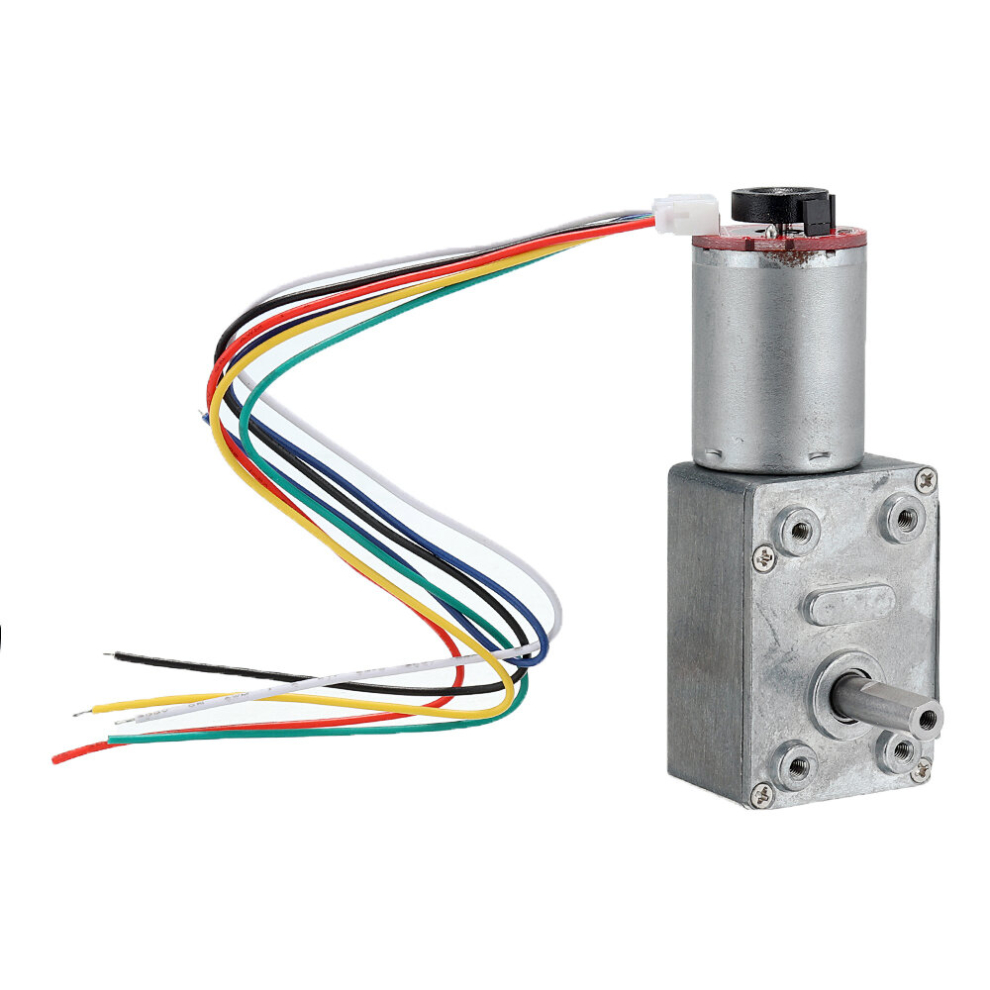

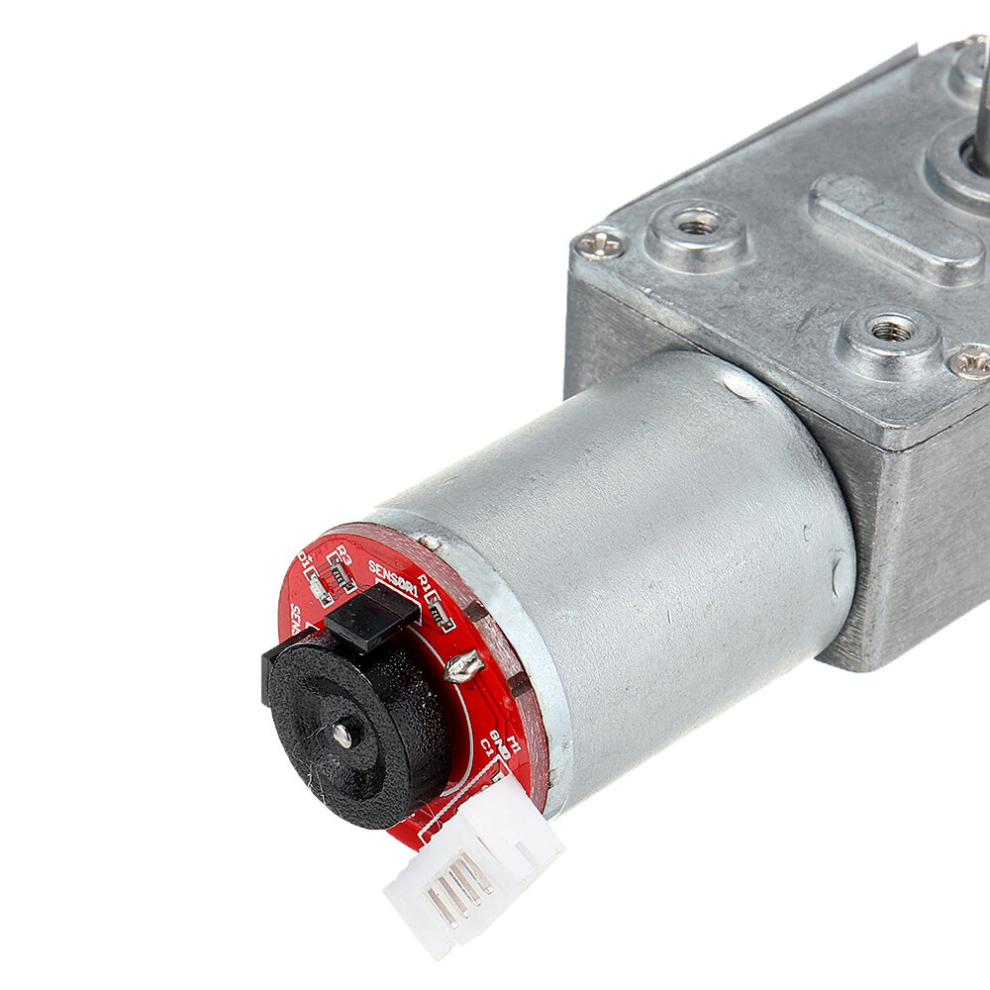

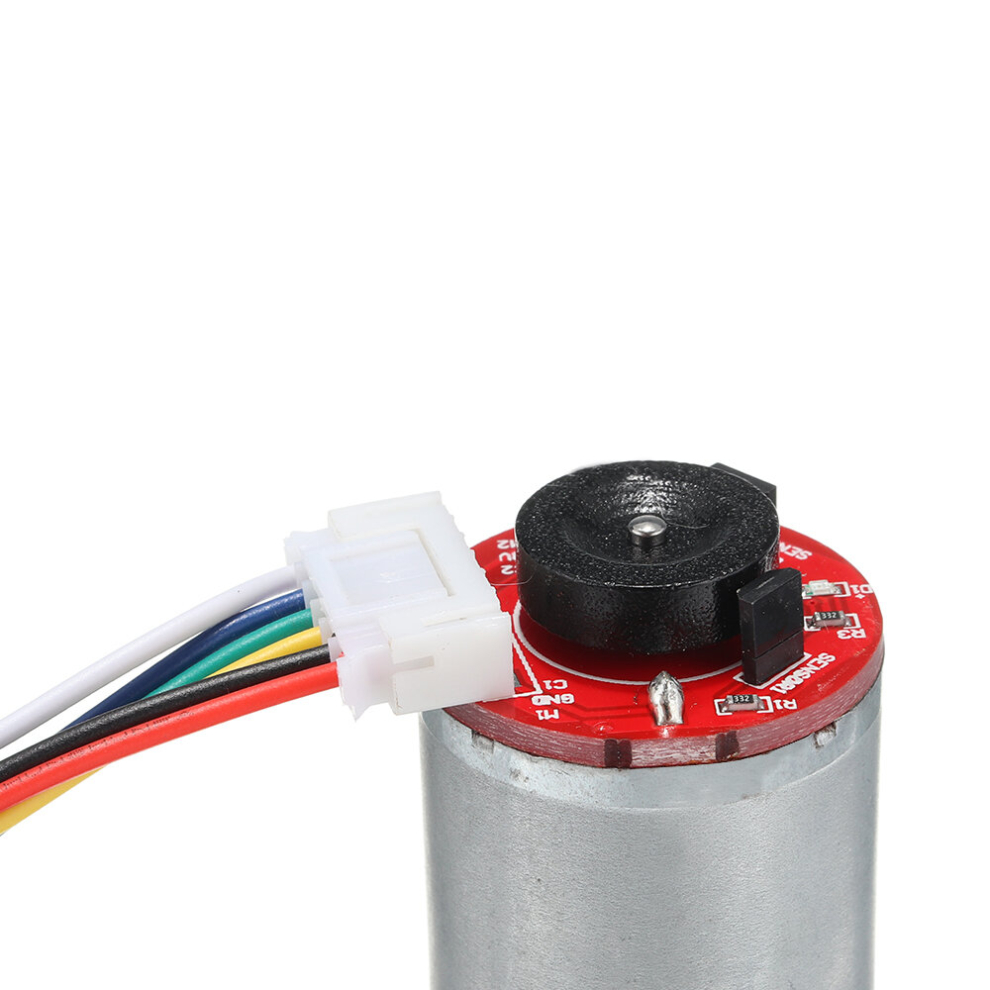

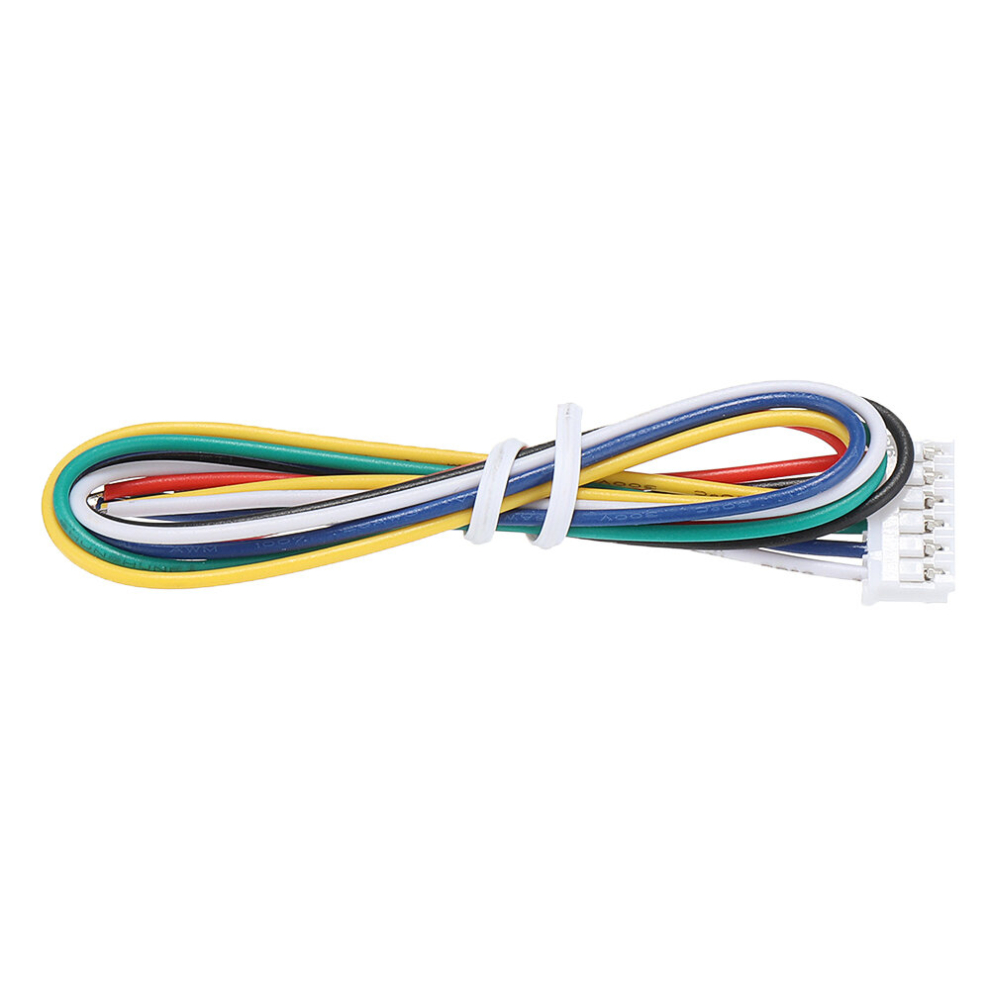

Descriptions: Chihai CHW-GH4632-370 reduction gear motor permanent magnet dc hall coding motor with code Specifications: Brand: Chihai Motor Model: CHW-GH4632-370 DC hall reduction motor Shaft Length: 55mm full threaded shaft Shaft Diameter: M6 x 1.0 threaded shaft Voltage: 12V/24V Weight: about 200g Machine Size: diameter 25mm, total length 45mm Voltage (V) 12.0 24.0 Out Power (W) 3.3 12.0 Reduction Ratio 1:200 No load Speed(rpm) 30 60 No load Current (mA) ≤150 ≤200 Nominal Torque (Kg.cm) 10.0 7.5 Nominal Speed (rpm) 21 42 Nominal Current (A) ≤0.5 ≤0.7 Stall Torque (kg.cm) can't exceed 30.0kg.cm Stall Current (A) ≤1.2 ≤2.3 Hall Signal (11 x RATIO) 2200 Coder Wiring Instruction: - M2 motor power input + - VCC hall power input + (DC 5.0V or DC 3.3V) - Hall signal output phase B - Hall signal output phase A - GND hall power input + - M1 motor power input - Features: - Large torque, adjustable, positive and negative; - Low energy consumption and low noise; - Worm gear reduction drive, strong self-locking power off; - The rotor part is made of pure copper, the resistance is small, and the conductivity is strong, which makes the motor torque increase; - M6 international threaded shaft. Package Included: 1 Pc x Chihai CHW-GH4632-370 reduction gear motor More Details:
