Chord Passive DI Direct Injection Box for Converting high Impedance Instruments

Chord Passive DI Direct Injection Box for Converting high Impedance Instruments Description

Passive Direct Injection Box

• Passive DI box for converting high impedance instrument outputs to low impedance line signals
• Ground float option for ground lift with RF/mains filter
• Ground lift option isolates signal ground without filter
• 3 pad settings for level matching
• Input 6.3mm jack (unbalanced)

Chord | Passive DI Box

The Passive DI Box (Direct Injection Box) is tough and compact, in a sturdy road-ready metal case.

Great sound gig after gig, session after session. See for yourself and make the purchase.

Converts high impedance instrument outputs into low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

PRODUCT FEATURES:

• Ground float option for ground lift with RF/mains filter
• Ground lift option isolates signal ground without filter
• 3 pad settings for level matching

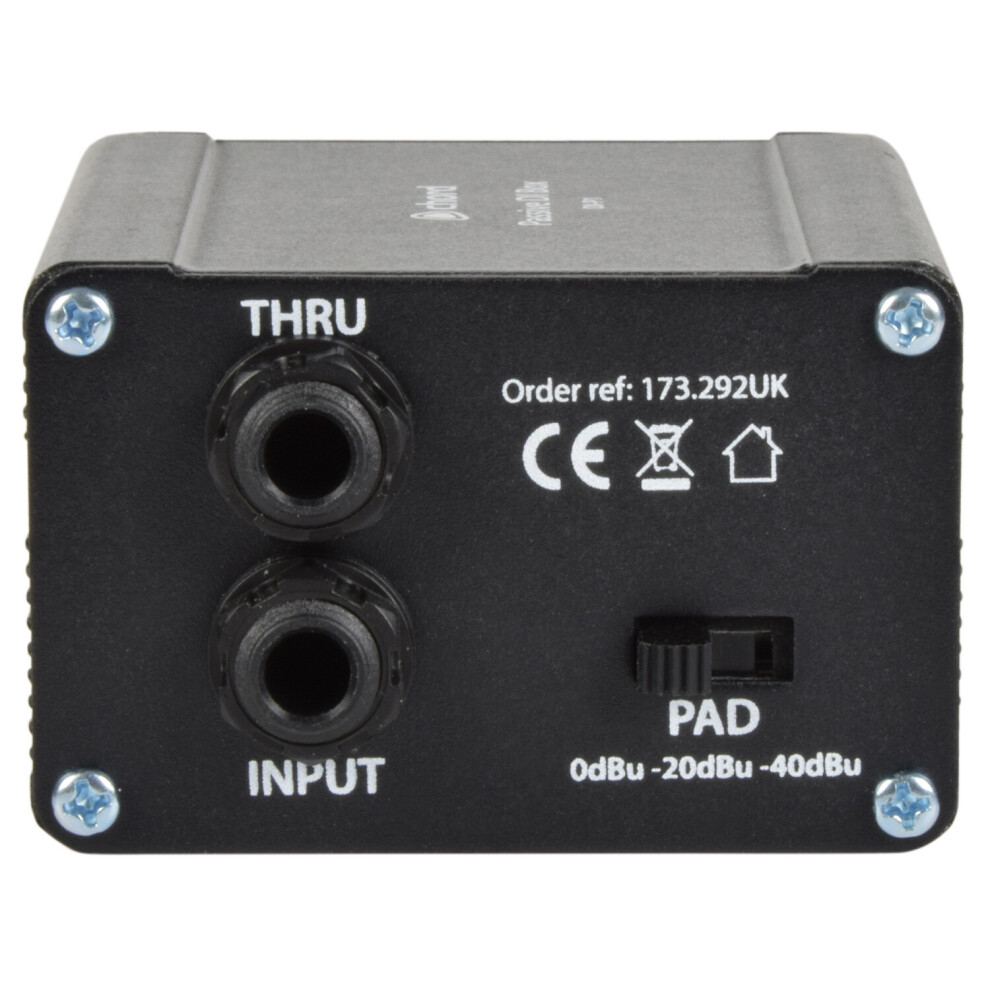

• Thru/out jack lets you send the unbalanced signal to an onstage amplifier while the balanced signal is routed to the mixer
• Allows the use of long cables without losing high frequencies

SPECIFICATION:

• Input 6.3mm jack (unbalanced)
• Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
• Input impedance >100k Ohms
• Output impedance 600 Ohms
• Controls 0/-20/-40dBu pad & Ground-Float-Lift switch

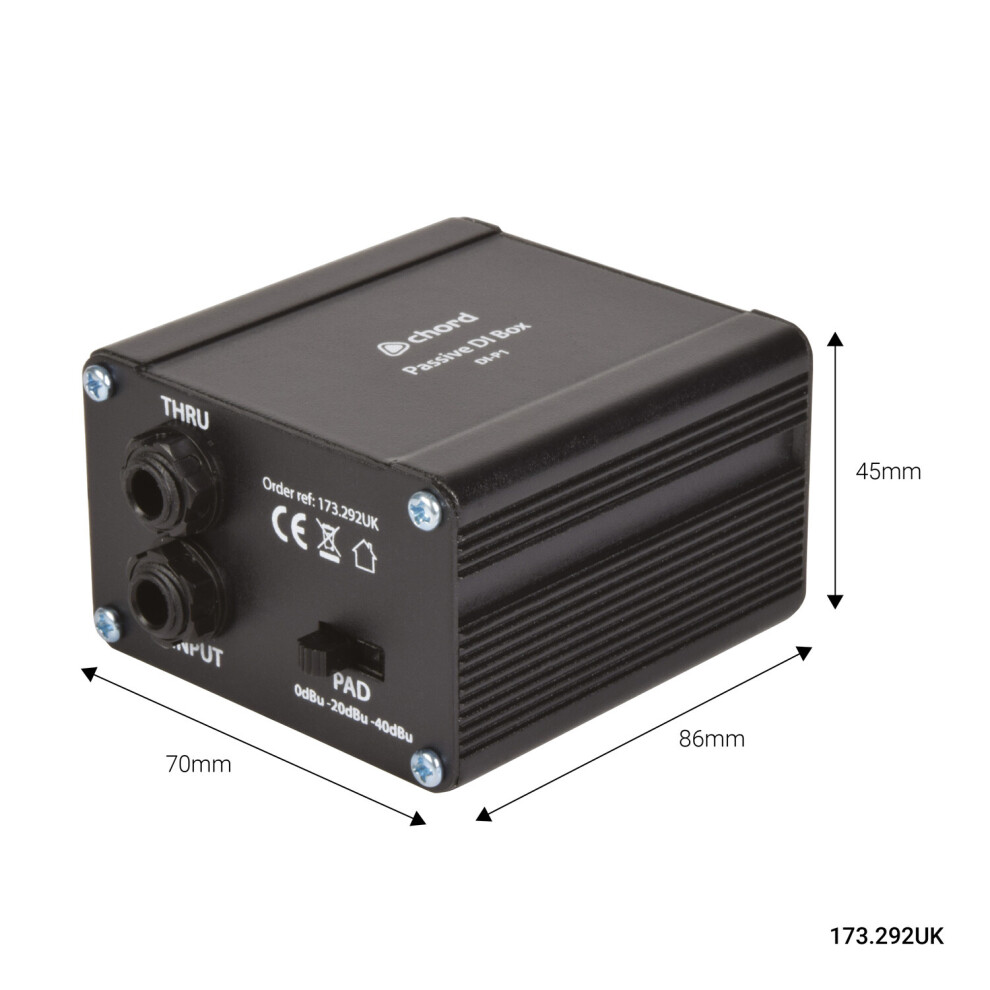

• Dimensions 86 x 70 x 45mm
• Weight 234g
