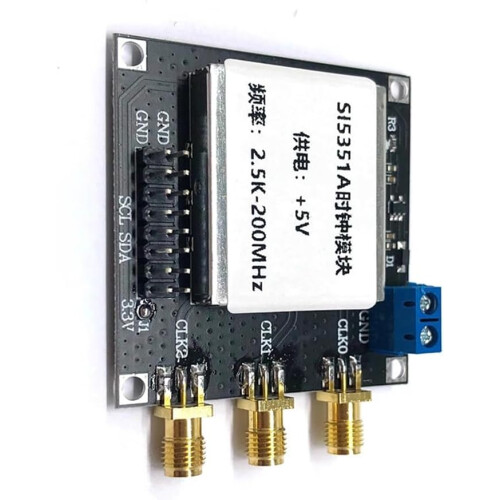

Clock Signal Generator Module 2.5K200MHz, Frequency Square Wave Generator, STM32 TFT Display, DIY Kit

Clock Signal Generator Module 2.5K200MHz, Frequency Square Wave Generator, STM32 TFT Display, DIY Kit Description

Output frequencies F0 and F1 can be set from 2.5K to 200 MHz, offering a wide range for signal generation and testing F2 and F1 share a single phaselocked loop, ensuring tight phase coherence between outputs for precise synchronization The frequency division ratio is configurable, providing flexible integration with various test setups and systems Simple power requirement: +5V supply for convenient operation in standard lab environments Output interface: SMA female connector for reliable, standard RF connections Key specifications Output frequency: F0 = F1 = 2.5K to 200 MHz PLL configuration: F2 and F1 share a phaselocked loop Frequency division ratio: configurable Power supply: +5V Output interface: SMA female connector Benefits and use cases Flexible signal generation: suitable for bench testing, calibration, and development work that requires a wide and tunable frequency range Coherent multioutput operation: enables simultaneous, phasealigned signals, beneficial for crosschannel measurements and reference signaling Easy system integration: configurable division and standard SMA output simplify incorporation into existing RF test rigs and instrumentation Practical applications RF lab signal generation and synchronization across multiple devices in a test setup Reference signal source for communication system development and instrument calibration Coherent LO or reference in instrumentation such as spectrum analyzers and network analyzers, enabling accurate measurements and alignment Connection and compatibility Uses standard SMA female output for compatibility with common RF cables and equipment Designed for operation with a +5V power supply in typical laboratory environments
