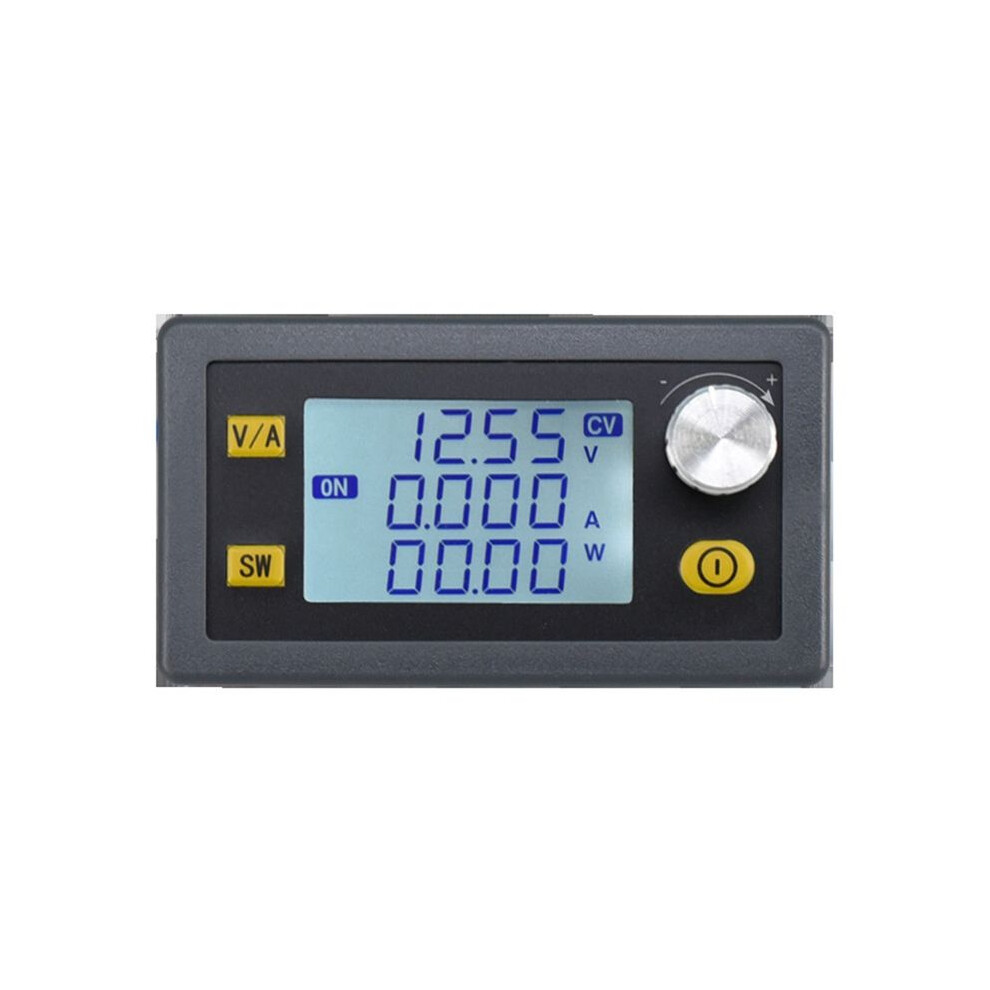

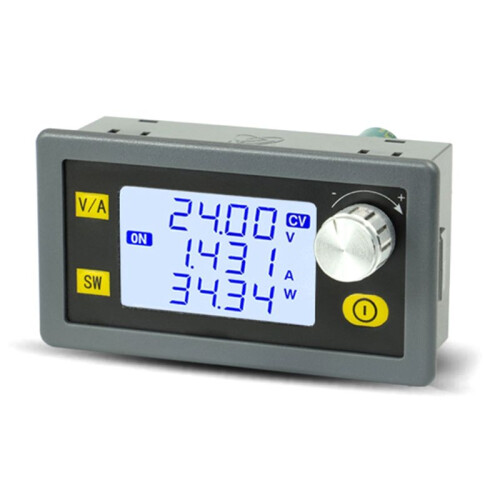

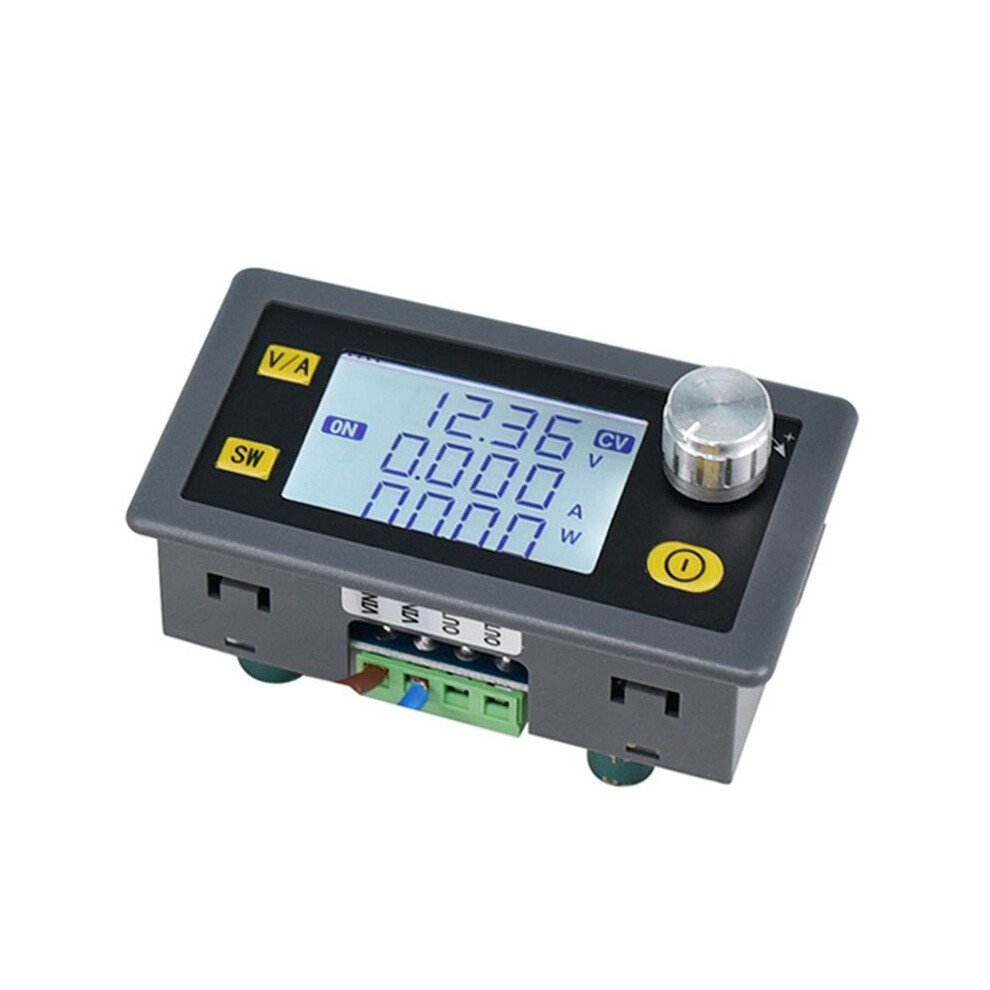

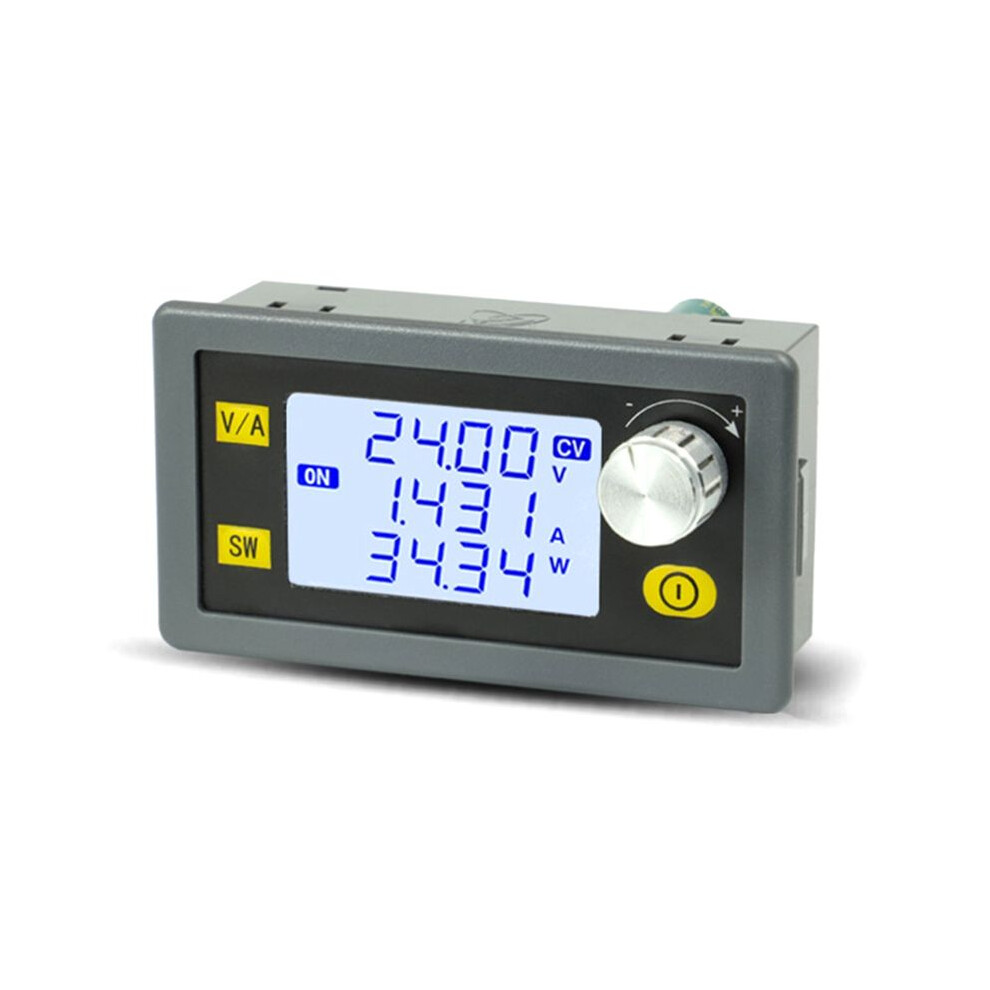

CNC DC Automatic Buck Boost Converter Adjustable Regulated Power Supply Constant Voltage Current 35W Module

CNC DC Automatic Buck Boost Converter Adjustable Regulated Power Supply Constant Voltage Current 35W Module Description

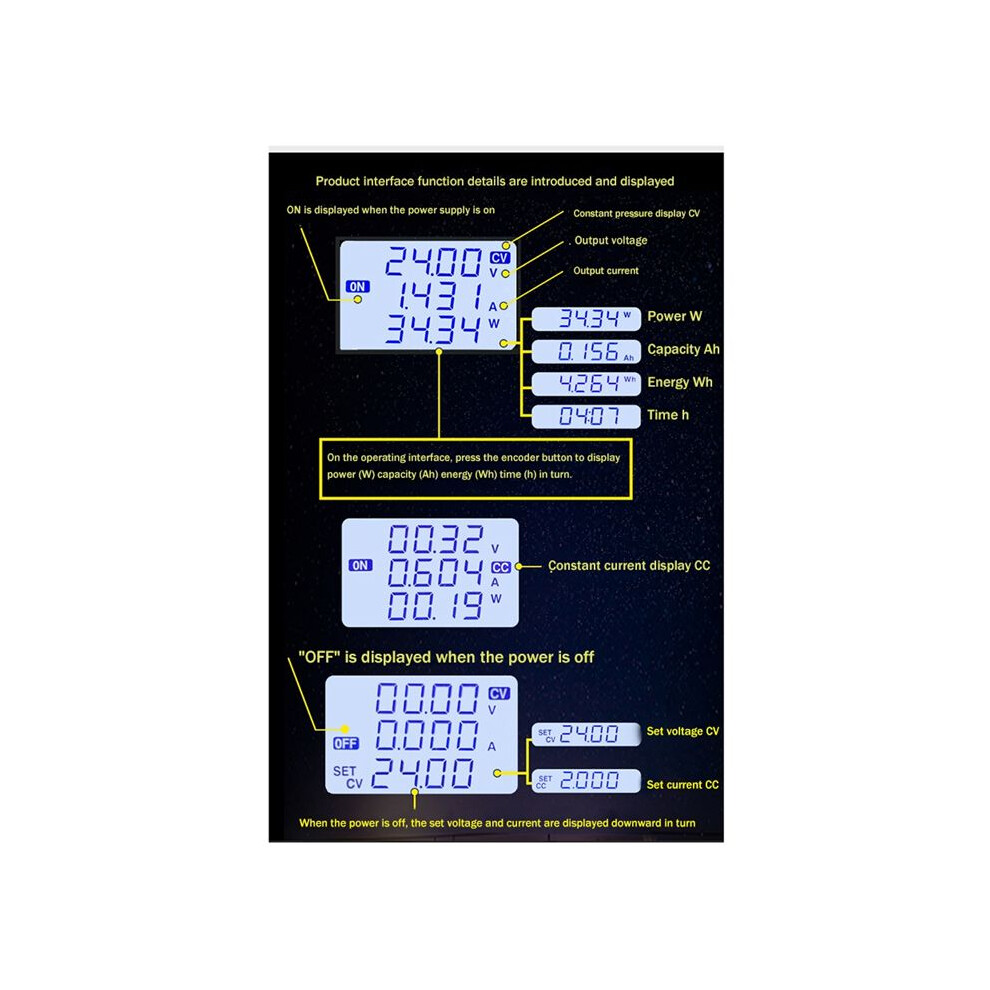

The large screen display shows the status at a glance, simple operation and more smooth experience.
Display complete, simple operation, stable performance.
Fine workmanship One-piece molding frosted panel High-quality aluminum alloy knob cap Good hand feeling.

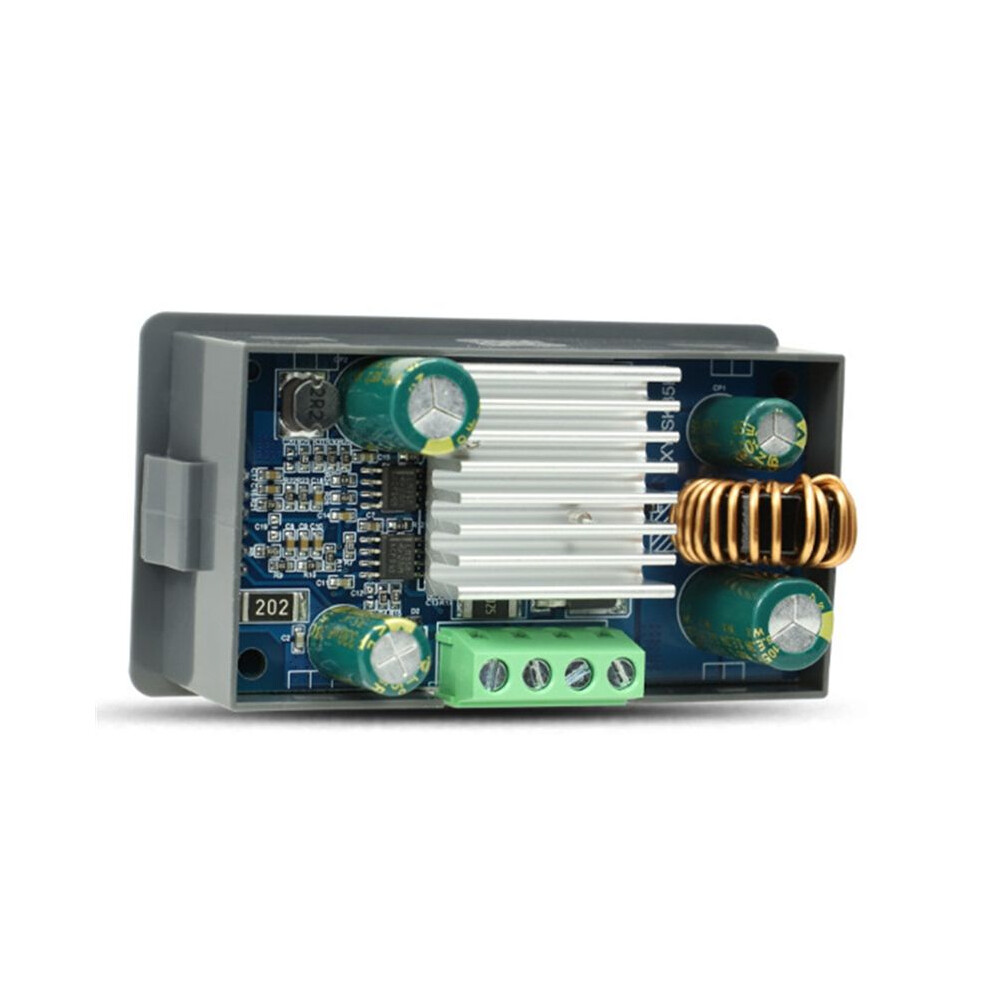

High-power high-temperature resistant iron-silicon aluminum magnetic ring inductor.
Made of high quality materials, .

Product parameters
Product name: CNC DC voltage boosting power supply
Product Model:XY-SK35H

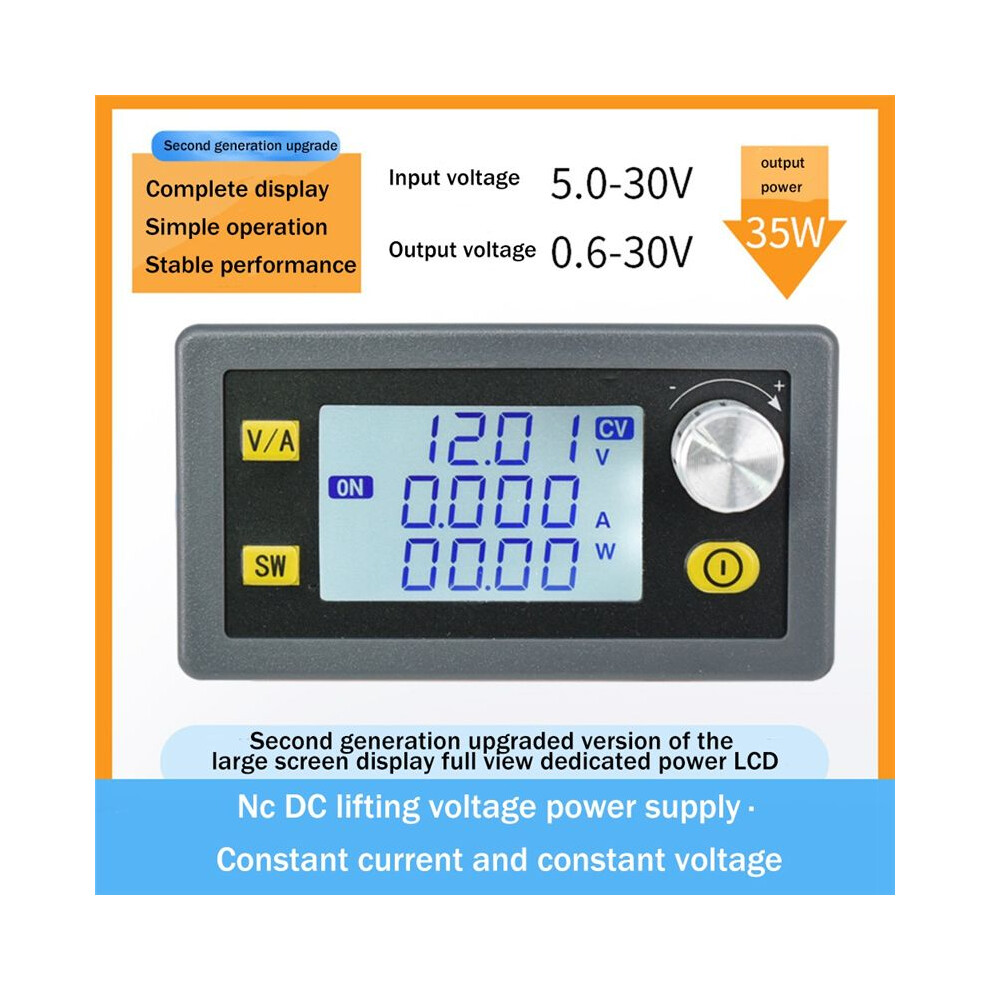

Input voltage: 5.0~30V
Output voltage: 0.6~30V
Output current: 0~4.0A
Output power: natural heat dissipation 35W plus air-cooled heat dissipation 50W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Voltage accuracy: 0.5% + 1 word
Current accuracy: 0.5% + 3 words
Current resolution: 0.001A
Soft : Yes
Protection mechanism
Input anti-reverse connection: Yes
Output anti-backflow: Yes
Input under-voltage protection: (4.7-30V adjustable, default 4.7V)
Output over-voltage protection: (0-32V adjustable, default 32V)
Output overcurrent protection: (0-4.2A adjustable, default 4.2A)
Output over power protection: (0-51W adjustable, default 36W)
Over-temperature protection: Yes, default 95
Timeout protection: (0-100H adjustable, default off)
Overcapacity protection: (0~9999AH adjustable, default off)
Super energy protection: (0 ~ 9999WH adjustable, default off)
Size:79 x 43 x 25MM
Material: Plastic
colour: black

Package Contents:
1 x Voltage Converter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
