CNC Motion Control System 3 Axes Offline

CNC Motion Control System 3 Axes Offline Description

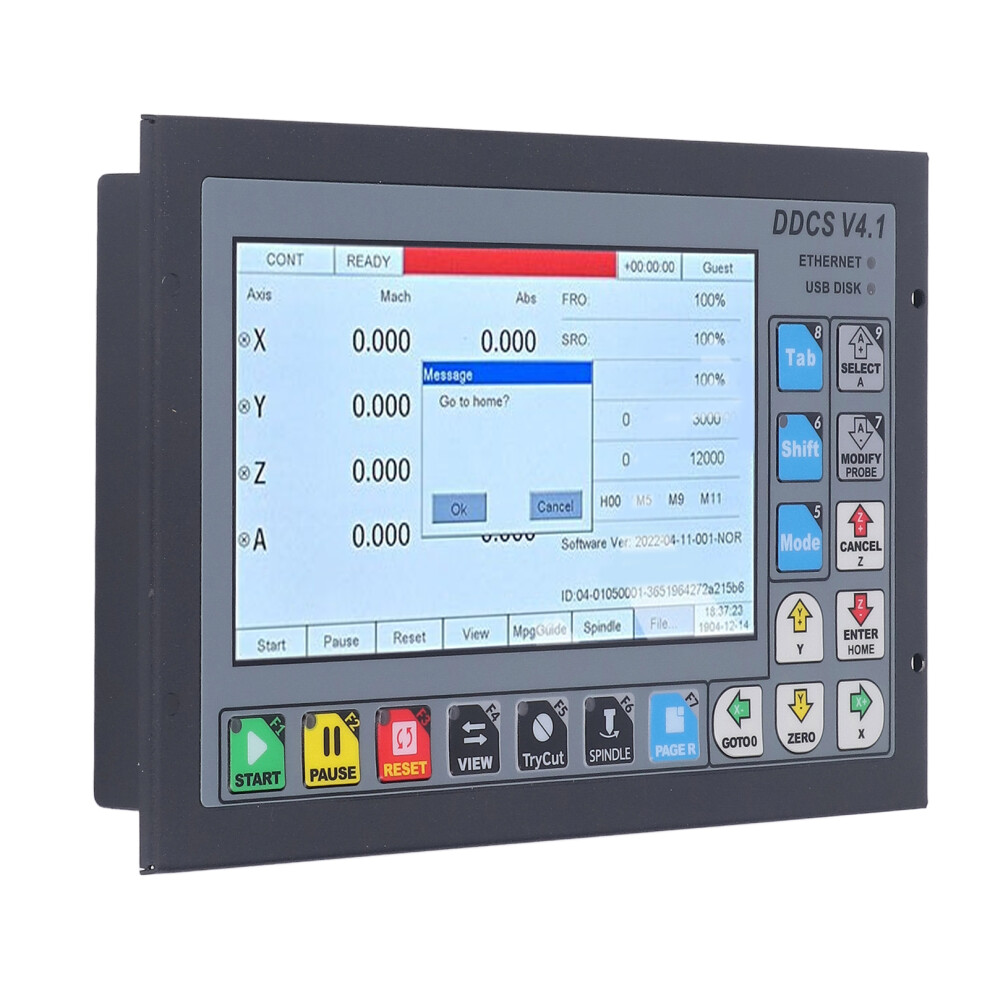

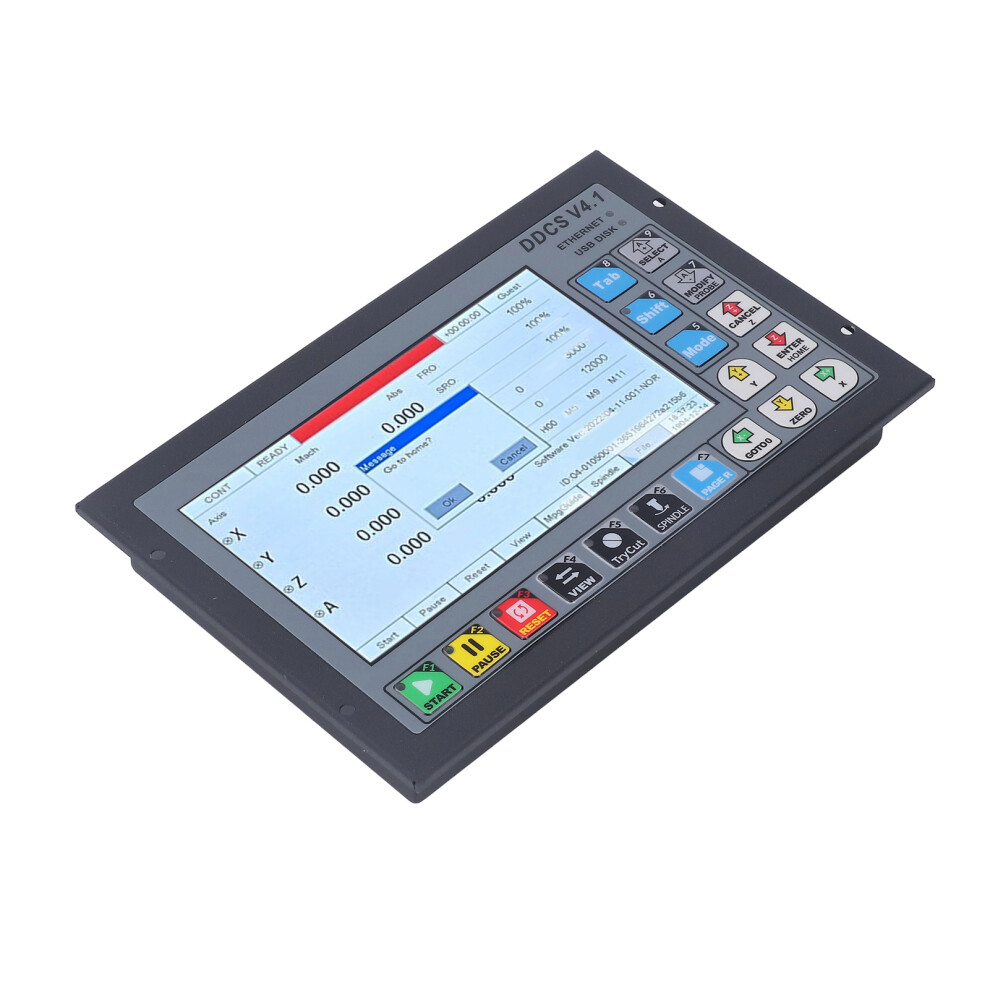

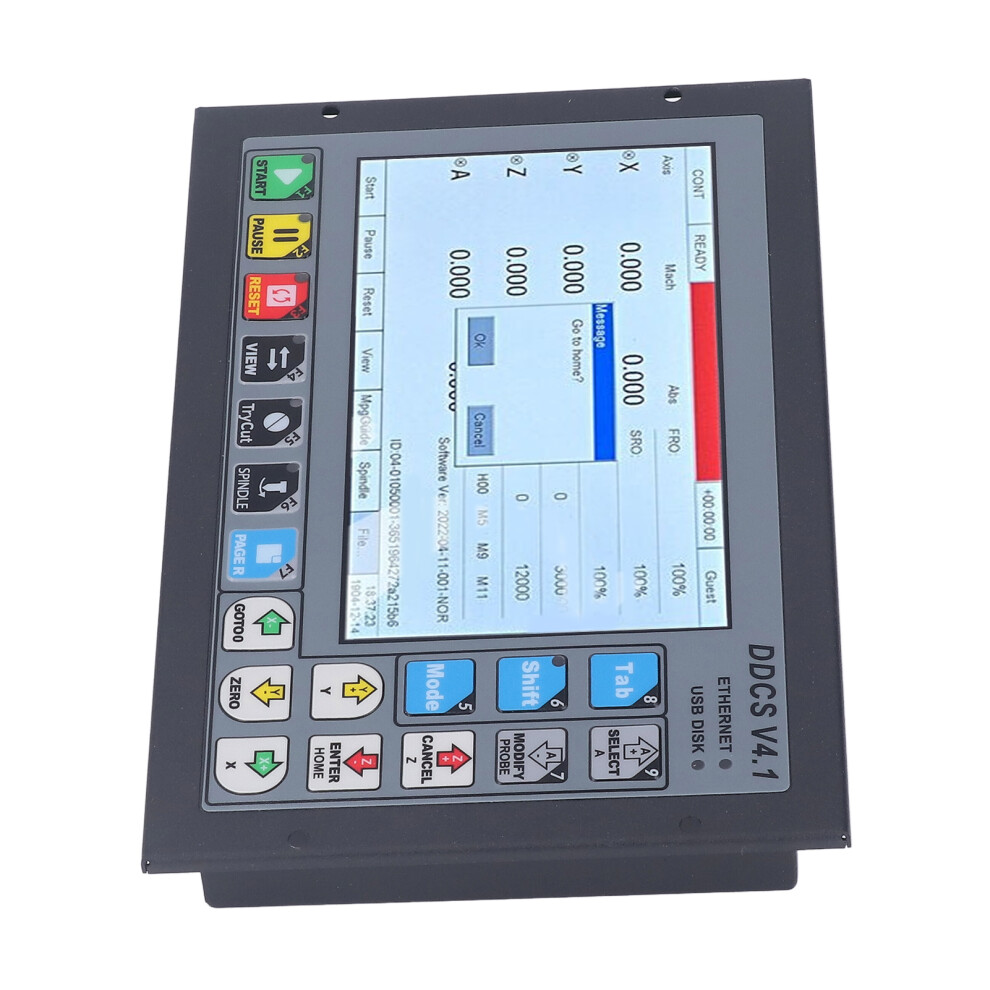

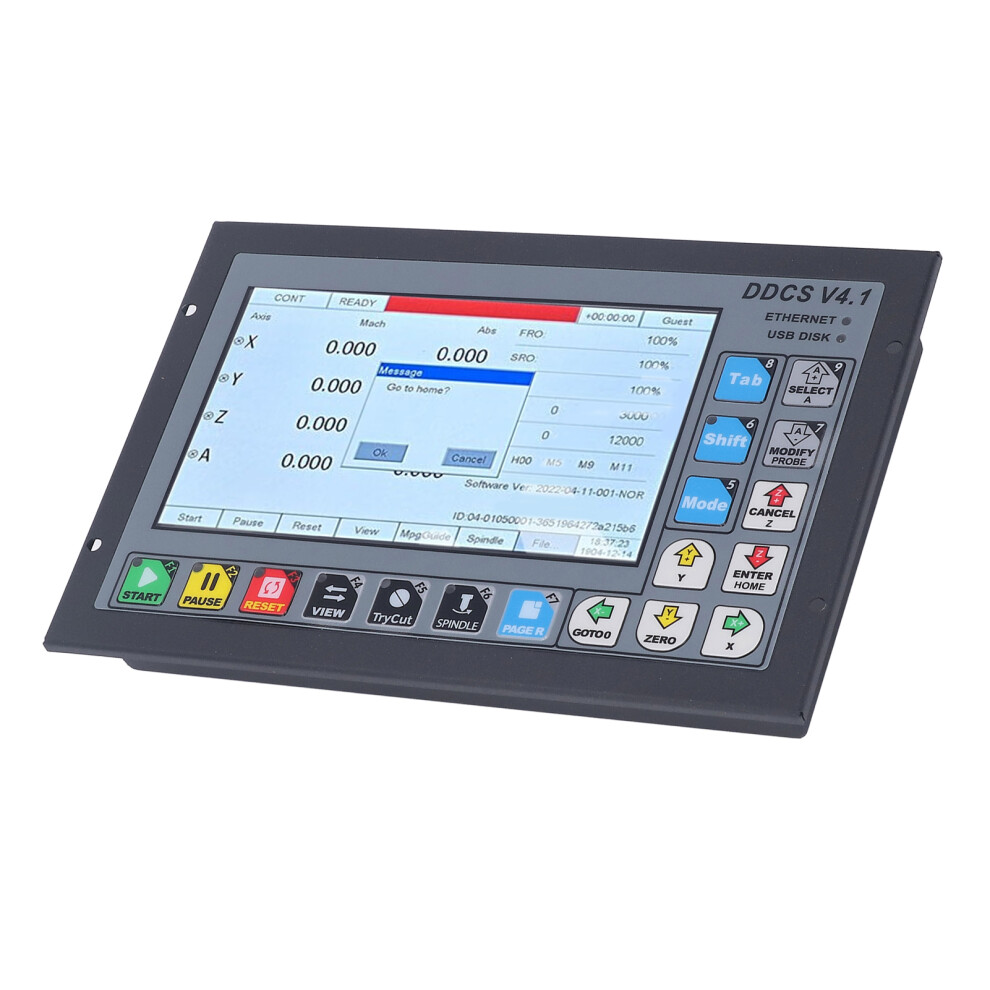

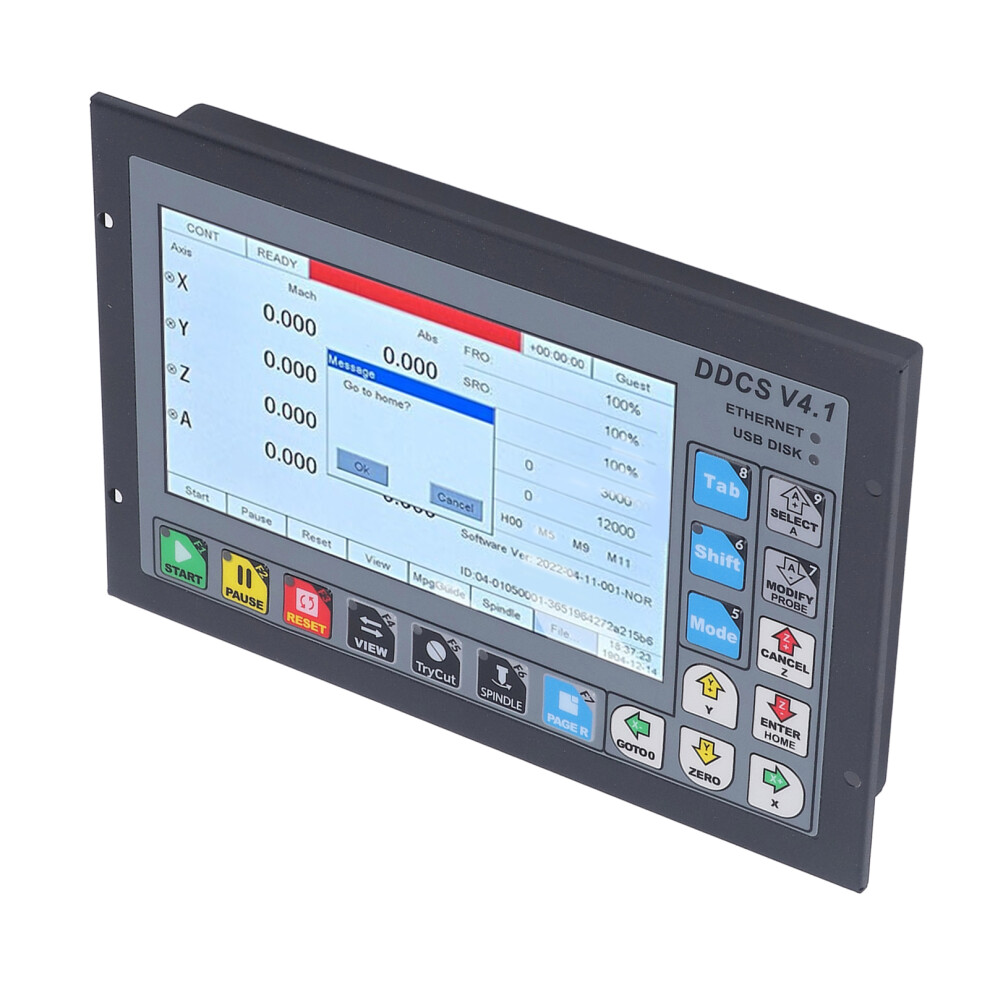

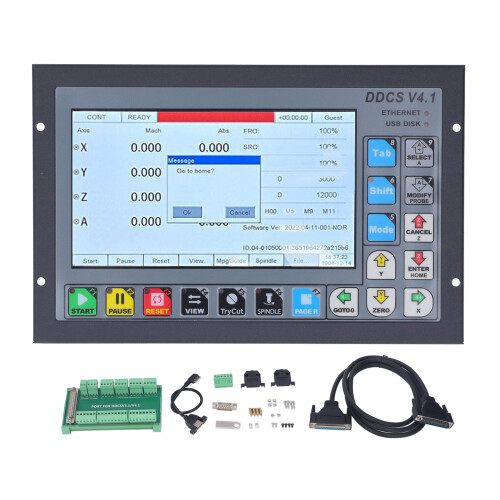

CNC Motion Control System 3 Axes Offline Standalone CNC Motion Controller DDCSV4.1



1、Upgraded Version: This version has strengthened the functions and panel layout structure, supports IO port configuration and general for FANUC compatible G instruction set. 2、ARM and FPGA Structure: ARM completes human computer interface and code analysis, FPGA completes underlying algorithm and control pulse generation, uses 32 bit speed generator, improves resolution of speed and acceleration. 3、Smoother Pathway: This controller improves algorithm, introduces a new algorithm of motion planning, and smoothes the pathway of small segments through configurable contour errors. 4、3 Axes Drive: Feature 3 axes drive mode, adopt differential mode and double pulse mode for users to choose, the maximum output frequency of interpolation pulse is 500Khz. 5、Computer Communication: The communication between controller and computer can be realized through Ethernet connection port, which is convenient for files reading and copying. 6、Support Multiple Languages: The controller adopts international coding and basically supports all languages. Users can make various languages according to their own needs. 7、NPN Limit Switch: This controller only supports NPN type limit switch, the use authority includes operator, administrator and super administrator.



Item Type: CNC Motion Control System Material: Aluminum alloy, PCB Control Panel: 7in TFT screen, 1024x600 pixels, 18 keys, 18 optocoupler isolated digital input interfaces, 3 optocoupler isolated digital input ports Chip: ARM9 master chip, FPGA core algorithm chip Input: 24VDC (the main control equipment is 24VDC power input, and the current capacity is required to be no less than 0.5A. The power input of IO port is also 24VDC, and the current capacity must be no less than 0.5A. The main control power supplies power to the control system, IO port supplies power to IO, when there is no power supply for IO port, all IO ports are invalid)



1 x 39 Pin Signal Cable 1 x Host Controller 1 x U Disk 1 x USB Extension Cable 1 x Control Card 10 x Screw 2 x Nut 4 x Stud 4 x Accessories 1 x Terminal 1 x Needle 2 x Plug Accessories
