CNC Solid V Wheels for V-slot Linear Rail System Aluminum Extrusions Profile Accessories

CNC Solid V Wheels for V-slot Linear Rail System Aluminum Extrusions Profile Accessories Description

Description:

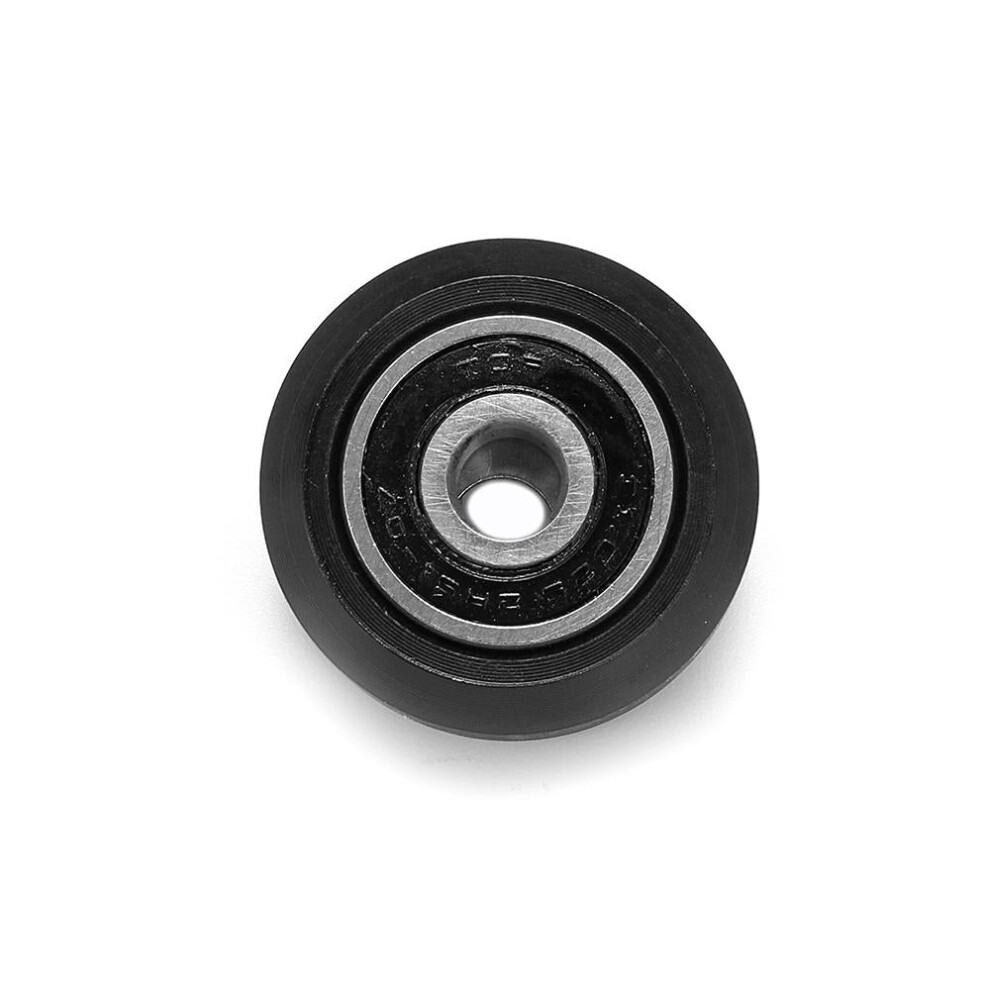

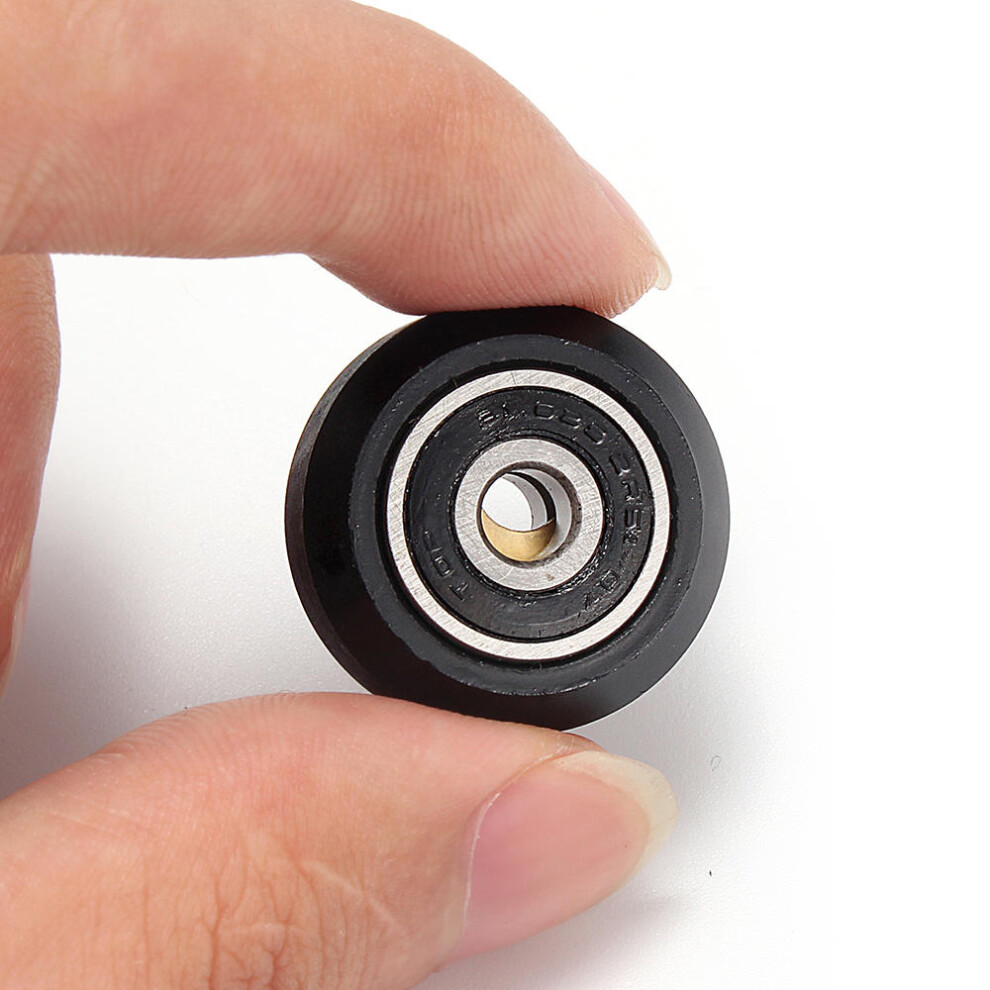

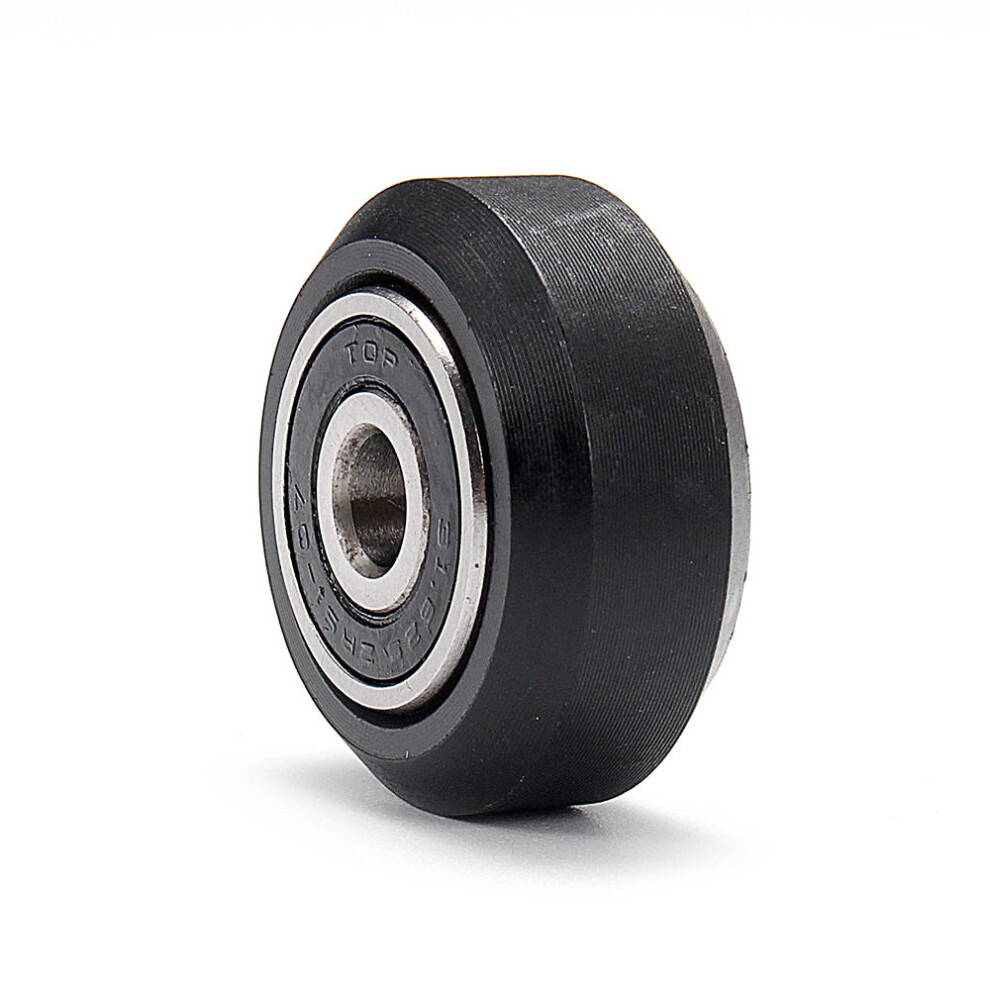

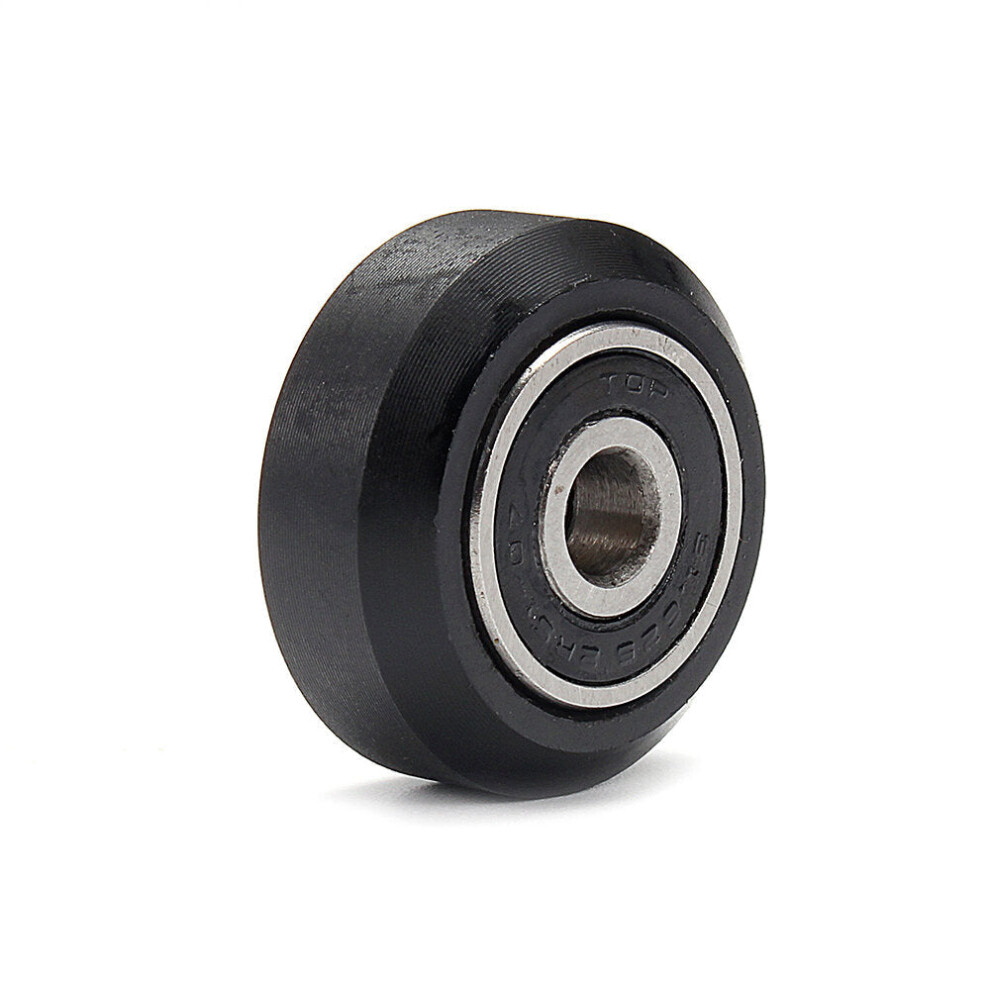

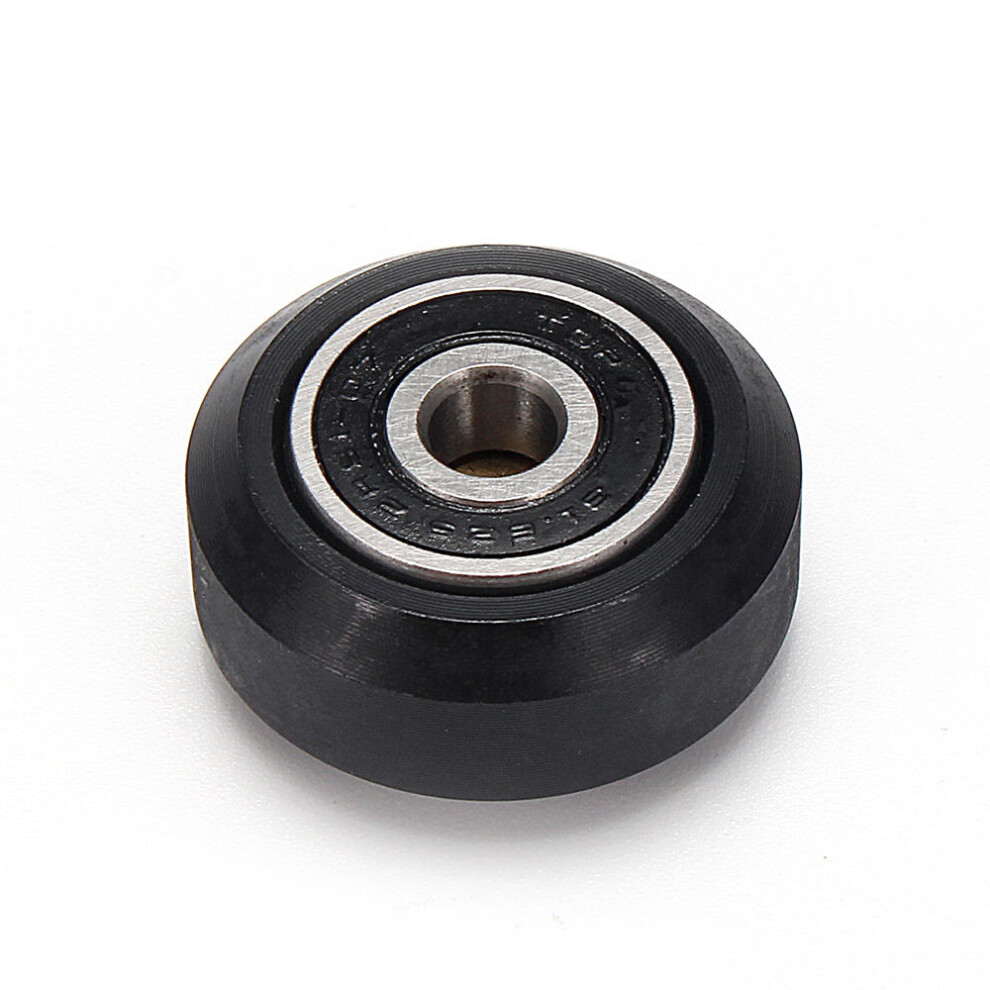

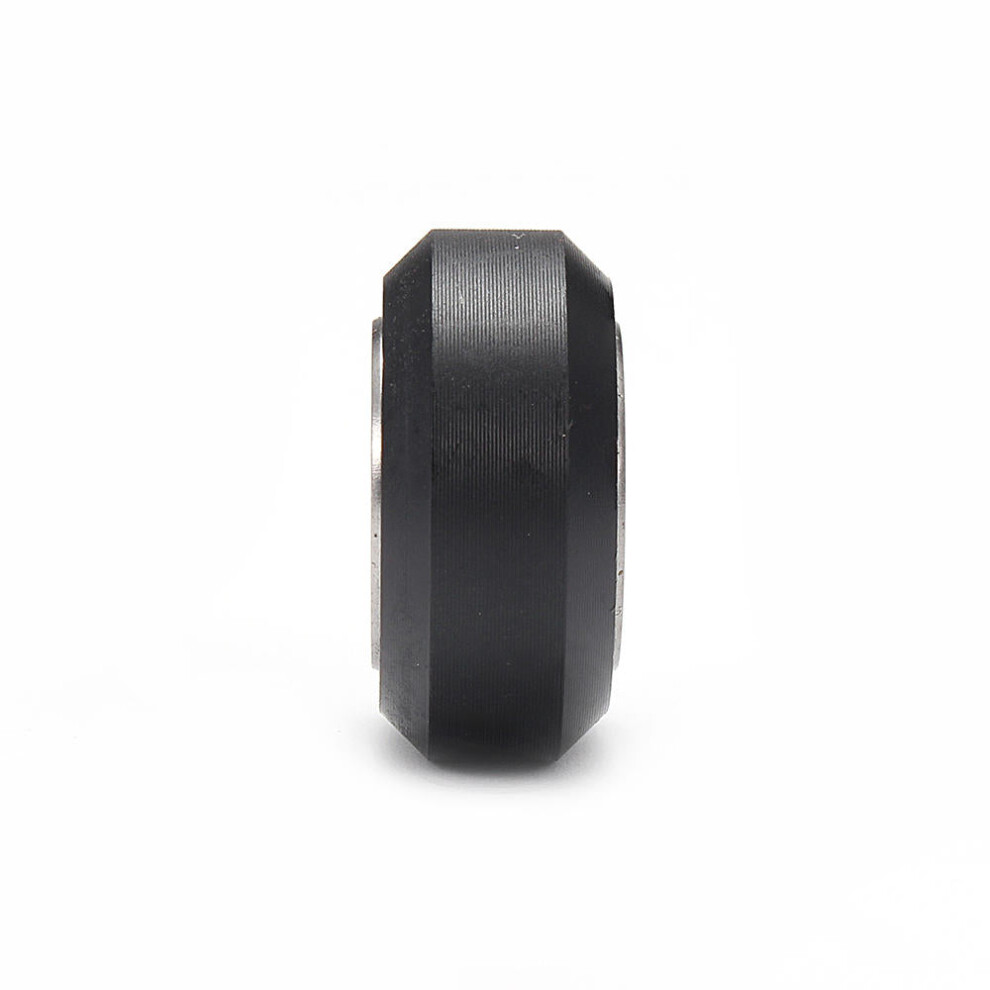

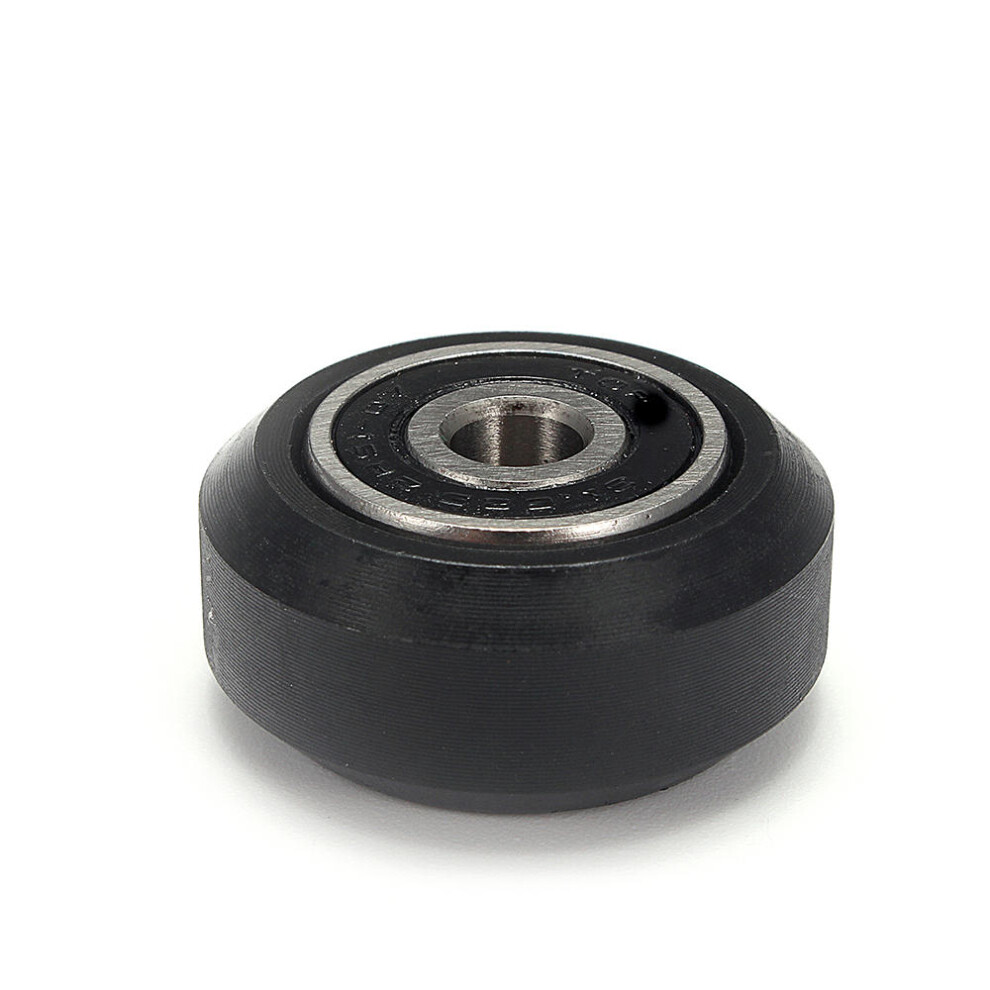

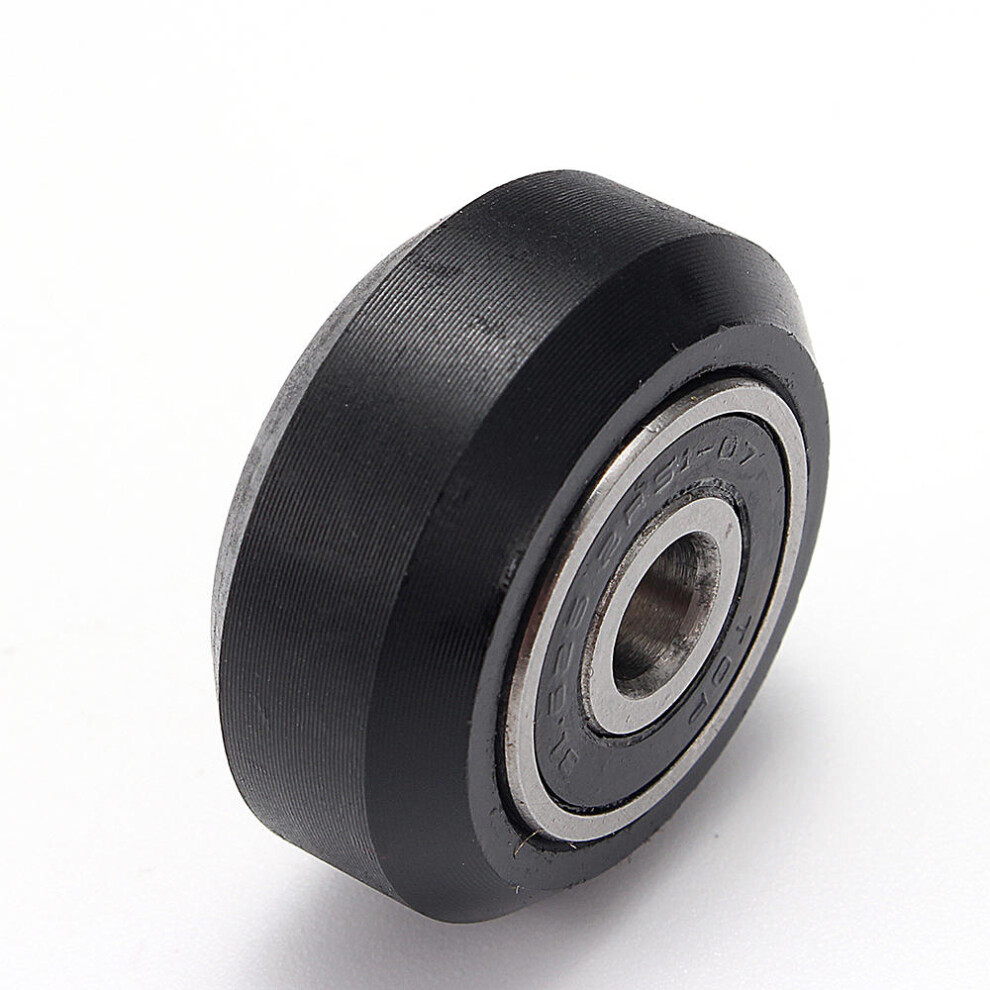

CNC Solid V Wheel Kits for V-slot Linear Rail System Aluminum Extrusions Profile Accessories.

Specification:
Material: Delrin (black).

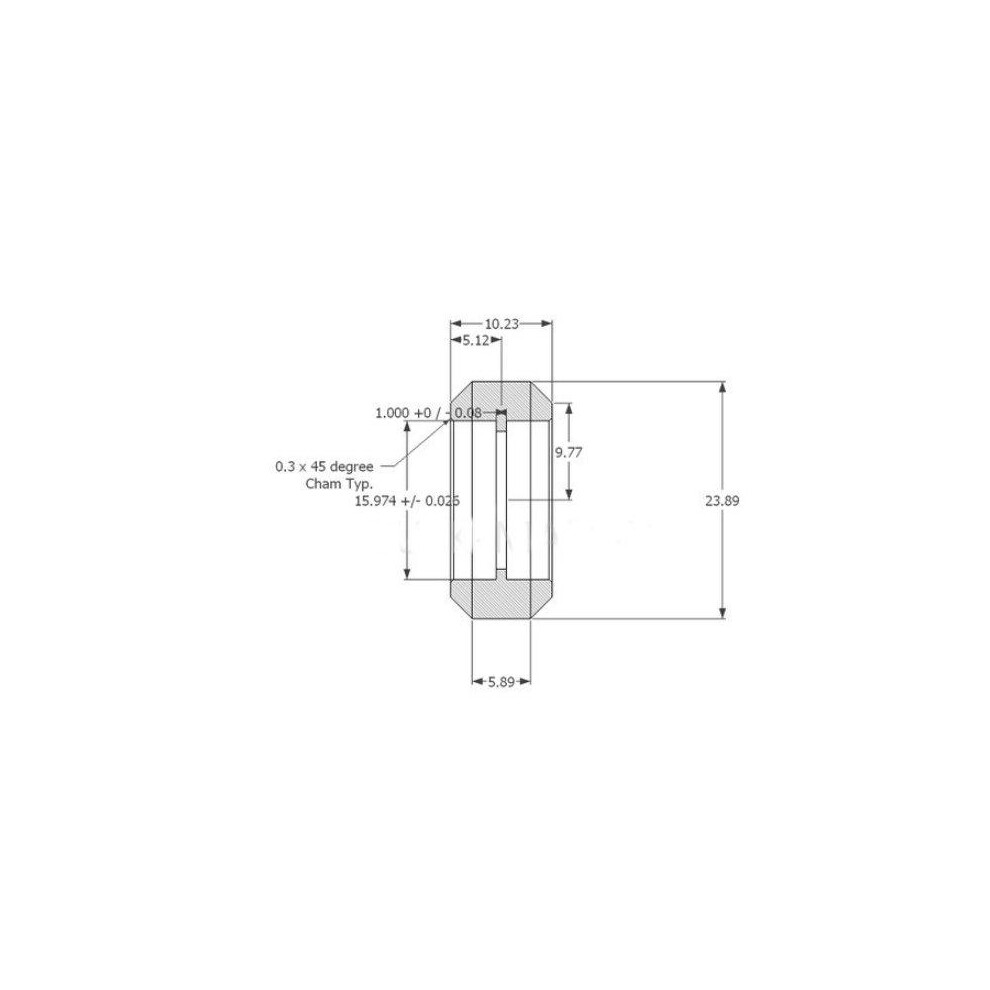

Dimensions: 23.90mm OD x 16mm IDx 10.23mm thick.
Rockwell Hardness: M80.
Compressive Strengh: 63Mpa.
Application: 3D printer, cnc rounter, etc.
Each Wheel Kit Includes:
1 x solid V wheel.
2 xball bearings - 625 2RS.
2 x5mm precision shim.
1 xlock nut with nylon insert.

Features:

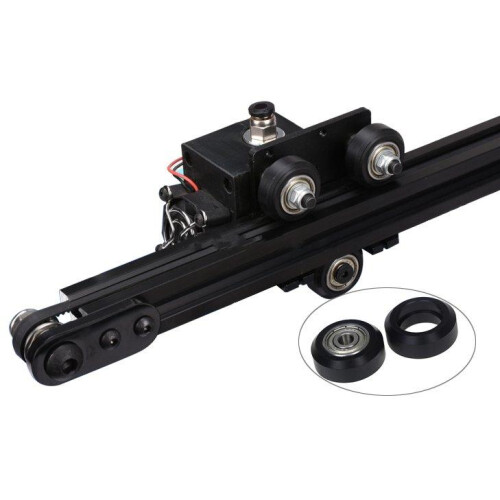

Solid V wheel is a strong wheel that resists deflection and distributes loads.

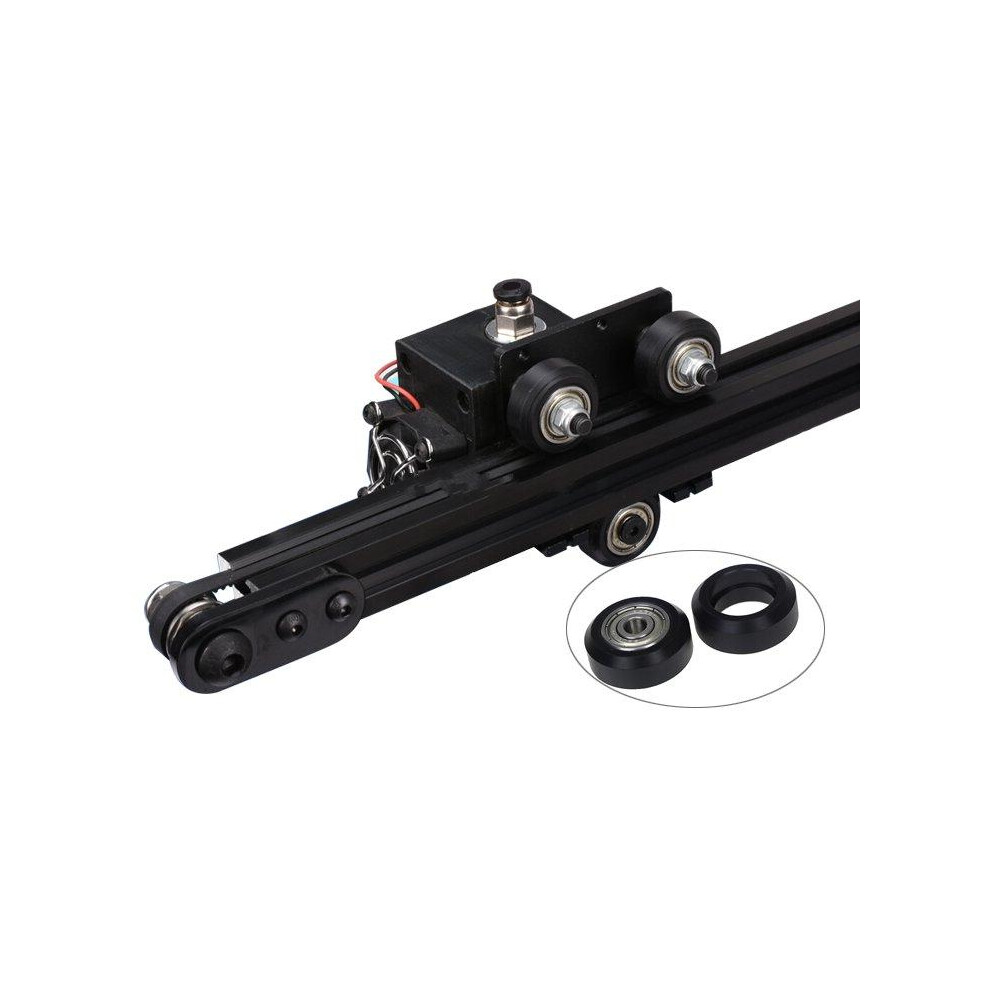

It is usually used when heavier loads are required and will compress less than the dual V wheel. If many of these wheels are added to a gantry plate it will allow foran even distribution of the load.
The solid V wheel also has improved performance when used in conjunction with a belt and pinion system because it provides a flat surface for the belt to ride on.

Package Included:
1 x Solid V Wheel
