Coilover Suspension Kit for Toyota Corolla E12 Coilovers 2001-2007

Application

For Toyota Corolla MK9 (_E12_) (01/2001-12/2007)

For Toyota Corolla MK9 (E130) 2003-2008

For Toyota Matrix XRS (E130) 2003-2008

Specifications

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping adjustable: Not available

Front top mounts: pillow ball with camber plate

Rear top mounts: standard rubber

Camber adjustable: front only

Spring rate Front: 12 kg/mm (672 lbs/in)

Spring rate Rear: 8 kg/mm (448 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 190 mm

Spring length Rear: 180  mm

Spring Preload advised: 7-10 mm

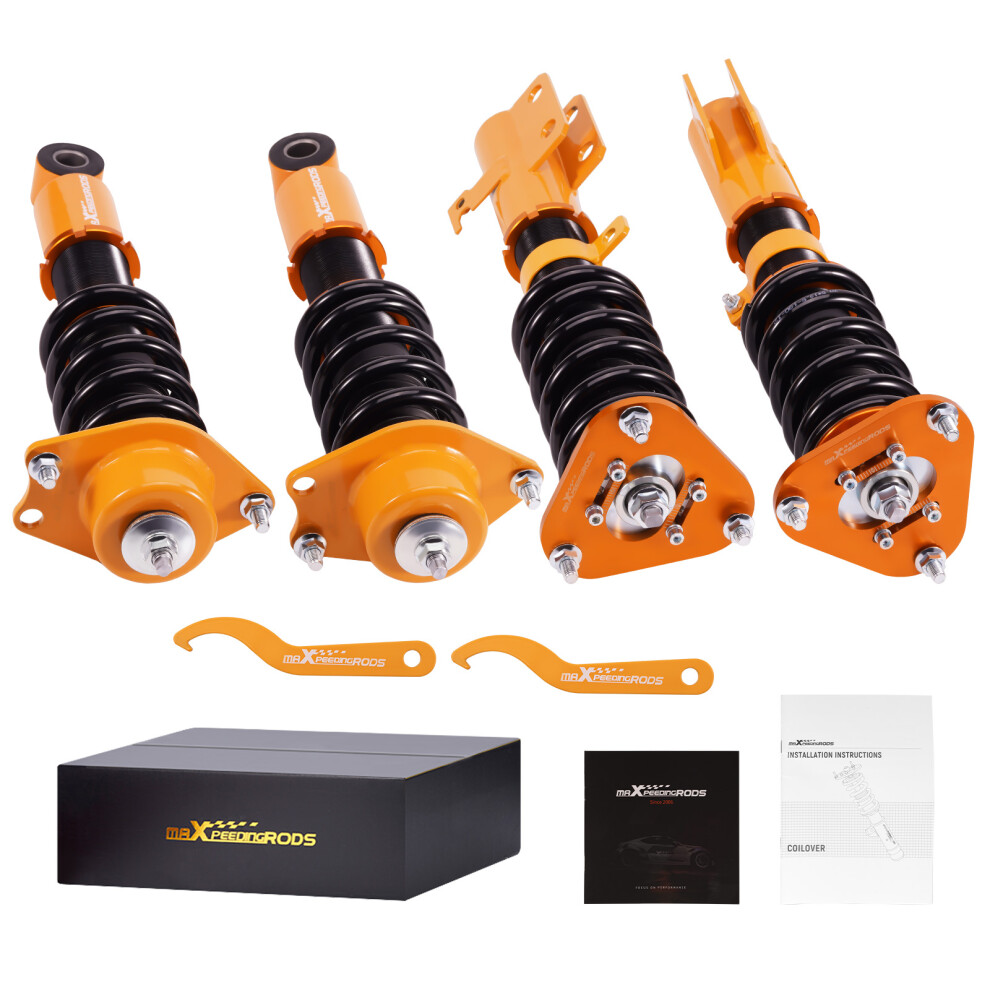

Package included：

2x Front coil-overs
2x Rear  coil-overs
2x C spanners

Feature

1. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
2. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
3.CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
4. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
5. High tensile spring---  600,000 times continuously test to assure it's high tensile strength.
6. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
7. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
8. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Introduction

maXpeedingrods-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),  which offer you a lowered stance, and improved performance for your daily use vehicle.
