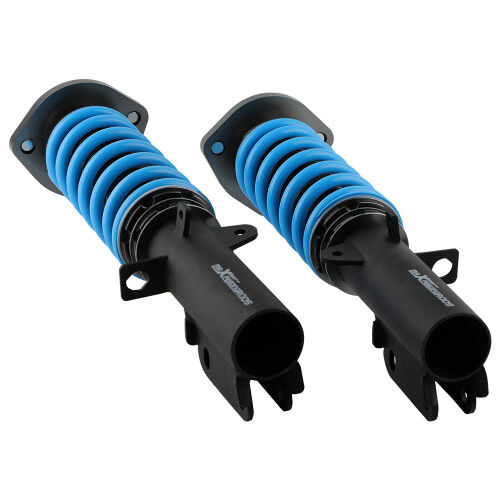

Coilover Suspension Replacement Kits for Toyota Corolla E90 E100 E110 1995-2002 Description

Application

For Toyota Corolla E90 1987–1992

For Toyota Corolla E100 1991–1998

For Toyota Corolla E110 1995-2002

For Toyota Corolla AE92 1987-1991

For Toyota Corolla AE101 1992-1998

For Toyota Corolla AE111 1988-2002

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specification

Height adjustable: Yes, lowering 1''-3'' depending on the vehicle models

Damping adjustable: Not available

Front top mount: Pillow ball with camber plate

Rear top mount: Pillow ball

Camber adjustable: Available, front only

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Shock type: Twin tube

Spring Preload advised: 7-10 mm


Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Camber plate top mounts help to eliminate the need for a separate camber kit.
3.Twin-Tube structure allows sufficient stroke within the shock absorber.
4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8.Steel shock bodies with special surface treatment to improve the durability.
9. full rebuildable

Notice:

* Professional installation & alignment suggested.
