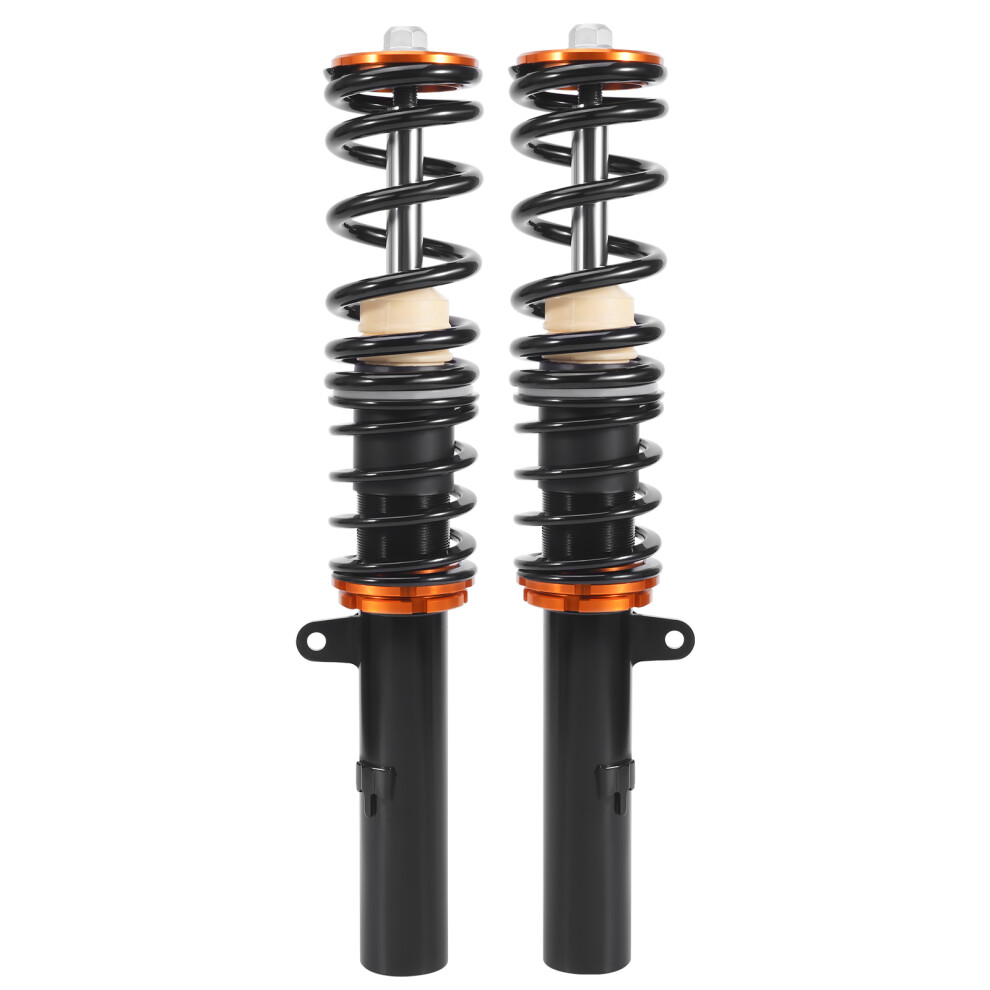

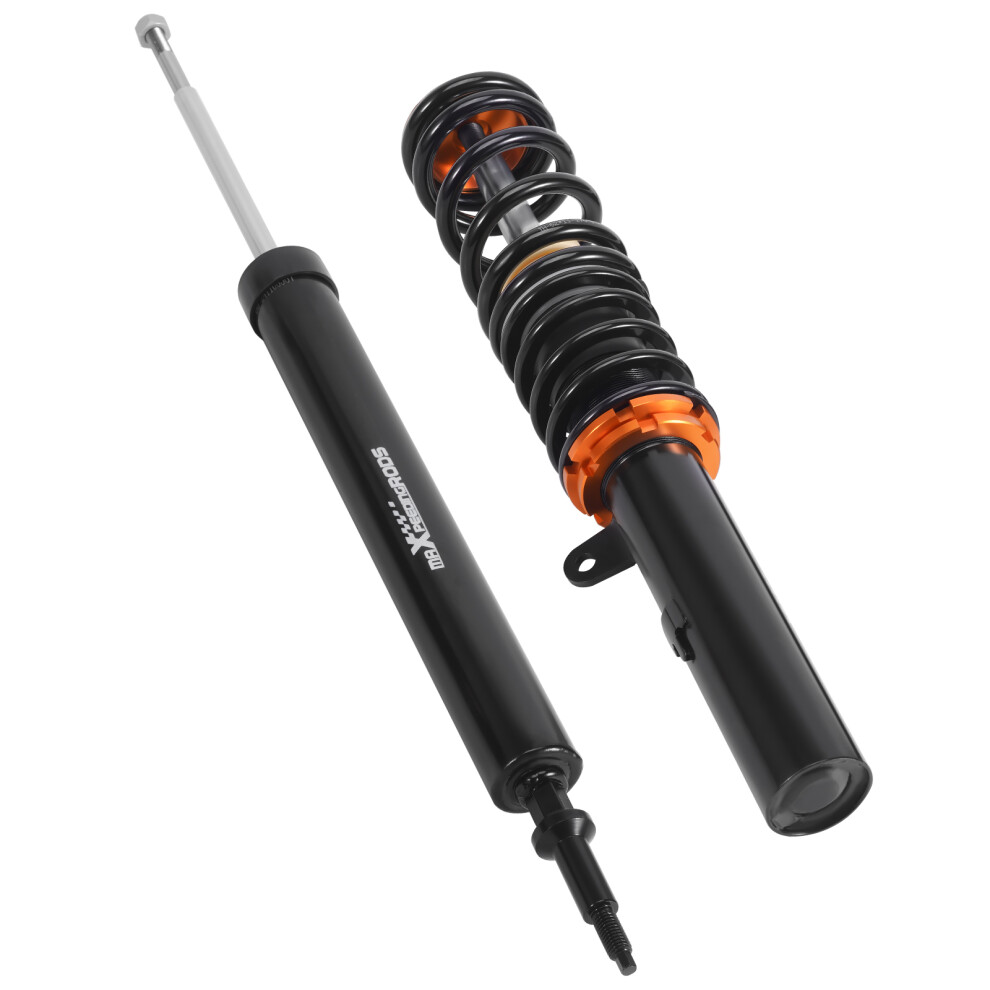

Coilovers Suspension for BMW 3 Series E90 E91 2WD 2004-2012 E92 E93 4pcs Struts

Coilovers Suspension for BMW 3 Series E90 E91 2WD 2004-2012 E92 E93 4pcs Struts Description

New maXpeedingrods B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Notice:No Top Mount Included. Modification Required If You Use OE Top Mount

Application:

For BMW 3 Series E90 E91 E92 E93 2005-2013 Coilovers Suspension Lowering Kit


Note: Does not fit:

not for BMW 320d 318d

not for BMW E92 325i, 335i

not for BMW E93 330d

not for M3 models

not for all-wheel

Specification:

Front lowering 30-85mm (depends on vehicle models)

Rear lowering 30-65mm (depends on vehicle models)

Damping: fixed damping

Spring rate Front: 7 kg/mm (392 lbs/in)

Spring rate Rear: 8 kg/mm (448 lbs/in)

Front spring inner diameter: 62 mm

Rear spring inner diameter: 64 mm

Spring length Front: 170 mm

Spring length Rear: 262 mm

Helper spring rate Front: 1 kg/mm (56 lbs/in)

Helper spring length Front: 102 mm

Spring Preload advised: 7-10 mm

Top mounts: Front and rear OE top mounts required

Shock Type: Twin Tube

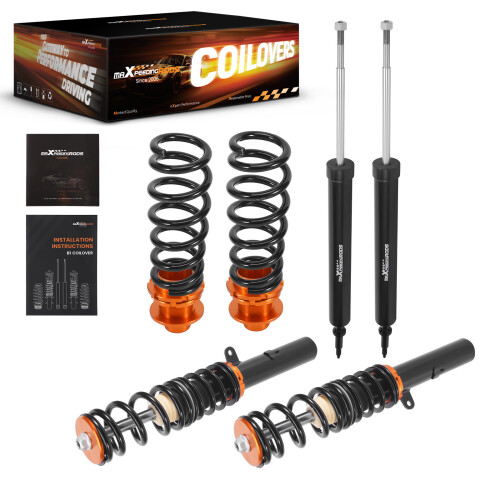

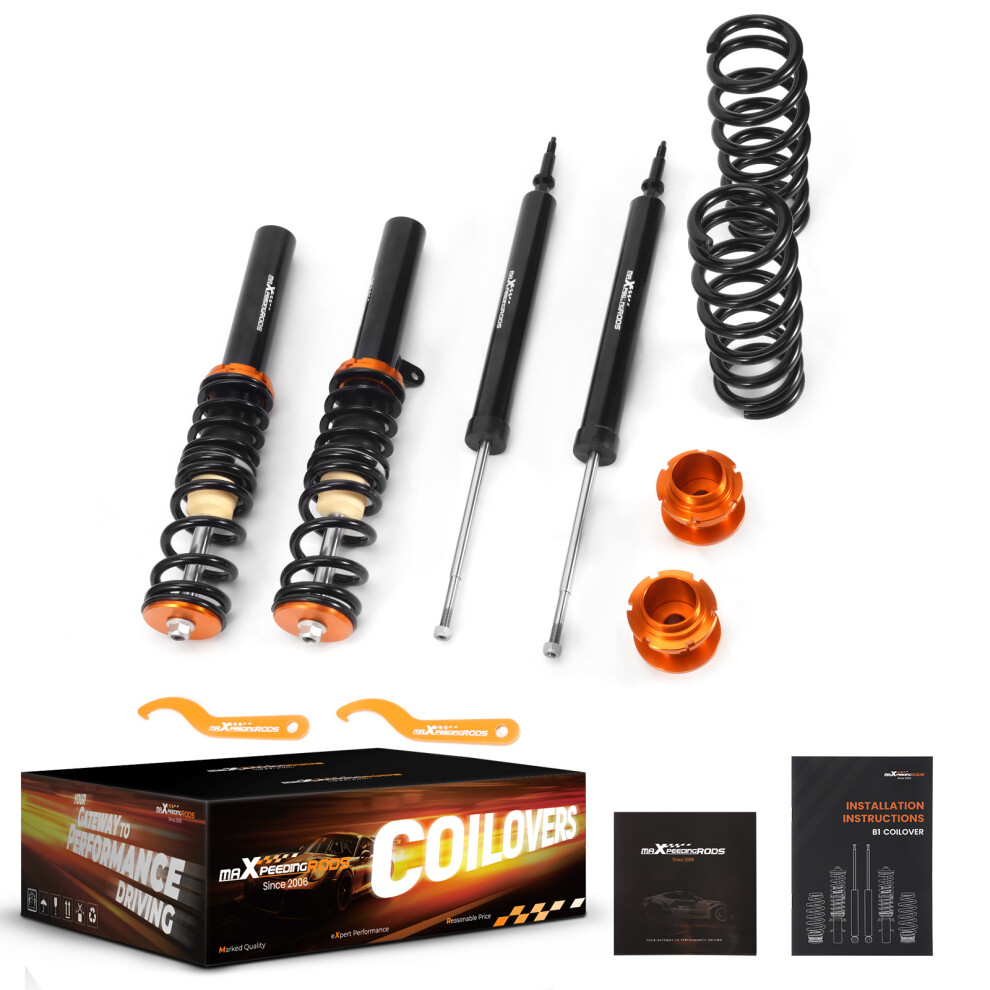

Package included:

2 x Front coil-overs

2 x Rear coil-overs

2 x C spanners

Features:

1.  Lower height adjustable (depends on vehicle models)
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).
