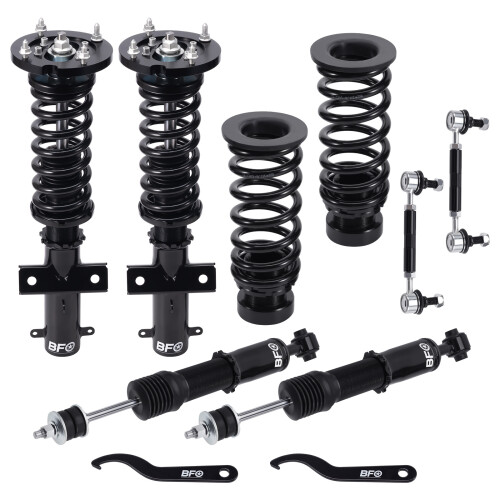

Coilovers Suspension for Ford Mustang Adjustable Height 05-14 + front drop links

Coilovers Suspension for Ford Mustang Adjustable Height 05-14 + front drop links Description

Application:

for Ford Mustang 2005-2014 Fifth generation

for Ford Mustang S197 2005-2014

for Ford Mustang GT S197 2005-2014

NOT fit Shelby GT500 Models

Specification:

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping : Not adjustable

Front spring rate: 8 kg/mm (448 lbs/in)

Rear spring rate: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 62 mm

Rear spring inner diameter: 62 mm

Spring length Front: 230 mm

Spring length Rear: 180 mm

Front top mount: Pillow ball bearing camber plate

Rear top mount: OE top mount required

Camber adjustable: Available, front only

Spring Preload advised: 7-10 mm

Twin Tube

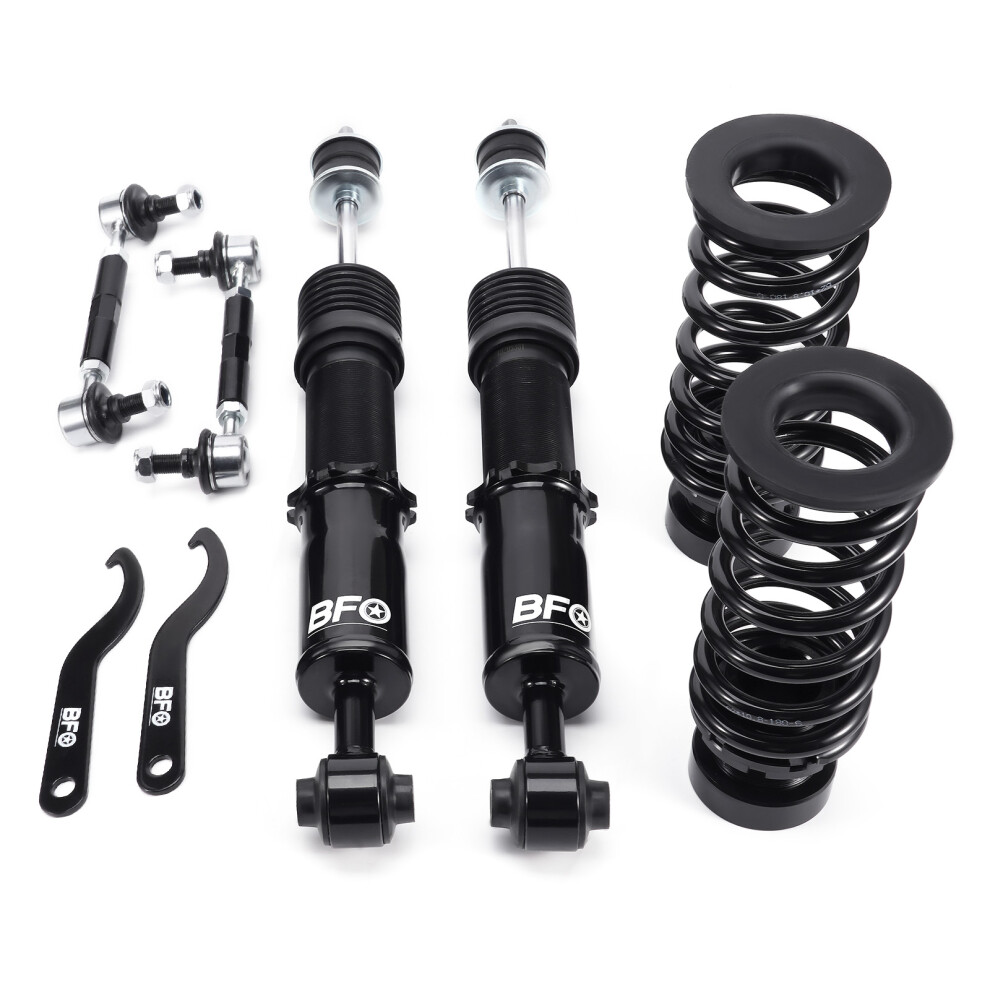

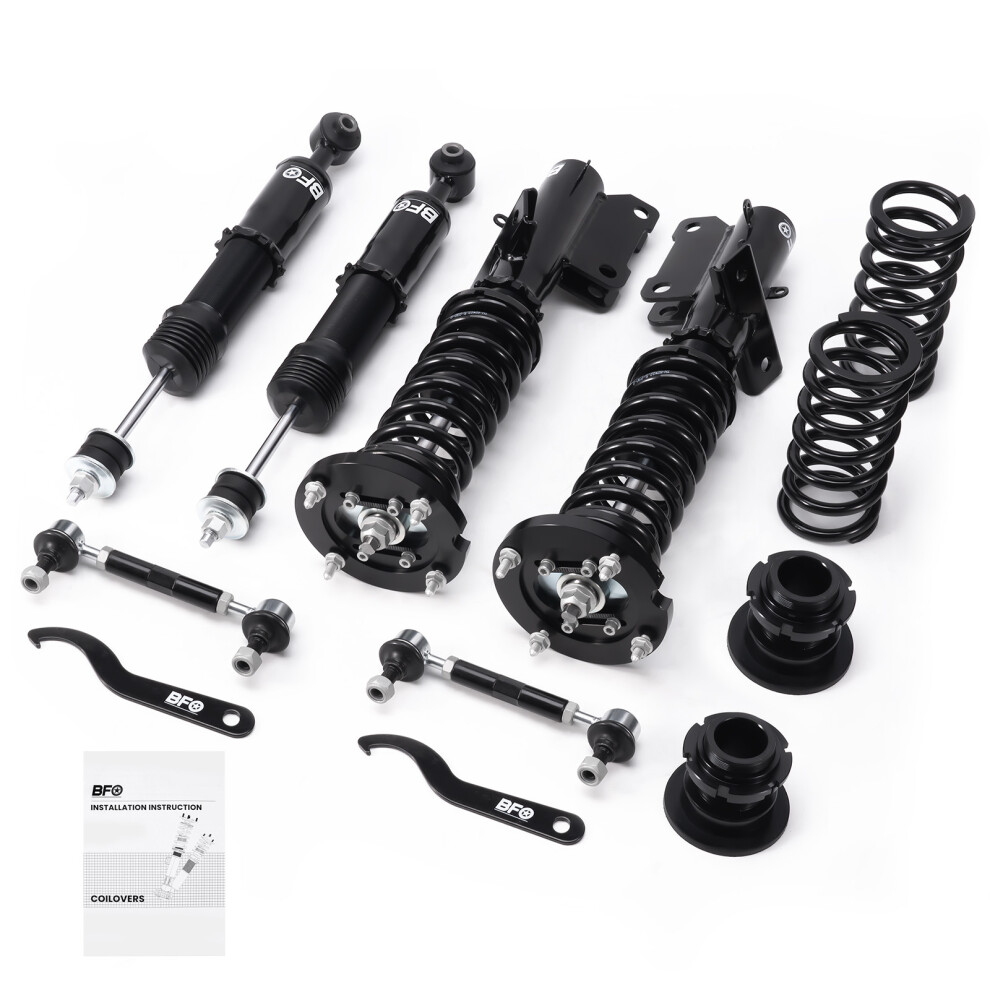

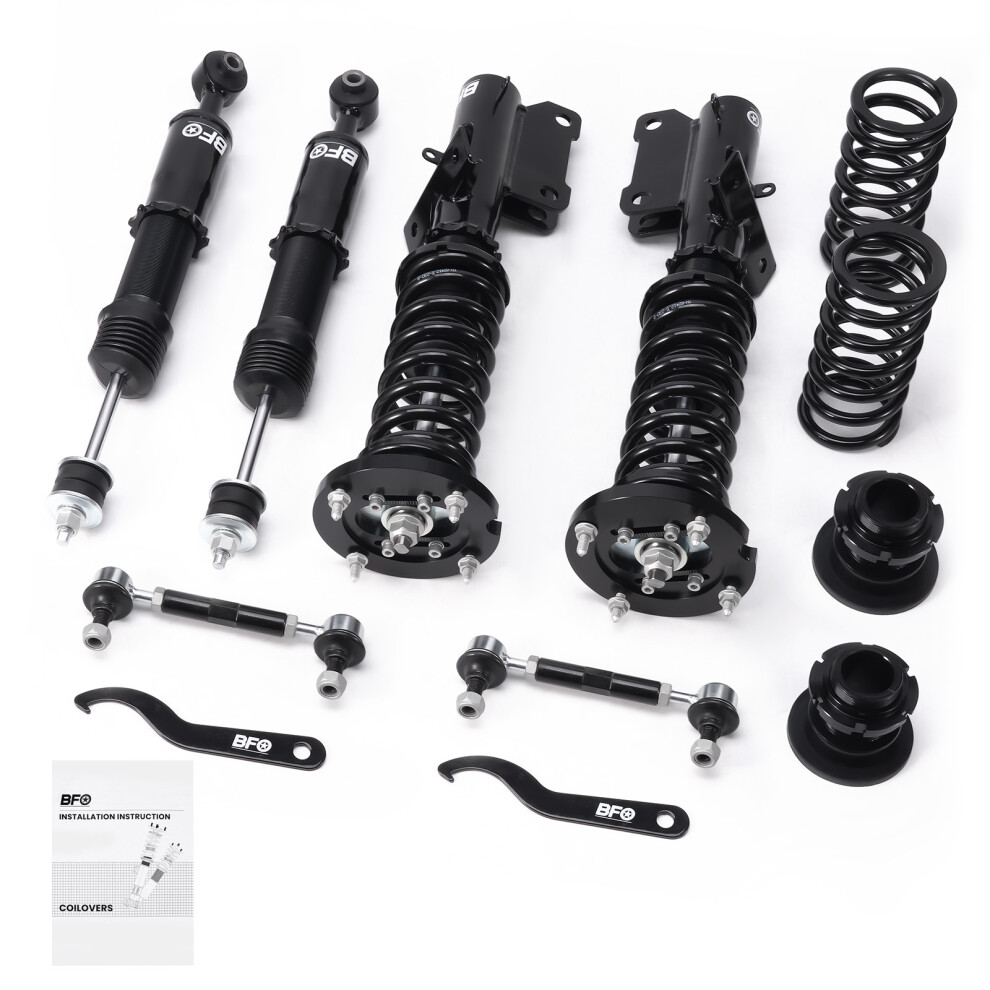

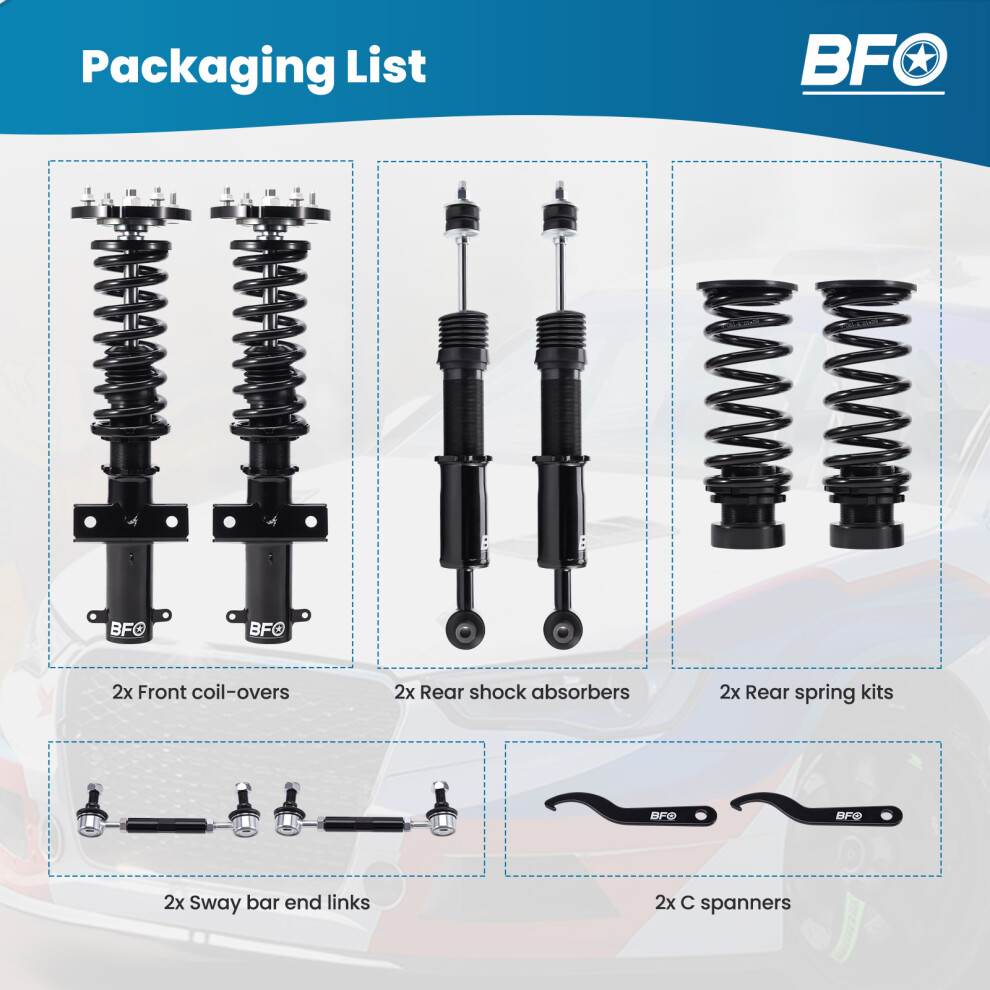

Quantity:

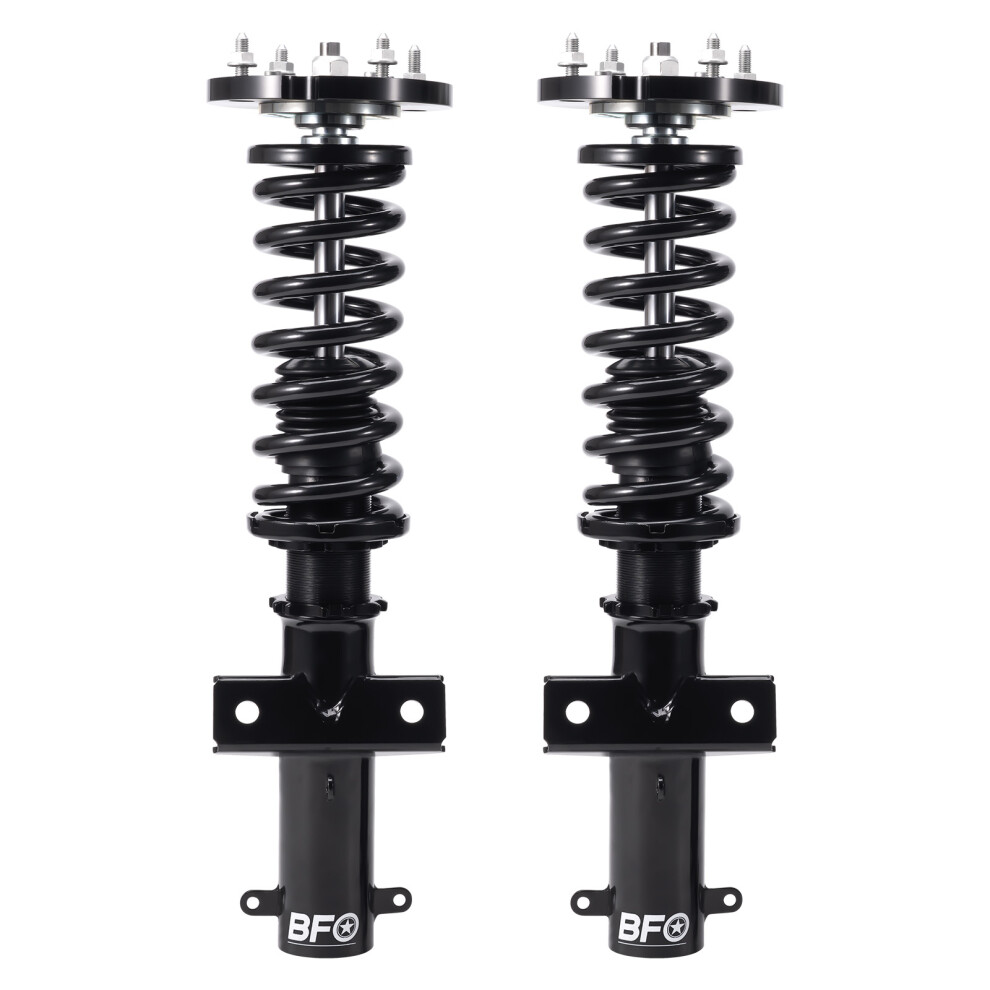

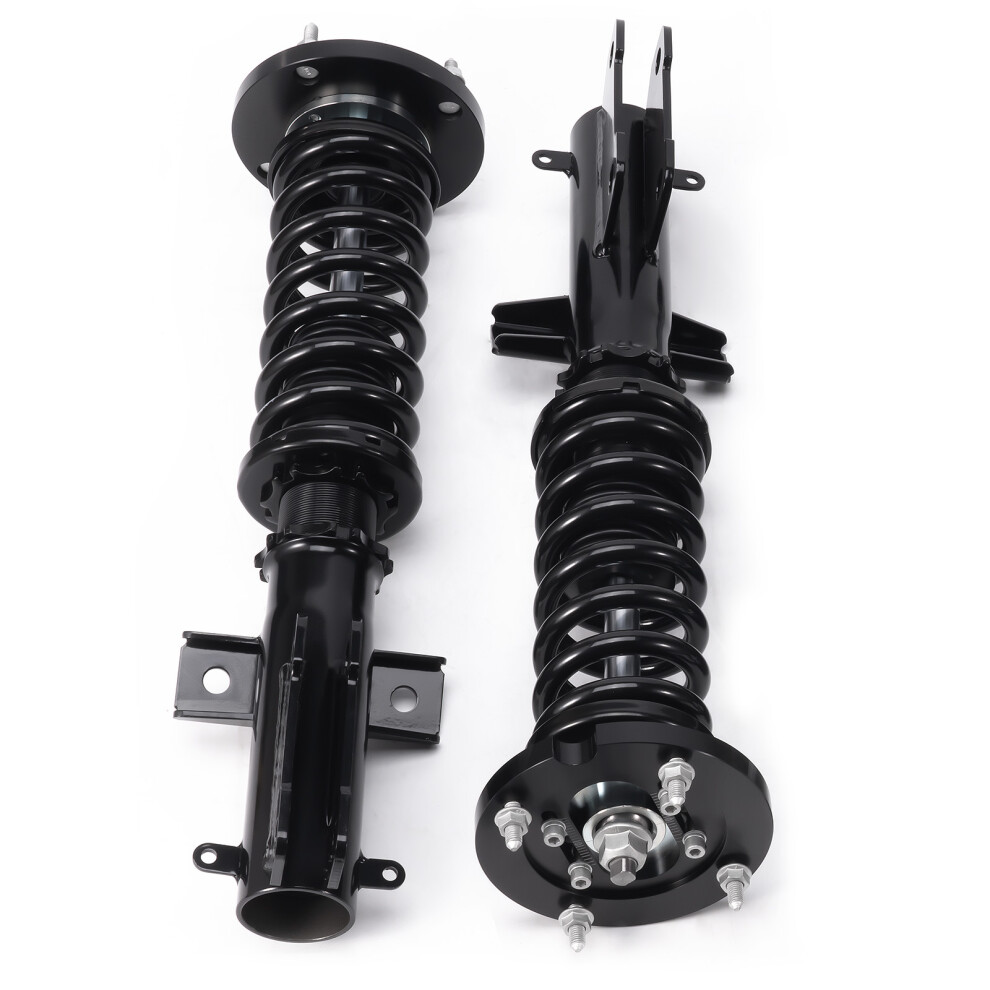

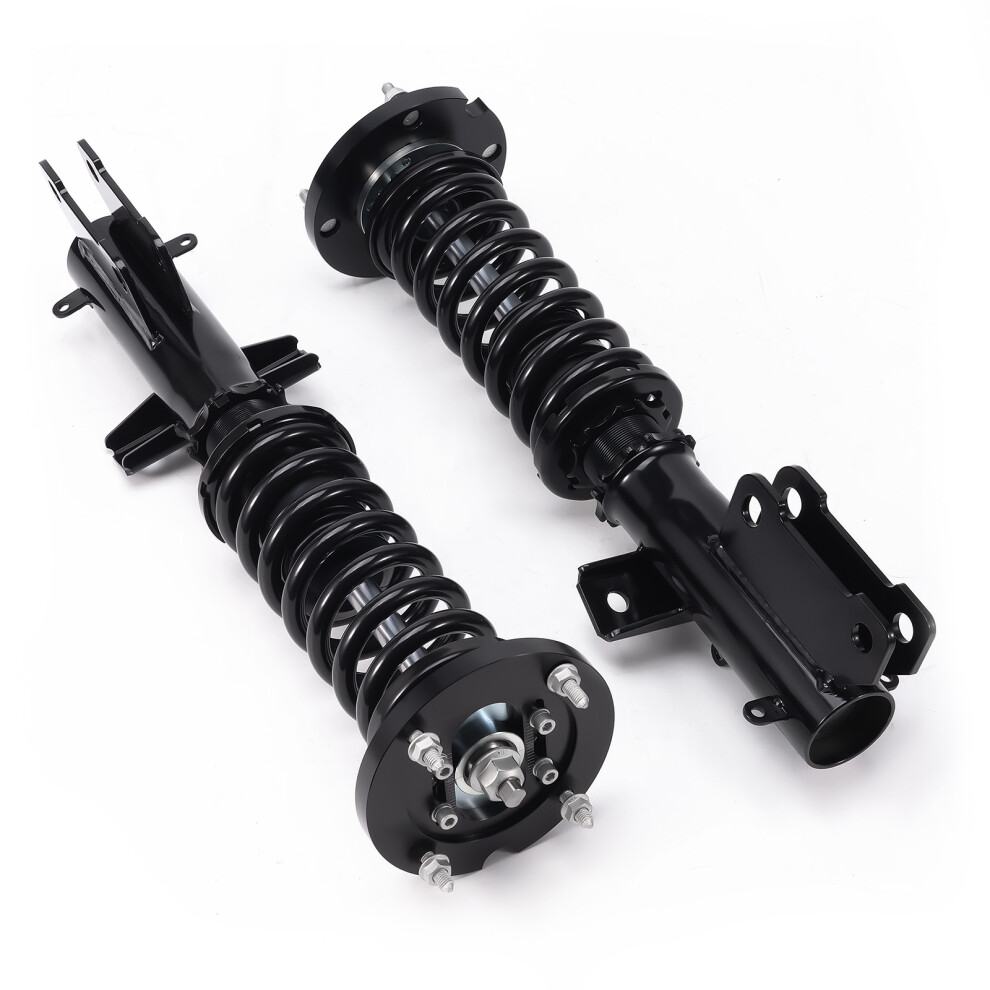

2x Front coil-overs

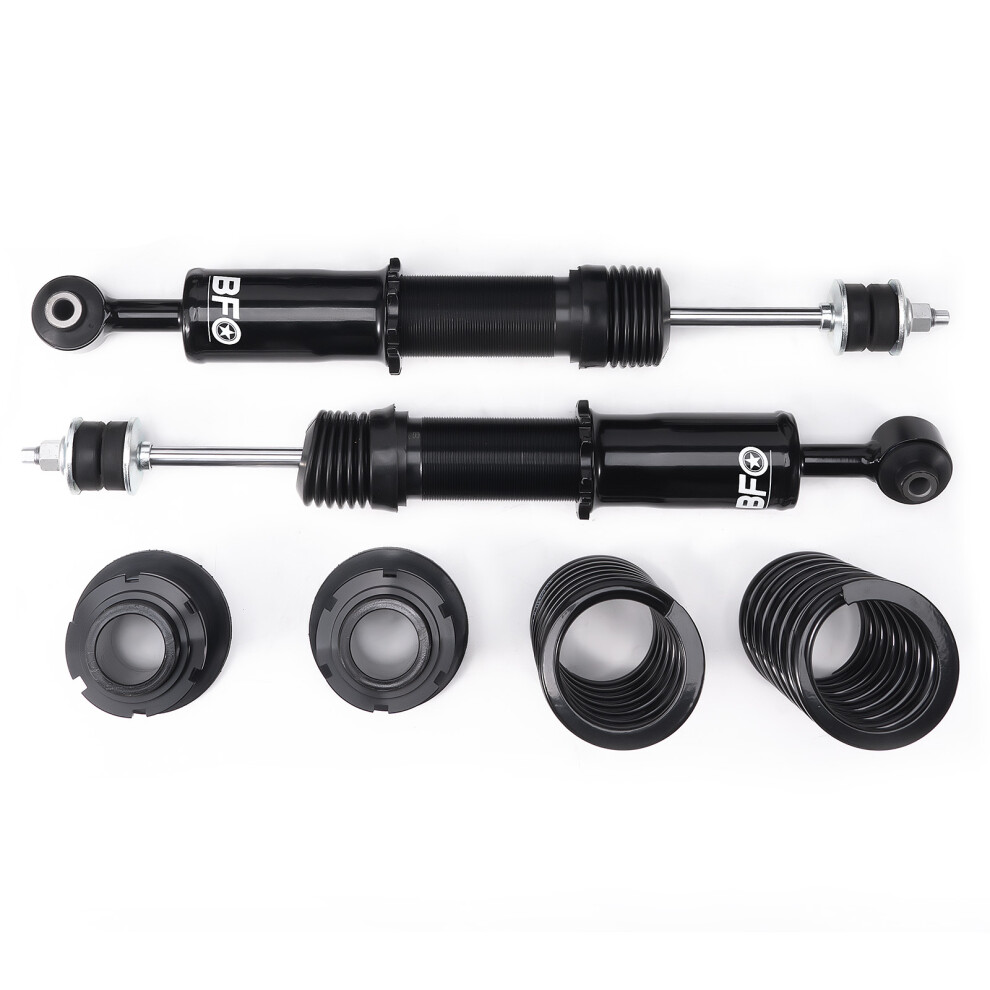

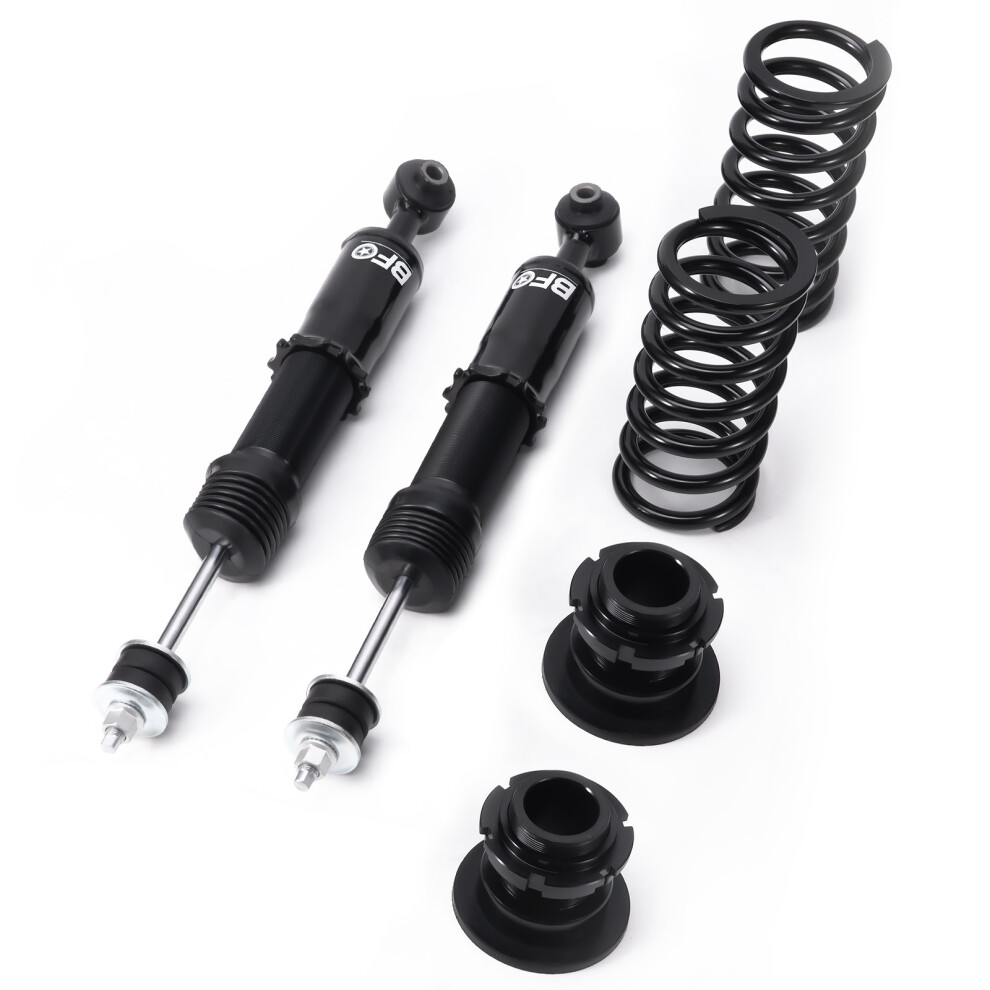

2x Rear coil-overs

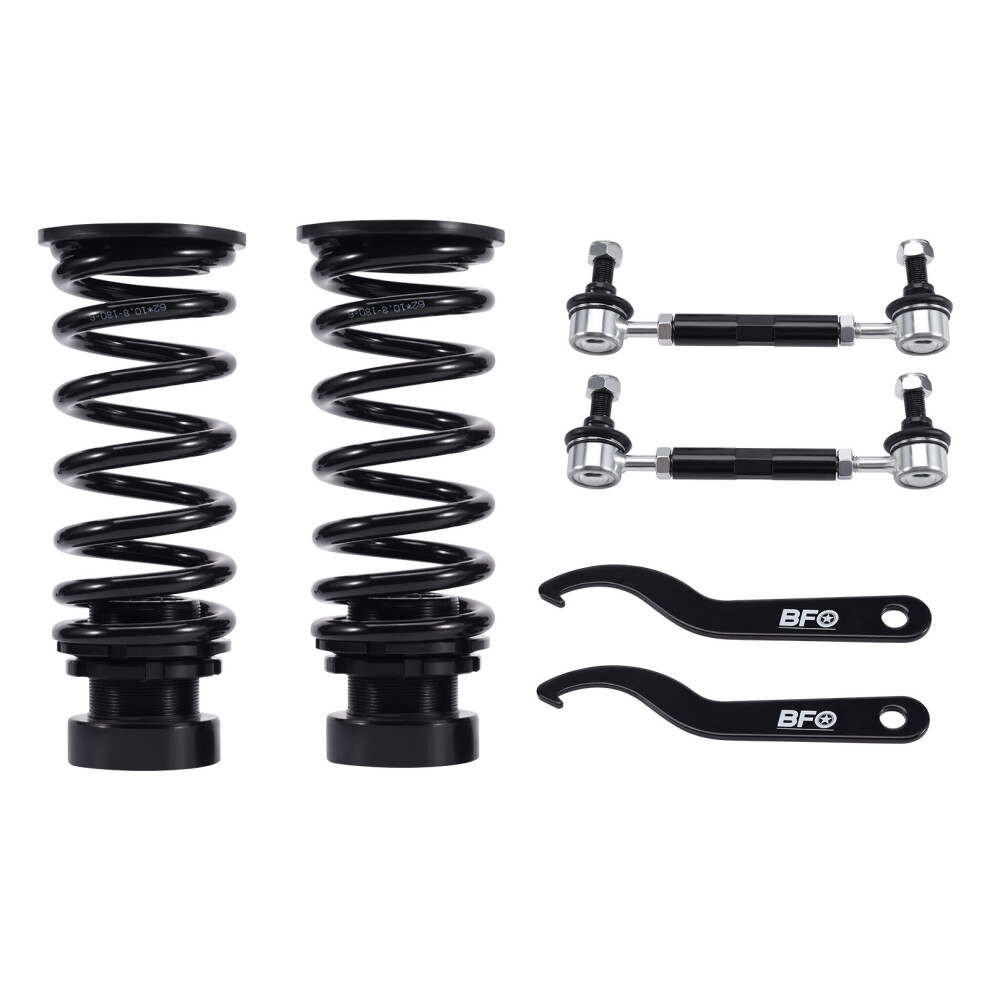

2x Swaybar end links

2x C spanners


Feature:

1. Self-design structure and new manufacturing system to give more customers good coil-overs without breaking the bank.
2. Height adjustable---lower your car 25-75mm (depending on vehicle models) to get a performance ride
3. Independent Ride Height and Spring Pre-load Adjustments
4. Twin-Tube System for Comfortable Ride on Streets
5. Coated finish to avoid rust
6. Heavy Duty Steel Lower Mounts
7. Simple install,  easy to adjust.

Notice

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
