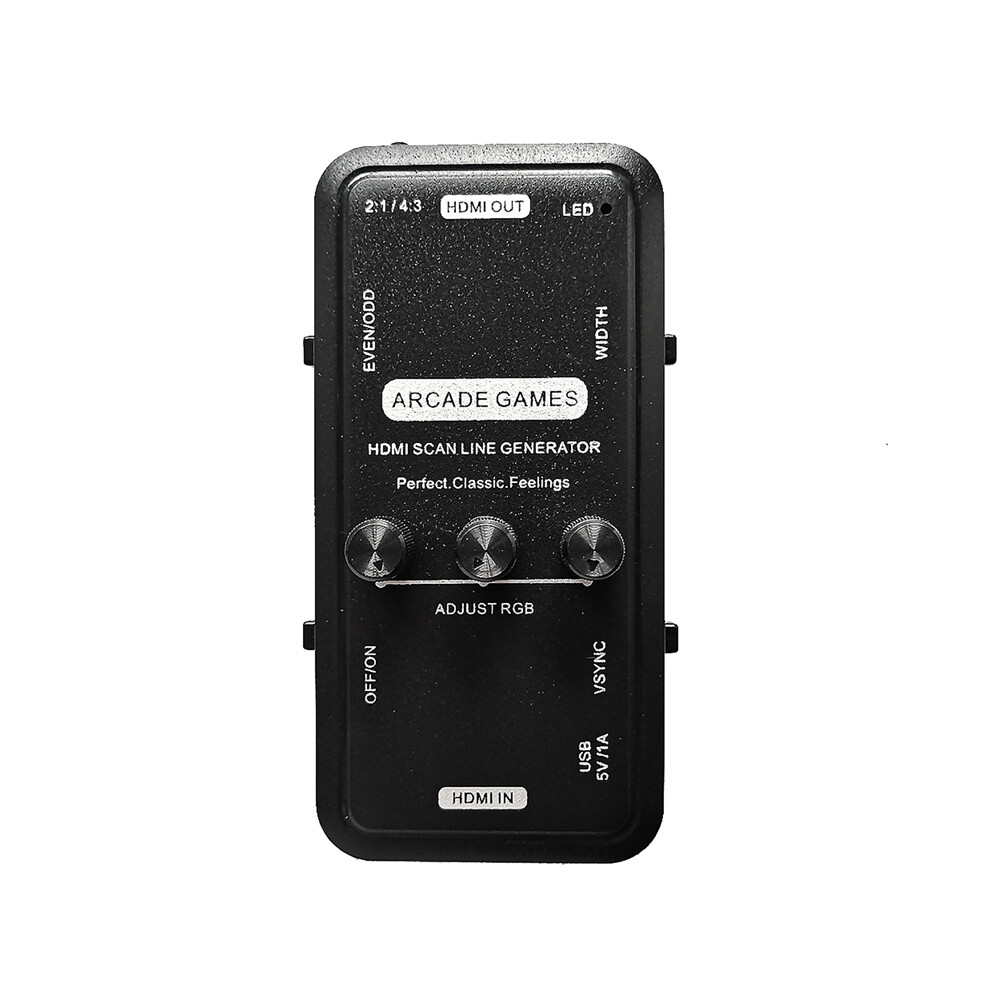

Project Product Name:Scan Line Generator
Image Scan Line Generator Function: game video image produces the scan line effect,classic,nostalgia,Perfect recall of CRT.15KHZ video image display effect,Re-experience game classic picture,Feel again the wonderful image of the scan line.

Model Number:XW-01
Age: 3 Years
Type:Coin Pusher

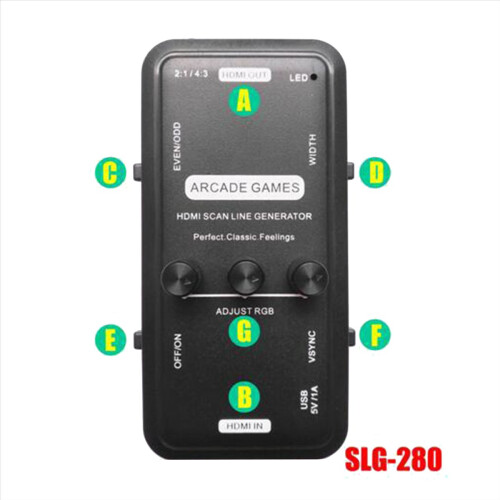

Scan Line Generator Function Switch Description:
A: OUT( Video-Signal Out Interface).
B: In( Video-Signal In Interface).
C: EVEN/ODDScan line odd or even number switch .
D: WIDTHWidth switch(Dual or Singular scan lines).
E: ON/OFFThe total switch of the scan line effect.
F: VSYNCImage resolution adapter switch(Change the resolution requirement).
G: R G BRed Green Blue debugging(Mainly through three potentiometer debugging effect).
2:1(Scan line ratio),4:3(Scan line thickness ratio)
LED:(Scanner line generator-Working indicator light)
Output to display device: LCD or LCD TV, Support audio and video synchronous output.
Description of vertical signals:
1. If the scan line switch is ON, The scan line has no effect(image darker), This is vertical signal is out of sync.
2. If you need scan line effect, Toggle (VSYNC) to switch sync, resulting in effect.
3. If you don't need the scan line effect, switch is set to OFF, Image restoration to normal state.(Darken image restore brightness).
Colour:Black
Material:Plastic

Package Contents:
1 * Scanline Generator Scanner

Only the above package content, other products are not included.
