Components Protection Board Accessories Electrical 3.5cm 500F Capacitor Balancing Module Practical Replacement

Components Protection Board Accessories Electrical 3.5cm 500F Capacitor Balancing Module Practical Replacement Description

High-concerned chemical : None

Origin : Mainland China

Brand Name : VIBRATITE

DIY Supplies : Electrical

Description:

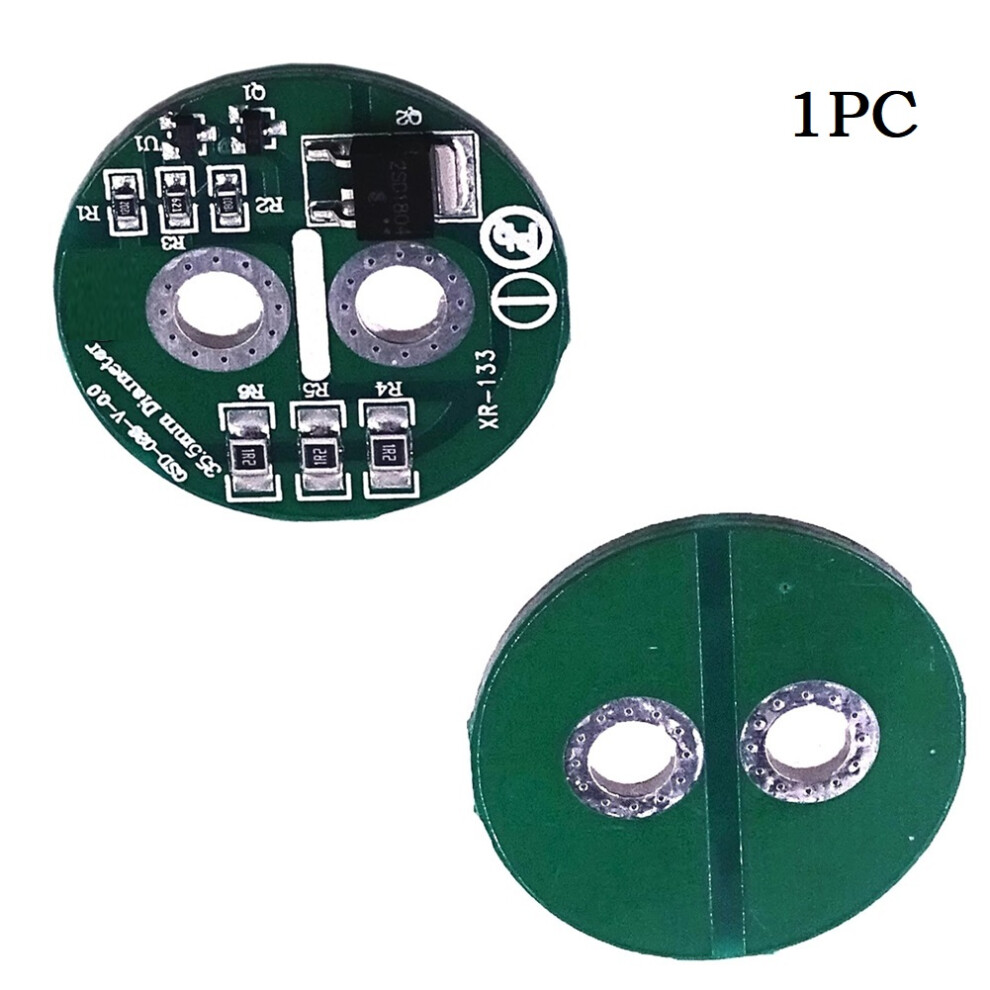

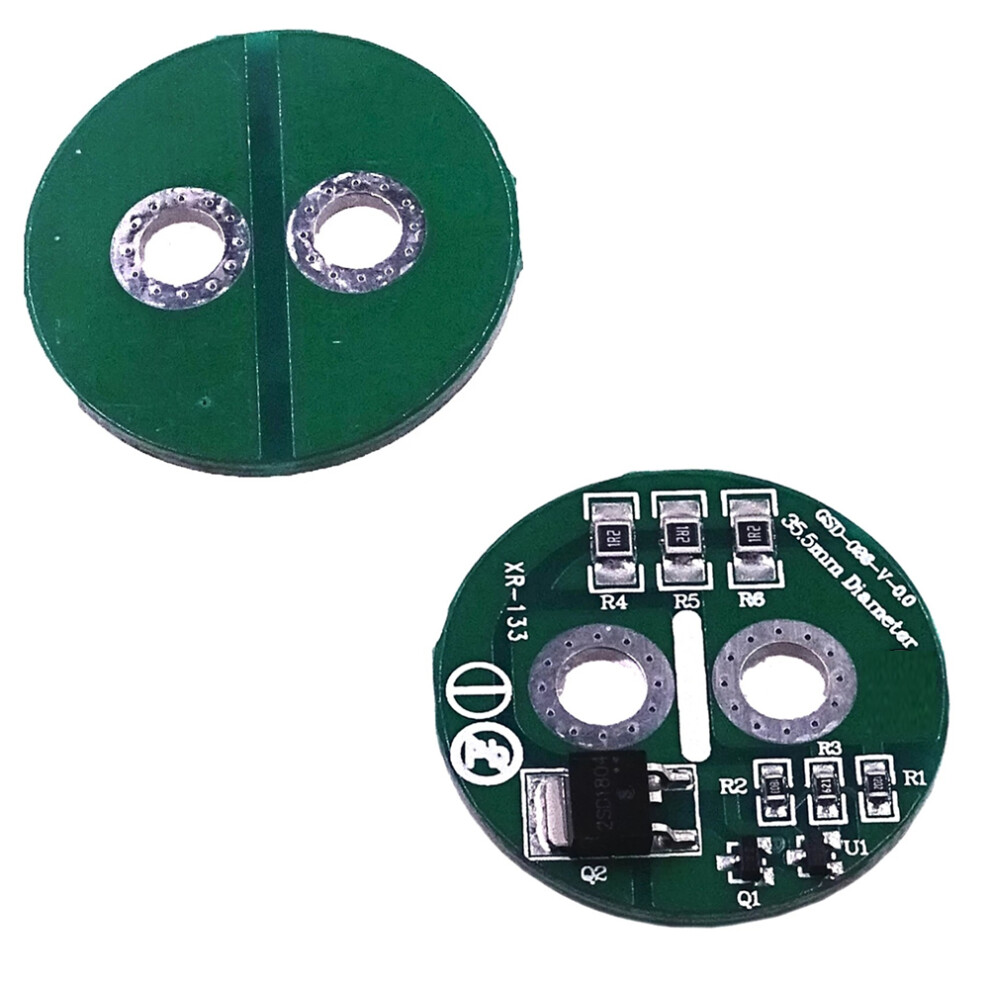

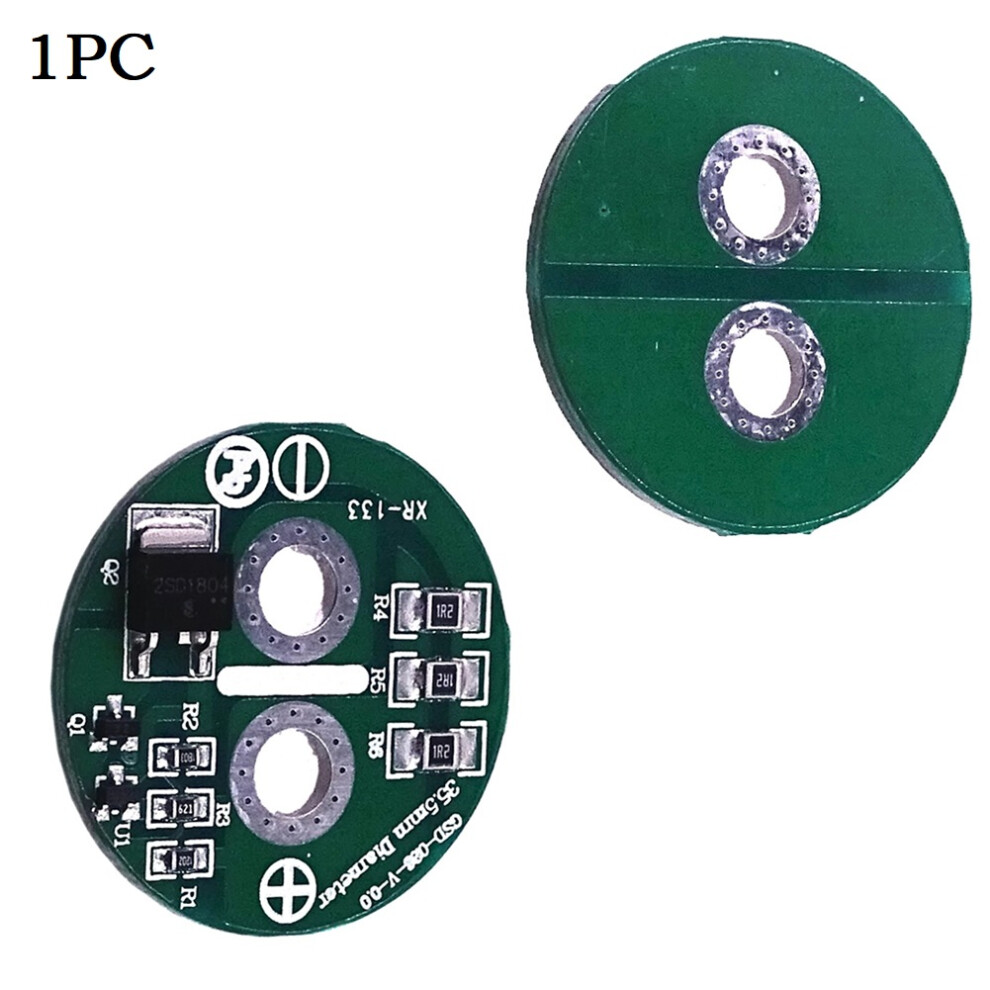

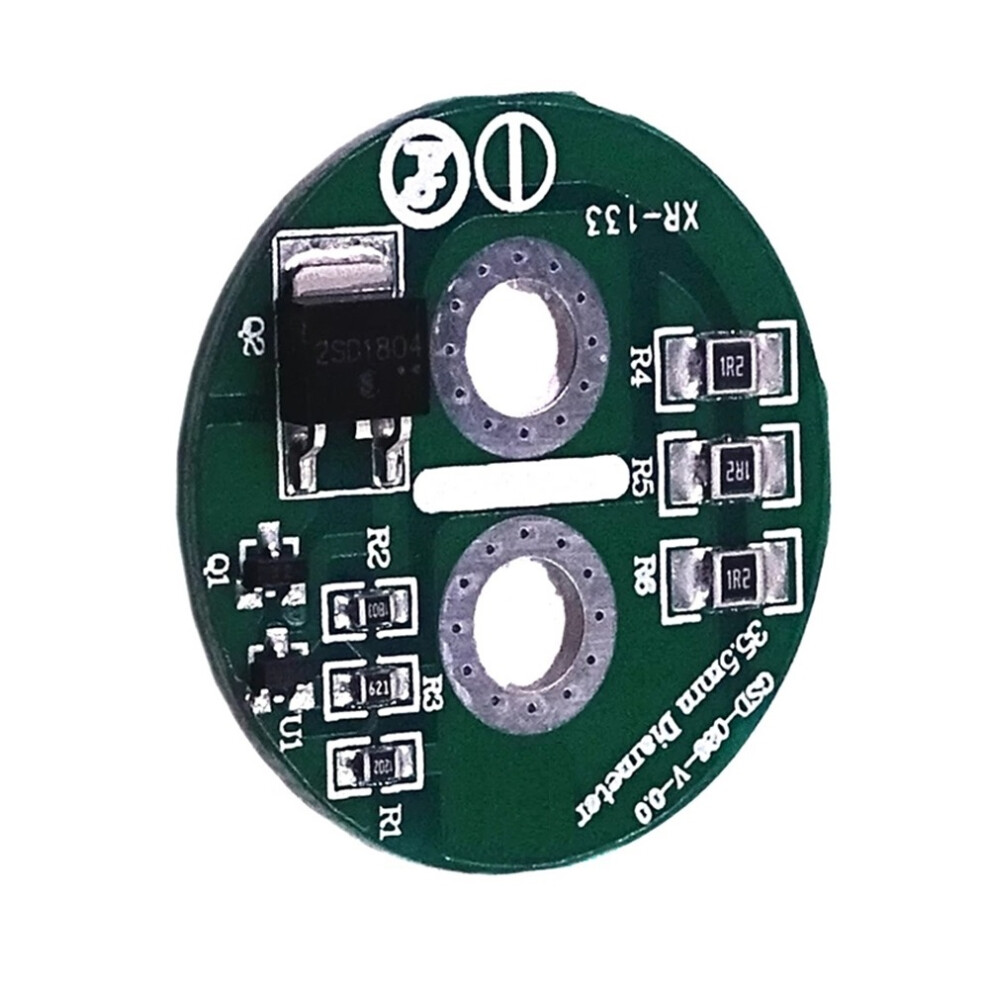

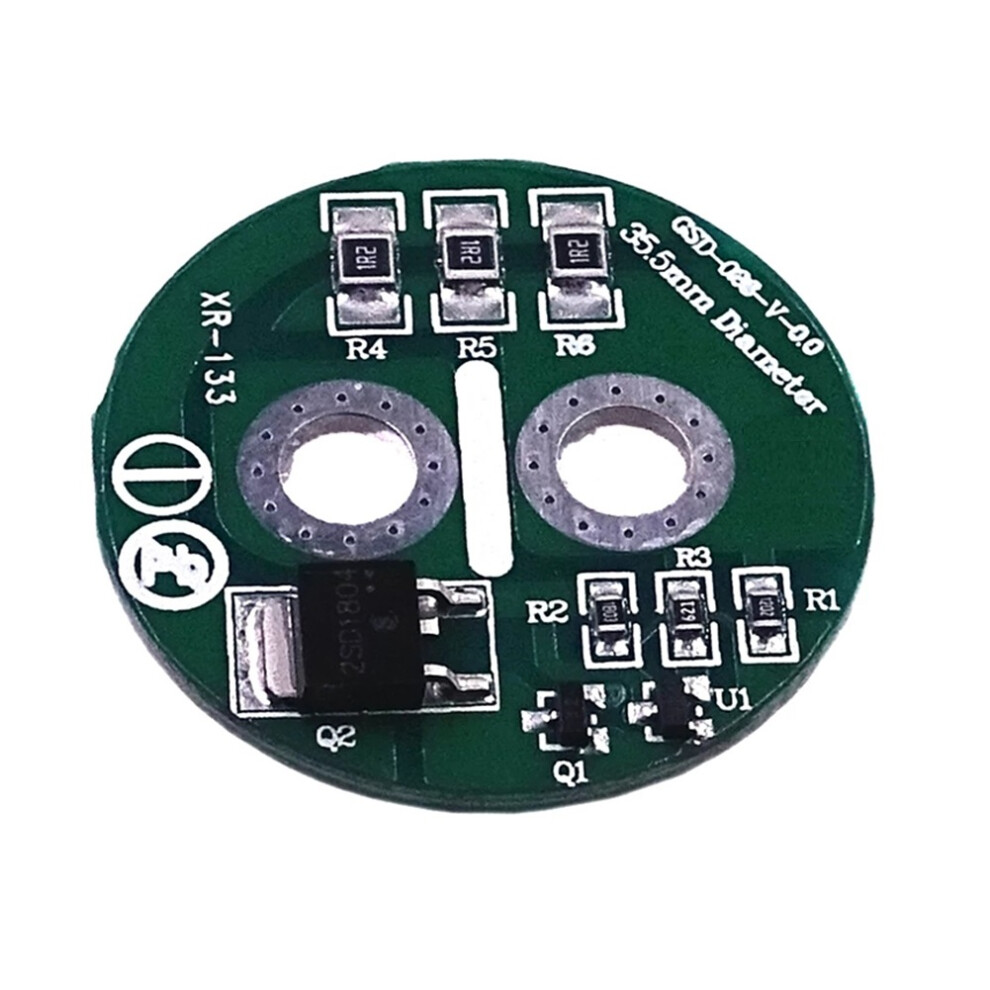

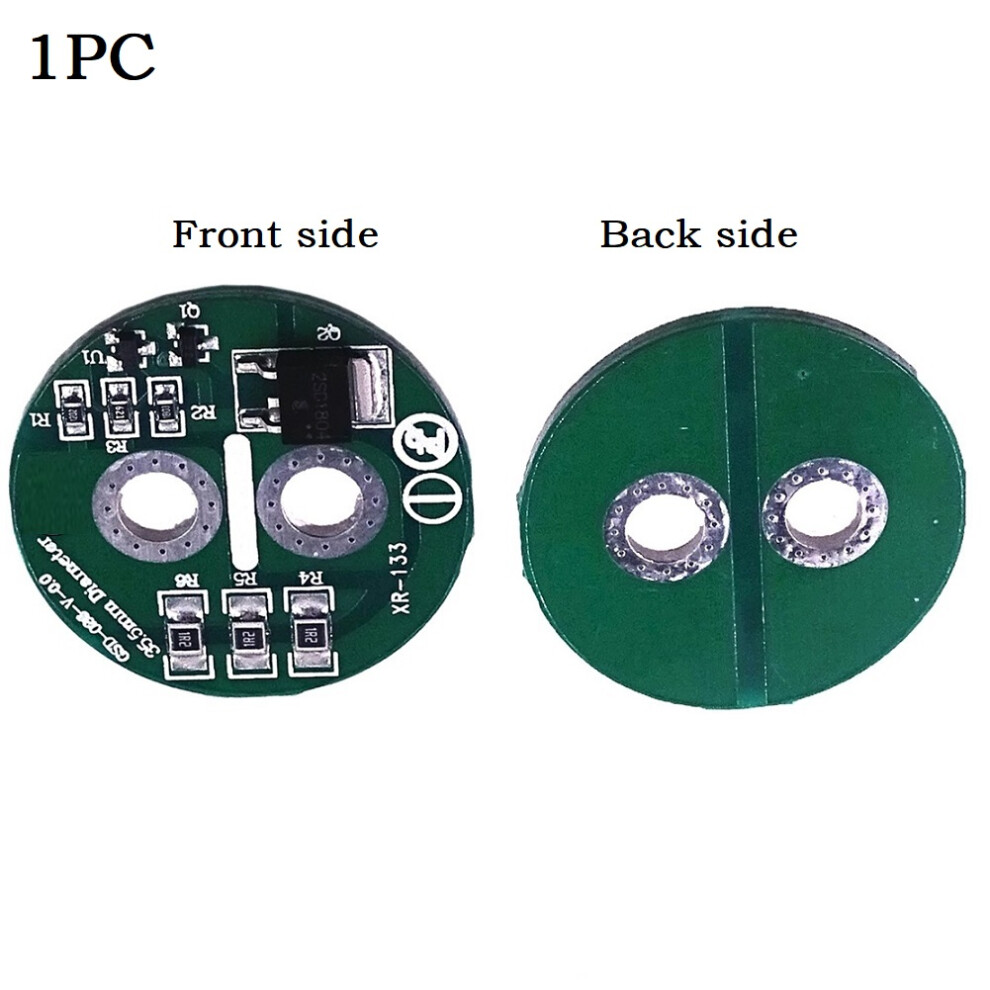

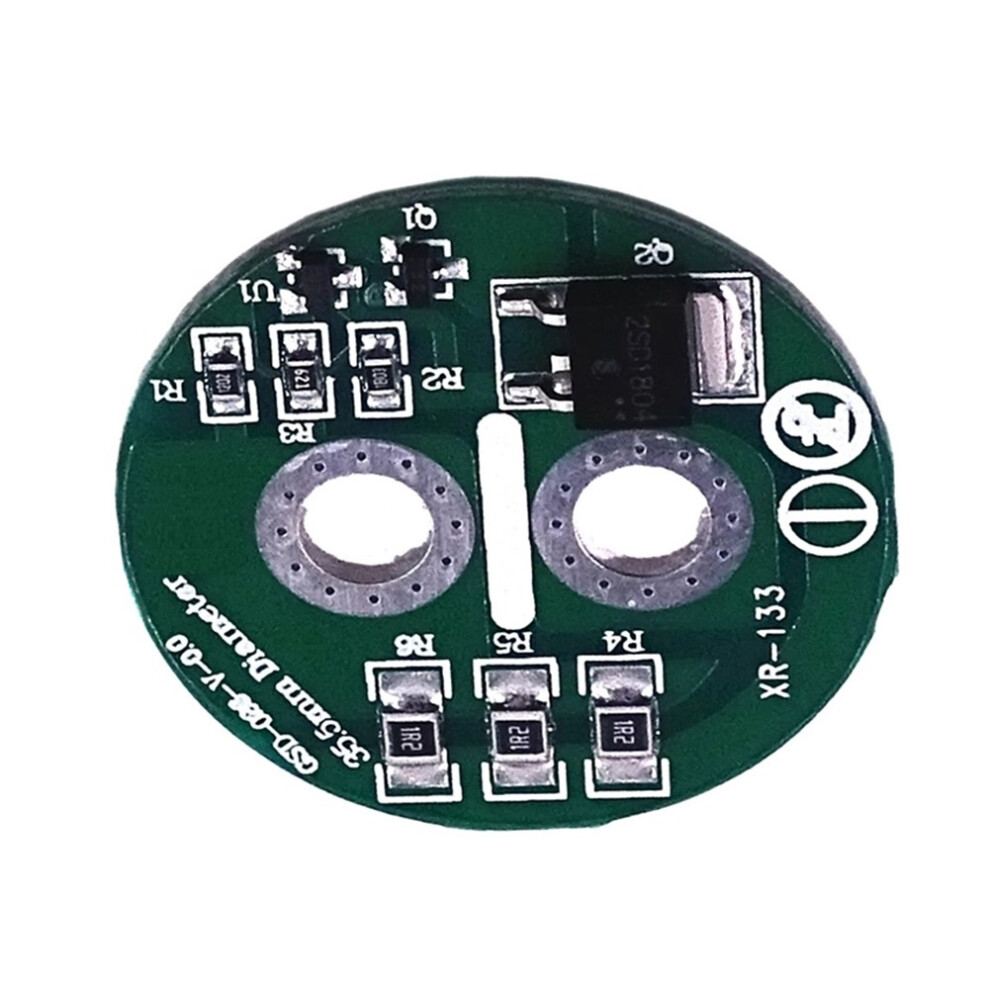

3.5cm 2.7V 500F Super Capacitor Balancing for Protection Board Module Electrical Components

Specifications:

Material: Electrical Components

Color: See Pictures

Max Charging Input Voltage: 2.7V(monomer)

Max Charging Current: Unlimited(Capacitor need to be matchable)

Max Discharging Current: Unlimited(Capacitor need to be matchable)

Min Discharging Voltage: 0.1V

Charging Operating Temperature: -4085C

Discharging Operating Temperature: -4085C

Balanced Starting Voltage: 2.65V

Balanced Current: 1A

Balance Mode: Charge equalization energy dissipation

Caul Plate Resistance: 8mΩ

Caul Plate Static Power Consumption: n*50uA

Caul Plate Working Power Consumption: n*1mA

Package includes:

1 x for Protection Board

Notes:

1.Transition: 1cm=10mm=0.39inch.

2. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

3. Please allow slight manual measurement deviation for the data.
