Comprehensive Electronic Design Tools 3Piece Multifunctional PCB Ruler Set With Size Reference Information

Comprehensive Electronic Design Tools 3Piece Multifunctional PCB Ruler Set With Size Reference Information Description

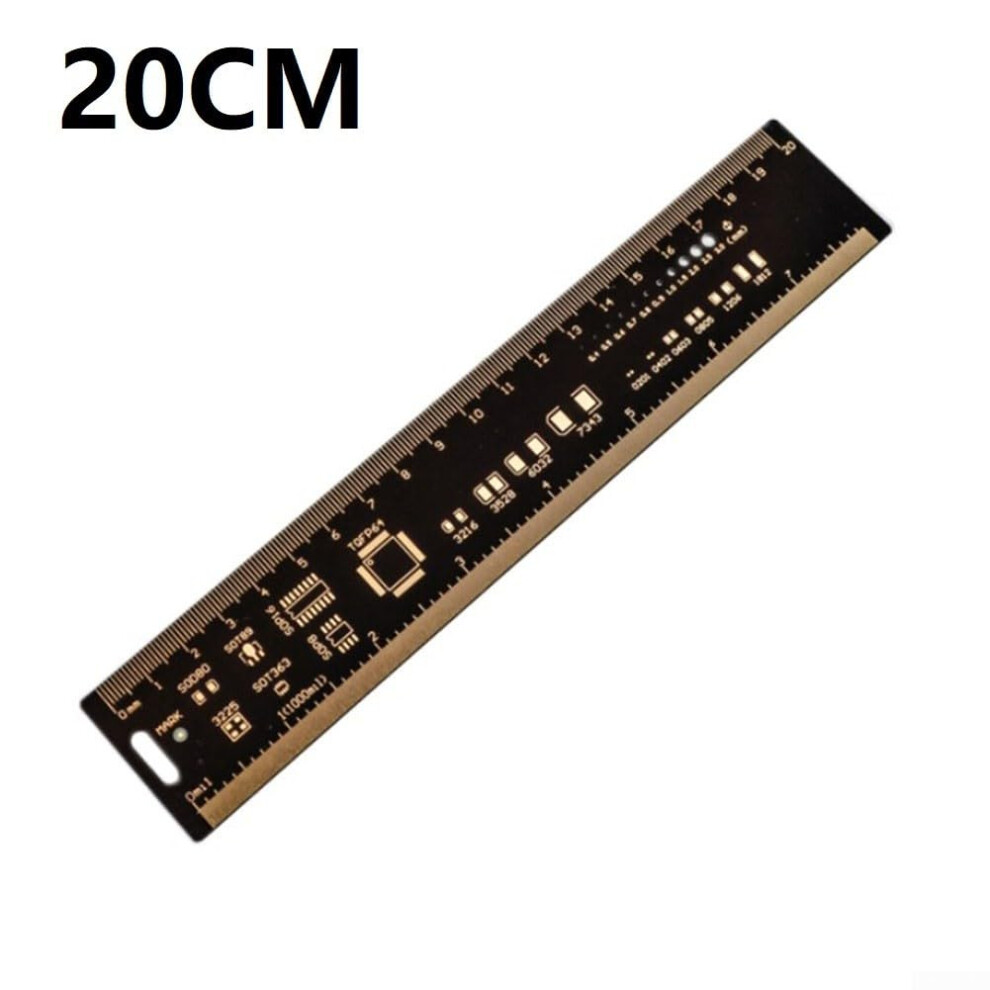

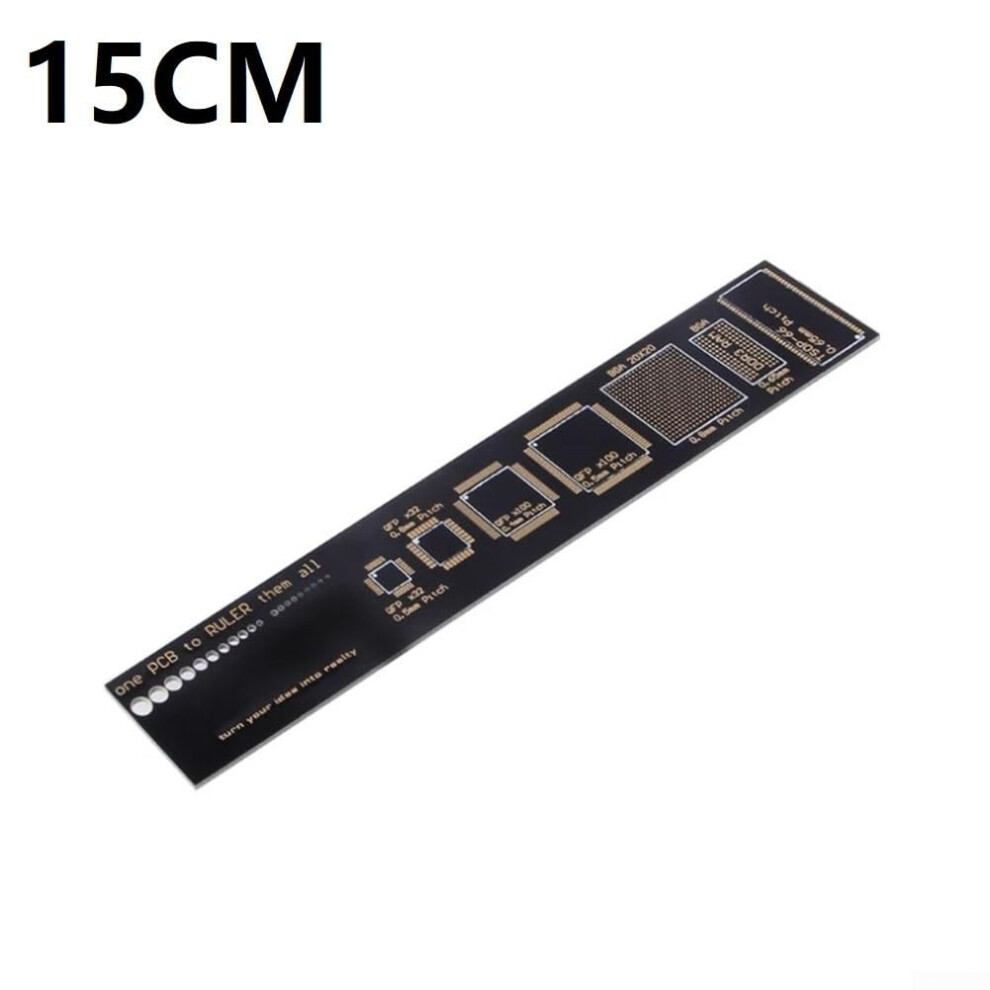

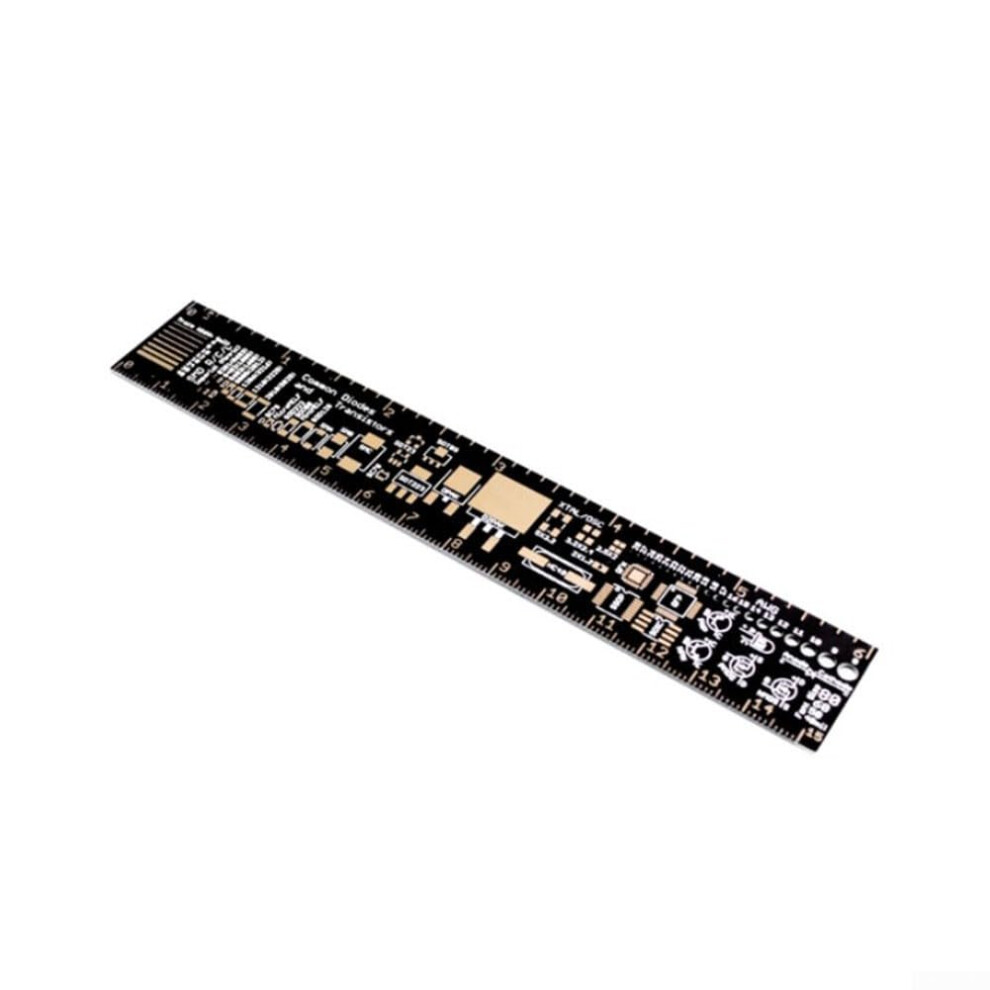

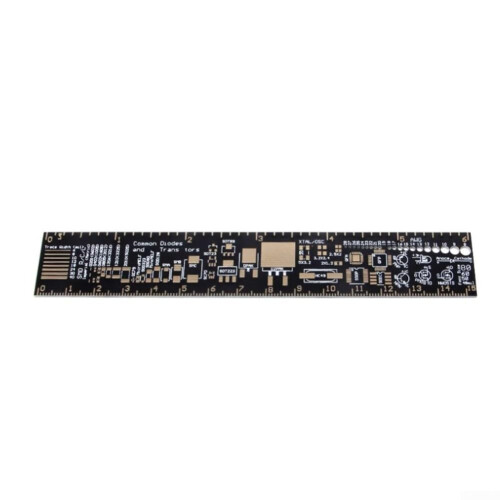

Multifunctional PCB Ruler a 3piece FR4 goldplated PCB ruler set What you get Rulers in 15 cm, 20 cm, and 25 cm lengths, made from FR4 goldplated PCB material, with accurate metric and inch measurements Key benefits Allinone reference for PCB work Printed directly on the rulers are angle gauges, device and IC pin spacing tables, resistor and capacitor chip package references, and common diameter drills. These references are available during the design process for quick, onthefly access. Broad compatibility and footprint guidance Supports common software and component packages including SOT89, SOT8, SOP16, SOT363, 3225, SOD80, MARK, TQFP64 Includes references for resistor and capacitor chip packages such as 0201, 0402, 0603, 0805, 1206, 1812, 3216, 3528, and 6032 Also provides line width references and angle measurements up to 180 degrees Durable, construction Made from quality FR4 goldplated PCB material for a look and longlasting wear resistance Built to withstand frequent use while maintaining accurate measurements and readable references Designed use scenarios During PCB design and layout Use the printed references to select footprints, verify pin spacing, and check hole sizes and drills while sketching or laying out boards During component selection and layout verification Crosscheck package sizes (eg SOT packages, SOP, QFP variants) and line widths against the ruler references to ensure proper clearance and fit In prototyping and assembly workflow Quickly confirm diameters, spacing, and angle references on the fly, reducing guesswork and design iterations This description preserves the original product specifications and functions while presenting a clear, professional, and easytoscan format.
