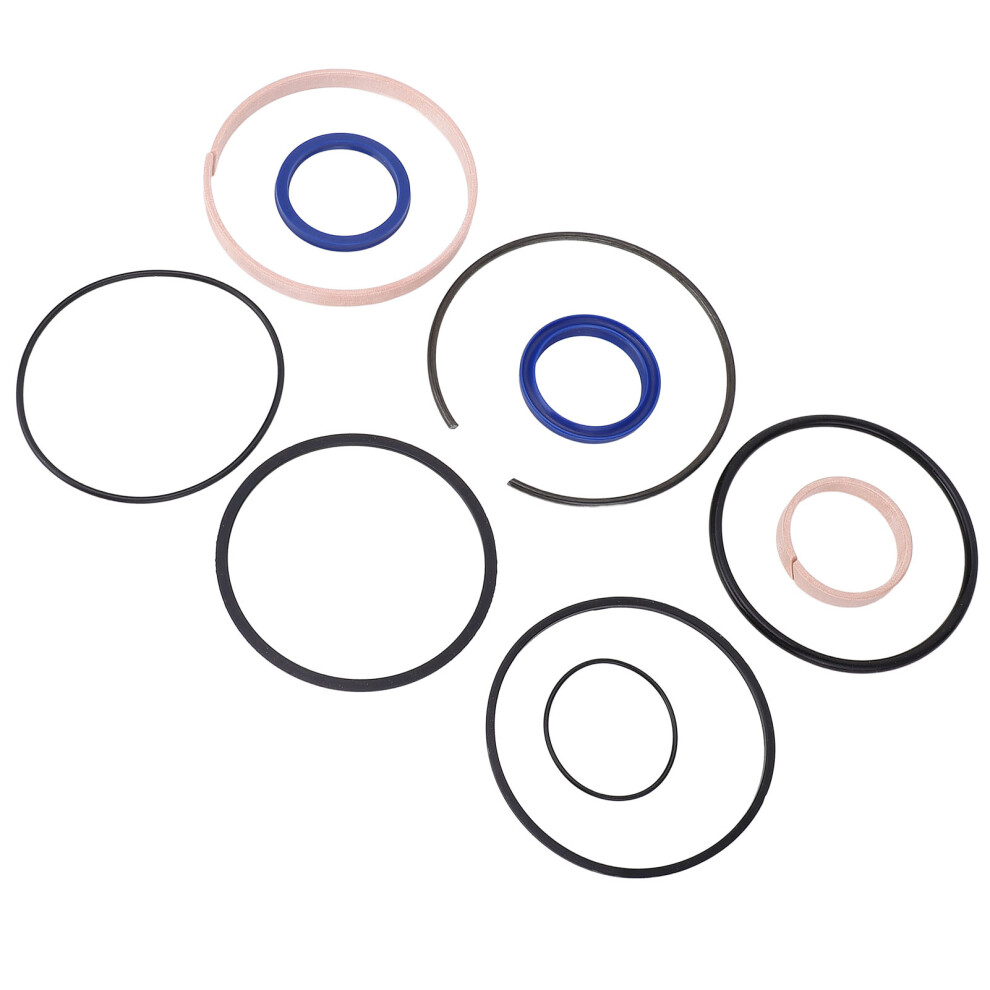

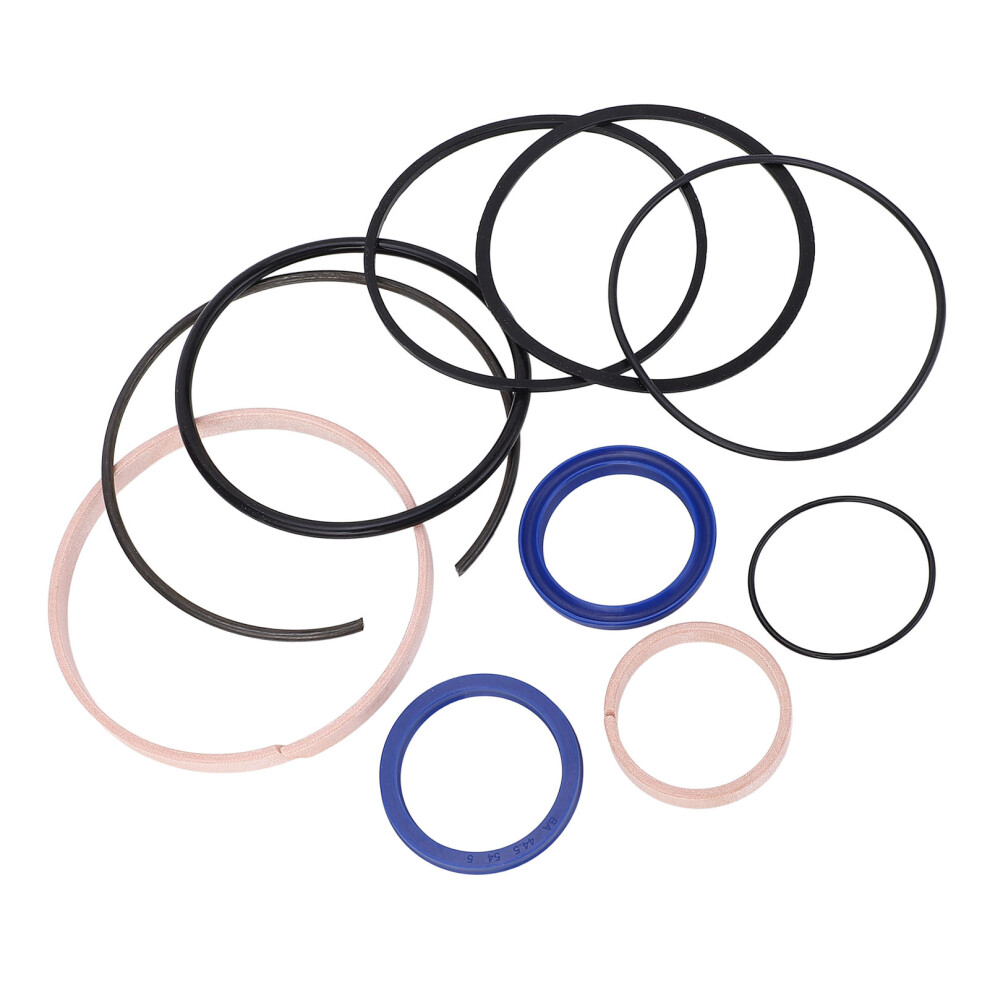

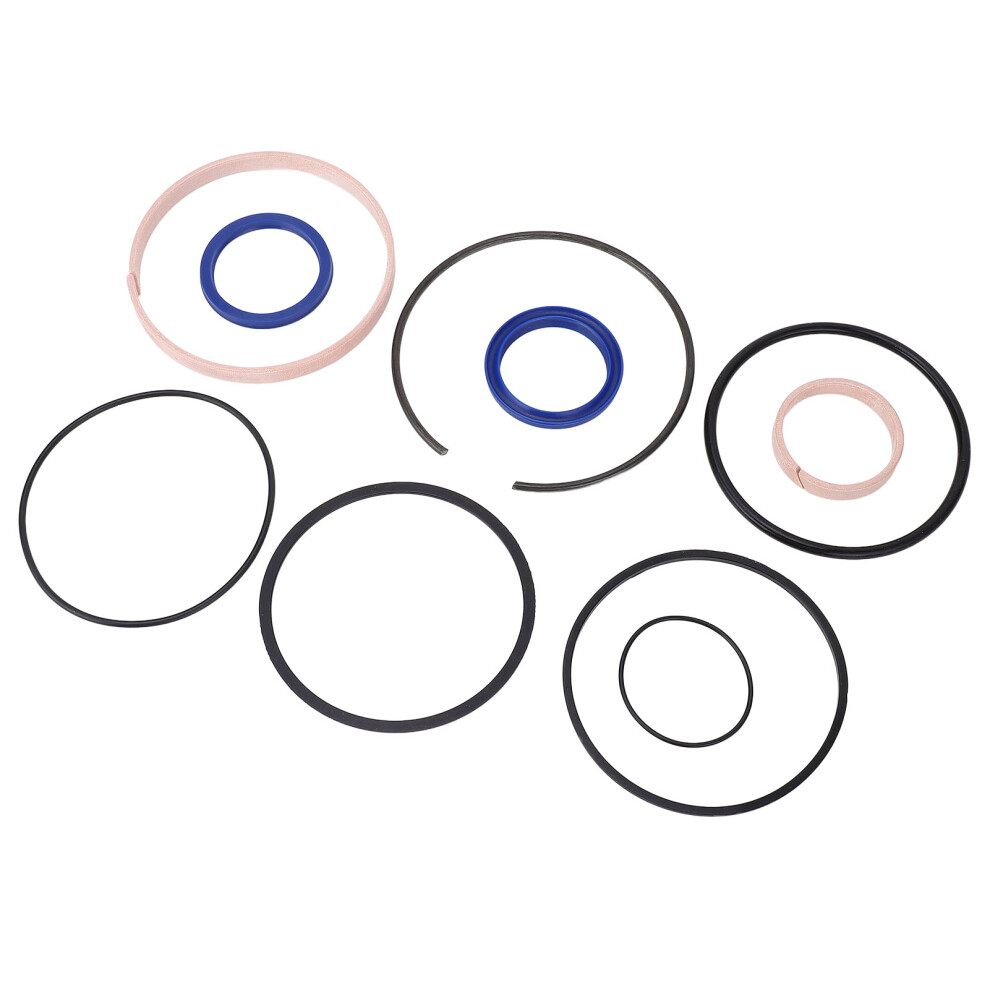

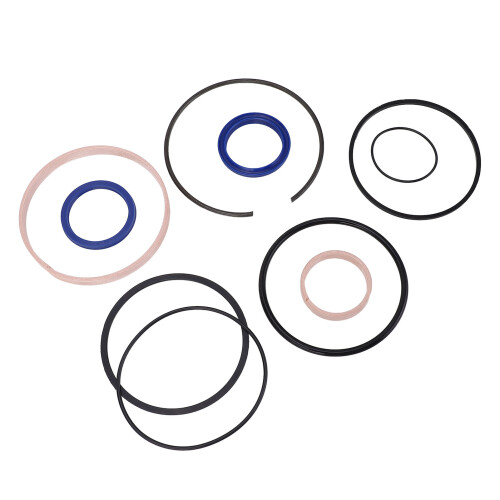

Comprehensive Seal Kit for 4.5in Bore Hydraulic Cylinders Rebuild
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£20.16
£30.09
33% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 25th - Tue 28th Jul
Returns: 30 days
180-day payment protection
Description & Details
Summary
- Perfect Fit for Hydraulic Cylinders: Designed to fit hydraulic cylinders with a bore of 4.5 inches and a rod diameter of 1.75 inches, ensuring a perfect match and efficient rebuilding.
- Durable Material: The hydraulic log splitter cylinder rebuild seal kit is constructed from high wear resistant rubber and plastic materials, guaranteeing durability and long term reliability.
- Reliable Quality: The seal kit providing trustworthy quality assurance, and ensures smooth operation of your equipment after rebuilding.
- Ideal for Hydraulic Log Splitter Rebuild: Suitable for rebuilding hydraulic log splitter cylinders, meeting your requirements for equipment maintenance and repair.
- Comprehensive Seal Kit: Comes with a variety of seals, allowing replacement of all crucial parts at once, offering convenience and time saving efficiency.
Comprehensive Seal Kit for 4.5in Bore Hydraulic Cylinders Rebuild Description
Hydraulic Log Splitter Cylinder Rebuild Seal Kit Rubber Cylinder Seal Set for 4.5in Bore X 1.75in Rod Cylinder
Item Type: Hydraulic Log Splitter Cylinder Seal KitMaterial: Rubber, plastic
Fitment:Fits for 4.5in Bore X 1.75in Rod Cylinder
To know whether it fits your cylinder, one good way is to disassemble and measure your cylinder to compare with each item specification.
1. Cylinder tube Bore (I.D.) 4.5in x rod (O.D) 1.75in. Please note: 4.5in bore size is not Cylinder tube O.D. Cylinder rod size is inside tube part size.

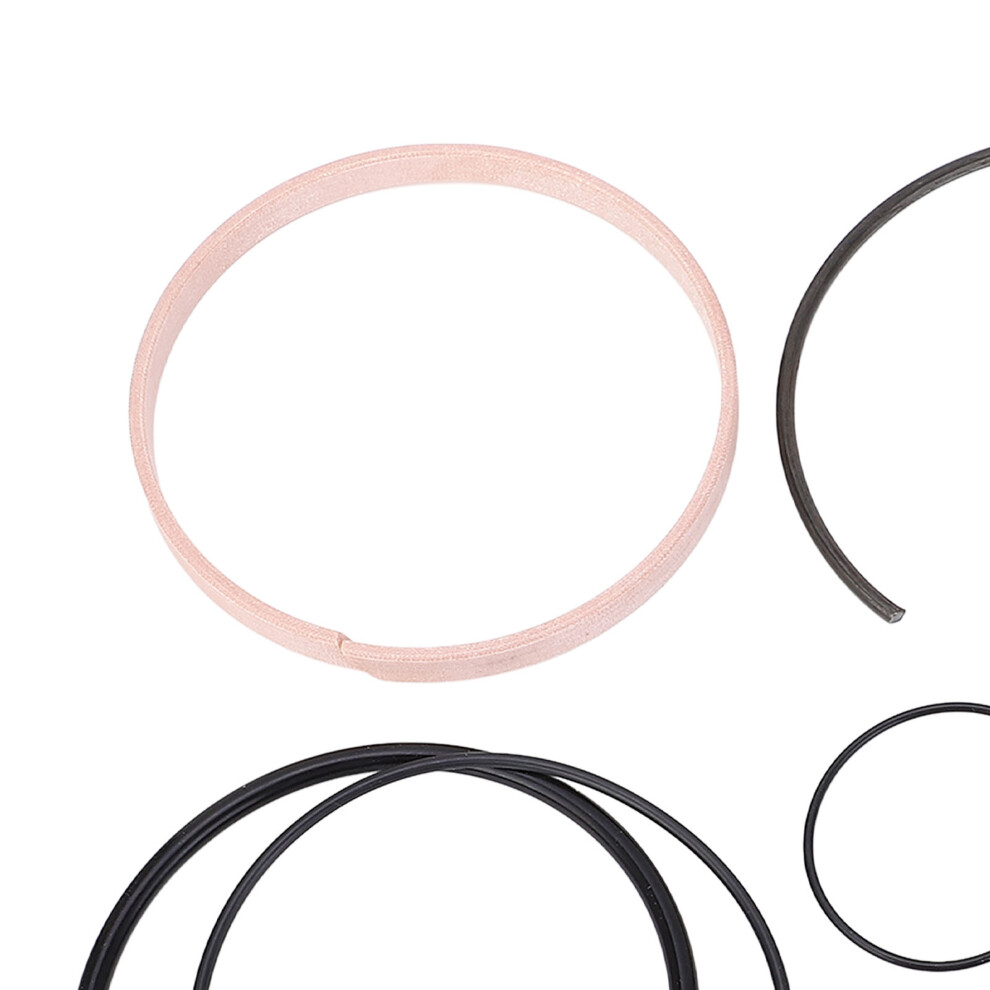

2. Piston wear ring : 114.3 mm (OD 4.5in) x 107.95mm (ID 4.25in) x 9.53mm (0.375in wide), Nylon
Rod wear ring : 44.5mm (ID 1.752in) x 50.8mm (OD 2in) x 9.53mm (0.375in wide), Nylon

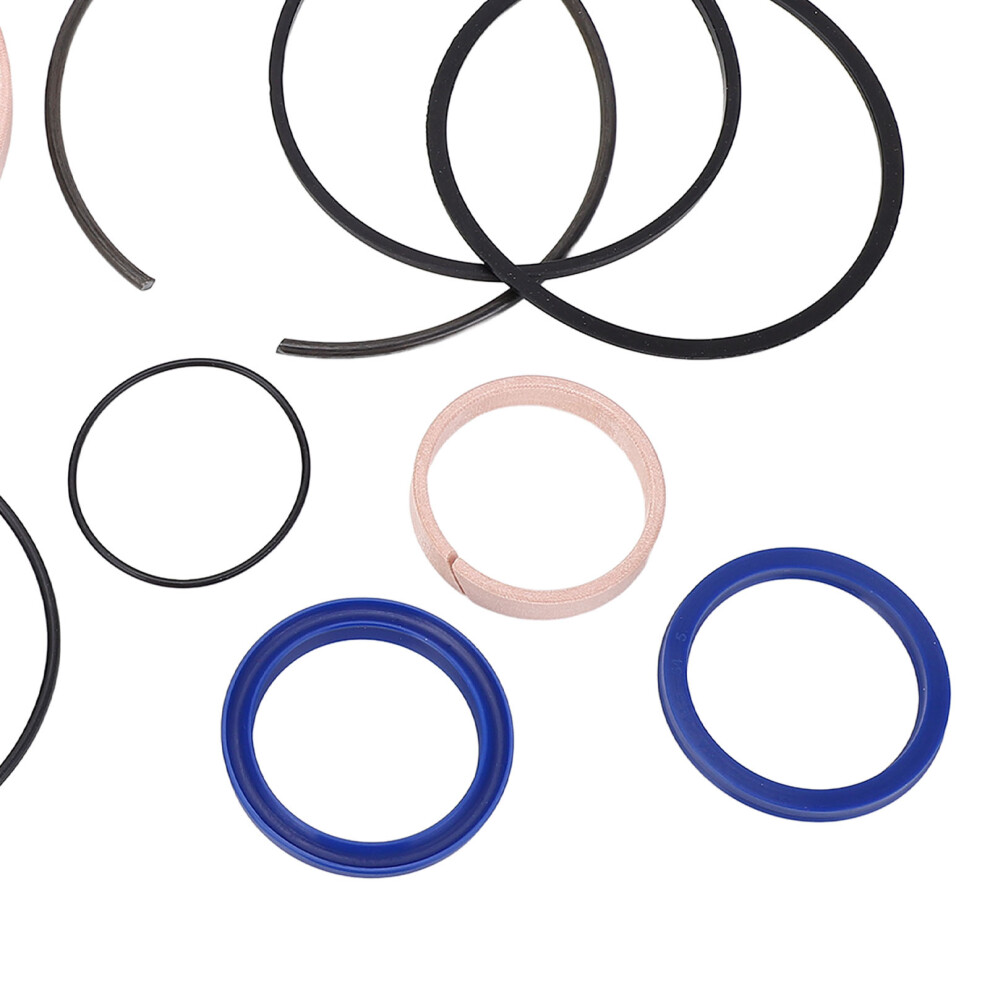

3. Piston seals
1 square ring and 1 O-ring. Piston Square ring: 114.3 mm x104.3mm x 3.28mm; O-ring (installed under the square ring): 103mm x 2.65mm. CPU + NBR
4. Rod O-ring (item 13): 44.5mm x 54mm x 5mm, CPU. There is O-ring inside.
5. Rod dust ring (Item 12): 44.5mm x 54mm 5.5mm /7.3mm, TPU
Below is 4.5inBore x 1.75in rod cylinder Specification that OEM made by this seal kit:
Retracted (center to center between rod mountain hole and clevis hole: 32.4in
Extended (center to center same as above): 56.4in
Stroke: 240.05in
Dimension from center of clevis hole to back face of cylinder: 2.95in
Dimension from center of rod end hole to front face of rod: 1.06in
Dimension from center of rod end hole to front face of cylinder: 1.18in
Ports: 1/2in NPT
Dimension from port to port: 25.4in
Rod: 1.75in rod
Rod end mountain hole: 0.55in
Clevis Mountain hole: 1.16in
Dimension between mountain clevis to clevis: 0.87in
Thickness of each mountain clevis: 0.375in
Length of each mounting clevis: 4.125in
Details
| OPC | PJDRX7X |
|---|---|
| Codes | 4251335406654 (EAN) |
